Toyota Highlander/Kluger
2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe
Supported model
Data version 2019-11

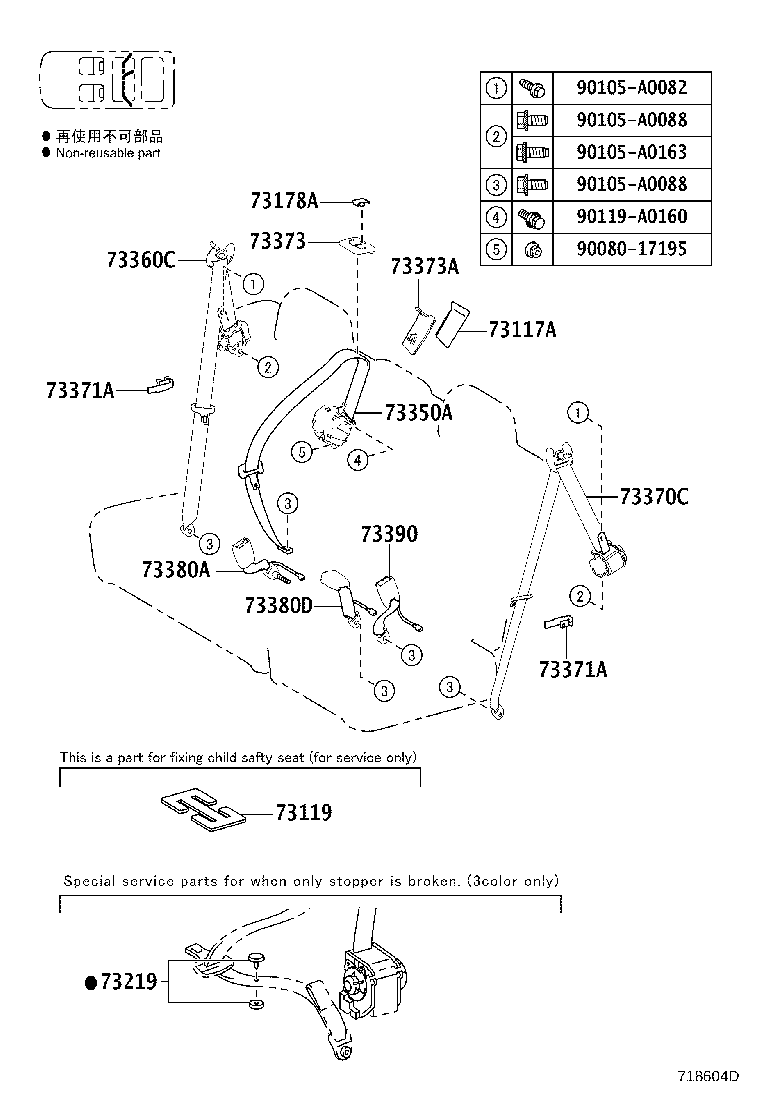

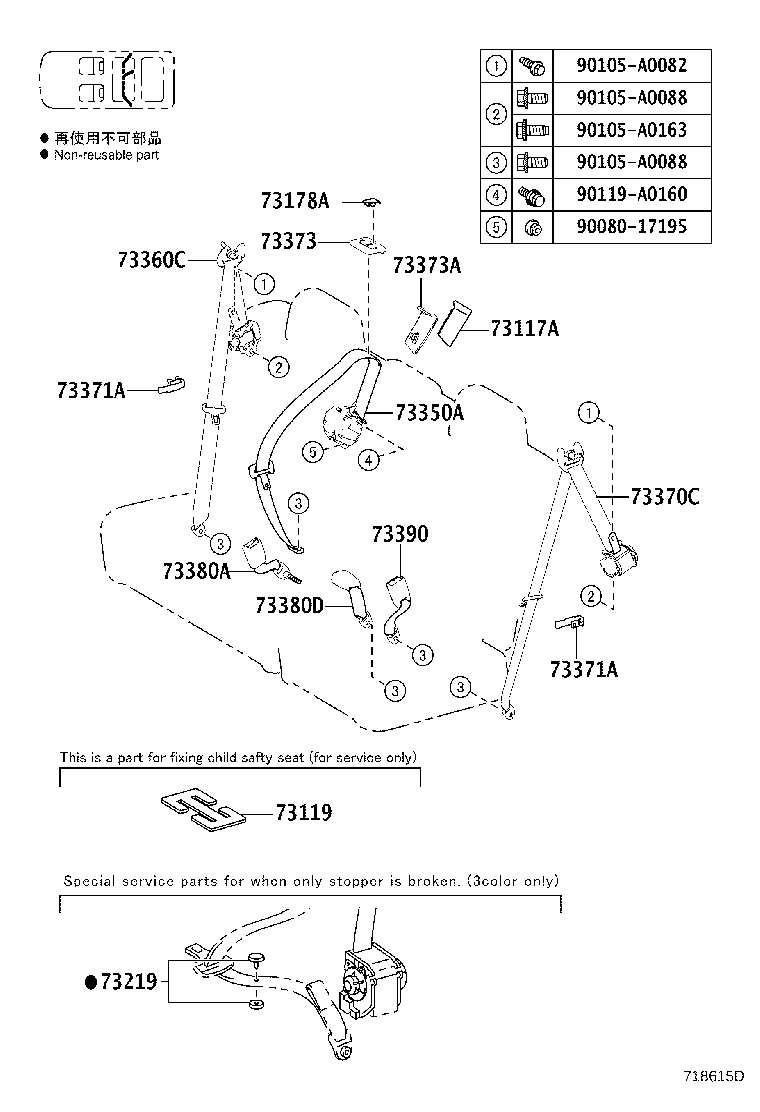

Seat Belt & Child Restraint Seat
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73117A | Protector, Belt |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223B | Cover, Front Seat Belt Retractor, RH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350A | Belt Assy, Rear NO.1 Seat Lap Type, Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73371H | Hanger, Rear NO.2 Seat Shoulder Belt |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73373A | Cover, Rear Seat Shoulder Belt, RH |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73380D | Belt Assy, Rear Seat, Inner |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
