Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

13 part groups · 3 illustrations

Illustrations

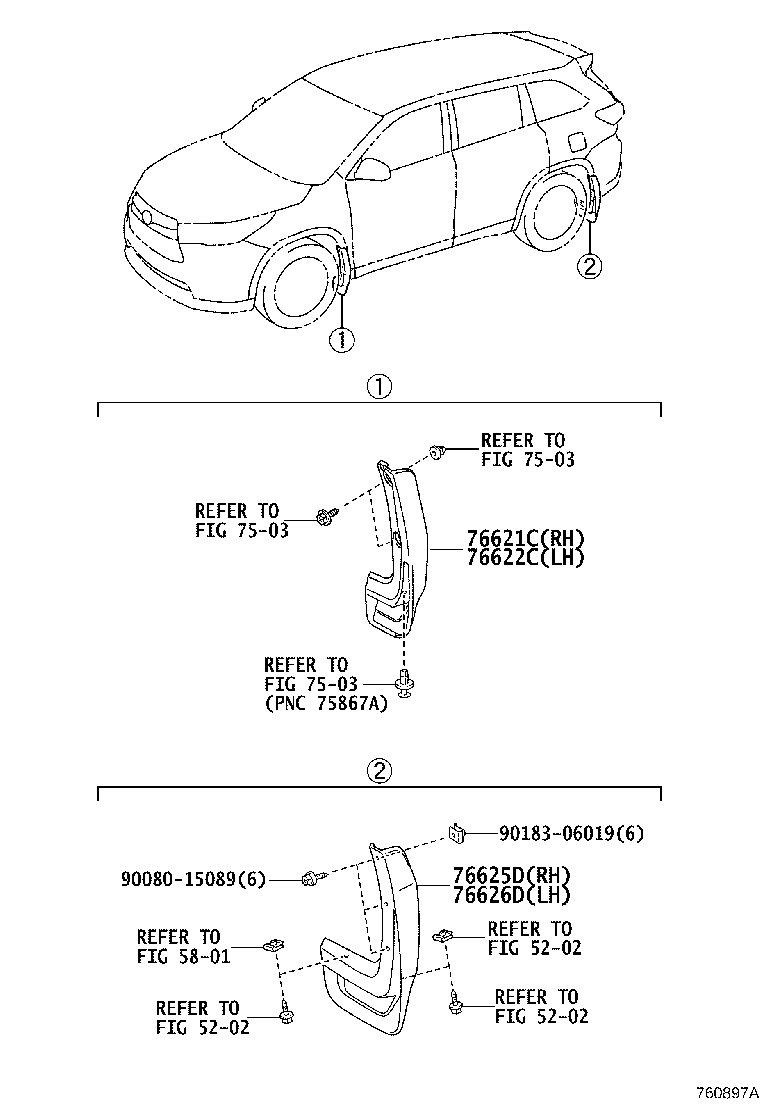

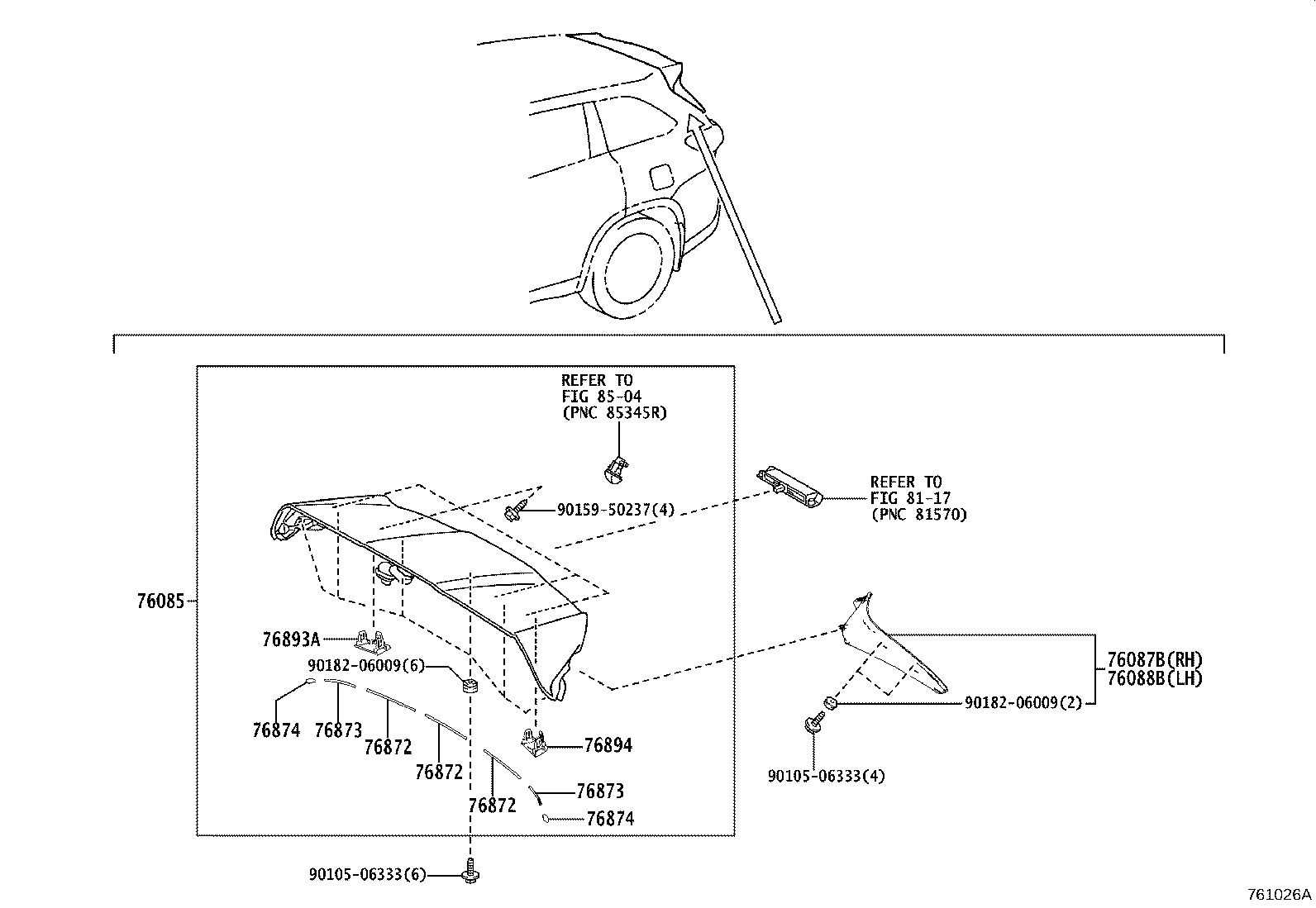

Figure 760896C 760896C 2013-12 → 2016-11 Figure 761026A 761026A 2016-11 → — Figure 760897A 760897A 2013-12 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76087B Spoiler Sub-assy, Rear Side, RH
76088B Spoiler Sub-assy, Rear Side, LH
76621C Mudguad, Front Fender, RH
76622C Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76883A Protector, Rear Sopiler, NO.7
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
