Toyota Highlander/Kluger
2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe
Supported model
Data version 2019-11
Fuel Tank & Tube
75 part groups · 8 illustrations

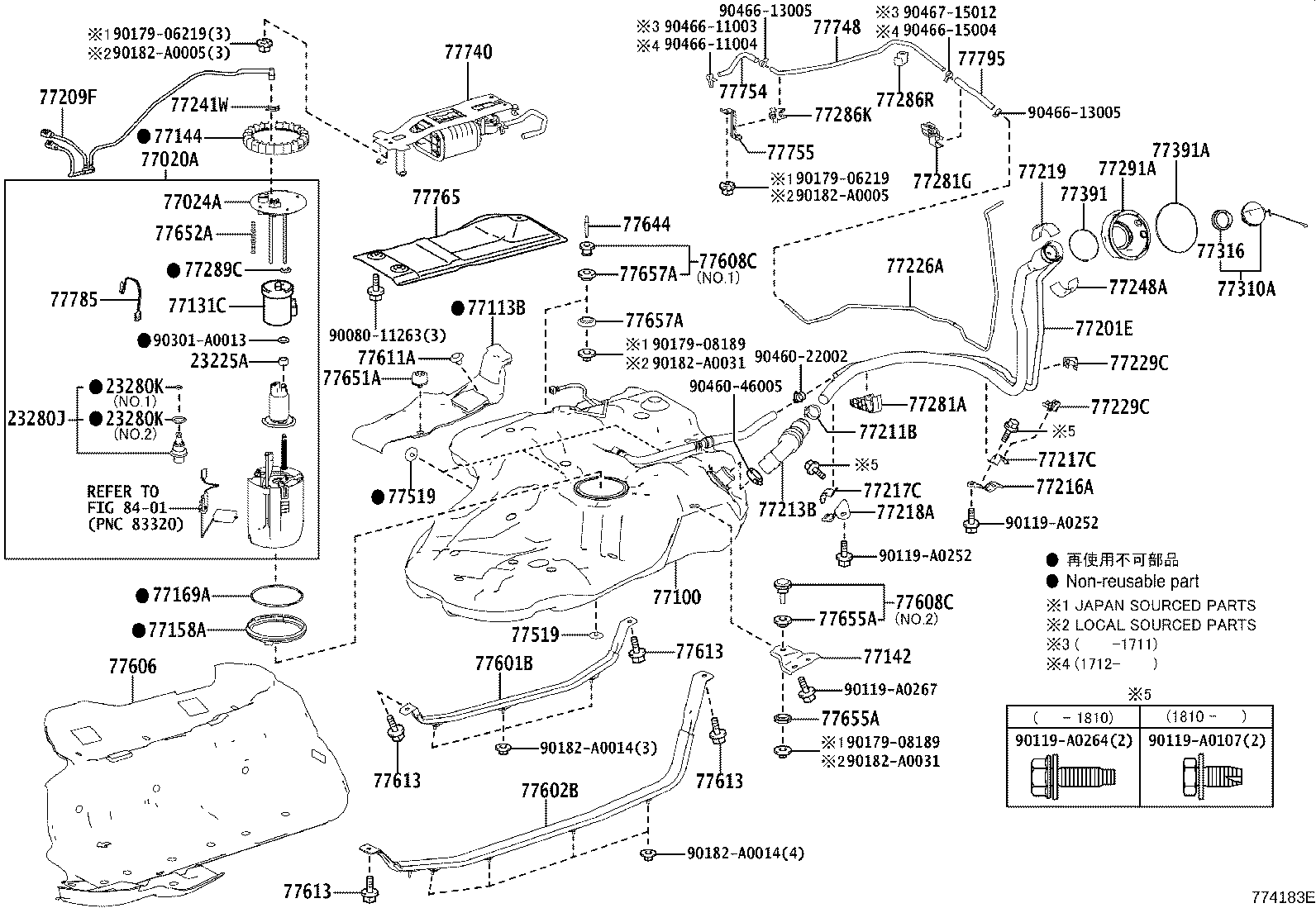

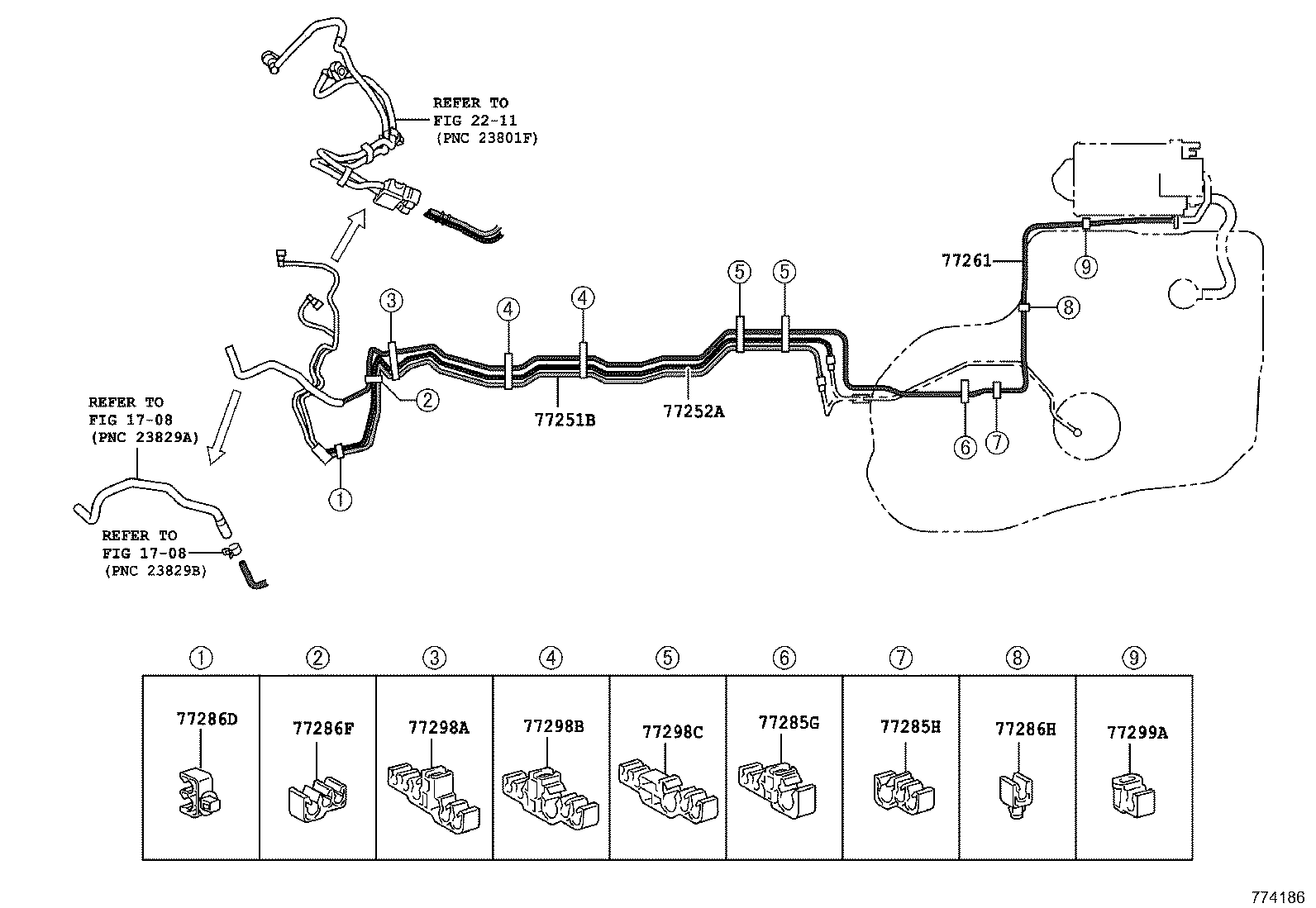

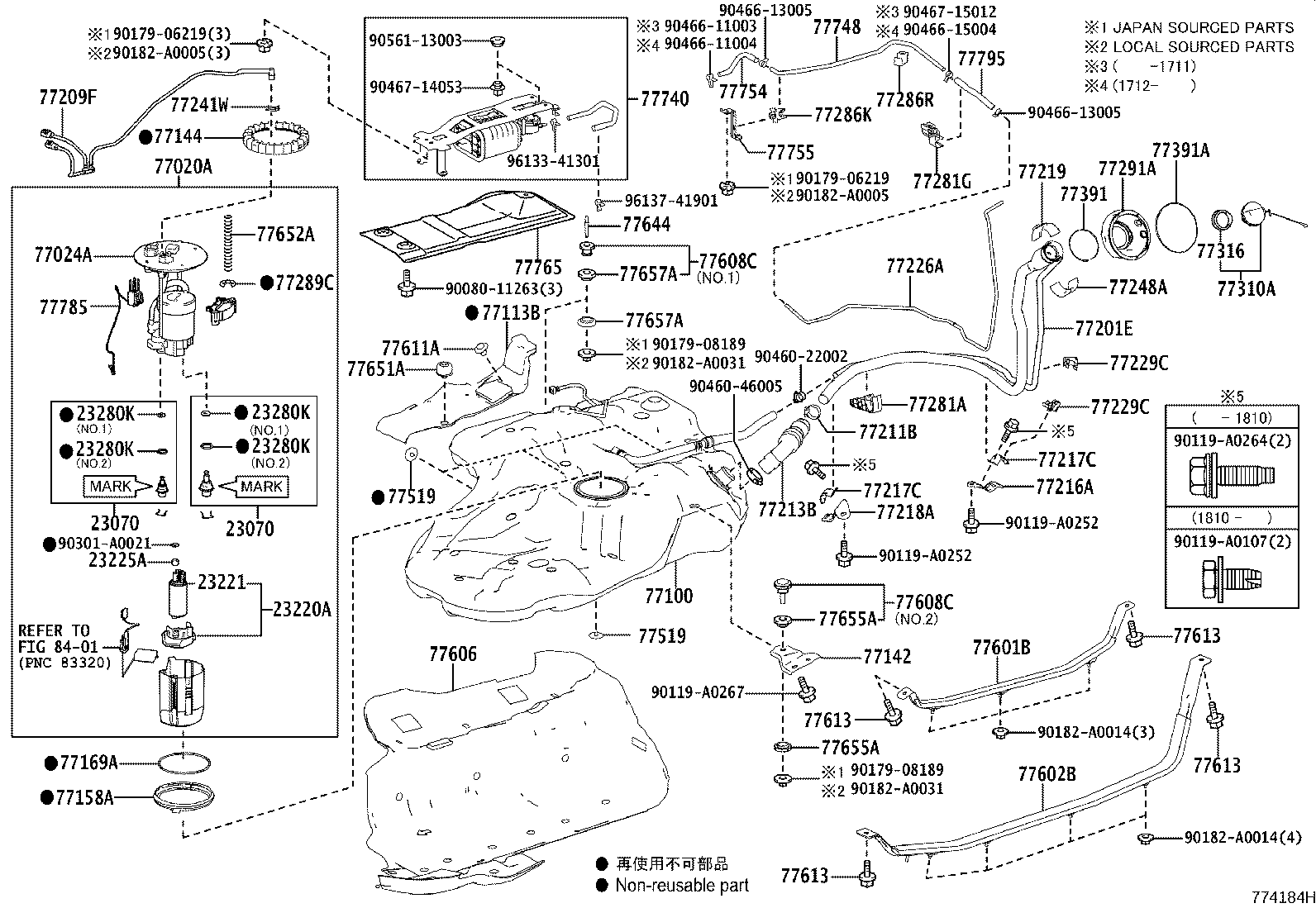

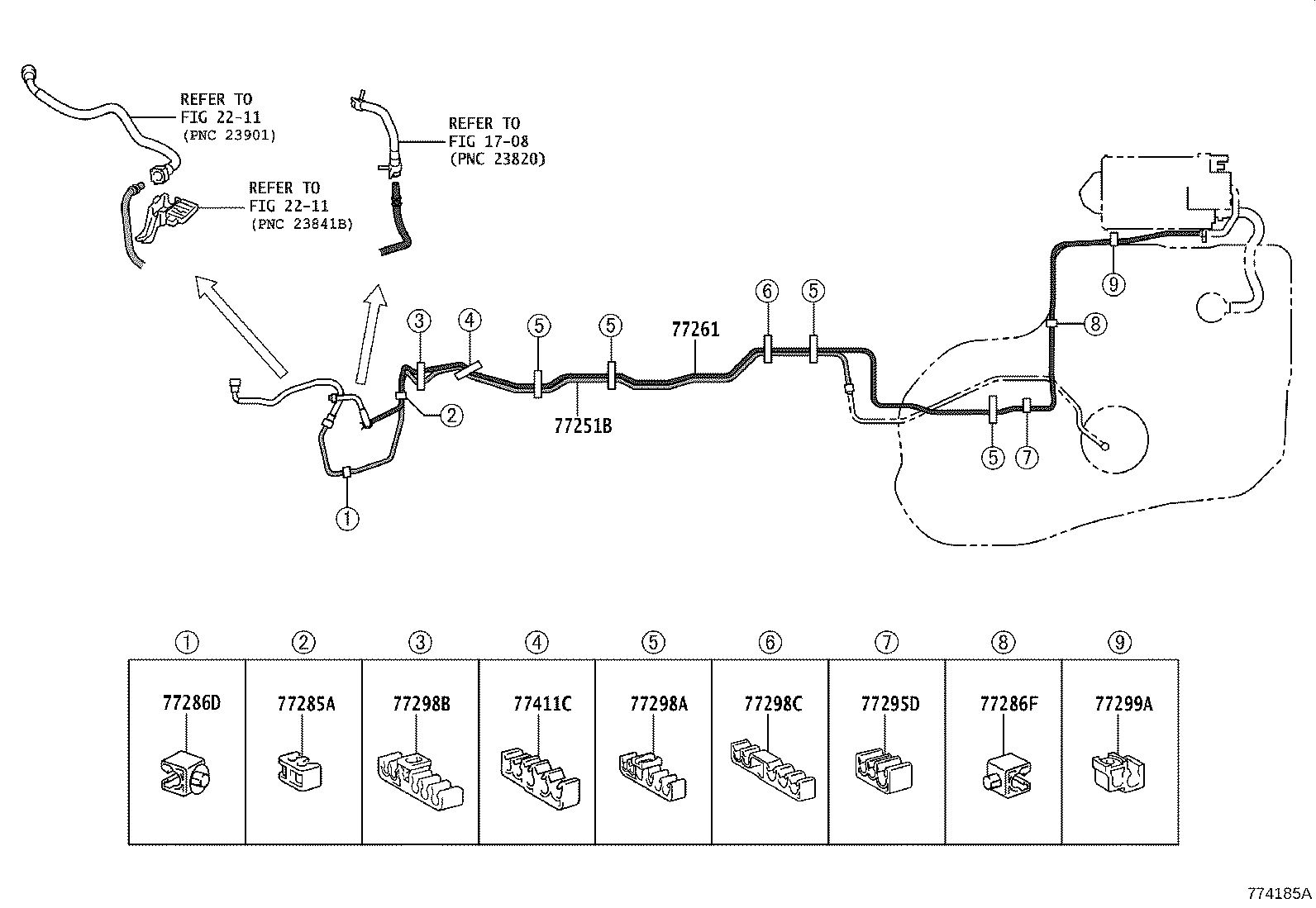

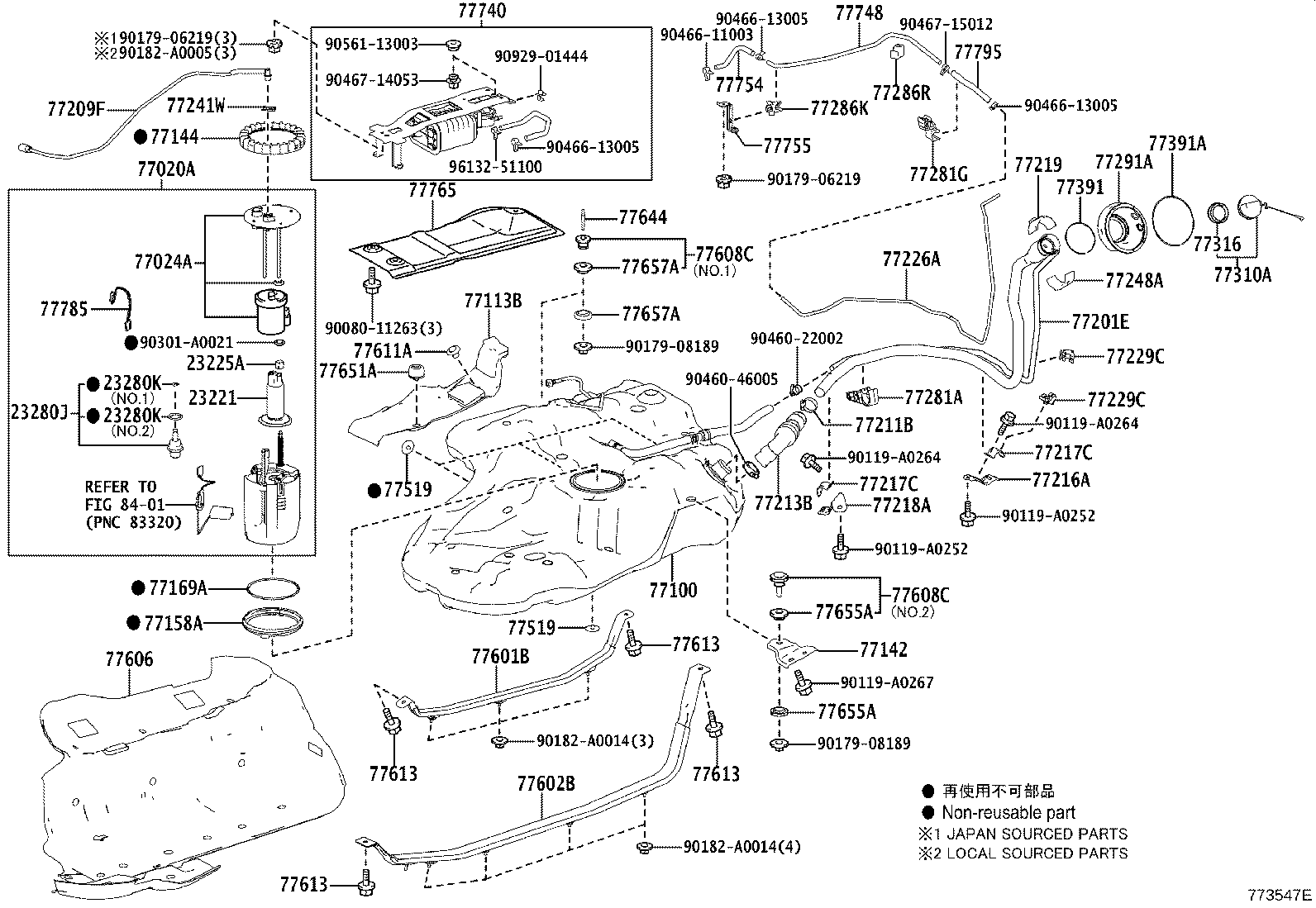

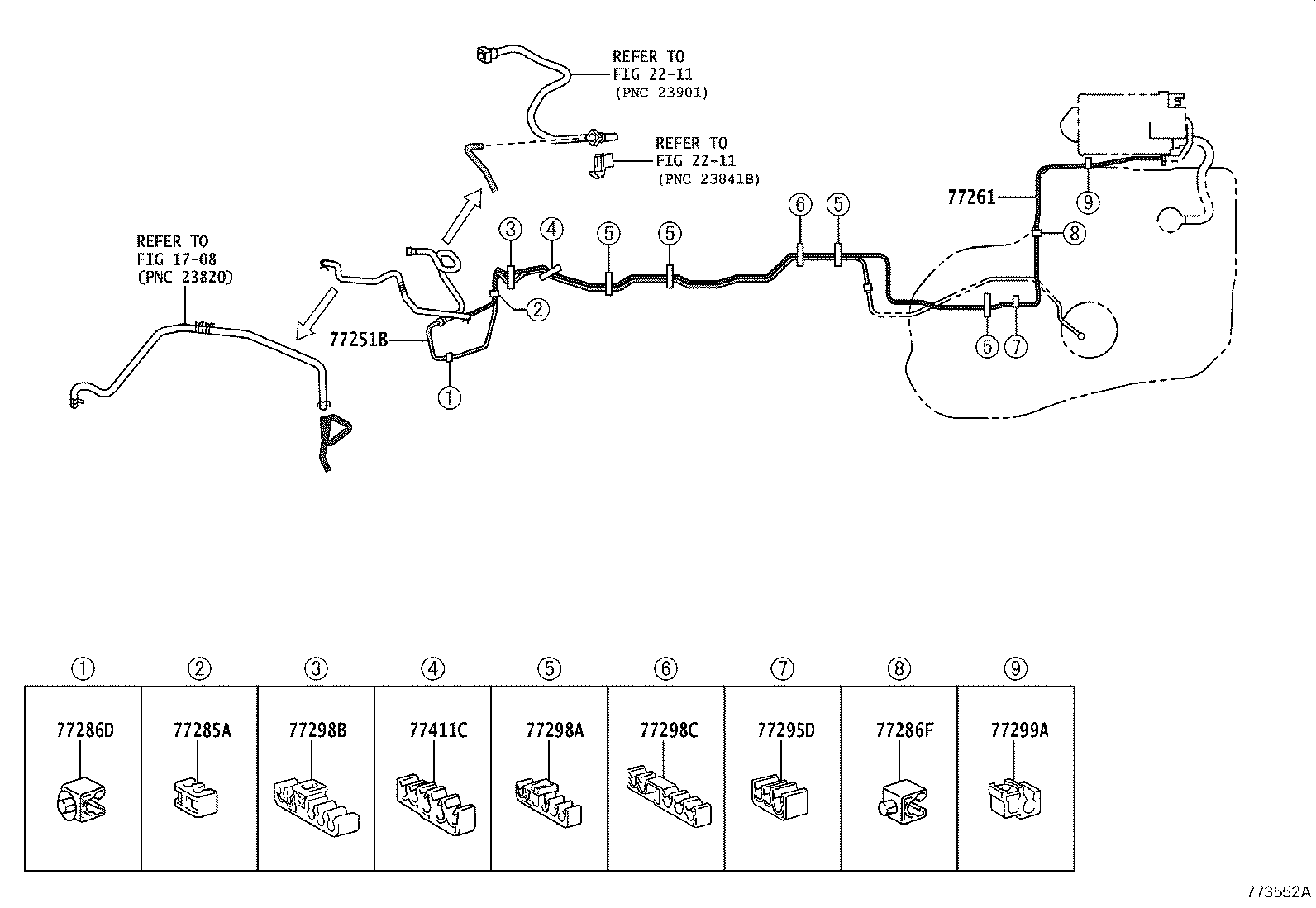

Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23220A | Pump Assy, Fuel W/Filter |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77113B | Plate, Fuel Tank Side |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77142 | Bracket, Fuel Tank Mounting, Rear |
| 77144 | Retainer, Fuel Pump Gauge |
| 77158A | Support, Tank Suction Tube |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217C | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77281A | Clamp, Fuel Filler Pipe |
| 77281G | Clamp, Fuel Hose |
| 77285A | Support, Fuel Return And Main Tube |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286R | Clamp, Fuel Tube, NO.10 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77295D | Grommet, Fuel Tube |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77411C | Support, Fuel Tube Grommet, NO.1 |
| 77519 | Spacer, Fuel Tank Bracket |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77608C | Cushion Set, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77613 | Bolt, Fuel Tank Band Set |
| 77644 | Bolt, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77655A | Cushion, Fuel Tank, NO.5 |
| 77657A | Cushion, Fuel Tank, NO.5 |
| 77740 | Canister Assy, Charcoal |
| 77748 | Pipe, Charcoal Canister, NO.2 |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77755 | Bracket, Charcoal Canister Outlet Hose |
| 77765 | Protector, Charcoal Canister |
| 77785 | Harness, Fuel Pump |
| 77795 | Hose, Charcoal Canister Outlet, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
