Toyota Highlander/Kluger
2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe
Supported model
Data version 2019-11
Interior Lamp
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230M | Lamp Assy, Courtesy, RH |
| 81230N | Lamp Assy, Courtesy, LH |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |

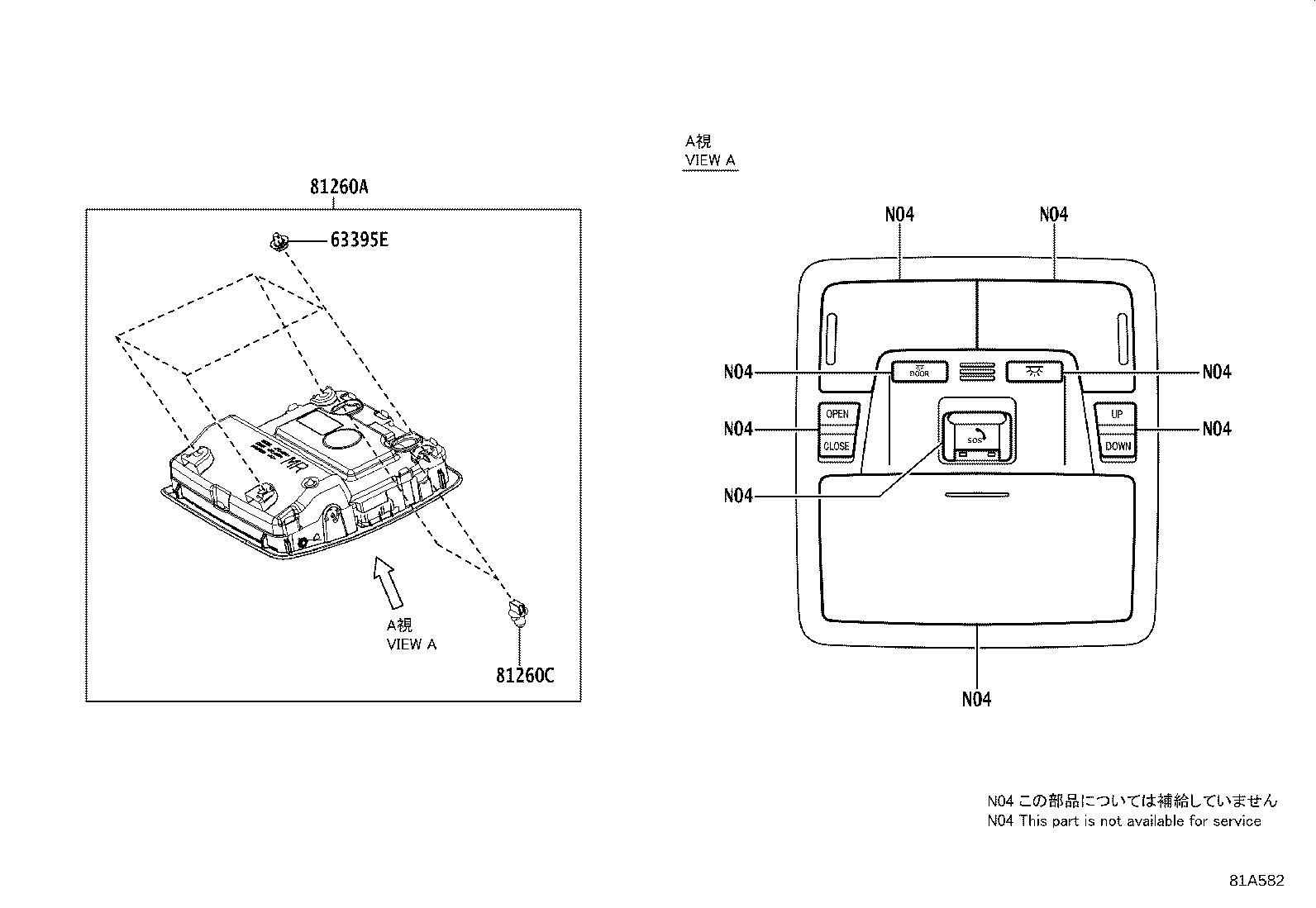

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81269 | Switch, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360K | Lamp Assy, Spot, RH |
| 81360U | Bulb, Spot Lamp |
| 81362B | Lens, Interior Illumination Lamp |
| 81362C | Lens, Interior Illumination Lamp, RH |
| 81362D | Lens, Interior Illumination Lamp, LH |
| 81390C | Lamp Assy, Spot, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
