Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

58 part groups · 19 illustrations

Illustrations

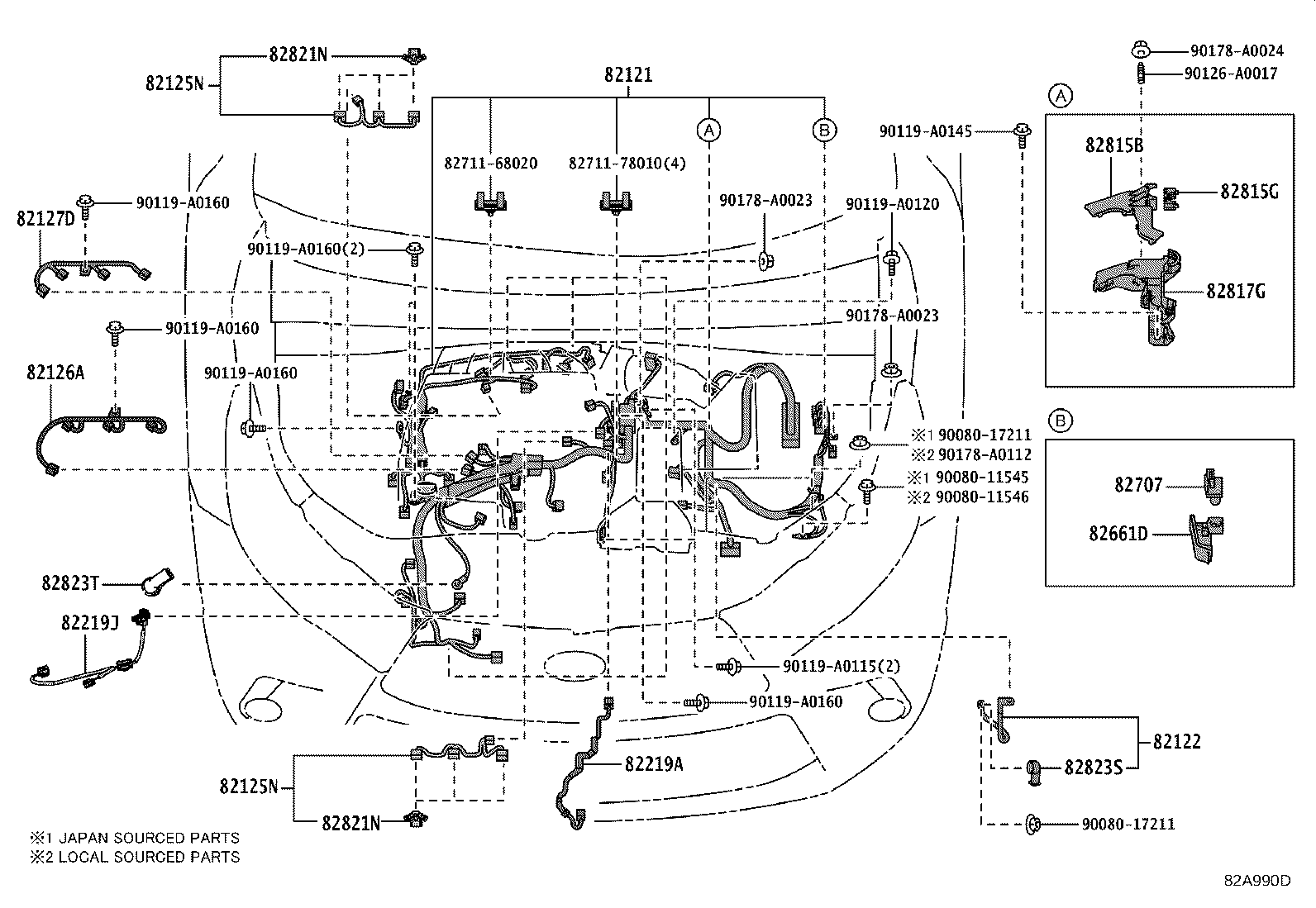

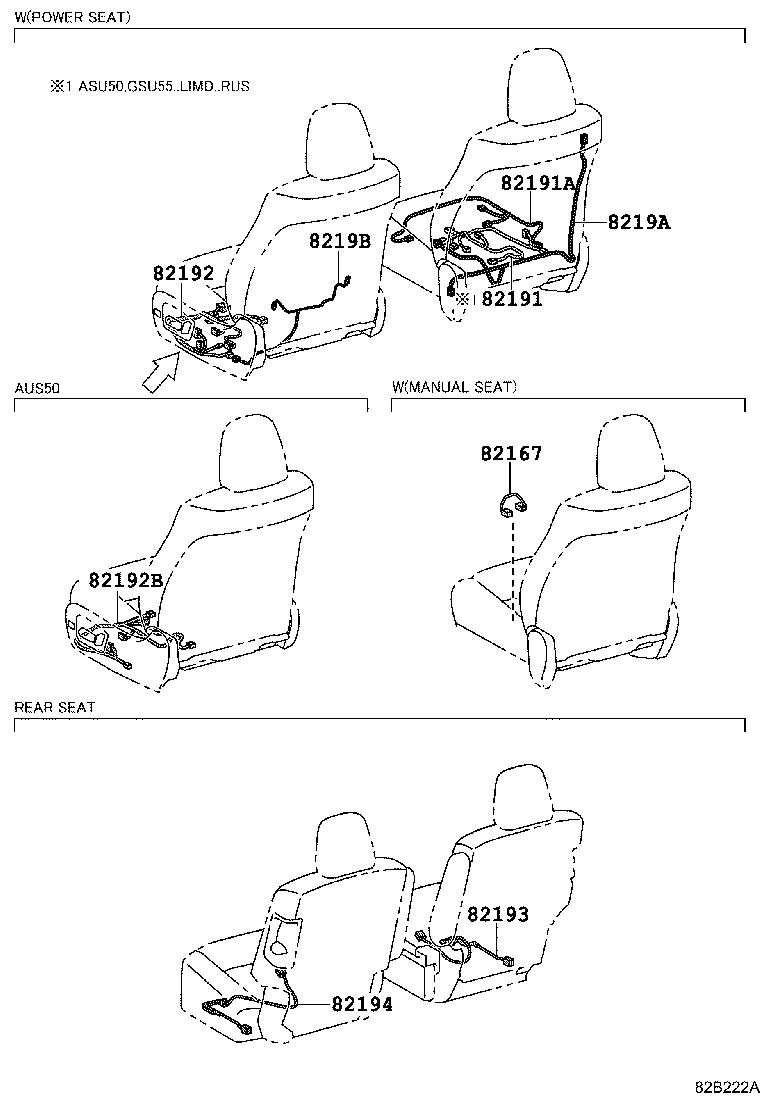

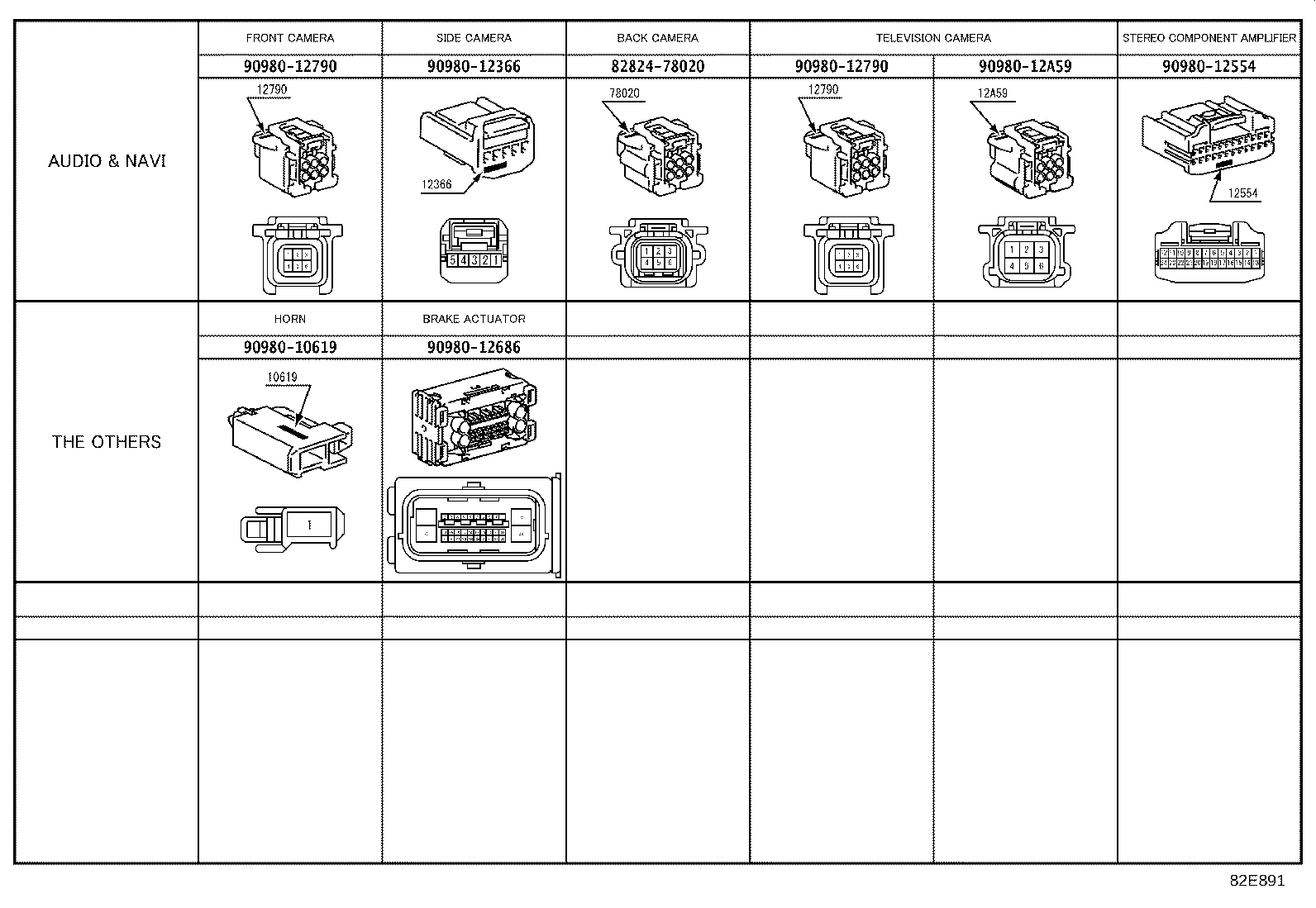

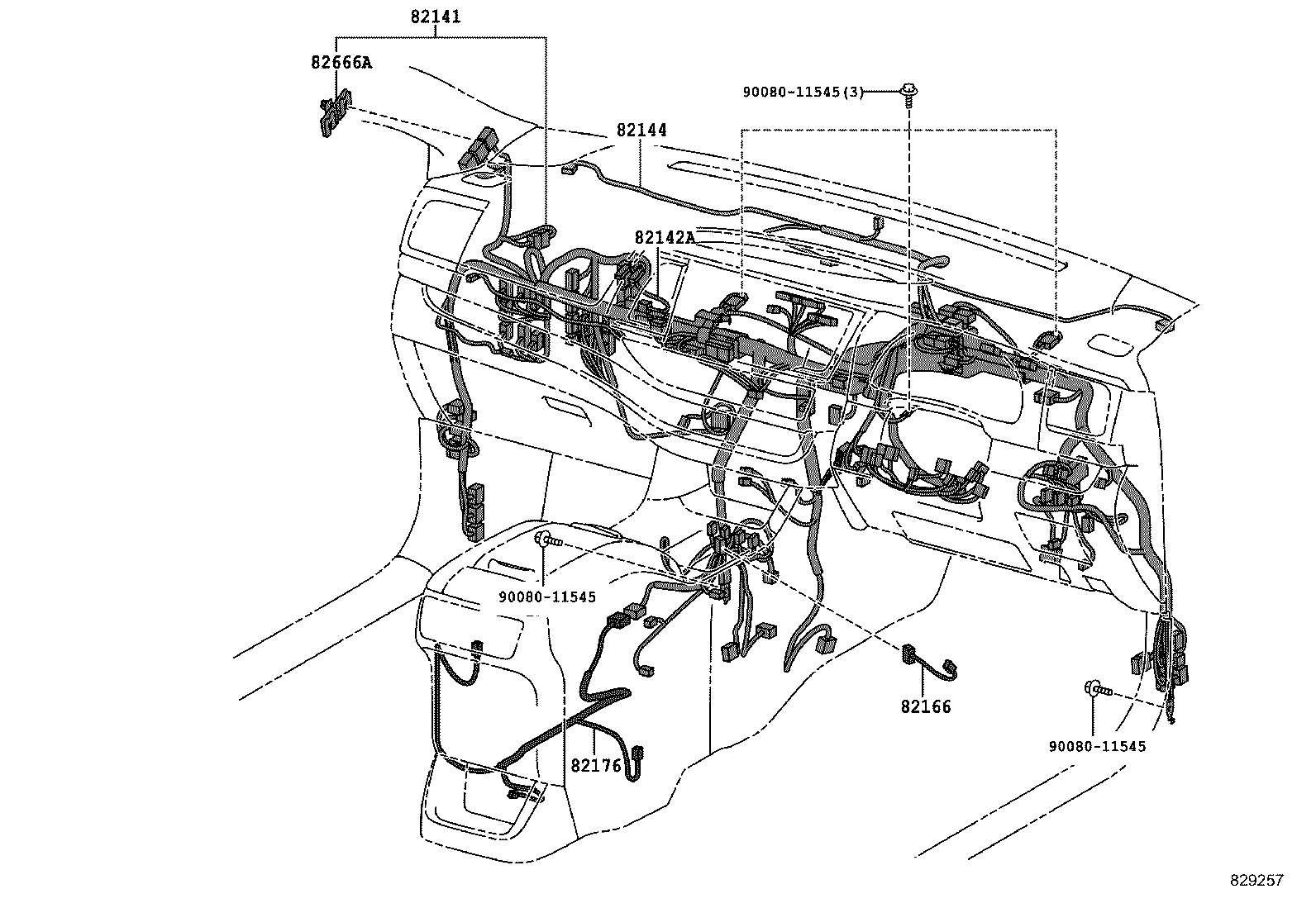

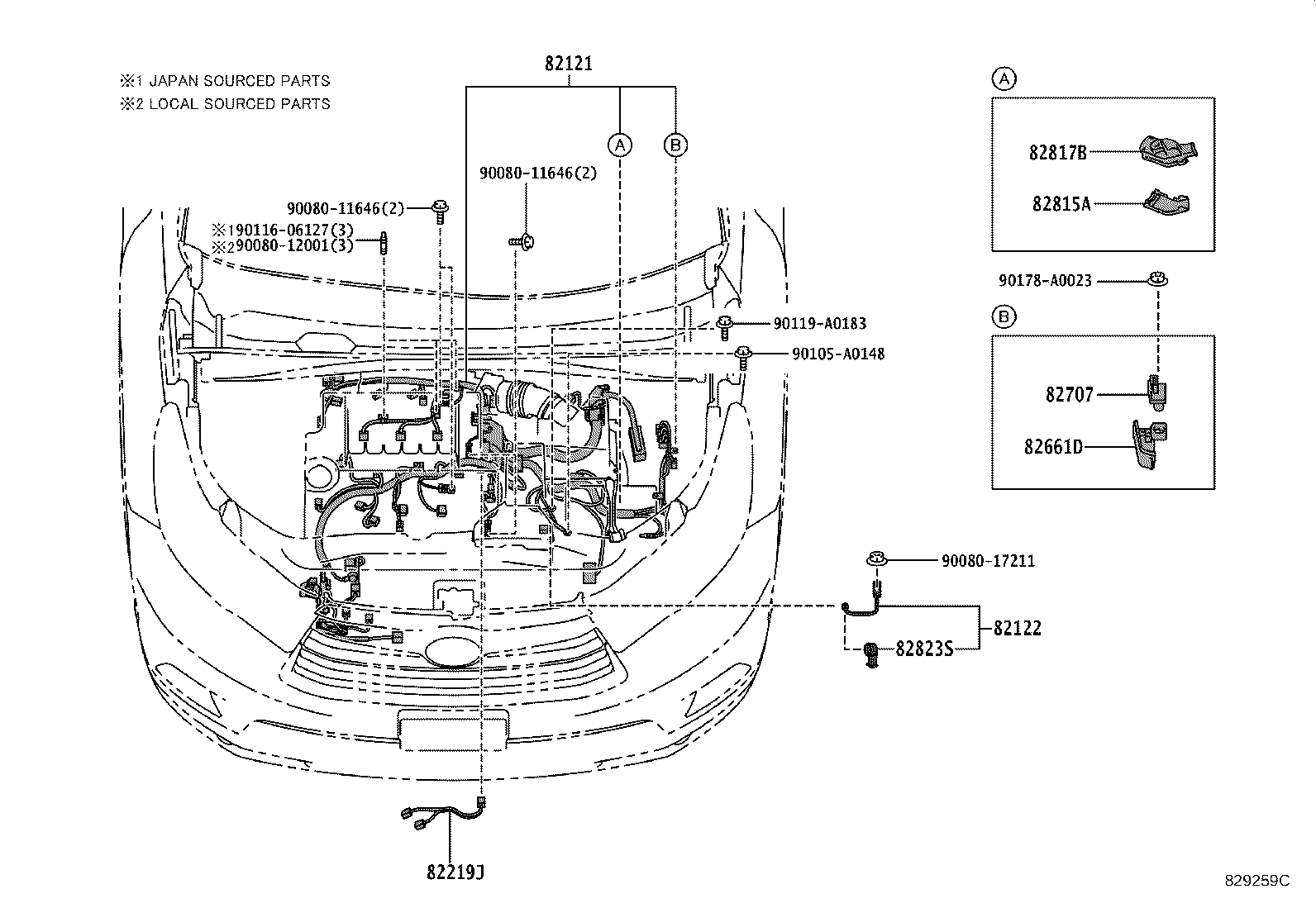

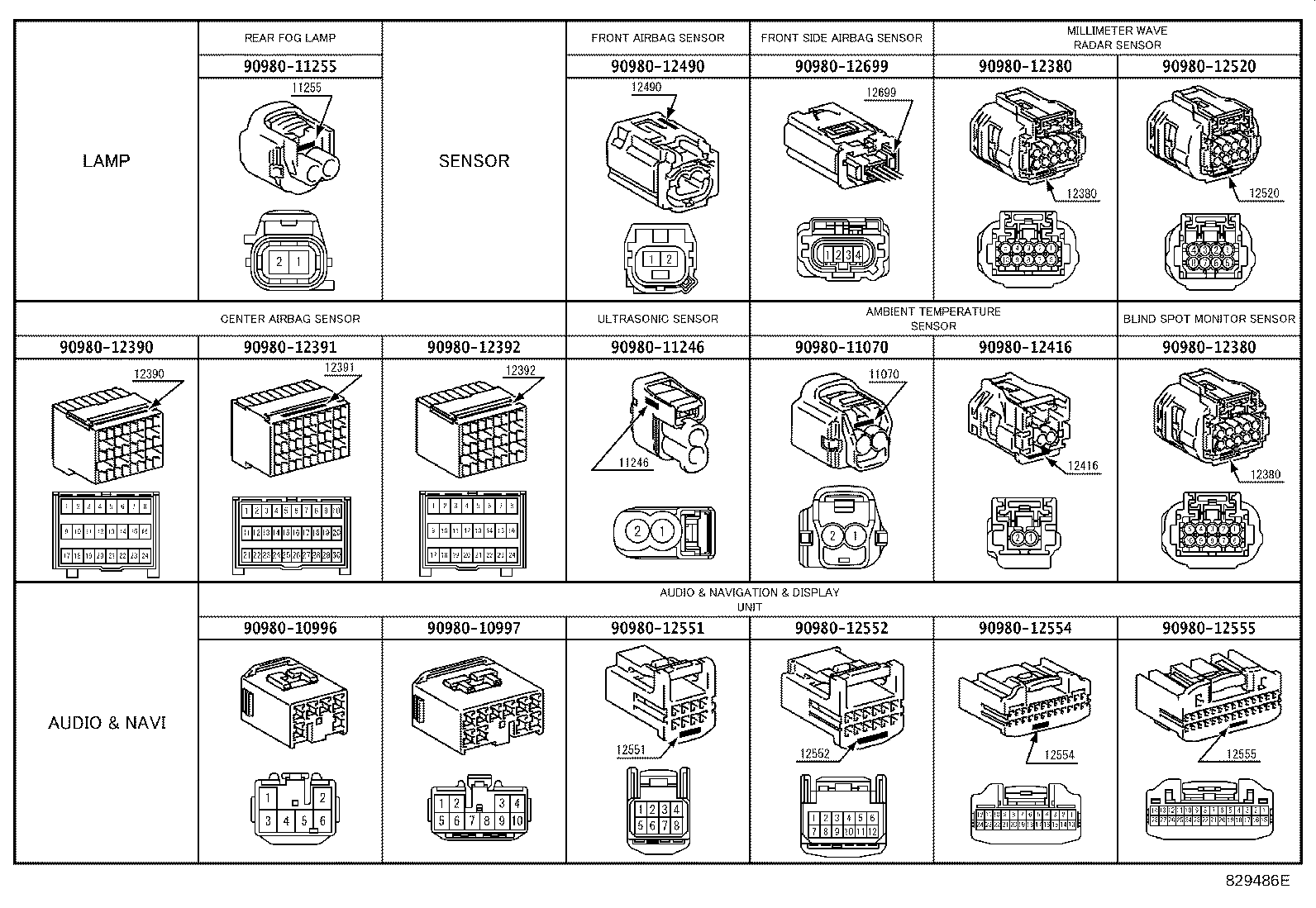

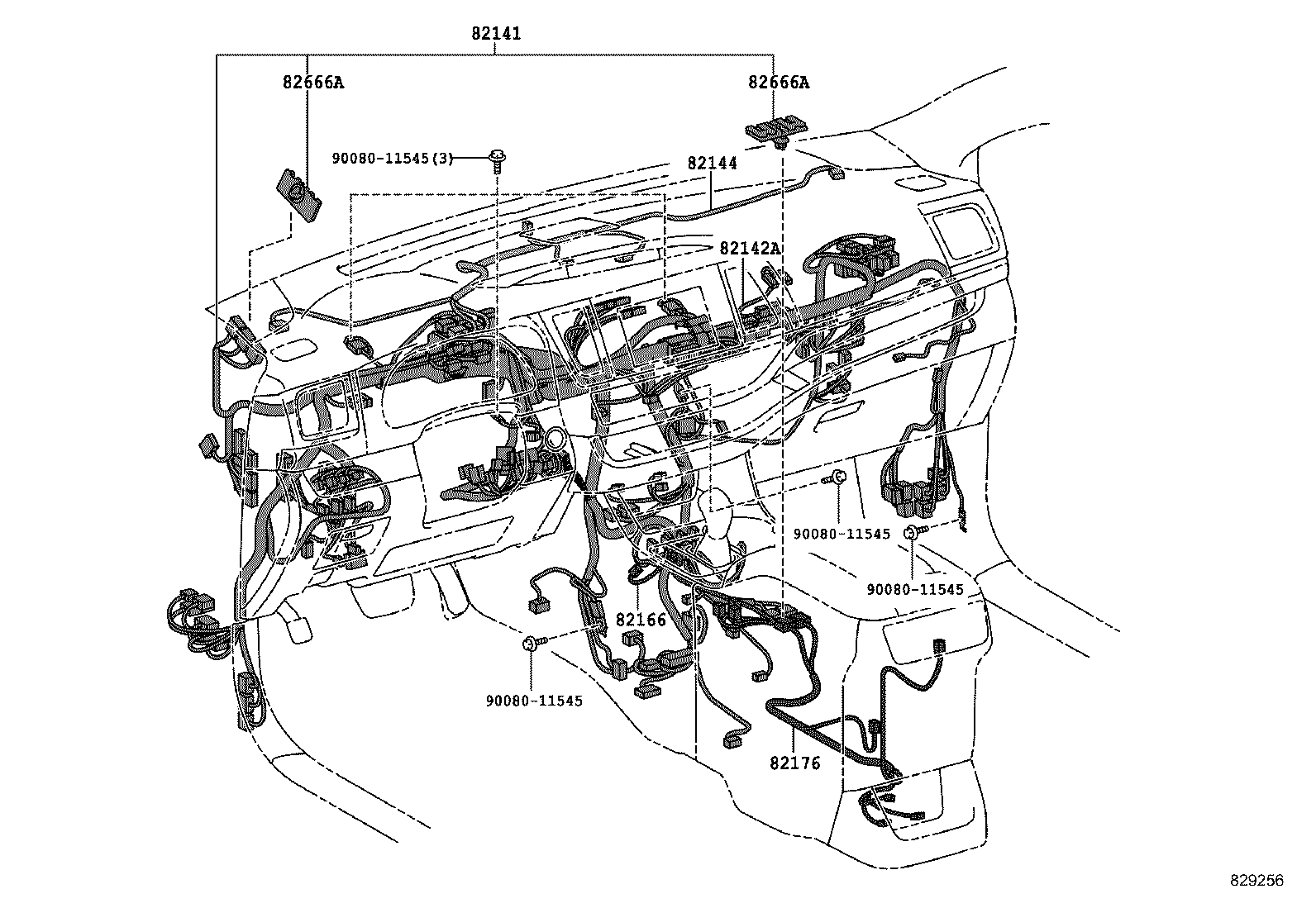

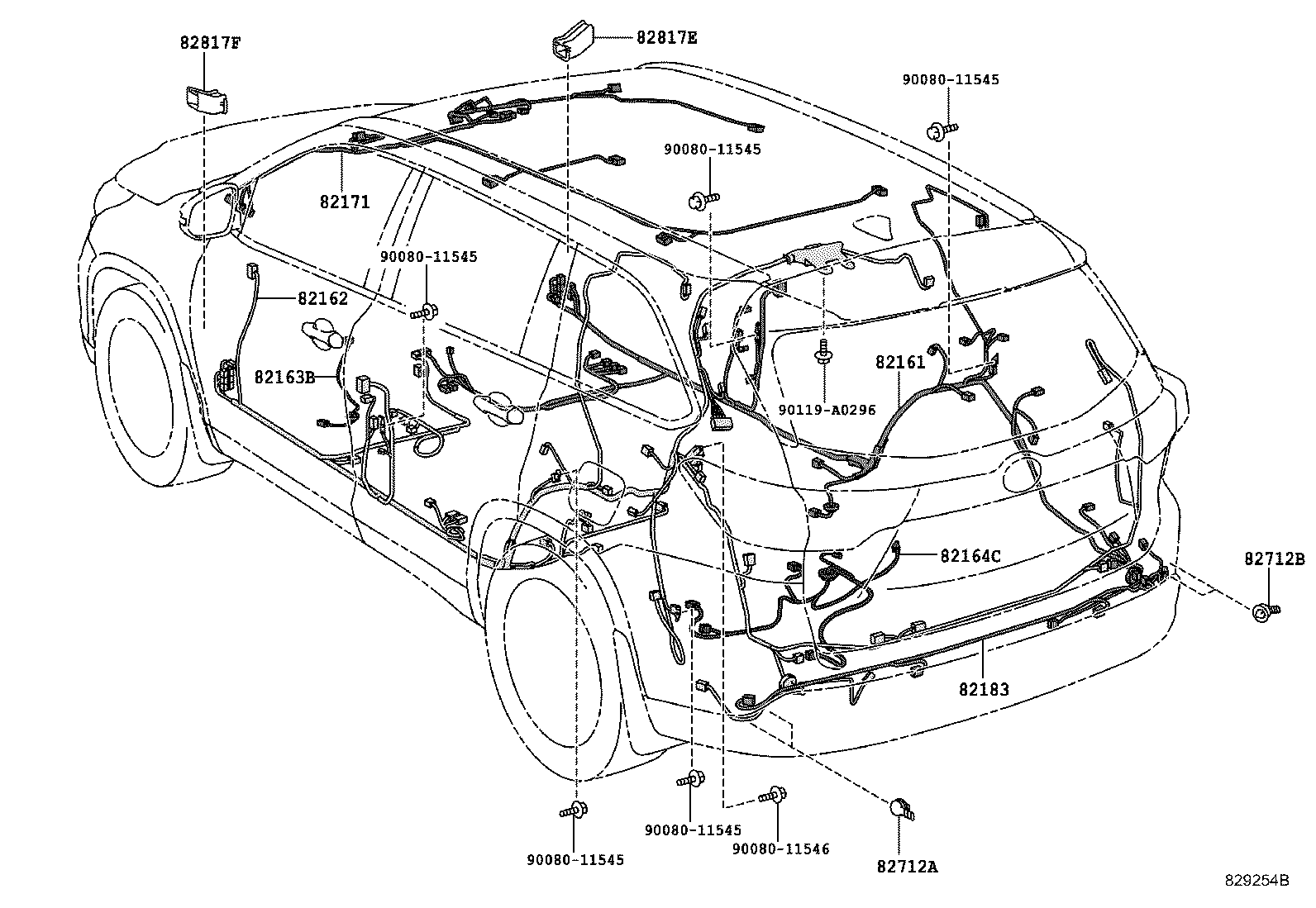

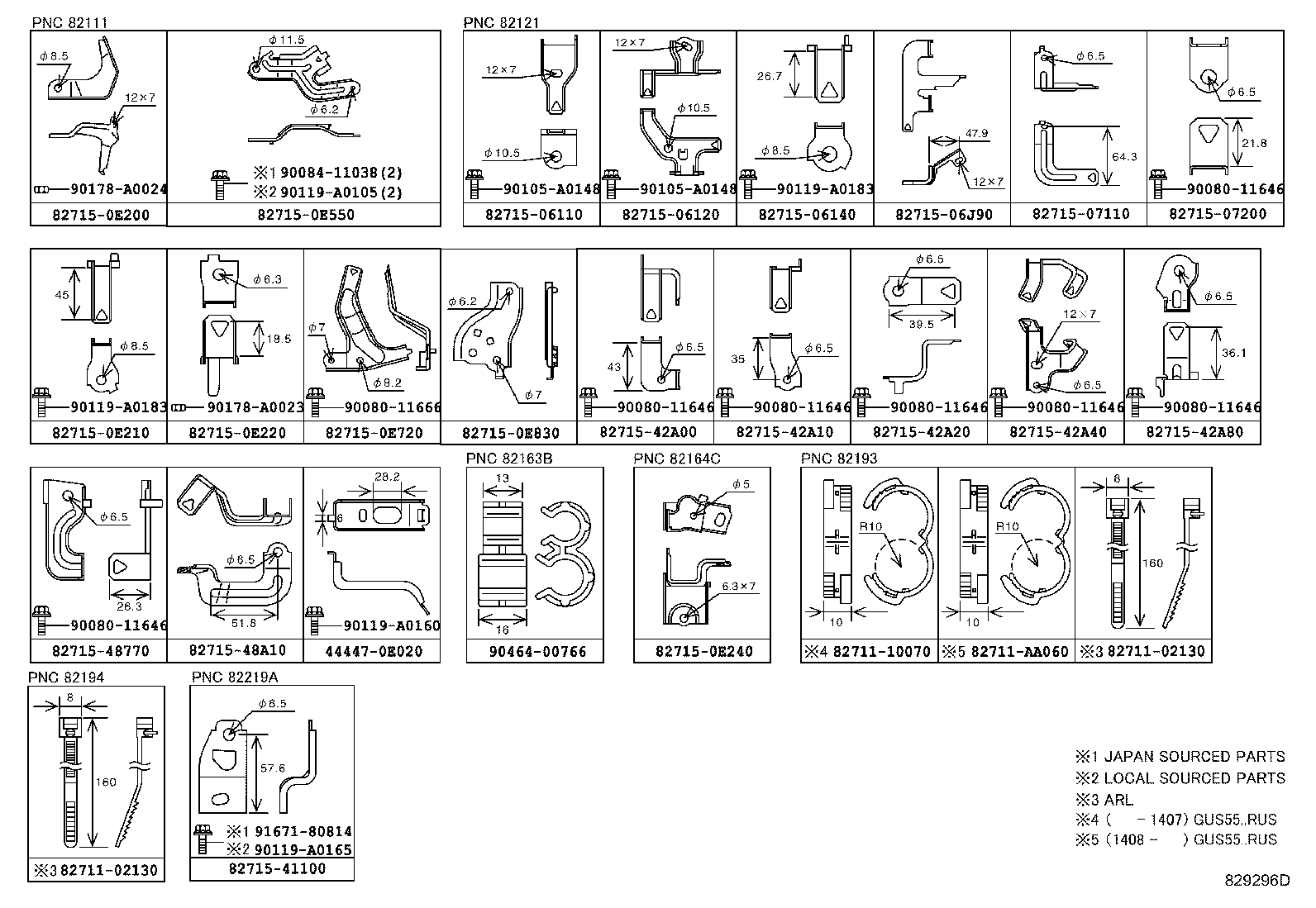

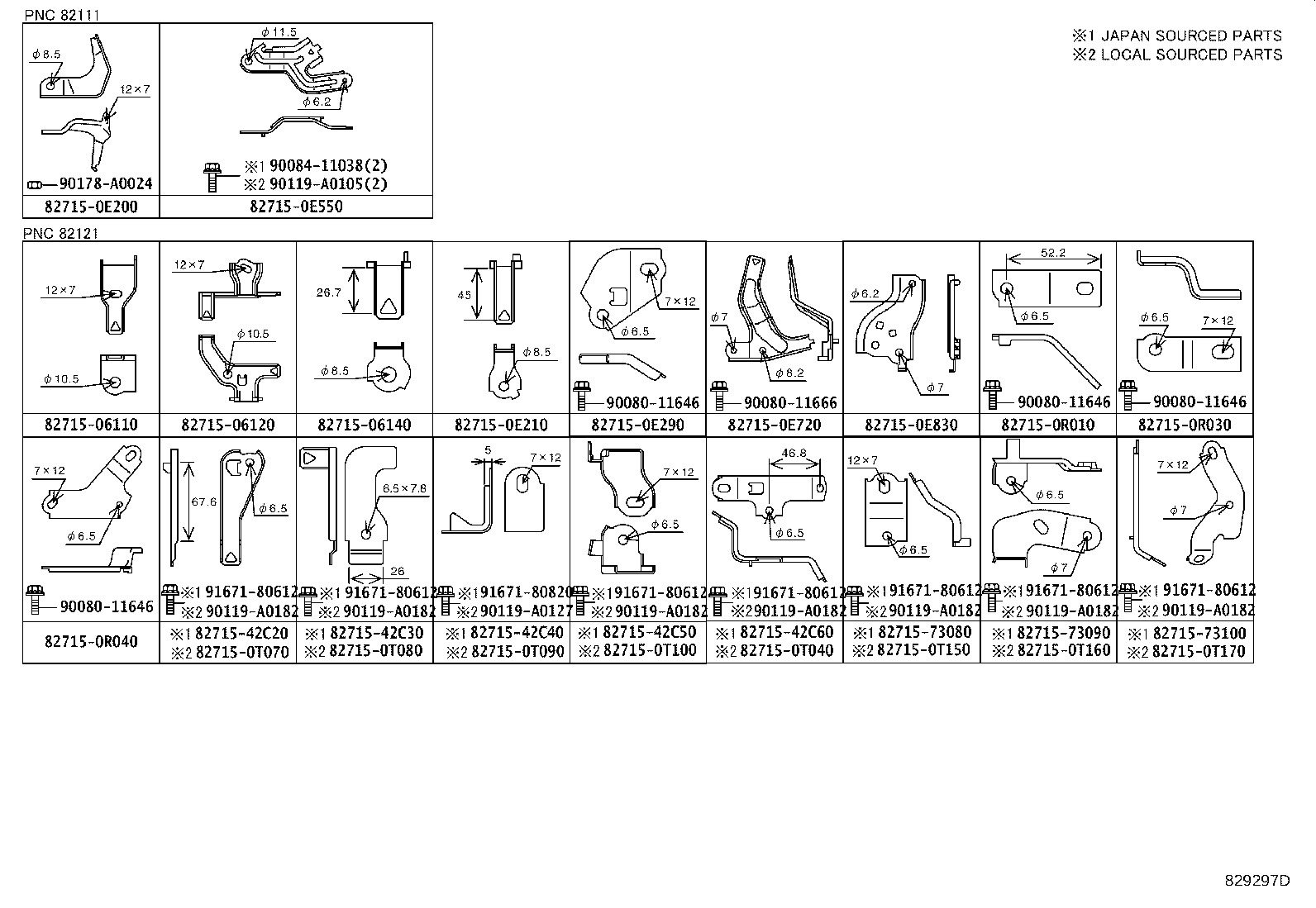

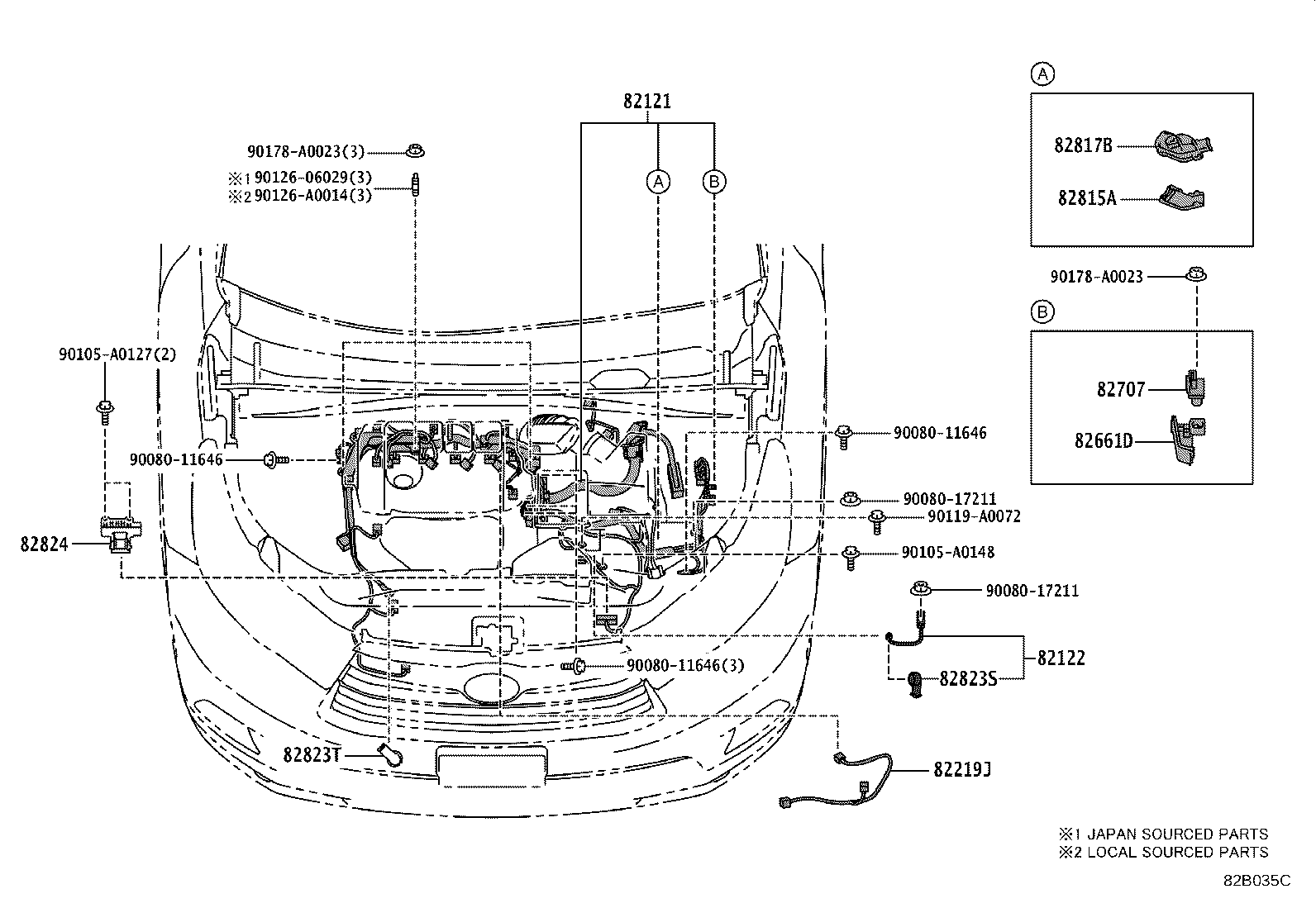

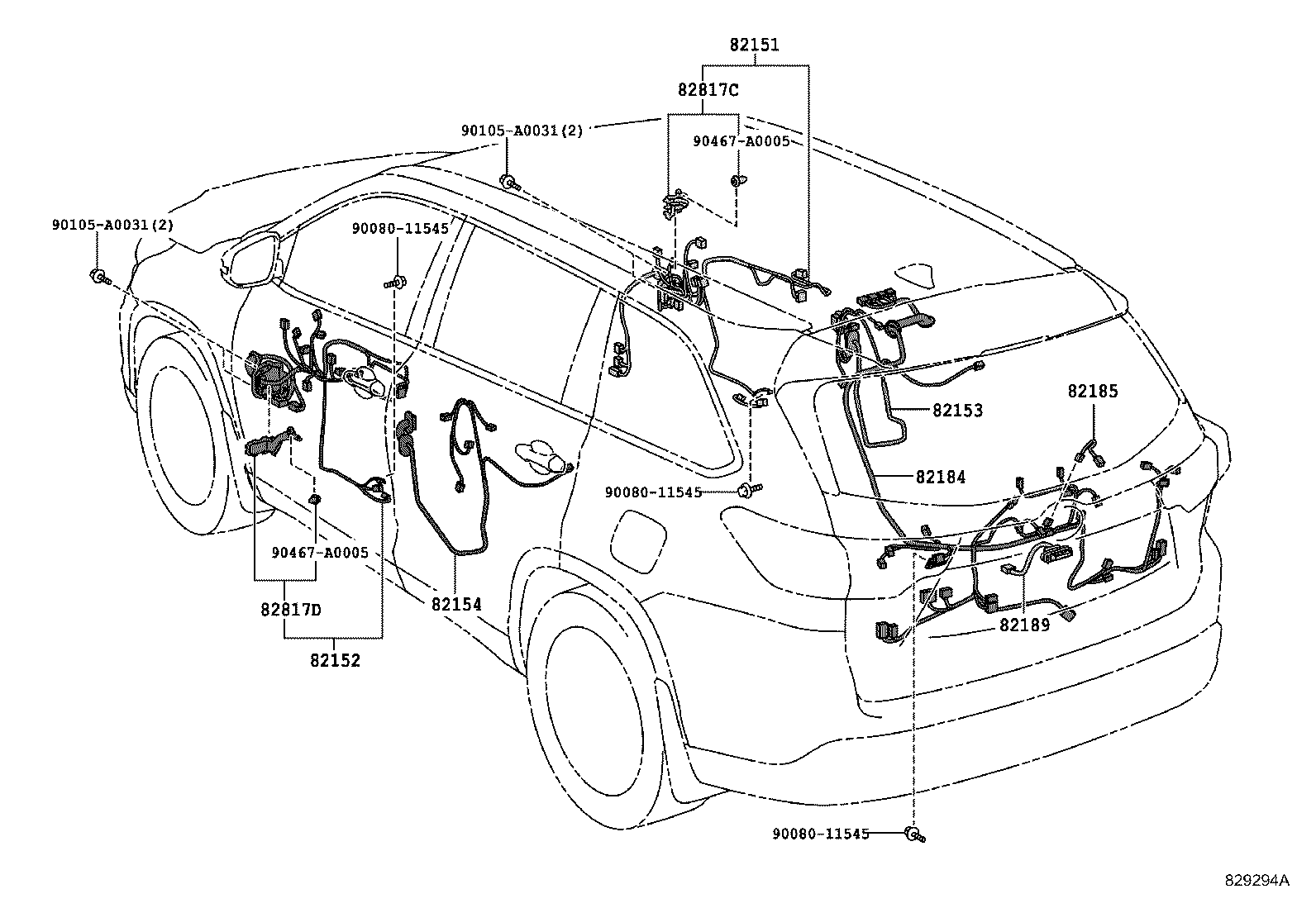

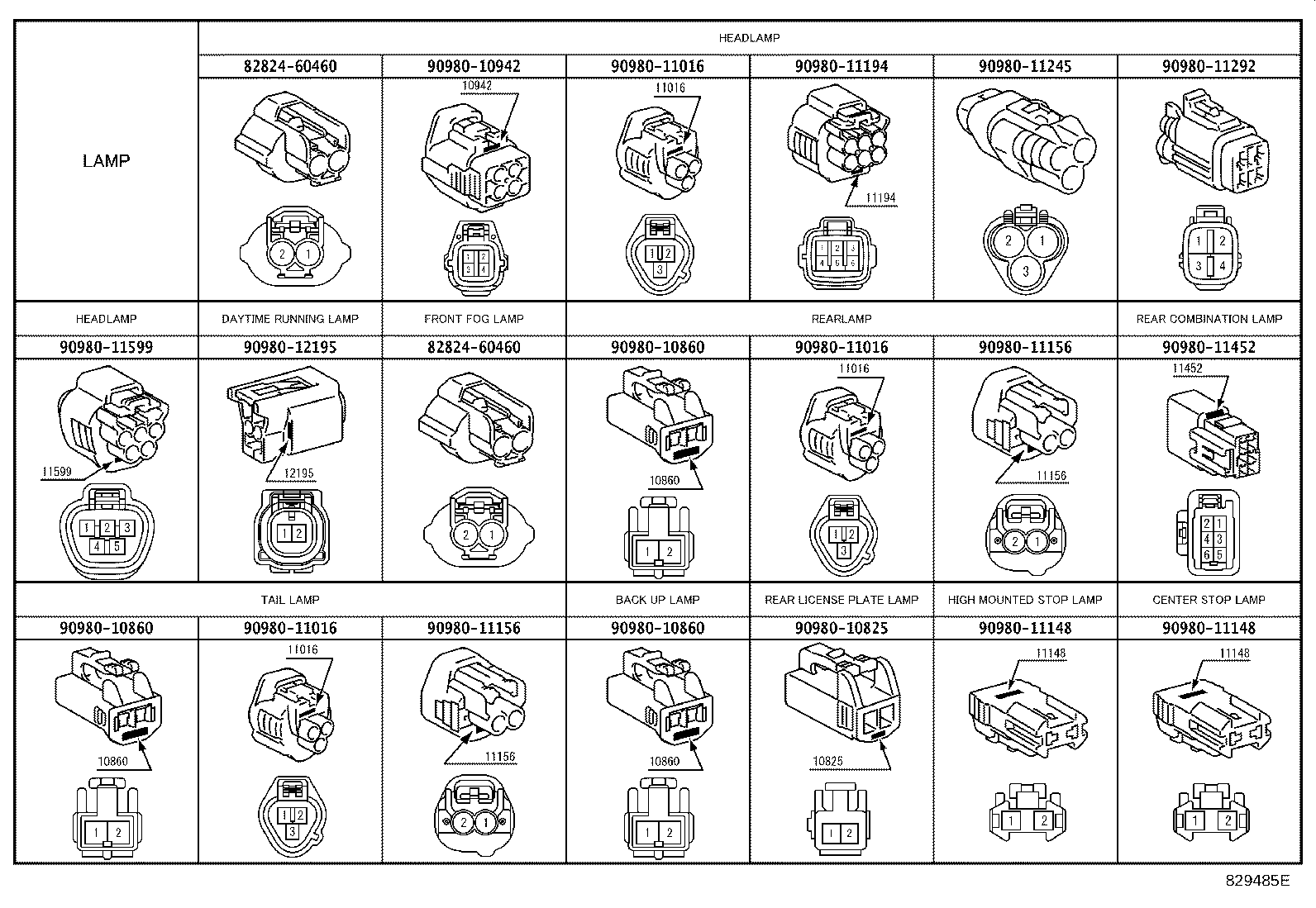

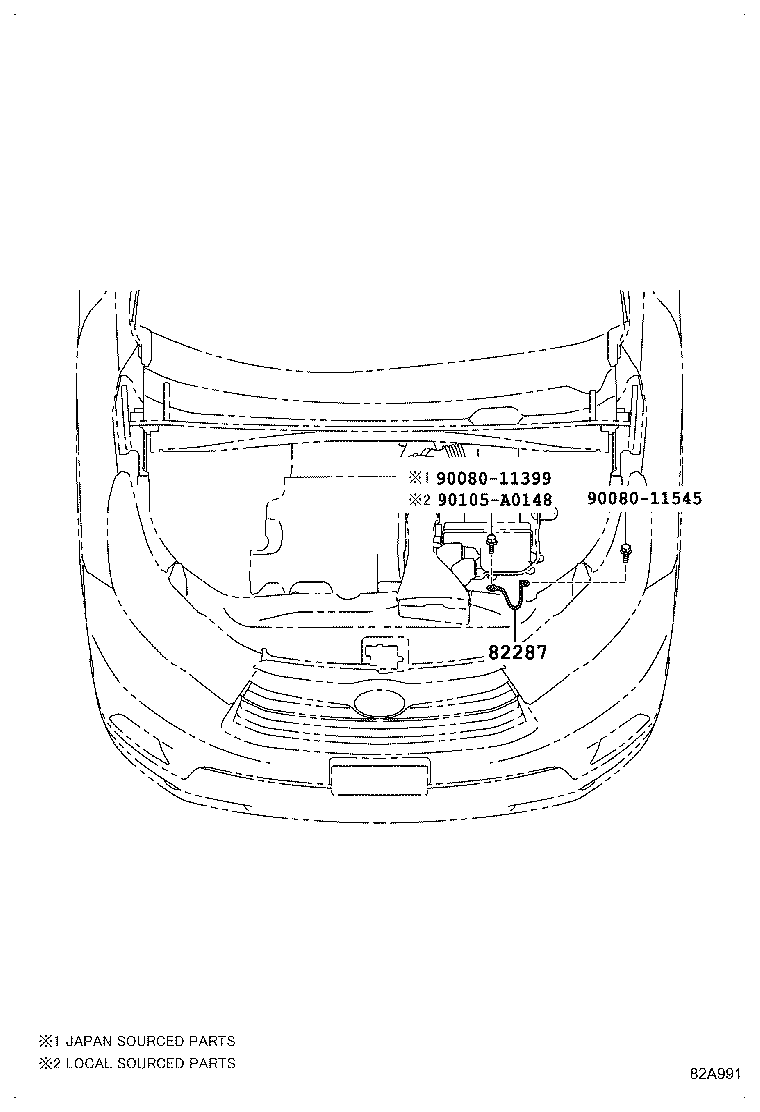

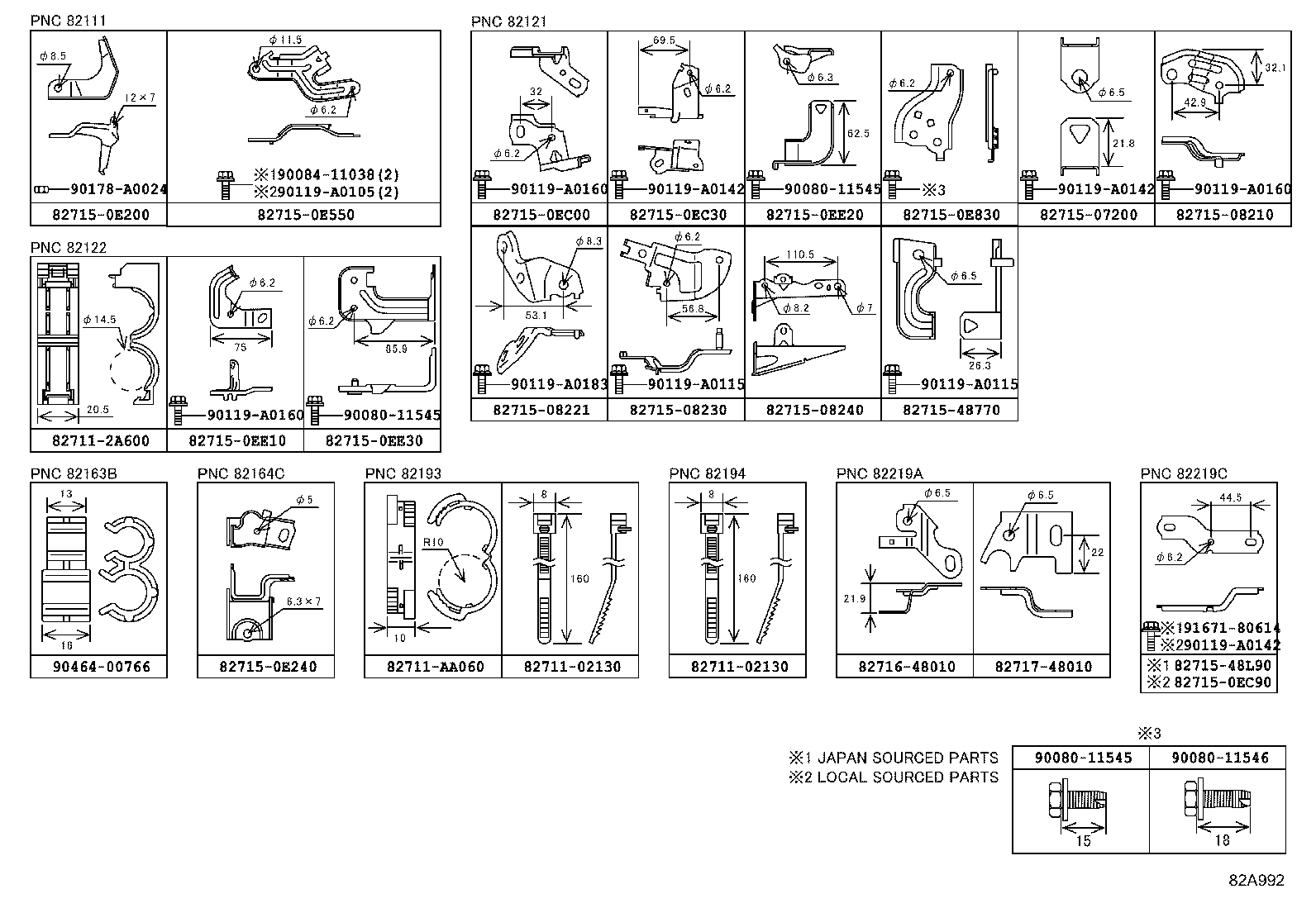

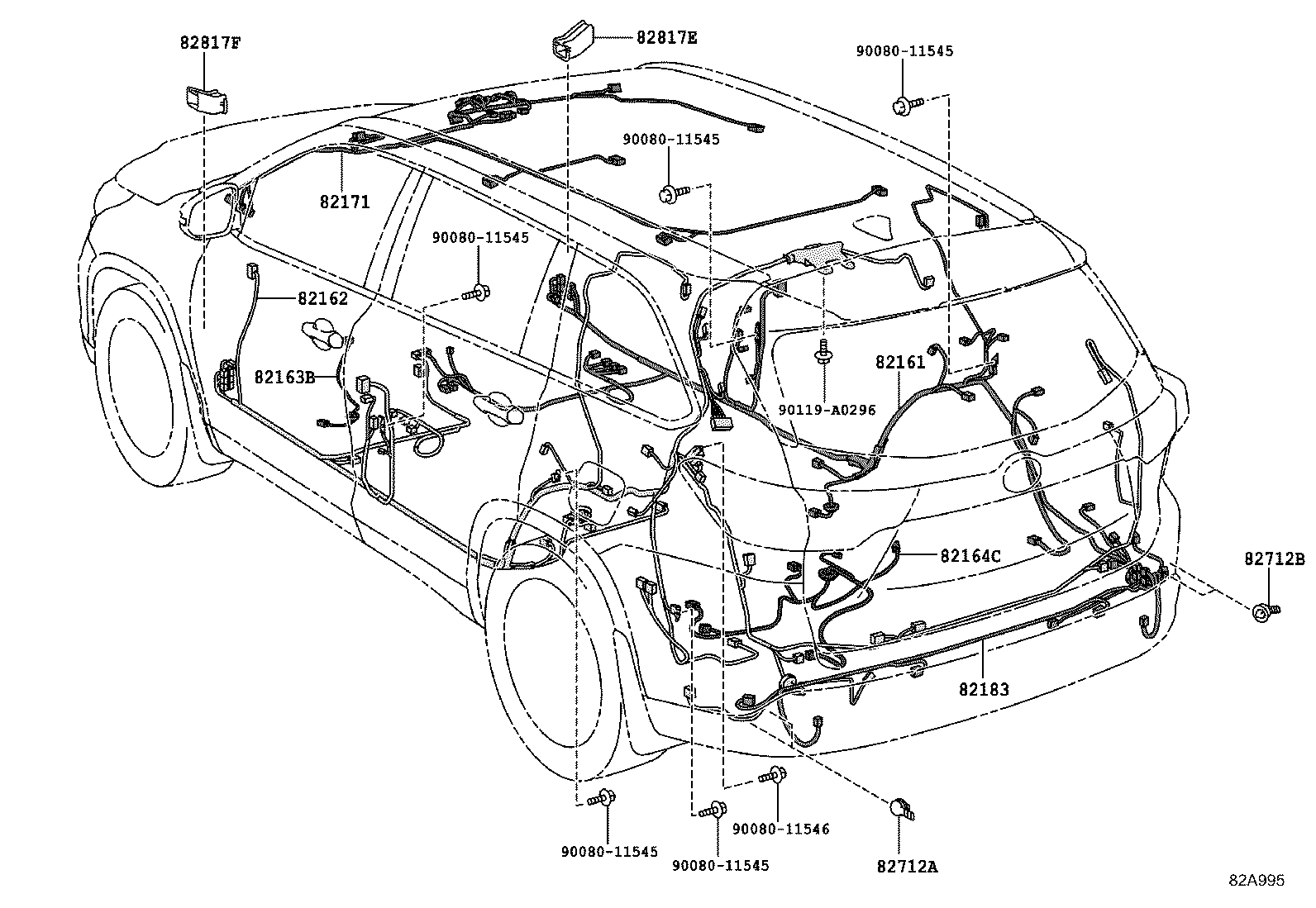

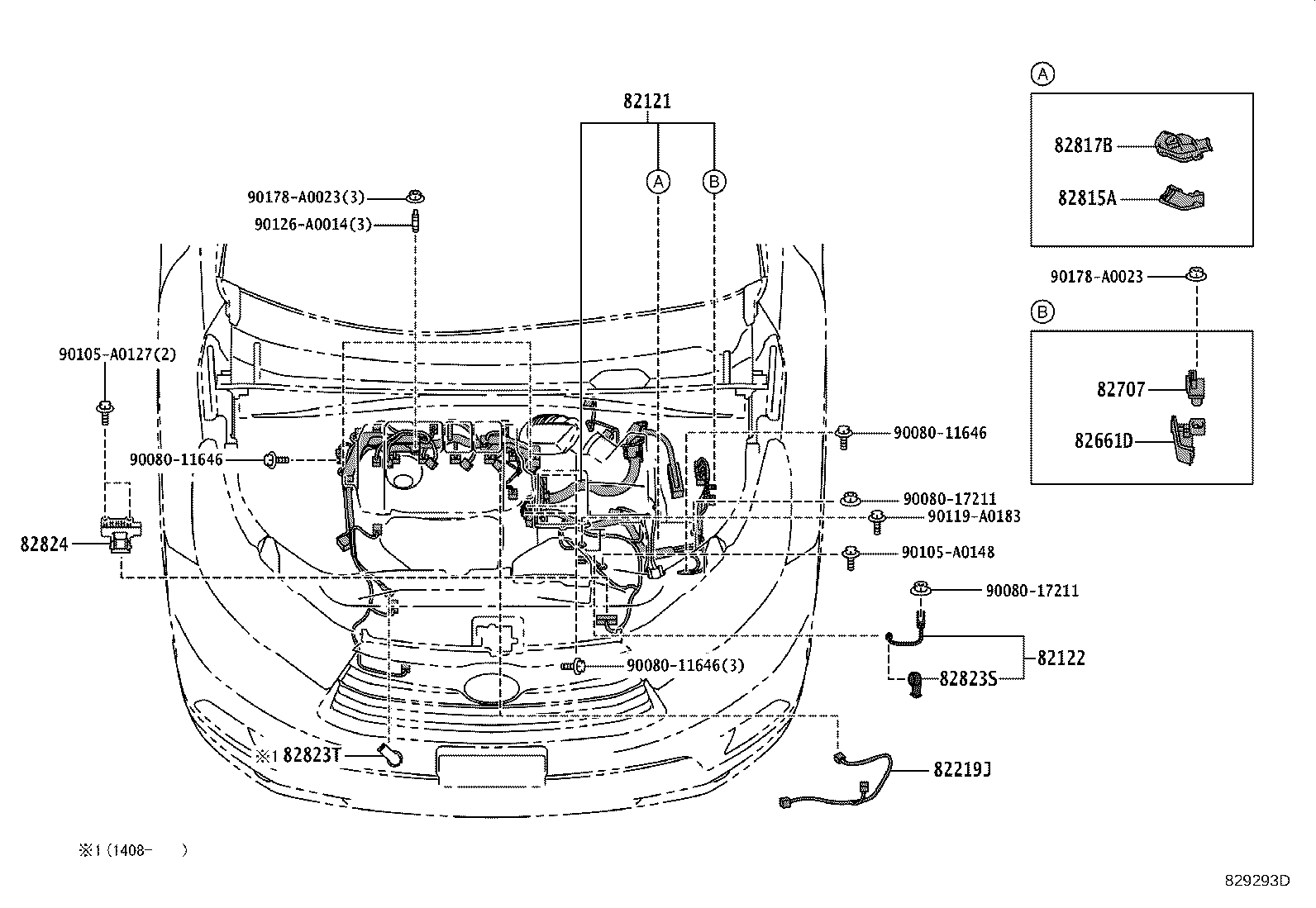

Figure 829261F 829261F 2013-12 → — Figure 829293D 829293D 2013-12 → 2016-11 Figure 82B035C 82B035C 2016-11 → — Figure 829259C 829259C 2013-12 → 2016-11 Figure 82A990D 82A990D 2016-11 → — Figure 829256 829256 2013-12 → — Figure 829257 829257 2013-12 → — Figure 829294A 829294A 2013-12 → — Figure 829254B 829254B 2013-12 → 2016-11 Figure 82A995 82A995 2016-11 → — Figure 82B222A 82B222A 2013-12 → — Figure 829297D 829297D 2013-12 → — Figure 82C068 82C068 2013-12 → — Figure 829296D 829296D 2013-12 → 2016-11 Figure 82A992A 82A992A 2016-11 → — Figure 82A991 82A991 2016-11 → — Figure 829485E 829485E 2013-12 → — Figure 829486E 829486E 2013-12 → — Figure 82E891 82E891 2013-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82219J Wire, Knock Sensor
82287 Wire, Earth, NO.3
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82707 Support Sub-assy, Wiring Harness
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815V Cover, Wiring Harness Protector, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821N Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
