Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

3 part groups · 3 illustrations

Illustrations

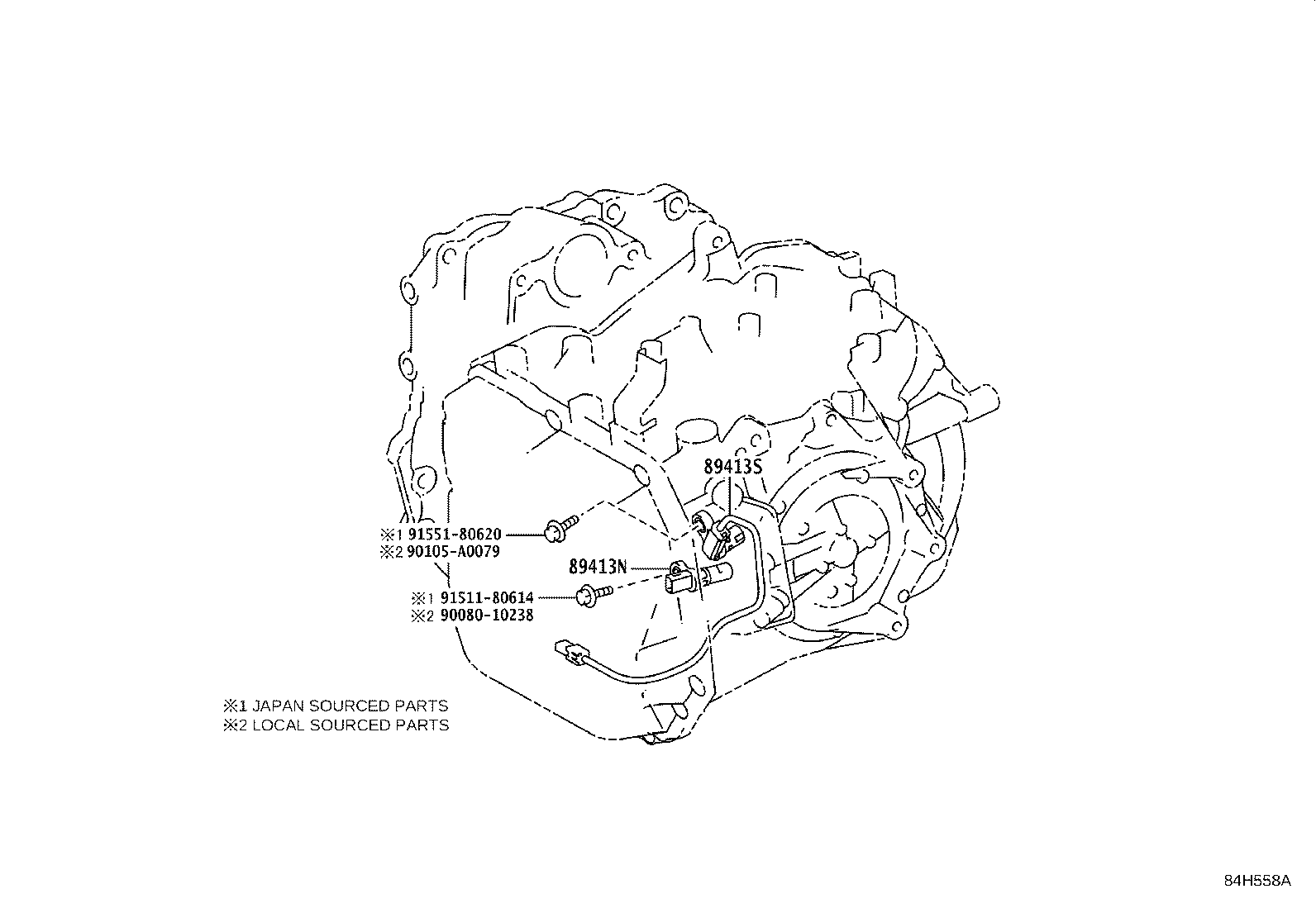

Figure 84E709 84E709 2013-12 → 2016-11 Figure 84E709 84E709 2013-12 → — Figure 84H558A 84H558A 2016-11 → —

Part groups

PNCDescription
89413B Sensor, Transmission Revolution
89413N Sensor, Transmission Revolution, (NT)
89413S Sensor, Transmission Revolution (NC)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
