Toyota Highlander/Kluger
2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe
Supported model
Data version 2019-11
Navigation & Front Monitor Display

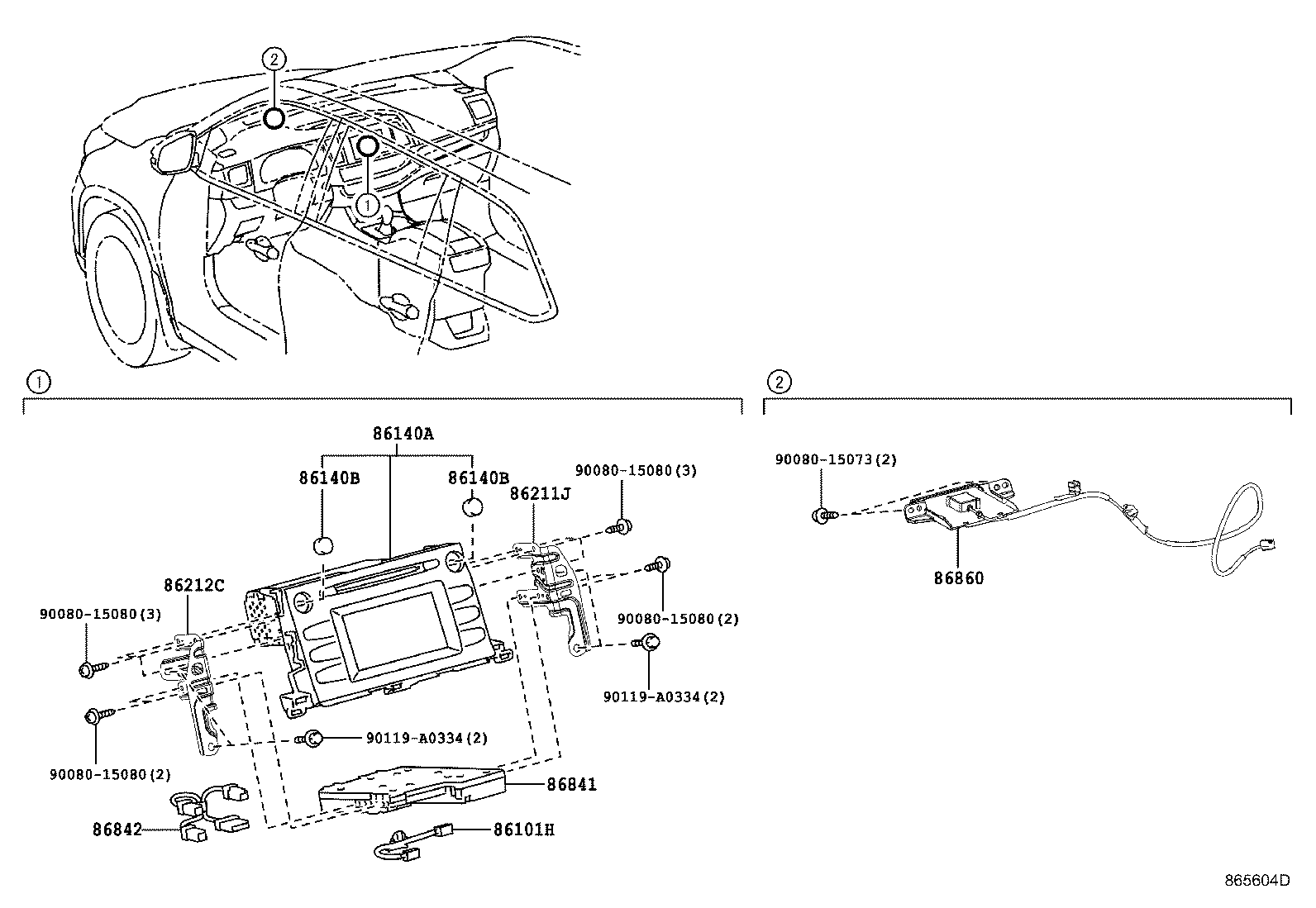

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101H | Cord Sub-assy, Antenna |
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86271 | Disc, Disc Player |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
