Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

31 part groups · 7 illustrations

Illustrations

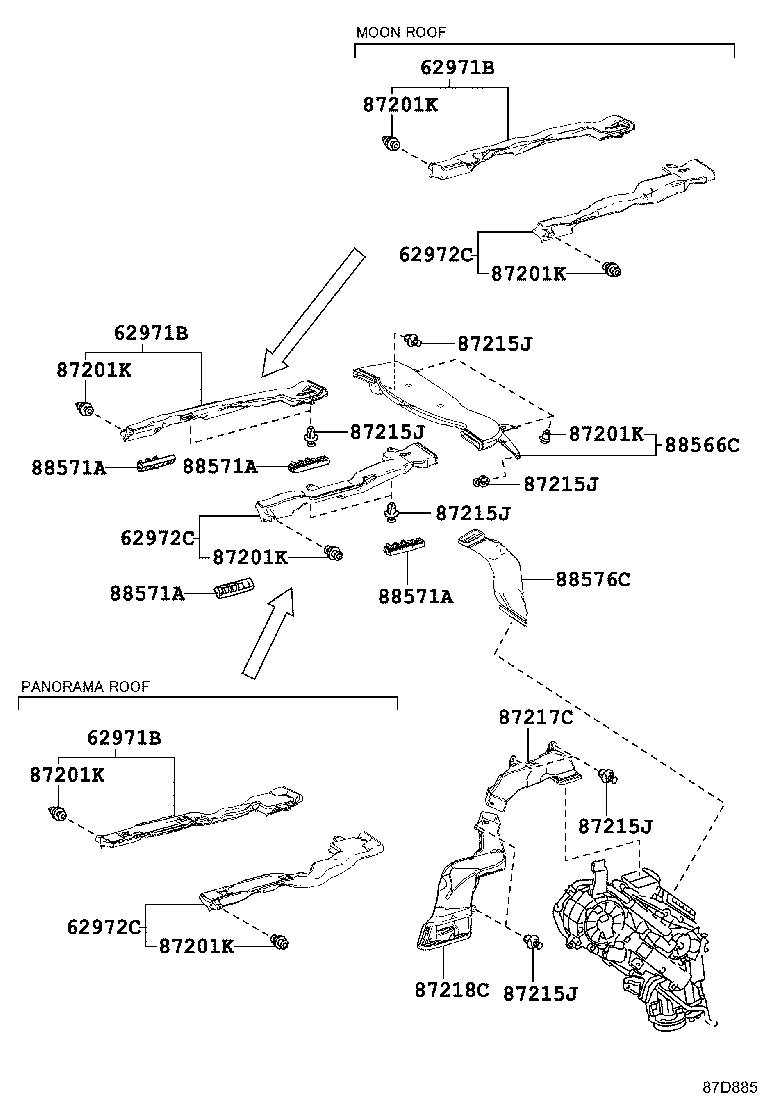

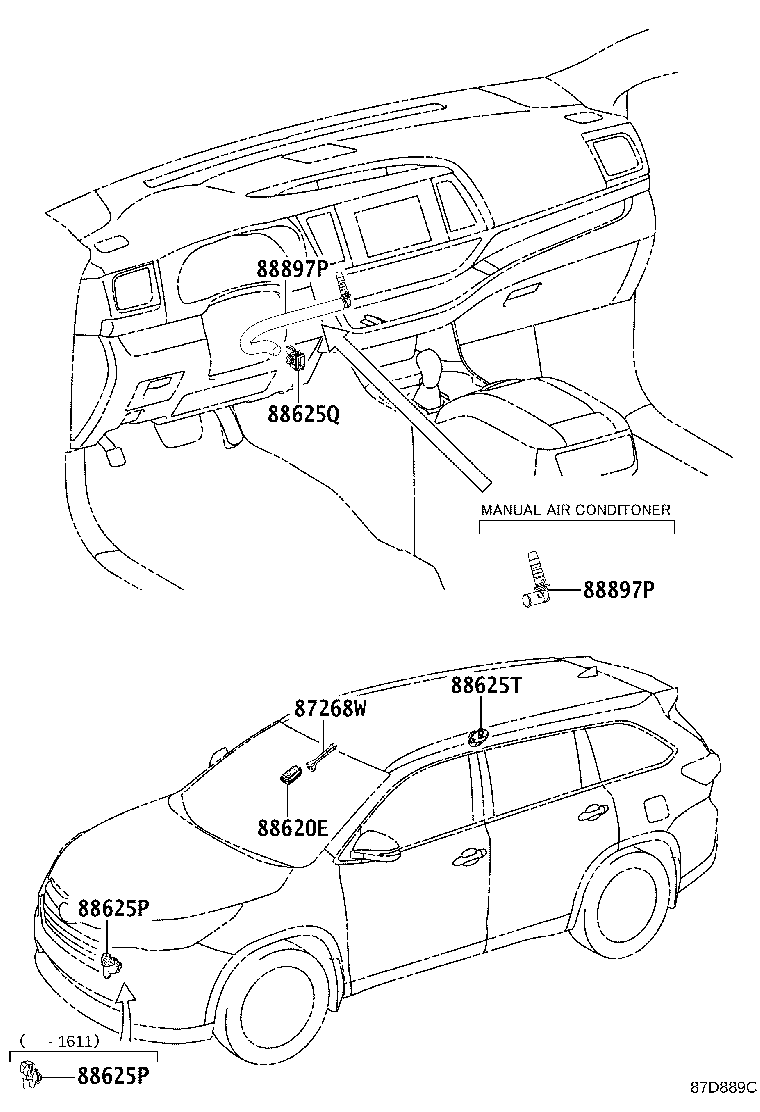

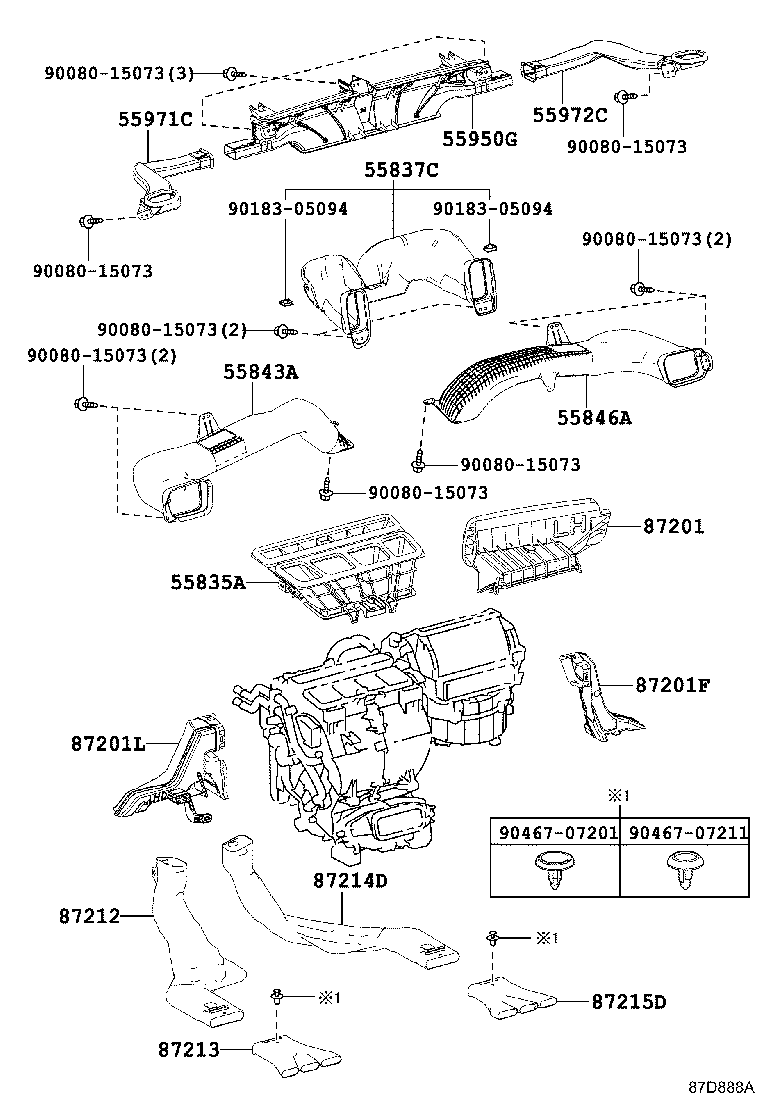

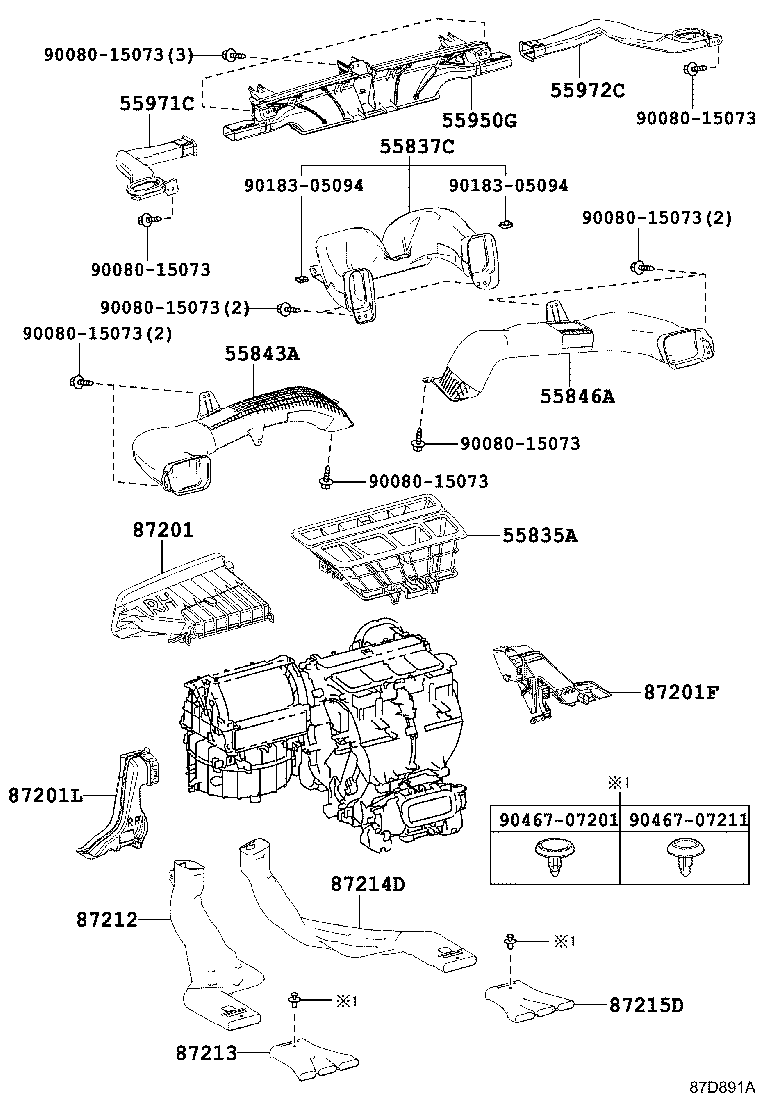

Figure 87D886A 87D886A 2013-12 → — Figure 87D890A 87D890A 2013-12 → — Figure 87D887A 87D887A 2013-12 → — Figure 87D888A 87D888A 2013-12 → — Figure 87D891A 87D891A 2013-12 → — Figure 87D885 87D885 2013-12 → — Figure 87D889C 87D889C 2013-12 → —

Part groups

PNCDescription
55835A Duct, Heater TO Register, Center
55837C Duct, Heater TO Register Center Sub
55843A Duct, Heater TO Register, NO.1
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900D Control Assy, Air Conditioner, NO.2
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
62971B Duct, Roof Side Air, NO.1 RH
62972C Duct, Roof Side Air, NO.1 LH
87201 Duct Sub-assy, Air, NO.1
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87215D Duct, Air, Rear NO.4
87215J Clip (FOR AIR REAR DUCT)
87217C Duct, Air, Rear NO.5
87218C Duct, Air, Rear NO.6
87268W Protector
88566C Duct, Cooler Air, NO.3
88571A Grille, Air Outlet
88576C Duct, Cooler Air, NO.1
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625T Thermistor, Cooler (ROOM TEMP. SENSOR NO.2)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
