Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

15 part groups · 6 illustrations

Illustrations

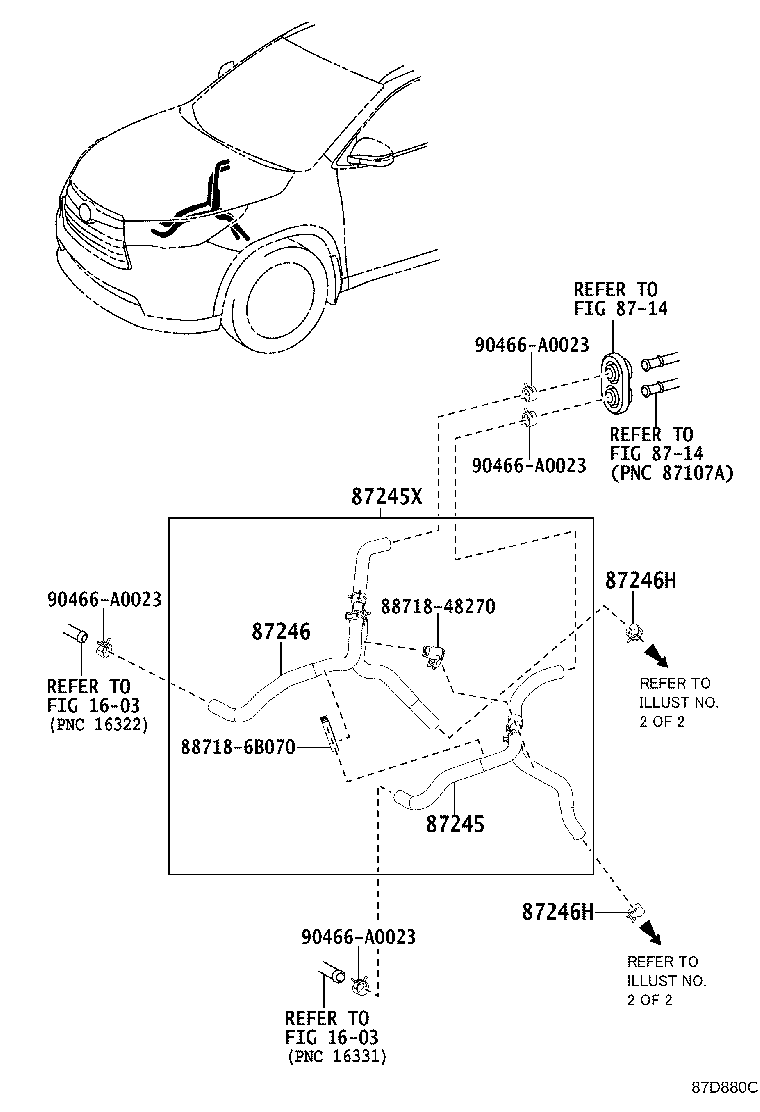

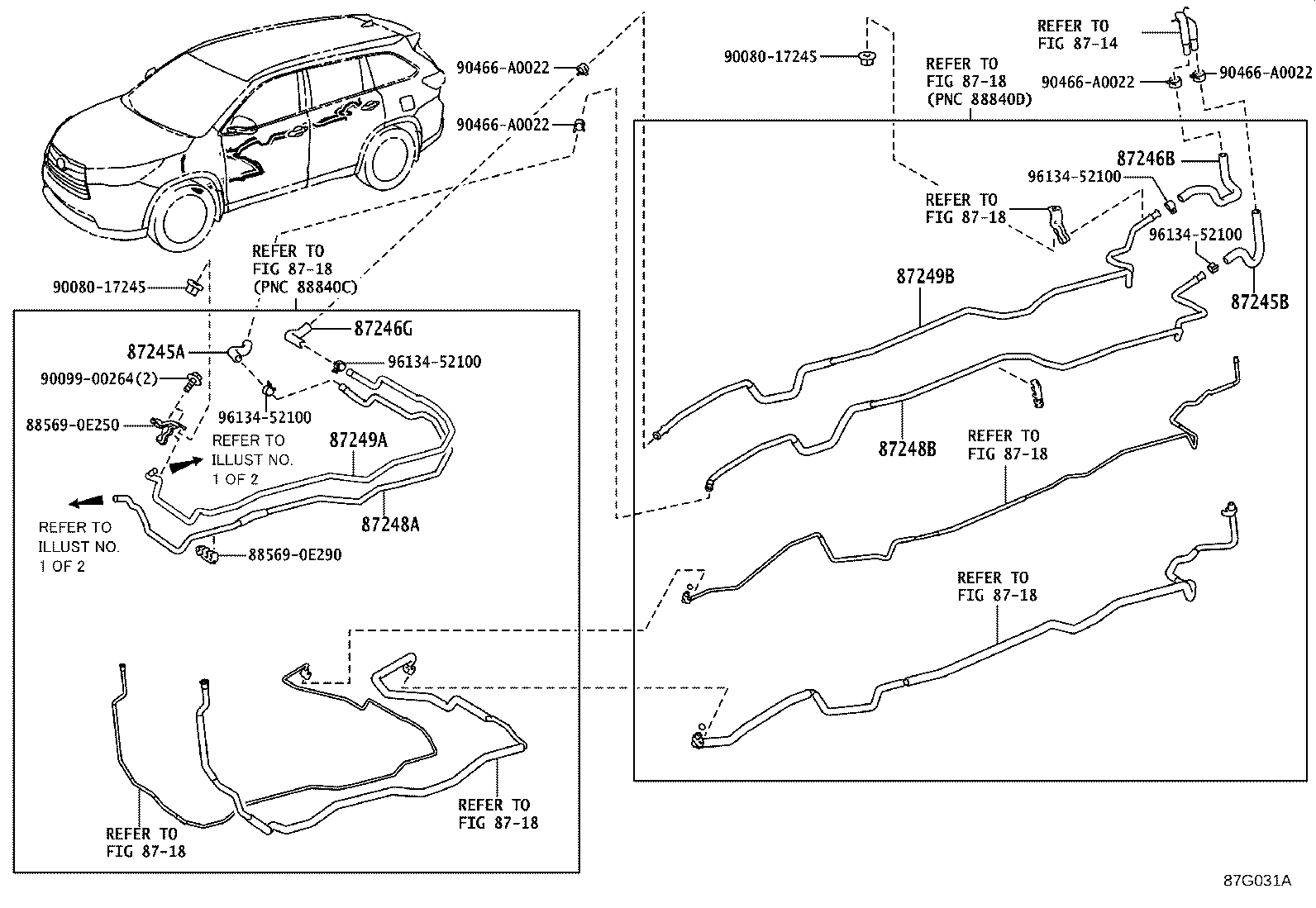

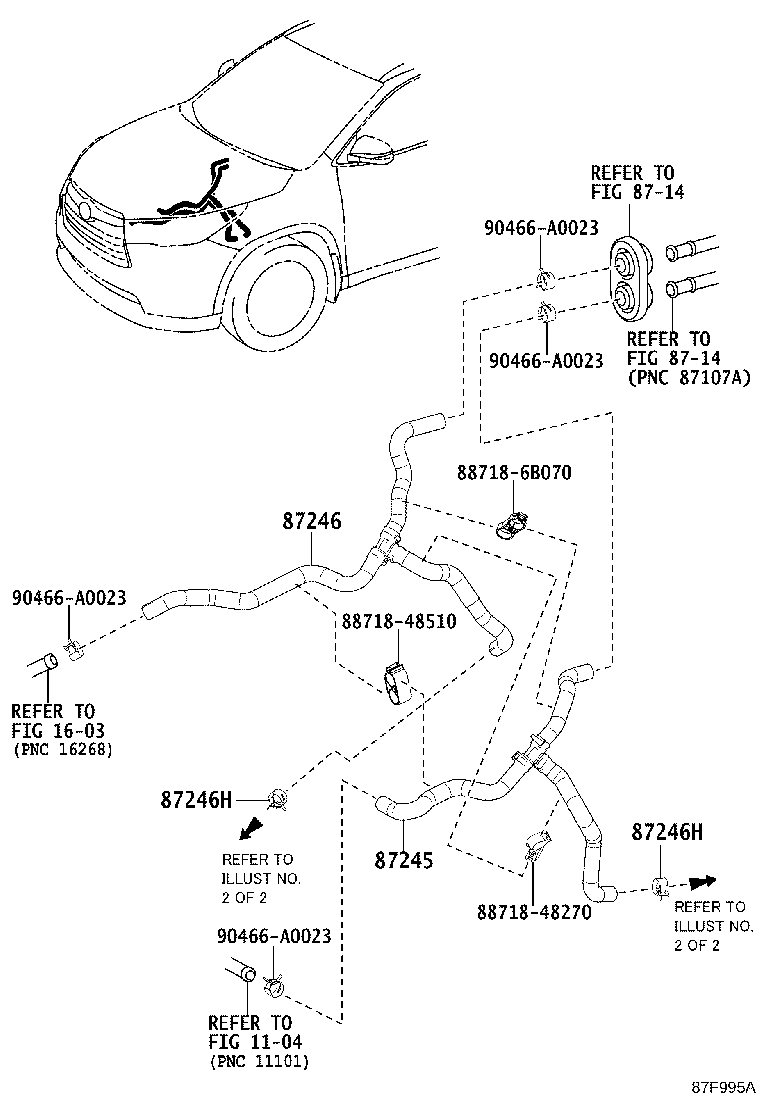

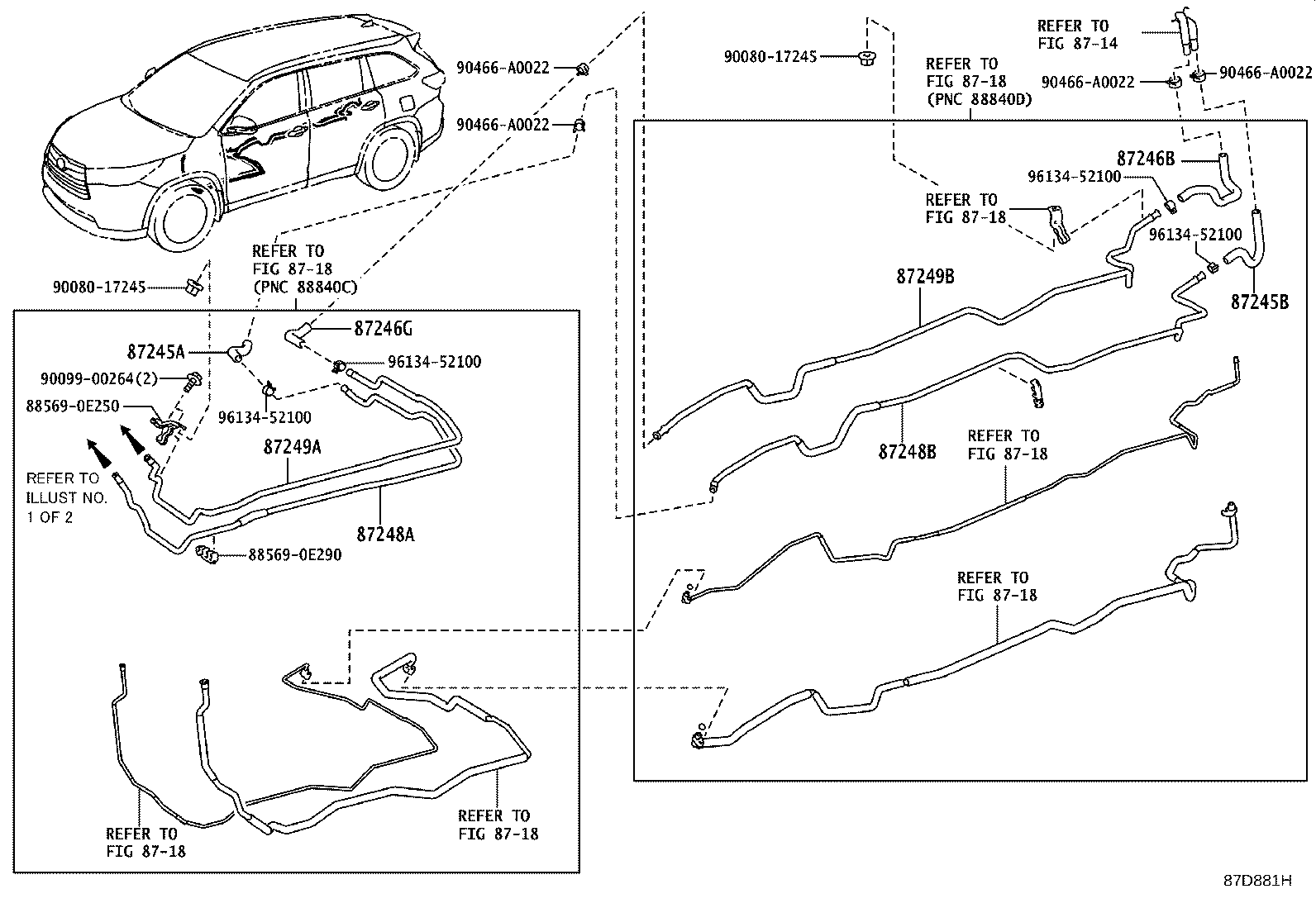

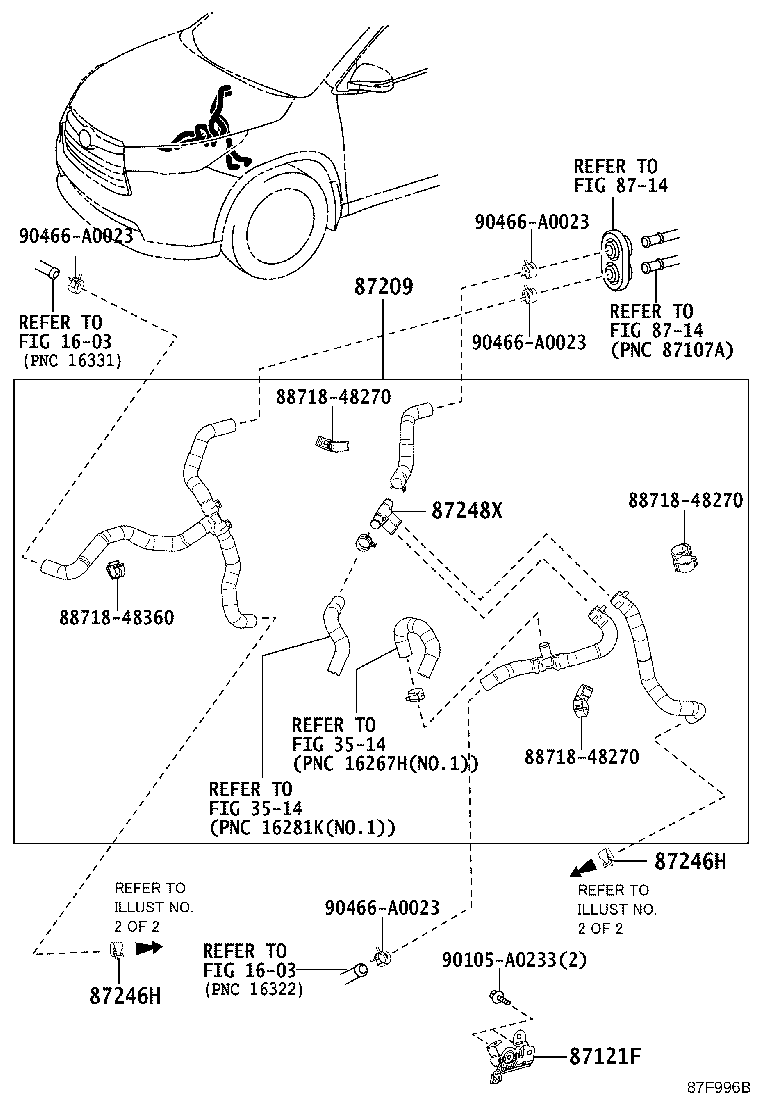

Figure 87D884C 87D884C 2013-12 → 2016-11 Figure 87F995A 87F995A 2016-11 → — Figure 87D880C 87D880C 2013-12 → 2016-11 Figure 87F996B 87F996B 2016-11 → — Figure 87D881H 87D881H 2013-12 → 2016-11 Figure 87G031A 87G031A 2016-11 → —

Part groups

PNCDescription
87121F Bracket, Heater
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245X Hose, Heater Water
87246 Hose, Heater Water, Outlet
87246B Hose, Heater Water, Outlet B
87246G Hose, Heater Water, Outlet G
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
