Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

6 part groups · 5 illustrations

Illustrations

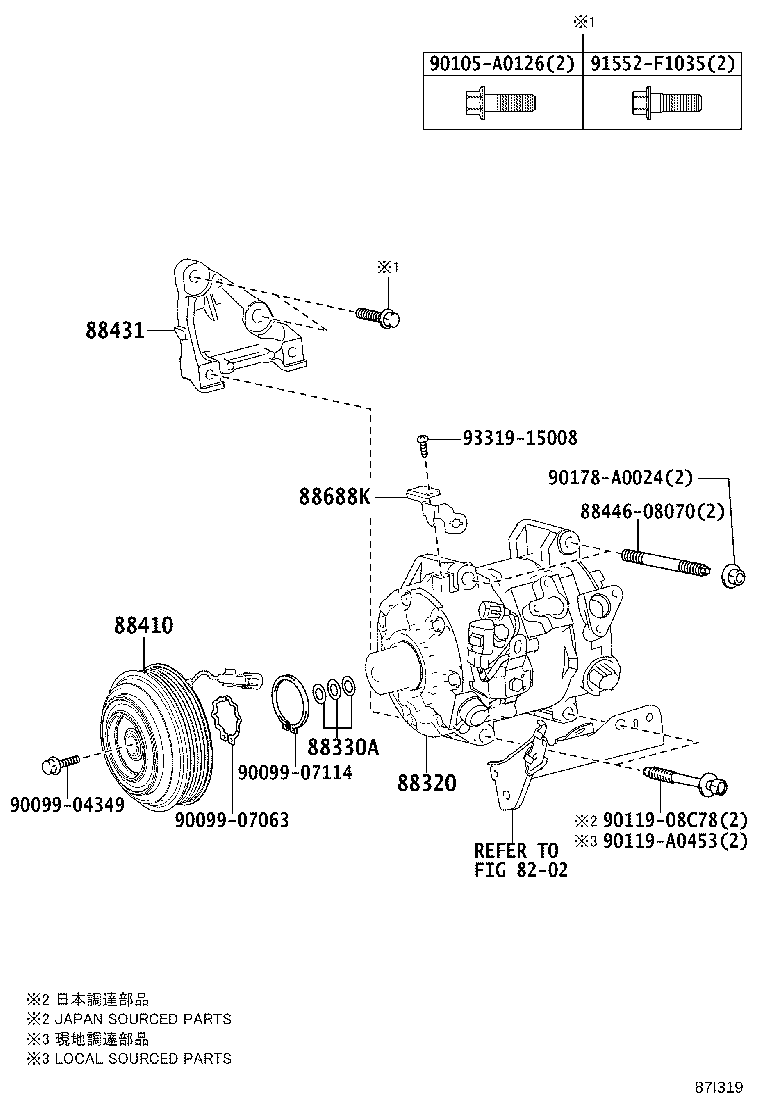

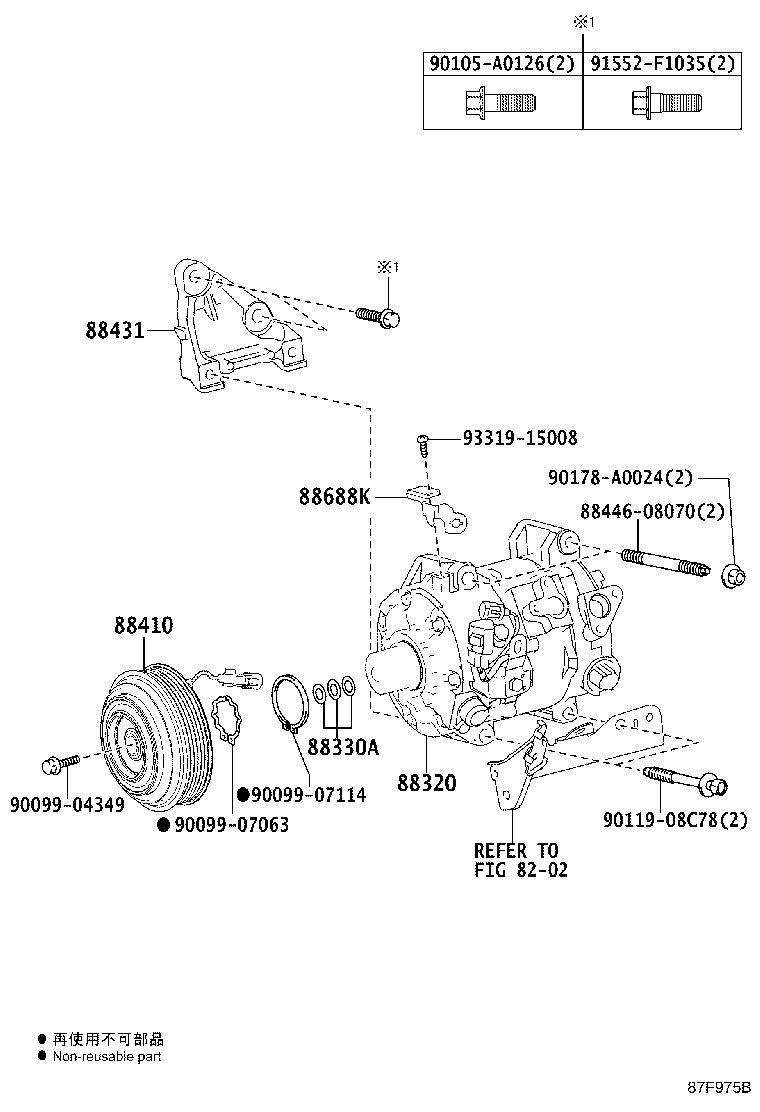

Figure 87D846 87D846 2013-12 → 2019-08 Figure 87I317 87I317 2019-08 → — Figure 87D847B 87D847B 2013-12 → 2016-11 Figure 87F975B 87F975B 2016-11 → 2019-08 Figure 87I319 87I319 2019-08 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
