Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

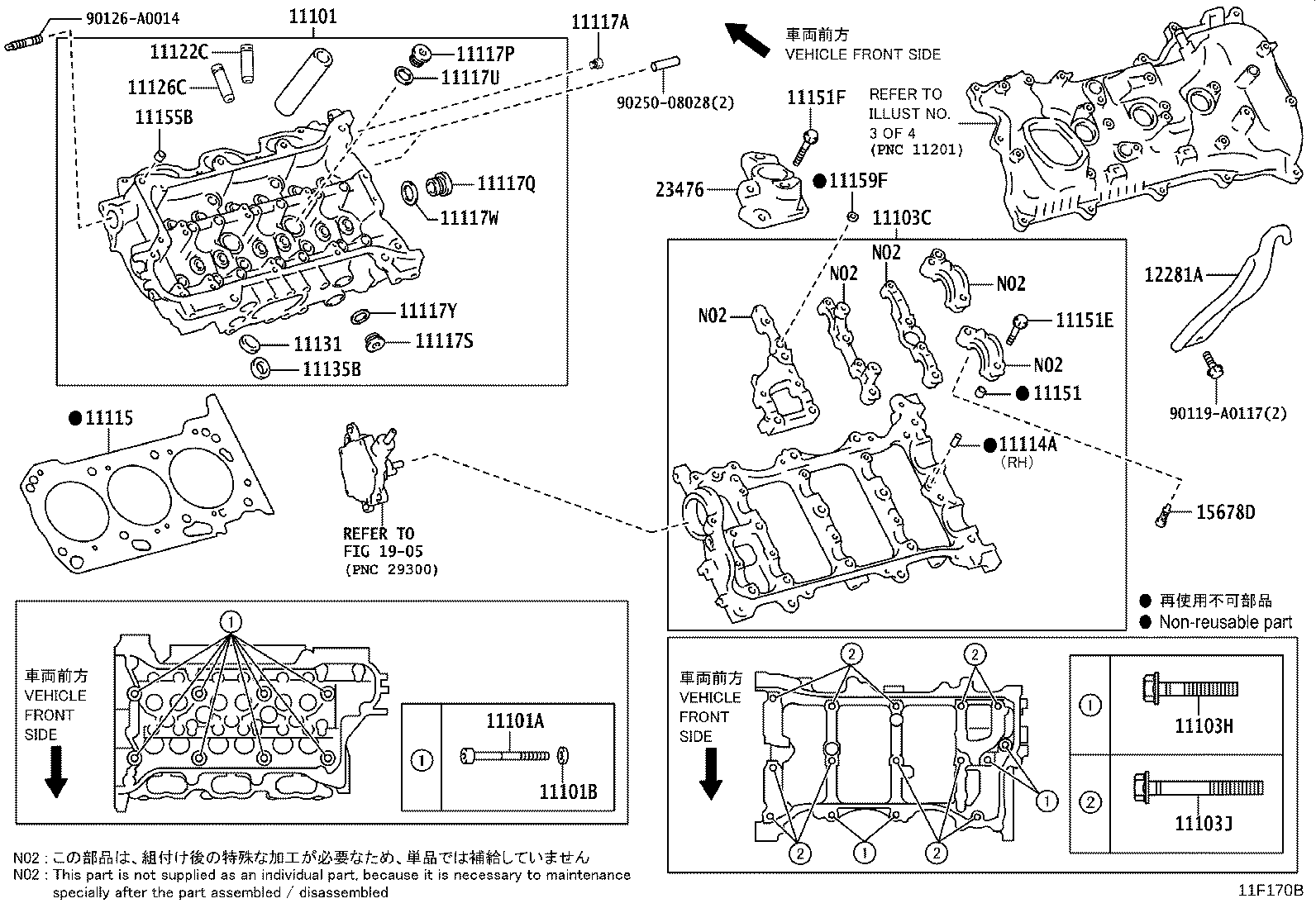

Exploded illustration 11F170B 1905 — not listed in this catalogue 11114A — PIN, STRAIGHT (2 parts) 12281A — HANGER, ENGINE, NO.1 (1 parts) 11103C — HOUSING SUB-ASSY, CAMSHAFT, RH (2 parts) 11151E — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) (1 parts) 11151F — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) (1 parts) 23476 — HOUSING, FUEL PUMP LIFTER (1 parts) 11117P — PLUG, W/HEAD STRAIGHT SCREW, RH NO.1 (2 parts) 11117U — GASKET(FOR WATER HOLE RH) (1 parts) 11117Q — PLUG, W/HEAD STRAIGHT SCREW, RH NO.2 (1 parts) 11135B — SEAT, EXHAUST VALVE, RH (5 parts) 11131 — SEAT, INTAKE VALVE (5 parts) 11115 — GASKET, CYLINDER HEAD (17 parts) 11151 — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH) (1 parts) 9025008028 — not listed in this catalogue 11117W — GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.1) (1 parts) 11155B — PIN, RING (11 parts) 11117S — PLUG, W/HEAD STRAIGHT SCREW, RH NO.3 (2 parts) 11117Y — GASKET(FOR CYLINDER HEAD SCREW PLUG, RH NO.2) (1 parts) 11159F — GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH (1 parts) 15678D — FILTER, OIL CONTROL VALVE, RH (1 parts) 11101 — HEAD SUB-ASSY, CYLINDER (26 parts) 11126C — BUSH, EXHAUST VALVE GUIDE, RH (2 parts) 11122C — BUSH, INTAKE VALVE GUIDE, RH (2 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (35 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (10 parts) 11103H — BOLT(FOR CAMSHAFT HOUSING SET, RH NO.1) (1 parts) 11103J — BOLT(FOR CAMSHAFT HOUSING SET, RH NO.2) (1 parts) 90119A0117 — not listed in this catalogue 90126A0014 — not listed in this catalogue 11117A — PLUG, W/HEAD TAPER SCREW, NO.1 (1 parts)
11F170B · 27 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
135 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-09551 note Head Sub-assy, Cylinder
2020-03 → 2021-05 ended
2GRFKS GSU7# —
11101-09552 note Head Sub-assy, Cylinder
2021-05 → 2022-10 ended
2GRFKS GSU7# —
11101-09691 note Head Sub-assy, Cylinder
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11101-29625 note Head Sub-assy, Cylinder
2020-02 → 2020-04 ended
A25AFXS AXUH7# —
11101-29626 note Head Sub-assy, Cylinder
2020-04 → 2021-05 ended
A25AFXS AXUH7# —
11101-29627 note Head Sub-assy, Cylinder
2021-05 → 2022-10 ended
A25AFXS AXUH7# —
11101-80016 note Head Sub-assy, Cylinder
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11101-F9000 note Head Sub-assy, Cylinder
2020-02 → 2020-03 ended
A25AFXS AXUH7# —
11101-F9001 note Head Sub-assy, Cylinder
2020-03 → 2022-03 ended
A25AFXS AXUH7# —
11101-F9002 note Head Sub-assy, Cylinder
2022-03 → 2022-10 ended
A25AFXS AXUH7# —
11101-29627 note Head Sub-assy, Cylinder
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
11101-29627 note Head Sub-assy, Cylinder
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
11101-29686 note Head Sub-assy, Cylinder
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
11101-29686 note Head Sub-assy, Cylinder
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
11101-F9002 note Head Sub-assy, Cylinder
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
11101-F9002 note Head Sub-assy, Cylinder
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
11101-F9210 note Head Sub-assy, Cylinder
2022-11 → 2023-11 ended
T24AFTS TXUA75 RUS —
11101-F9210 note Head Sub-assy, Cylinder
2022-11 → 2023-12 ended
T24AFTS TXUA7# ARL —
11101-29627 note Head Sub-assy, Cylinder
2023-11 → 2024-05 ended
A25AFXS AXUH7# —
11101-29627 note Head Sub-assy, Cylinder
2024-05 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
11101-29627 note Head Sub-assy, Cylinder
2024-05 → 2024-10 ended
A25AFXS AXUH70 LIMD —
11101-F9002 note Head Sub-assy, Cylinder
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
11101-F9002 note Head Sub-assy, Cylinder
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
11101-F9130 note Head Sub-assy, Cylinder
2024-05 → 2024-10 ended
A25AFXS AXUH70 LIMD —
11101-F9130 note Head Sub-assy, Cylinder
2024-05 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
11101-F9210 note Head Sub-assy, Cylinder
2023-11 → —
T24AFTS TXUA7# —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
90910-02202 note Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
90910-A2009 Bolt(FOR CYLINDER HEAD SET)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
90910-A2019 note Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
90910-02202 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
90910-02202 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-11 ended
T24AFTS TXUA75 RUS —
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-12 ended
T24AFTS TXUA7# ARL —
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90910-A2019 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
90910-A2019 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
90910-A2024 note Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-11 ended
T24AFTS TXUA75 RUS —
90910-A2024 note Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-12 ended
T24AFTS TXUA7# ARL —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
T24AFTS TXUA7# —
90910-02201 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
90910-02202 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
90910-02202 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
T24AFTS TXUA7# —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
T24AFTS TXUA7# —
90910-A2019 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
90910-A2019 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
90910-A2024 note Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
T24AFTS TXUA7# —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-11034 note Washer, Plate(FOR CYLINDER HEAD SET)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90201-12079 note Washer, Plate(FOR CYLINDER HEAD SET)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
90201-A0008 note Washer, Plate(FOR CYLINDER HEAD SET)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90201-12079 note Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
90201-12079 Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90201-12079 Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90201-12079 note Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
90201-12079 Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → —
T24AFTS TXUA7# —
90201-12079 note Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
90201-12079 note Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
11103C — Housing Sub-assy, Camshaft, RH
11103-0P022 Housing Sub-assy, Camshaft, RH
2020-03 → 2021-03 ended
2GRFKS GSU7# —
11103-0P023 Housing Sub-assy, Camshaft, RH
2021-04 → 2022-10 ended
2GRFKS GSU7# —
11103H — Bolt(FOR CAMSHAFT HOUSING SET, RH NO.1)
90105-A0333 Bolt(FOR CAMSHAFT HOUSING SET, RH NO.1)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11103J — Bolt(FOR CAMSHAFT HOUSING SET, RH NO.2)
90105-A0334 Bolt(FOR CAMSHAFT HOUSING SET, RH NO.2)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11114A — Pin, Straight
90250-05021 note Pin, Straight
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90250-A0025 note Pin, Straight
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11115 — Gasket, Cylinder Head
11115-0P030 Gasket, Cylinder Head
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11115-25050 note Gasket, Cylinder Head
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
11115-F0010 note Gasket, Cylinder Head
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
11115-25050 note Gasket, Cylinder Head
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
11115-25050 note Gasket, Cylinder Head
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
11115-25070 note Gasket, Cylinder Head
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
11115-25070 note Gasket, Cylinder Head
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
11115-F0010 note Gasket, Cylinder Head
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
11115-F0010 note Gasket, Cylinder Head
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
11115-F0030 note Gasket, Cylinder Head
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
11115-F0030 note Gasket, Cylinder Head
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
11115-25050 note Gasket, Cylinder Head
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
11115-25050 note Gasket, Cylinder Head
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
11115-25070 note Gasket, Cylinder Head
2023-11 → —
T24AFTS TXUA7# —
11115-F0010 note Gasket, Cylinder Head
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
11115-F0010 note Gasket, Cylinder Head
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
11115-F0030 note Gasket, Cylinder Head
2023-11 → —
T24AFTS TXUA7# —
11117A — Plug, W/Head Taper Screw, NO.1
90345-51006 Plug, W/Head Taper Screw, NO.1
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11117P — Plug, W/Head Straight Screw, RH NO.1
90341-20012 note Plug, W/Head Straight Screw, RH NO.1
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90341-A0006 note Plug, W/Head Straight Screw, RH NO.1
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11117Q — Plug, W/Head Straight Screw, RH NO.2
90341-27006 Plug, W/Head Straight Screw, RH NO.2
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11117S — Plug, W/Head Straight Screw, RH NO.3
90341-20002 note Plug, W/Head Straight Screw, RH NO.3
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90341-A0008 note Plug, W/Head Straight Screw, RH NO.3
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11117U — Gasket(FOR WATER HOLE RH)
90430-20004 Gasket(FOR WATER HOLE RH)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11117W — Gasket(FOR CYLINDER HEAD SCREW PLUG, RH NO.1)
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG, RH NO.1)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11117Y — Gasket(FOR CYLINDER HEAD SCREW PLUG, RH NO.2)
16258-31020 Gasket(FOR CYLINDER HEAD SCREW PLUG, RH NO.2)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11122C — Bush, Intake Valve Guide, RH
11122-31070 note Bush, Intake Valve Guide, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11123-31070 note Bush, Intake Valve Guide, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11126C — Bush, Exhaust Valve Guide, RH
11126-31030 note Bush, Exhaust Valve Guide, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11127-31030 note Bush, Exhaust Valve Guide, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11131 — Seat, Intake Valve
11131-0P020 note Seat, Intake Valve
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11131-31050 note Seat, Intake Valve
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11132-0P020 note Seat, Intake Valve
2020-03 → 2022-01 ended
2GRFKS GSU7# —
11132-0P020 note Seat, Intake Valve
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11132-31050 note Seat, Intake Valve
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11135B — Seat, Exhaust Valve, RH
11135-0P050 note Seat, Exhaust Valve, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11135-31110 note Seat, Exhaust Valve, RH
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11136-0P050 note Seat, Exhaust Valve, RH
2020-03 → 2022-01 ended
2GRFKS GSU7# —
11136-0P050 note Seat, Exhaust Valve, RH
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11136-31110 note Seat, Exhaust Valve, RH
2022-01 → 2022-10 ended
2GRFKS GSU7# —
11151 — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
90253-11021 Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING RH)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11151E — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
90119-A0302 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11151F — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
90119-A0413 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
11155B — Pin, Ring
90253-11021 Pin, Ring
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90253-13005 note Pin, Ring
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
90253-11021 Pin, Ring
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90253-11021 Pin, Ring
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90253-13005 note Pin, Ring
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
90253-13005 note Pin, Ring
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
90253-11021 Pin, Ring
2023-11 → —
T24AFTS TXUA7# —
90253-13005 note Pin, Ring
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
90253-13005 note Pin, Ring
2024-04 → 2024-10 ended
A25AFXS AXUH70 LIMD —
90253-13005 note Pin, Ring
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
90253-13005 note Pin, Ring
2024-04 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
11159F — Gasket, Camshaft Bearing Cap Oil Hole, RH
11159-0P040 Gasket, Camshaft Bearing Cap Oil Hole, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
12281A — Hanger, Engine, NO.1
12281-31121 Hanger, Engine, NO.1
2020-03 → 2022-10 ended
2GRFKS GSU7# —
15678D — Filter, Oil Control Valve, RH
15678-31020 Filter, Oil Control Valve, RH
2020-03 → 2022-10 ended
2GRFKS GSU7# —
23476 — Housing, Fuel Pump Lifter
23476-31020 Housing, Fuel Pump Lifter
2020-03 → 2022-10 ended
2GRFKS GSU7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
