Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

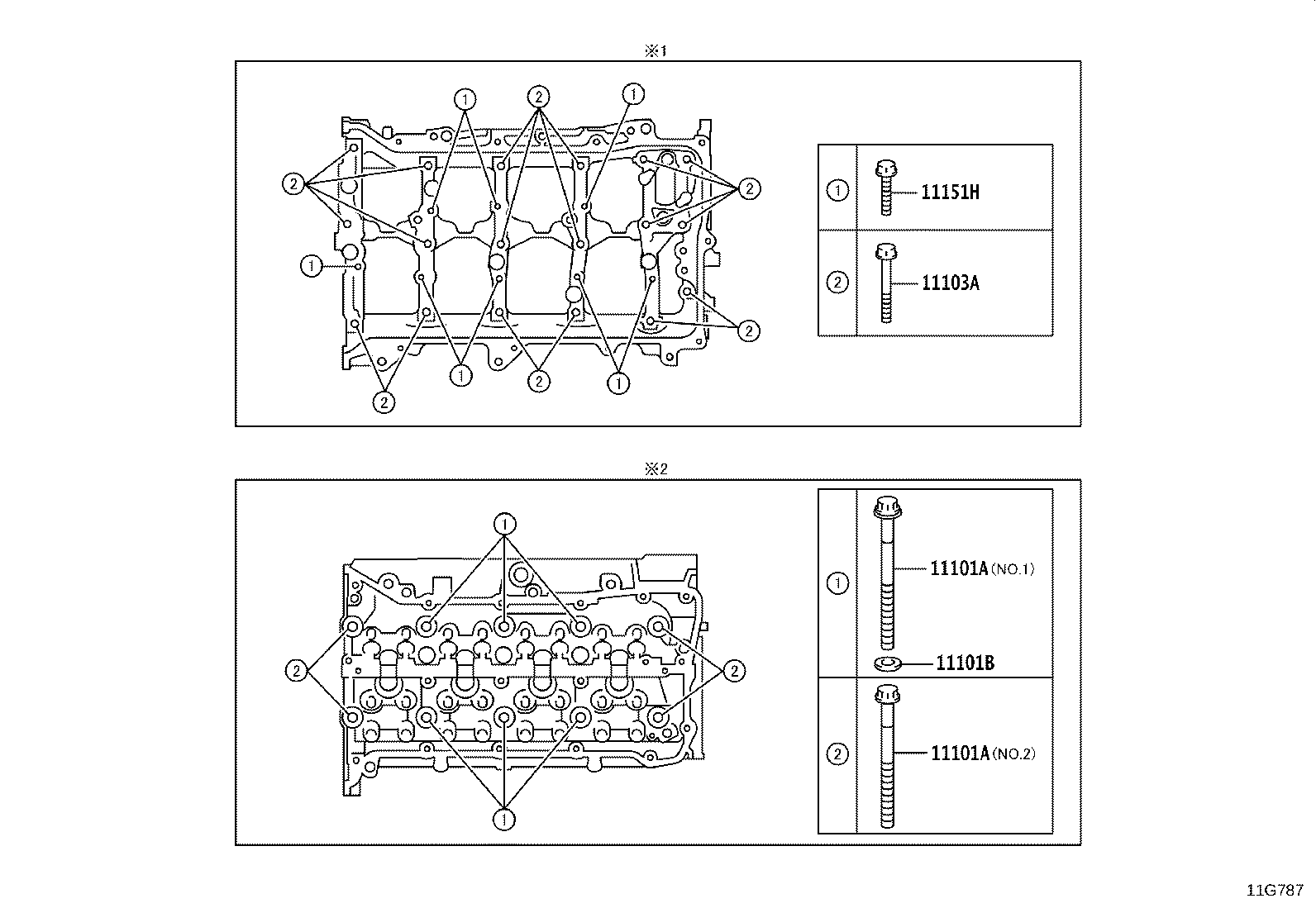

| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90910-02202 note |
Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90910-A2009 |
Bolt(FOR CYLINDER HEAD SET)
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90910-A2019 note |
Bolt(FOR CYLINDER HEAD SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90910-02202 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90910-02202 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90910-02212 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90910-02212 note |
Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90910-02212 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90910-02212 note |
Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90910-A2019 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90910-A2019 note |
Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90910-A2024 note |
Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90910-A2024 note |
Bolt(FOR CYLINDER HEAD SET)
2023-08 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90910-02202 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90910-02202 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90910-02212 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90910-A2018 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90910-A2019 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90910-A2019 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90910-A2024 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 90201-12079 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90201-A0008 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90201-12079 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90201-12079 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90201-12079 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90201-12079 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90105-A0411 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2020-08 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 91551-G0840 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90105-A0411 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90105-A0411 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 91551-G0840 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 91551-G0840 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90105-A0205 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90105-A0411 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90105-A0411 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 91551-G0840 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 91551-G0840 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2020-02 → 2022-10
ended
|
A25AFXS AXUH7# | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2024-04 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2024-04 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
