Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11

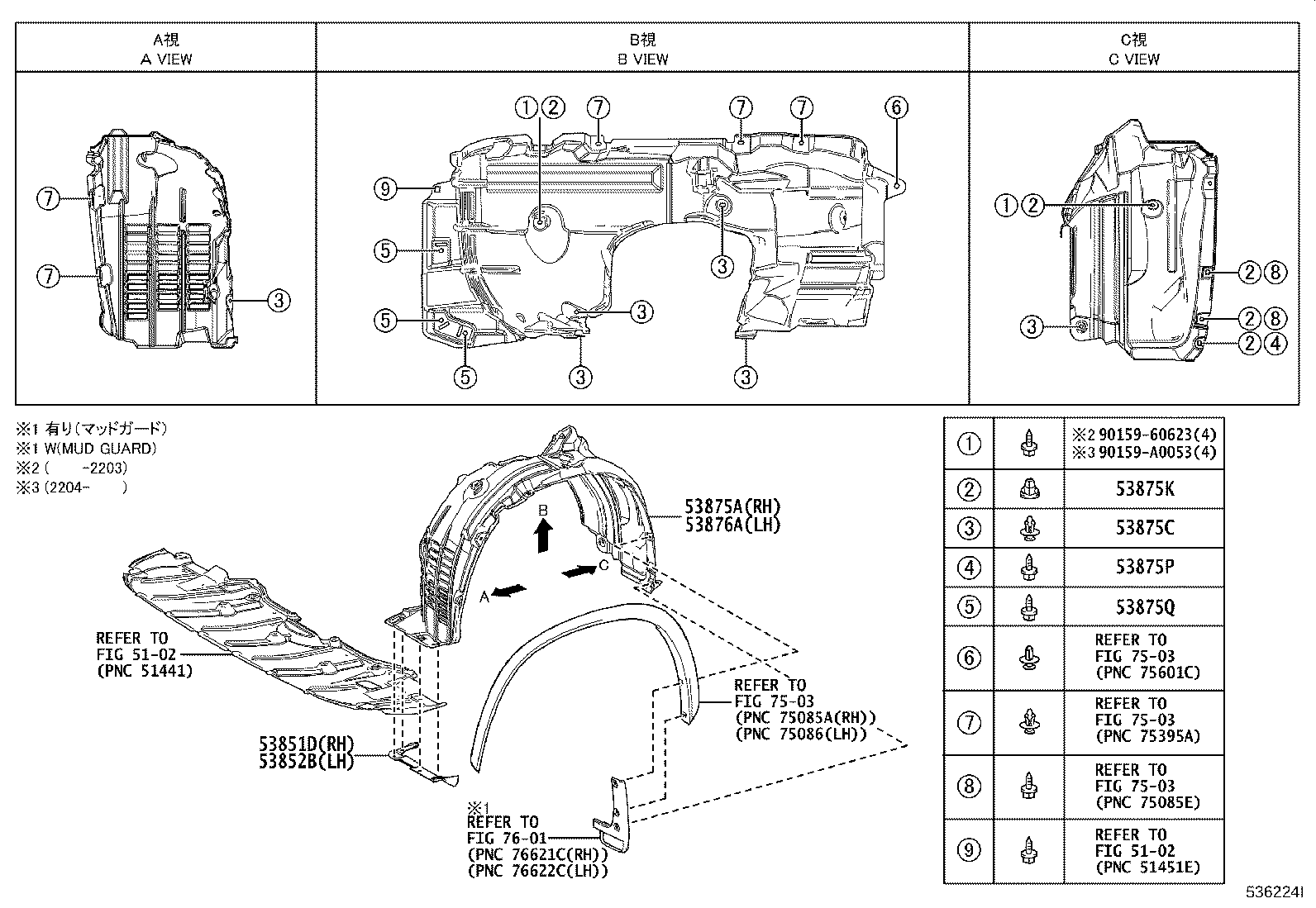

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-0E080 |
Pad, Front Wheel Opening Extension, RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 53851-0E080 |
Pad, Front Wheel Opening Extension, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 53851-0E080 |
Pad, Front Wheel Opening Extension, RH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 53851-0E080 |
Pad, Front Wheel Opening Extension, RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 53851-0E080 |
Pad, Front Wheel Opening Extension, RH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-0E080 |
Pad, Front Wheel Opening Extension, LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 53852-0E080 |
Pad, Front Wheel Opening Extension, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 53852-0E080 |
Pad, Front Wheel Opening Extension, LH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 53852-0E080 |
Pad, Front Wheel Opening Extension, LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 53852-0E080 |
Pad, Front Wheel Opening Extension, LH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53805-0E170 |
Liner, Front Fender, RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 53805-0E170 |
Liner, Front Fender, RH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 53805-0E170 |
Liner, Front Fender, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 53805-0E170 |
Liner, Front Fender, RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 53805-0E170 |
Liner, Front Fender, RH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53875C — Clip, Front Fender Liner | ||||
| 90467-07220 |
Clip, Front Fender Liner
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90467-07220 |
Clip, Front Fender Liner
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90467-07220 |
Clip, Front Fender Liner
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90467-07220 |
Clip, Front Fender Liner
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90467-07220 |
Clip, Front Fender Liner
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53875K — Grommet, Screw | ||||
| 90189-06065 |
Grommet, Screw
2020-02 → 2020-03
ended
|
AXUH7# | — | |
| 90189-06236 |
Grommet, Screw
2020-03 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90189-06236 |
Grommet, Screw
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90189-06236 |
Grommet, Screw
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90189-06236 |
Grommet, Screw
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90189-06236 |
Grommet, Screw
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-60623 |
Screw, NO.1
2020-02 → 2022-03
ended
|
AXUH7#,GSU7# | — | |
| 90159-A0053 |
Screw, NO.1
2022-04 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90159-A0053 |
Screw, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90159-A0053 |
Screw, NO.1
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90159-A0053 |
Screw, NO.1
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90159-A0053 |
Screw, NO.1
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53875Q — Screw, NO.2 | ||||
| 90159-A0059 |
Screw, NO.2
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90159-A0059 |
Screw, NO.2
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90159-A0059 |
Screw, NO.2
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90159-A0059 |
Screw, NO.2
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90159-A0059 |
Screw, NO.2
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53806-0E170 |
Liner, Front Fender, LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 53806-0E170 |
Liner, Front Fender, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 53806-0E170 |
Liner, Front Fender, LH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 53806-0E170 |
Liner, Front Fender, LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 53806-0E170 |
Liner, Front Fender, LH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
