Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

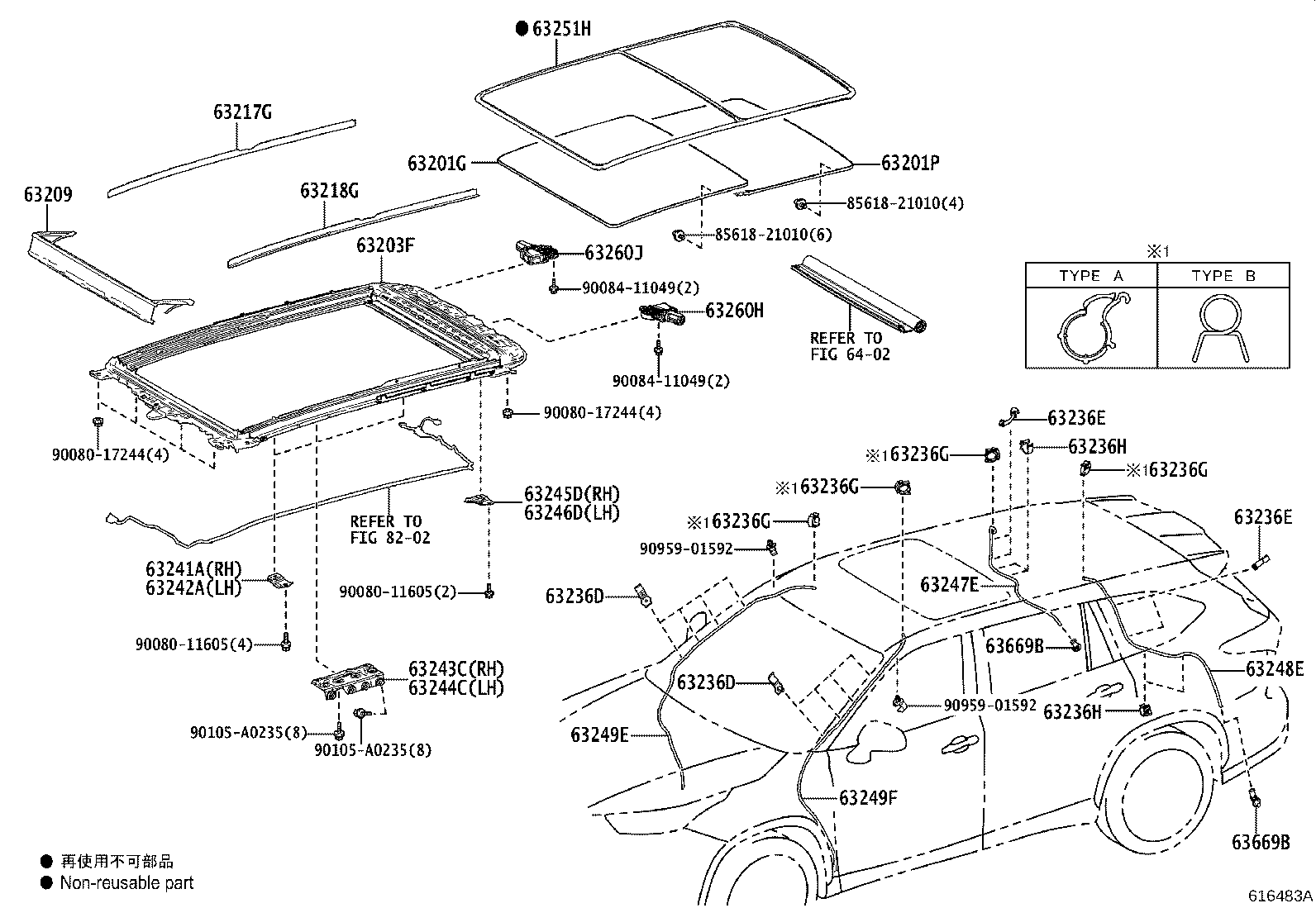

Exploded illustration 616483A 63249E — HOSE, SLIDING ROOF DRAIN (10 parts) 63236G — CLAMP, SLIDING ROOF DRAIN HOSE (20 parts) 63236G — CLAMP, SLIDING ROOF DRAIN HOSE (20 parts) 63236G — CLAMP, SLIDING ROOF DRAIN HOSE (20 parts) 63236G — CLAMP, SLIDING ROOF DRAIN HOSE (20 parts) 63247E — HOSE, SLIDING ROOF DRAIN, REAR RH (14 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (10 parts) 63236H — CLAMP, SLIDING ROOF DRAIN HOSE (14 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (10 parts) 63236E — CLAMP, SLIDING ROOF DRAIN HOSE (10 parts) 63249F — HOSE, SLIDING ROOF DRAIN (10 parts) 9095901592 — not listed in this catalogue 9095901592 — not listed in this catalogue 63248E — HOSE, SLIDING ROOF DRAIN, REAR LH (14 parts) 63236D — CLAMP, SLIDING ROOF DRAIN HOSE (10 parts) 63669B — GROMMET, SLIDING ROOF DRAIN (10 parts) 63669B — GROMMET, SLIDING ROOF DRAIN (10 parts) 63236H — CLAMP, SLIDING ROOF DRAIN HOSE (14 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (17 parts) 8202 — not listed in this catalogue 6402 — not listed in this catalogue 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (8 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (15 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (15 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (8 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (8 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (8 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (8 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (8 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (8 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (8 parts) 63260H — GEAR ASSY, SLIDING ROOF DRIVE (14 parts) 8561821010 — not listed in this catalogue 8561821010 — not listed in this catalogue 9008411049 — not listed in this catalogue 9008411049 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 90105A0235 — not listed in this catalogue 90105A0235 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (14 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (8 parts) 63251H — WEATHERSTRIP, SLIDING ROOF (8 parts)
616483A · 31 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
267 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-0E140 note Glass Sub-assy, Sliding Roof
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63201-0E140 Glass Sub-assy, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63201-0E150 note Glass Sub-assy, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63201-0E150 Glass Sub-assy, Sliding Roof
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63201-0E140 Glass Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63201-0E140 Glass Sub-assy, Sliding Roof
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63201-0E150 Glass Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63201-0E150 note Glass Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63201-0E150 note Glass Sub-assy, Sliding Roof
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63201-0E140 Glass Sub-assy, Sliding Roof
2023-11 → 2024-10 ended
AXUH70 LIMD —
63201-0E140 Glass Sub-assy, Sliding Roof
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63201-0E150 note Glass Sub-assy, Sliding Roof
2023-11 → 2024-10 ended
AXUH70 LIMD —
63201-0E150 Glass Sub-assy, Sliding Roof
2023-11 → —
TXUA75 LIMD RUS —
63201-0E150 note Glass Sub-assy, Sliding Roof
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63201P — Glass Sub-assy, Sliding Roof
63201-0E160 note Glass Sub-assy, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63201-0E160 Glass Sub-assy, Sliding Roof
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63201-0E160 note Glass Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63201-0E160 note Glass Sub-assy, Sliding Roof
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63201-0E160 Glass Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63201-0E160 note Glass Sub-assy, Sliding Roof
2023-11 → 2024-10 ended
AXUH70 LIMD —
63201-0E160 Glass Sub-assy, Sliding Roof
2023-11 → —
TXUA75 LIMD RUS —
63201-0E160 note Glass Sub-assy, Sliding Roof
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63203F — Housing Sub-assy, Sliding Roof
63203-0E130 note Housing Sub-assy, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63203-0E140 note Housing Sub-assy, Sliding Roof
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63203-0E140 Housing Sub-assy, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63203-0E150 note Housing Sub-assy, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63203-0E150 Housing Sub-assy, Sliding Roof
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63203-0E140 Housing Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63203-0E140 Housing Sub-assy, Sliding Roof
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63203-0E150 Housing Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63203-0E150 note Housing Sub-assy, Sliding Roof
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63203-0E150 note Housing Sub-assy, Sliding Roof
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63203-0E140 Housing Sub-assy, Sliding Roof
2023-11 → 2024-10 ended
AXUH70 LIMD —
63203-0E140 Housing Sub-assy, Sliding Roof
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63203-0E150 note Housing Sub-assy, Sliding Roof
2023-11 → 2024-12 ended
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63203-0E150 Housing Sub-assy, Sliding Roof
2023-11 → 2024-12 ended
TXUA75 LIMD RUS —
63203-0E150 note Housing Sub-assy, Sliding Roof
2023-11 → 2024-10 ended
AXUH70 LIMD —
63203-0E151 Housing Sub-assy, Sliding Roof
2024-12 → —
TXUA75 LIMD RUS —
63203-0E151 note Housing Sub-assy, Sliding Roof
2024-12 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63209 — Panel Sub-assy, Roof Wind Deflector
63209-0E080 note Panel Sub-assy, Roof Wind Deflector
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63209-0E080 Panel Sub-assy, Roof Wind Deflector
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63209-0E080 Panel Sub-assy, Roof Wind Deflector
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63209-0E080 note Panel Sub-assy, Roof Wind Deflector
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63209-0E080 note Panel Sub-assy, Roof Wind Deflector
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63209-0E080 Panel Sub-assy, Roof Wind Deflector
2023-11 → —
TXUA75 LIMD RUS —
63209-0E080 note Panel Sub-assy, Roof Wind Deflector
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63209-0E080 note Panel Sub-assy, Roof Wind Deflector
2023-11 → 2024-10 ended
AXUH70 LIMD —
63217G — Garnish, Sliding Roof Side, RH
63217-06260 Garnish, Sliding Roof Side, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63217-06260 note Garnish, Sliding Roof Side, RH
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63217-0E120 note Garnish, Sliding Roof Side, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63217-0E120 Garnish, Sliding Roof Side, RH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63217-06260 Garnish, Sliding Roof Side, RH
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63217-06260 Garnish, Sliding Roof Side, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63217-0E120 Garnish, Sliding Roof Side, RH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63217-0E120 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63217-0E120 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63217-06260 Garnish, Sliding Roof Side, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63217-06260 Garnish, Sliding Roof Side, RH
2023-11 → 2024-11 ended
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63217-0E120 note Garnish, Sliding Roof Side, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63217-0E120 Garnish, Sliding Roof Side, RH
2023-11 → —
TXUA75 LIMD RUS —
63217-0E120 note Garnish, Sliding Roof Side, RH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63217-0E200 Garnish, Sliding Roof Side, RH
2024-12 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63218G — Garnish, Sliding Roof Side, LH
63217-06260 Garnish, Sliding Roof Side, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63217-06260 note Garnish, Sliding Roof Side, LH
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63218-0E110 note Garnish, Sliding Roof Side, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63218-0E110 Garnish, Sliding Roof Side, LH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63217-06260 Garnish, Sliding Roof Side, LH
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63217-06260 Garnish, Sliding Roof Side, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63218-0E110 Garnish, Sliding Roof Side, LH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63218-0E110 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63218-0E110 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63217-06260 Garnish, Sliding Roof Side, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63217-06260 Garnish, Sliding Roof Side, LH
2023-11 → 2024-11 ended
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63217-0E200 Garnish, Sliding Roof Side, LH
2024-12 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63218-0E110 note Garnish, Sliding Roof Side, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63218-0E110 Garnish, Sliding Roof Side, LH
2023-11 → —
TXUA75 LIMD RUS —
63218-0E110 note Garnish, Sliding Roof Side, LH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63236D — Clamp, Sliding Roof Drain Hose
63236-0E020 Clamp, Sliding Roof Drain Hose
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
63236-0E020 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-0E020 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-0E020 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
63236-0E020 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63236-0E020 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63236-0E020 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
63236-0E020 Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
63236-0E020 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH78 LIMD EUR —
63236-0E020 Clamp, Sliding Roof Drain Hose
2023-11 → 2024-10 ended
AXUH70 LIMD —
63236E — Clamp, Sliding Roof Drain Hose
63236-08040 Clamp, Sliding Roof Drain Hose
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
63236-08040 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-08040 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-08040 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
63236-08040 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63236-08040 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63236-08040 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
63236-08040 Clamp, Sliding Roof Drain Hose
2023-11 → 2024-10 ended
AXUH70 LIMD —
63236-08040 Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
63236-08040 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH78 LIMD EUR —
63236G — Clamp, Sliding Roof Drain Hose
63236-33030 note Clamp, Sliding Roof Drain Hose
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
63236-33030 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-33030 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-33030 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
63236-33030 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63236-33030 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63236-33030 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
63236-33030 note Clamp, Sliding Roof Drain Hose
2023-11 → 2024-10 ended
AXUH70 LIMD —
63236-33030 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
63236-33030 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH78 LIMD EUR —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2023-11 → 2024-10 ended
AXUH70 LIMD —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
90466-A0008 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH78 LIMD EUR —
63236H — Clamp, Sliding Roof Drain Hose
63236-48020 note Clamp, Sliding Roof Drain Hose
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63236-48020 Clamp, Sliding Roof Drain Hose
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63236-48020 Clamp, Sliding Roof Drain Hose
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63236-48020 note Clamp, Sliding Roof Drain Hose
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63236-48020 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63236-48020 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63236-48020 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63236-48020 note Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63236-48020 Clamp, Sliding Roof Drain Hose
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63236-48020 note Clamp, Sliding Roof Drain Hose
2023-11 → 2024-10 ended
AXUH70 LIMD —
63236-48020 Clamp, Sliding Roof Drain Hose
2023-11 → 2024-10 ended
AXUH70 LIMD —
63236-48020 Clamp, Sliding Roof Drain Hose
2023-11 → —
TXUA75 LIMD RUS —
63236-48020 note Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63236-48020 Clamp, Sliding Roof Drain Hose
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, RH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, RH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, RH
2023-11 → —
TXUA75 LIMD RUS —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, LH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63241-0E060 Bracket, Sliding Roof Housing Front Mounting, LH
2023-11 → —
TXUA75 LIMD RUS —
63241-0E060 note Bracket, Sliding Roof Housing Front Mounting, LH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-0E100 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63243-0E100 Bracket, Sliding Roof Housing Center Mounting, RH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63243-0E100 Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63243-0E100 note Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63243-0E100 note Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63243-0E100 note Bracket, Sliding Roof Housing Center Mounting, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63243-0E100 note Bracket, Sliding Roof Housing Center Mounting, RH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63243-0E100 Bracket, Sliding Roof Housing Center Mounting, RH
2023-11 → —
TXUA75 LIMD RUS —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-0E070 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63244-0E070 Bracket, Sliding Roof Housing Center Mounting, LH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63244-0E070 Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63244-0E070 note Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63244-0E070 note Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63244-0E070 note Bracket, Sliding Roof Housing Center Mounting, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63244-0E070 Bracket, Sliding Roof Housing Center Mounting, LH
2023-11 → —
TXUA75 LIMD RUS —
63244-0E070 note Bracket, Sliding Roof Housing Center Mounting, LH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-0E050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63245-0E050 Bracket, Sliding Roof Housing Rear Mounting, RH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63245-0E050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63245-0E050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63245-0E050 Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63245-0E050 Bracket, Sliding Roof Housing Rear Mounting, RH
2023-11 → —
TXUA75 LIMD RUS —
63245-0E050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63245-0E050 note Bracket, Sliding Roof Housing Rear Mounting, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-0E020 note Bracket, Sliding Roof Housing Rear Mounting, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63246-0E020 Bracket, Sliding Roof Housing Rear Mounting, LH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63246-0E020 Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63246-0E020 note Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63246-0E020 note Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63246-0E020 note Bracket, Sliding Roof Housing Rear Mounting, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63246-0E020 note Bracket, Sliding Roof Housing Rear Mounting, LH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63246-0E020 Bracket, Sliding Roof Housing Rear Mounting, LH
2023-11 → —
TXUA75 LIMD RUS —
63247E — Hose, Sliding Roof Drain, Rear RH
63247-0E110 Hose, Sliding Roof Drain, Rear RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63247-0E110 note Hose, Sliding Roof Drain, Rear RH
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63247-0E120 note Hose, Sliding Roof Drain, Rear RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63247-0E120 Hose, Sliding Roof Drain, Rear RH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63247-0E110 Hose, Sliding Roof Drain, Rear RH
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63247-0E110 Hose, Sliding Roof Drain, Rear RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63247-0E120 note Hose, Sliding Roof Drain, Rear RH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63247-0E120 Hose, Sliding Roof Drain, Rear RH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63247-0E120 note Hose, Sliding Roof Drain, Rear RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63247-0E110 Hose, Sliding Roof Drain, Rear RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63247-0E110 Hose, Sliding Roof Drain, Rear RH
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63247-0E120 note Hose, Sliding Roof Drain, Rear RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63247-0E120 Hose, Sliding Roof Drain, Rear RH
2023-11 → —
TXUA75 LIMD RUS —
63247-0E120 note Hose, Sliding Roof Drain, Rear RH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63248E — Hose, Sliding Roof Drain, Rear LH
63248-0E060 Hose, Sliding Roof Drain, Rear LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63248-0E060 note Hose, Sliding Roof Drain, Rear LH
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63248-0E070 note Hose, Sliding Roof Drain, Rear LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63248-0E070 Hose, Sliding Roof Drain, Rear LH
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63248-0E060 Hose, Sliding Roof Drain, Rear LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63248-0E060 Hose, Sliding Roof Drain, Rear LH
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63248-0E070 note Hose, Sliding Roof Drain, Rear LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63248-0E070 Hose, Sliding Roof Drain, Rear LH
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63248-0E070 note Hose, Sliding Roof Drain, Rear LH
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63248-0E060 Hose, Sliding Roof Drain, Rear LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63248-0E060 Hose, Sliding Roof Drain, Rear LH
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63248-0E070 note Hose, Sliding Roof Drain, Rear LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
63248-0E070 note Hose, Sliding Roof Drain, Rear LH
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63248-0E070 Hose, Sliding Roof Drain, Rear LH
2023-11 → —
TXUA75 LIMD RUS —
63249E — Hose, Sliding Roof Drain
63249-0E090 Hose, Sliding Roof Drain
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
63249-0E090 note Hose, Sliding Roof Drain
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63249-0E090 note Hose, Sliding Roof Drain
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63249-0E090 Hose, Sliding Roof Drain
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
63249-0E090 note Hose, Sliding Roof Drain
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63249-0E090 Hose, Sliding Roof Drain
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63249-0E090 note Hose, Sliding Roof Drain
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
63249-0E090 Hose, Sliding Roof Drain
2023-11 → 2024-10 ended
AXUH70 LIMD —
63249-0E090 Hose, Sliding Roof Drain
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
63249-0E090 note Hose, Sliding Roof Drain
2023-11 → —
AXUH78 LIMD EUR —
63249F — Hose, Sliding Roof Drain
63249-0E090 note Hose, Sliding Roof Drain
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63249-0E090 note Hose, Sliding Roof Drain
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63249-0E090 Hose, Sliding Roof Drain
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
63249-0E090 Hose, Sliding Roof Drain
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
63249-0E090 note Hose, Sliding Roof Drain
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63249-0E090 Hose, Sliding Roof Drain
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63249-0E090 note Hose, Sliding Roof Drain
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
63249-0E090 Hose, Sliding Roof Drain
2023-11 → 2024-10 ended
AXUH70 LIMD —
63249-0E090 Hose, Sliding Roof Drain
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
63249-0E090 note Hose, Sliding Roof Drain
2023-11 → —
AXUH78 LIMD EUR —
63251H — Weatherstrip, Sliding Roof
63251-0E100 note Weatherstrip, Sliding Roof
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63251-0E100 Weatherstrip, Sliding Roof
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63251-0E100 Weatherstrip, Sliding Roof
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63251-0E100 note Weatherstrip, Sliding Roof
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63251-0E100 note Weatherstrip, Sliding Roof
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63251-0E100 note Weatherstrip, Sliding Roof
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63251-0E100 Weatherstrip, Sliding Roof
2023-11 → —
TXUA75 LIMD RUS —
63251-0E100 note Weatherstrip, Sliding Roof
2023-11 → 2024-10 ended
AXUH70 LIMD —
63260H — Gear Assy, Sliding Roof Drive
63260-0E130 Gear Assy, Sliding Roof Drive
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC) —
63260-0E130 note Gear Assy, Sliding Roof Drive
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63260-0E140 note Gear Assy, Sliding Roof Drive
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63260-0E140 Gear Assy, Sliding Roof Drive
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63260-0E130 Gear Assy, Sliding Roof Drive
2022-10 → 2023-11 ended
AXUH7# (LIMD,XLE) GCC —
63260-0E130 Gear Assy, Sliding Roof Drive
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63260-0E140 Gear Assy, Sliding Roof Drive
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63260-0E140 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63260-0E140 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63260-0E130 Gear Assy, Sliding Roof Drive
2023-11 → 2024-10 ended
AXUH70 LIMD —
63260-0E130 Gear Assy, Sliding Roof Drive
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC) —
63260-0E140 note Gear Assy, Sliding Roof Drive
2023-11 → 2024-10 ended
AXUH70 LIMD —
63260-0E140 Gear Assy, Sliding Roof Drive
2023-11 → —
TXUA75 LIMD RUS —
63260-0E140 note Gear Assy, Sliding Roof Drive
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63260J — Gear Assy, Sliding Roof Drive
63260-0E150 Gear Assy, Sliding Roof Drive
2020-03 → 2022-10 ended
GSU75 LIMD RUS —
63260-0E150 note Gear Assy, Sliding Roof Drive
2020-02 → 2022-10 ended
AXUH7#,GSU7# LIMD (ARL,EUR,GCC) —
63260-0E150 Gear Assy, Sliding Roof Drive
2022-10 → 2023-11 ended
TXUA75 LIMD RUS —
63260-0E150 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-11 ended
AXUH7# LHD LIMD —
63260-0E150 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
63260-0E150 note Gear Assy, Sliding Roof Drive
2023-11 → 2024-10 ended
AXUH70 LIMD —
63260-0E150 Gear Assy, Sliding Roof Drive
2023-11 → —
TXUA75 LIMD RUS —
63260-0E150 note Gear Assy, Sliding Roof Drive
2023-11 → —
AXUH78,TXUA7# LIMD (ARL,EUR,GCC) —
63669B — Grommet, Sliding Roof Drain
63669-30040 note Grommet, Sliding Roof Drain
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63669-30040 note Grommet, Sliding Roof Drain
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
63669-30040 Grommet, Sliding Roof Drain
2020-02 → 2022-10 ended
AXUH7#,GSU7# (LIMD,XLE) (ARL,GCC,RUS) —
63669-30040 Grommet, Sliding Roof Drain
2022-10 → 2023-11 ended
AXUH7#,TXUA75 (LIMD,XLE) (GCC,RUS) —
63669-30040 note Grommet, Sliding Roof Drain
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
63669-30040 Grommet, Sliding Roof Drain
2022-10 → 2023-12 ended
AXUH78,TXUA7# LIMD ARL —
63669-30040 note Grommet, Sliding Roof Drain
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
63669-30040 Grommet, Sliding Roof Drain
2023-11 → 2024-10 ended
AXUH70 LIMD —
63669-30040 Grommet, Sliding Roof Drain
2023-11 → —
AXUH70 XLE;AXUH78,TXUA7# (LIMD,XLE) (ARL,GCC,RUS) —
63669-30040 note Grommet, Sliding Roof Drain
2023-11 → —
AXUH78 LIMD EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
