Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

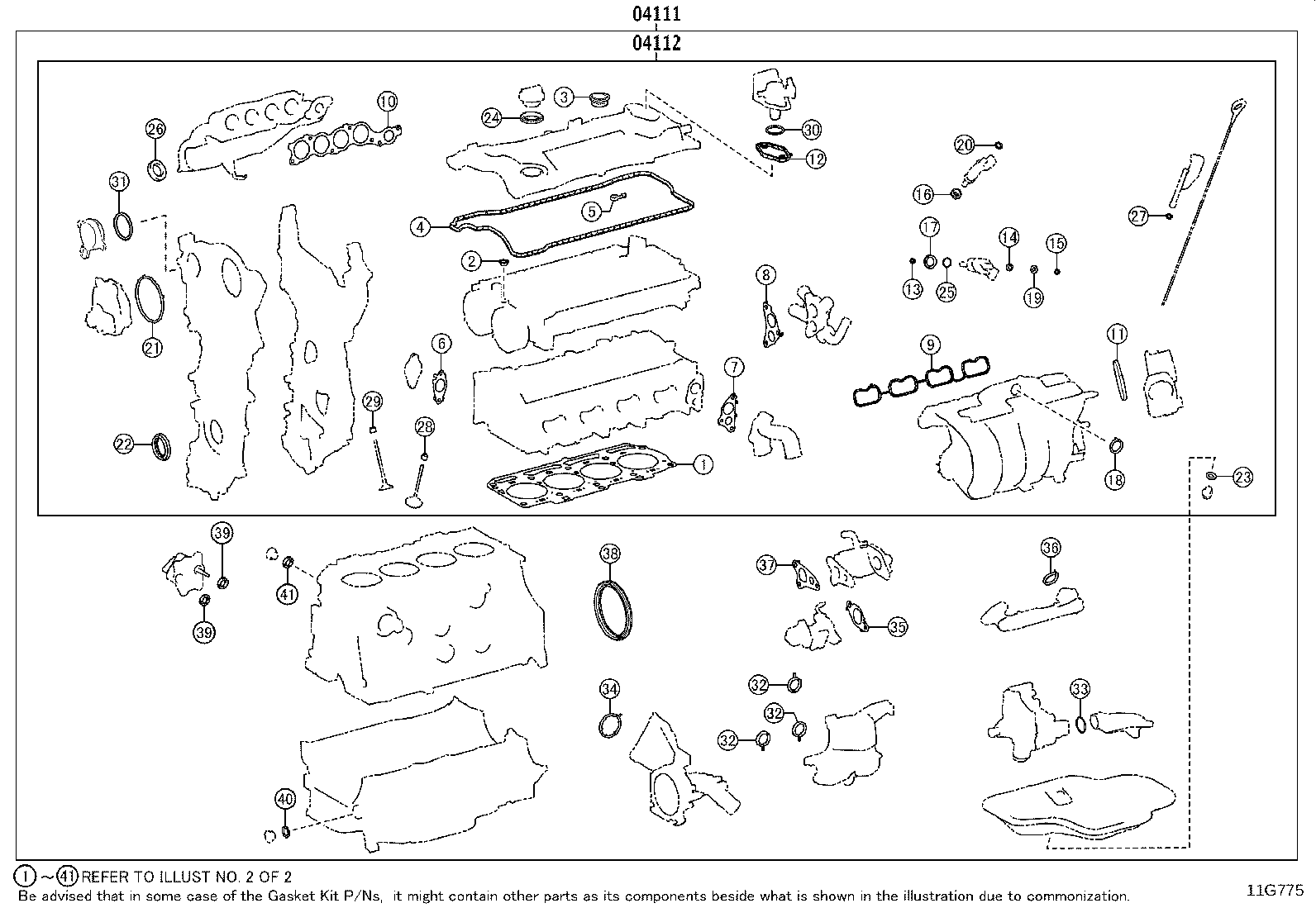

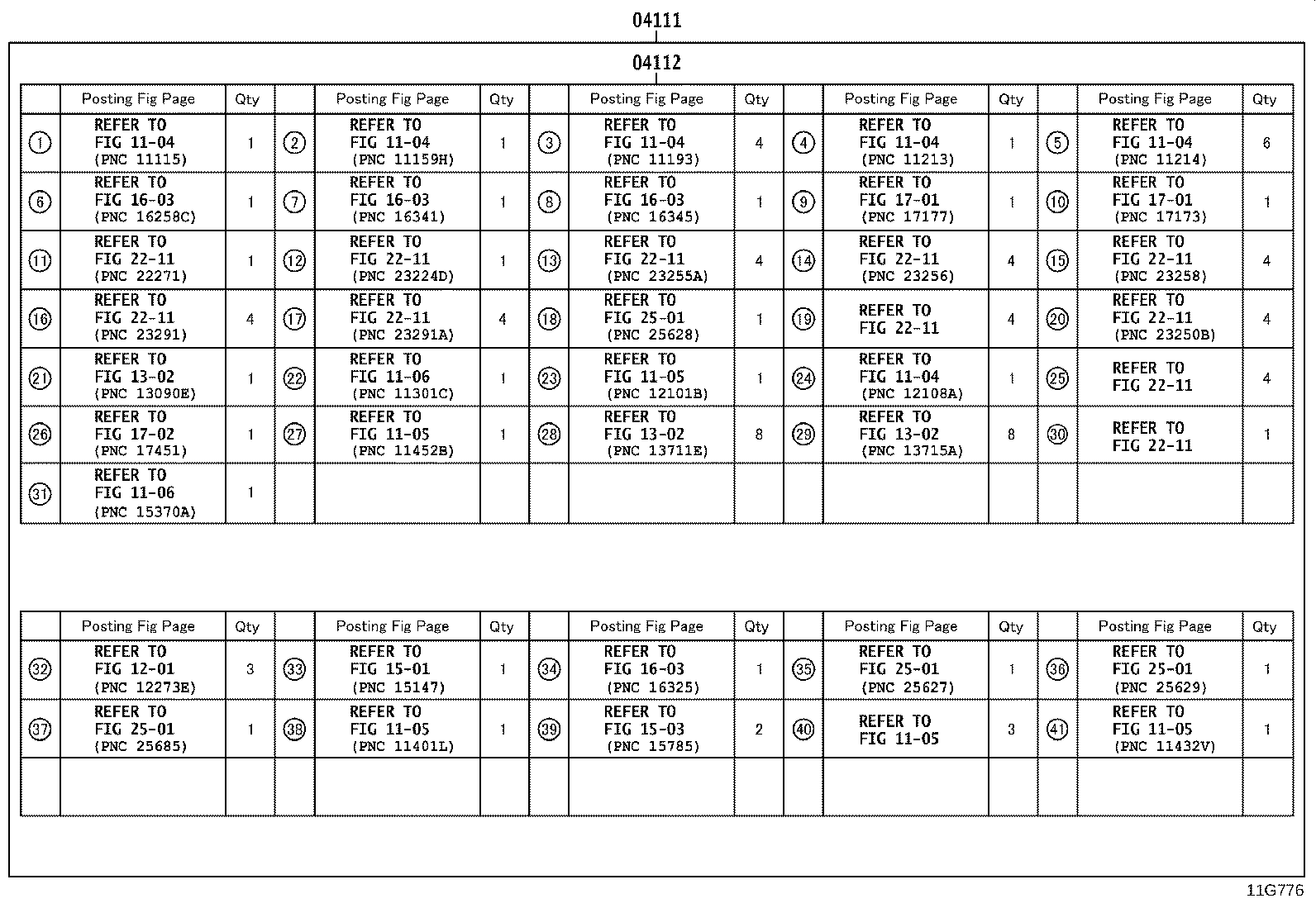

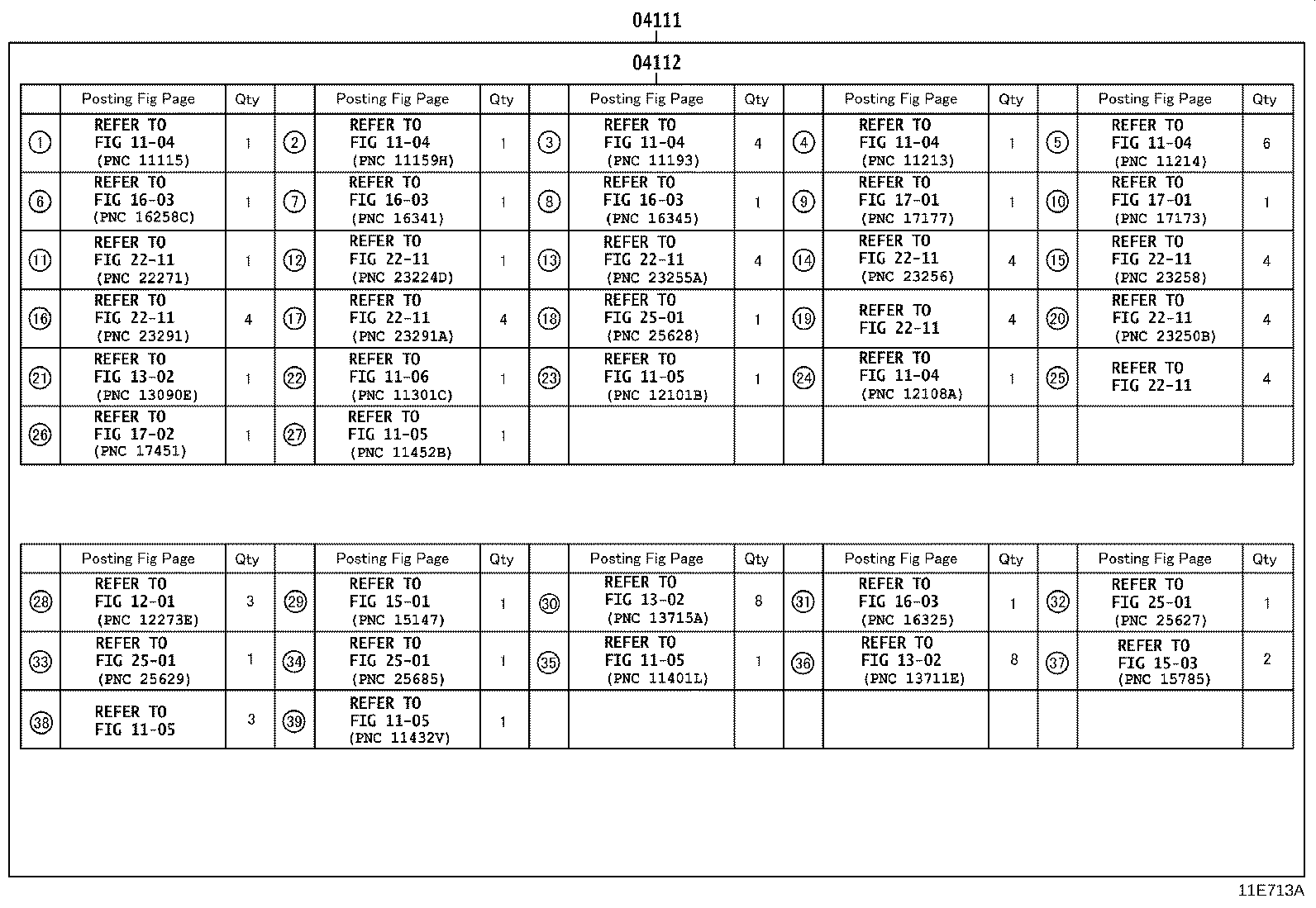

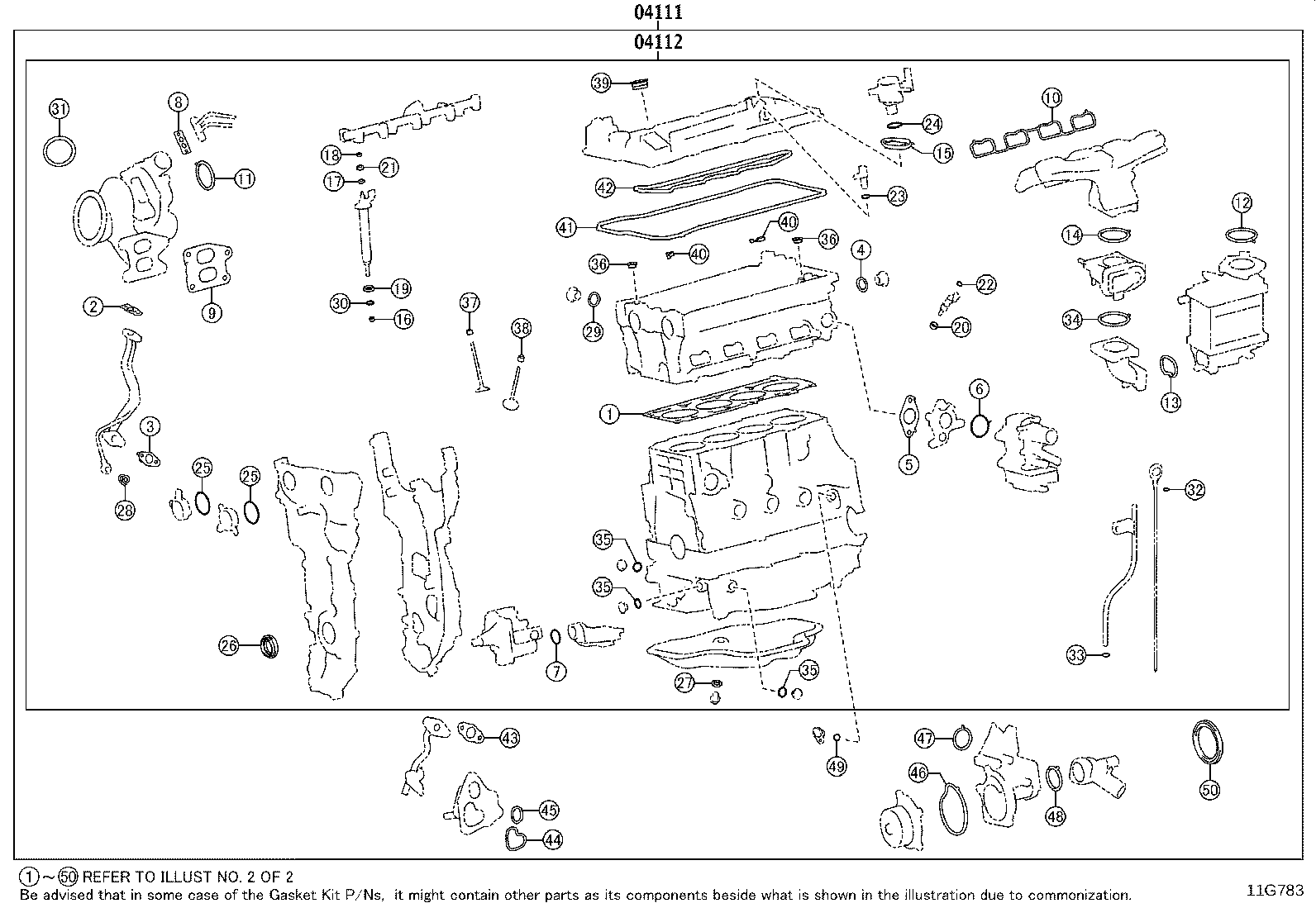

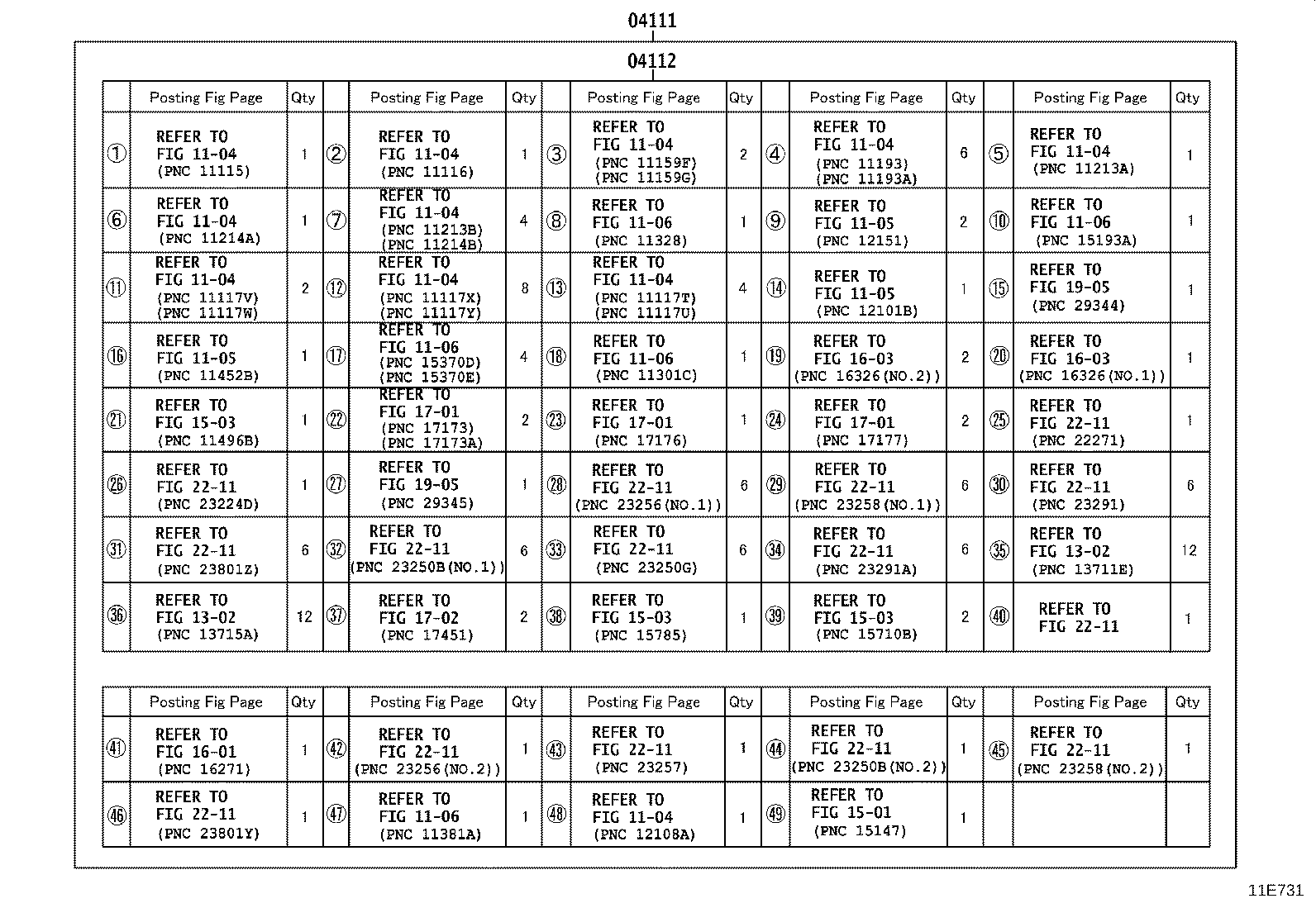

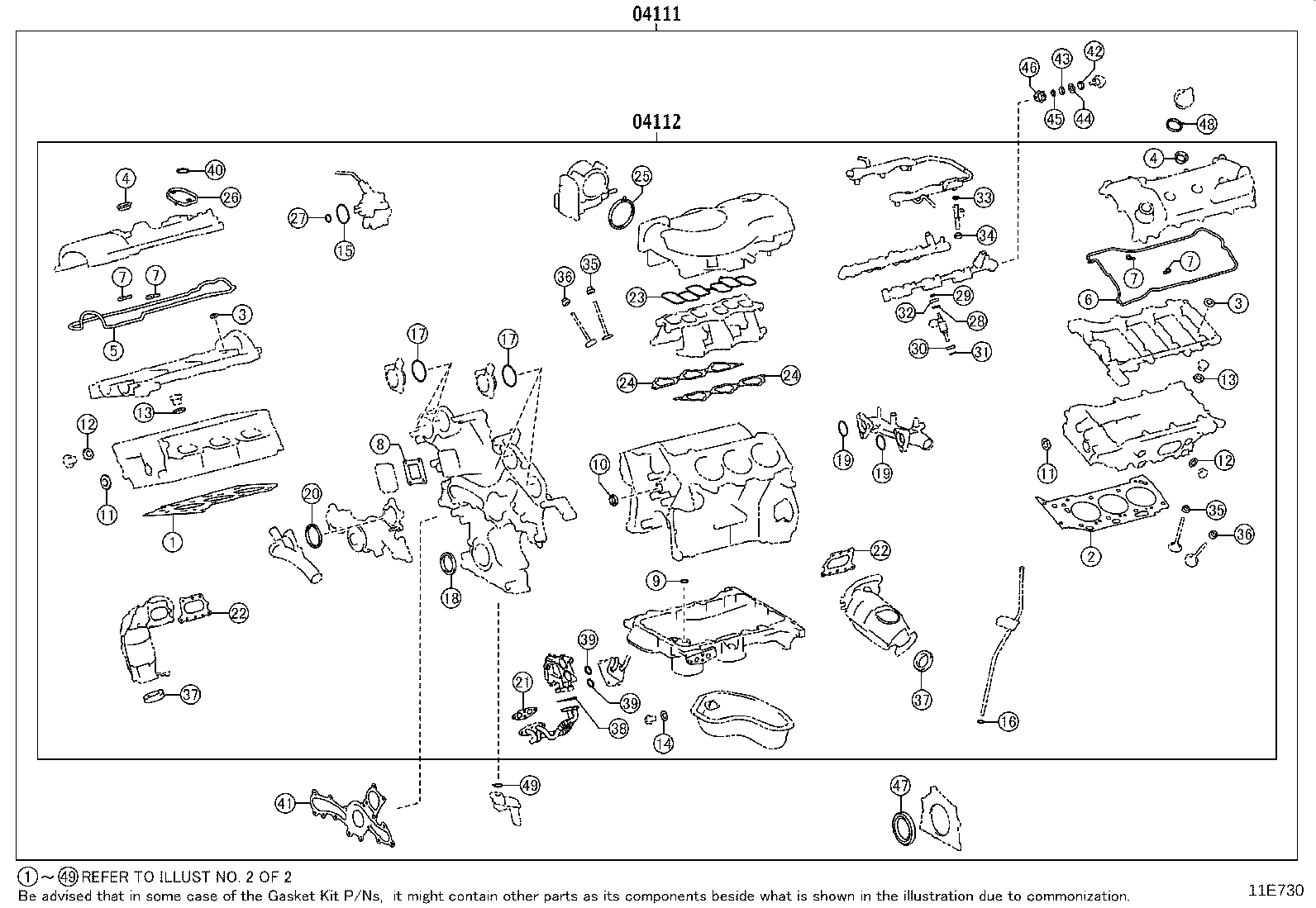

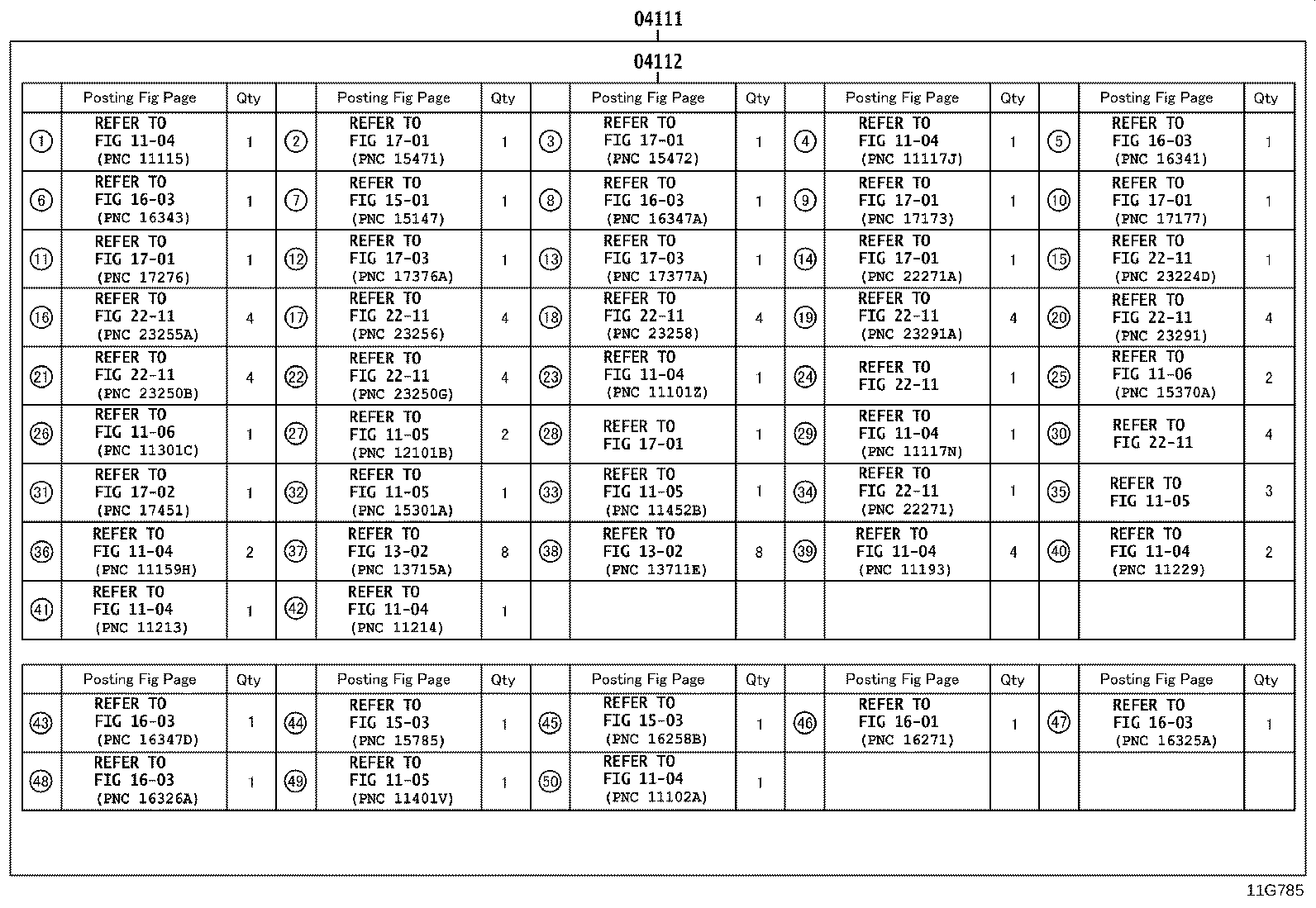

Figure 11E712A 11E712A 2020-02 → 2021-12 Figure 11G775 11G775 2021-12 → — Figure 11E713A 11E713A 2020-02 → 2021-12 Figure 11G776 11G776 2021-12 → — Figure 11E730 11E730 2020-03 → — Figure 11E731 11E731 2020-03 → — Figure 11G783 11G783 2022-10 → — Figure 11G785 11G785 2022-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
