Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

18 part groups · 4 illustrations

Illustrations

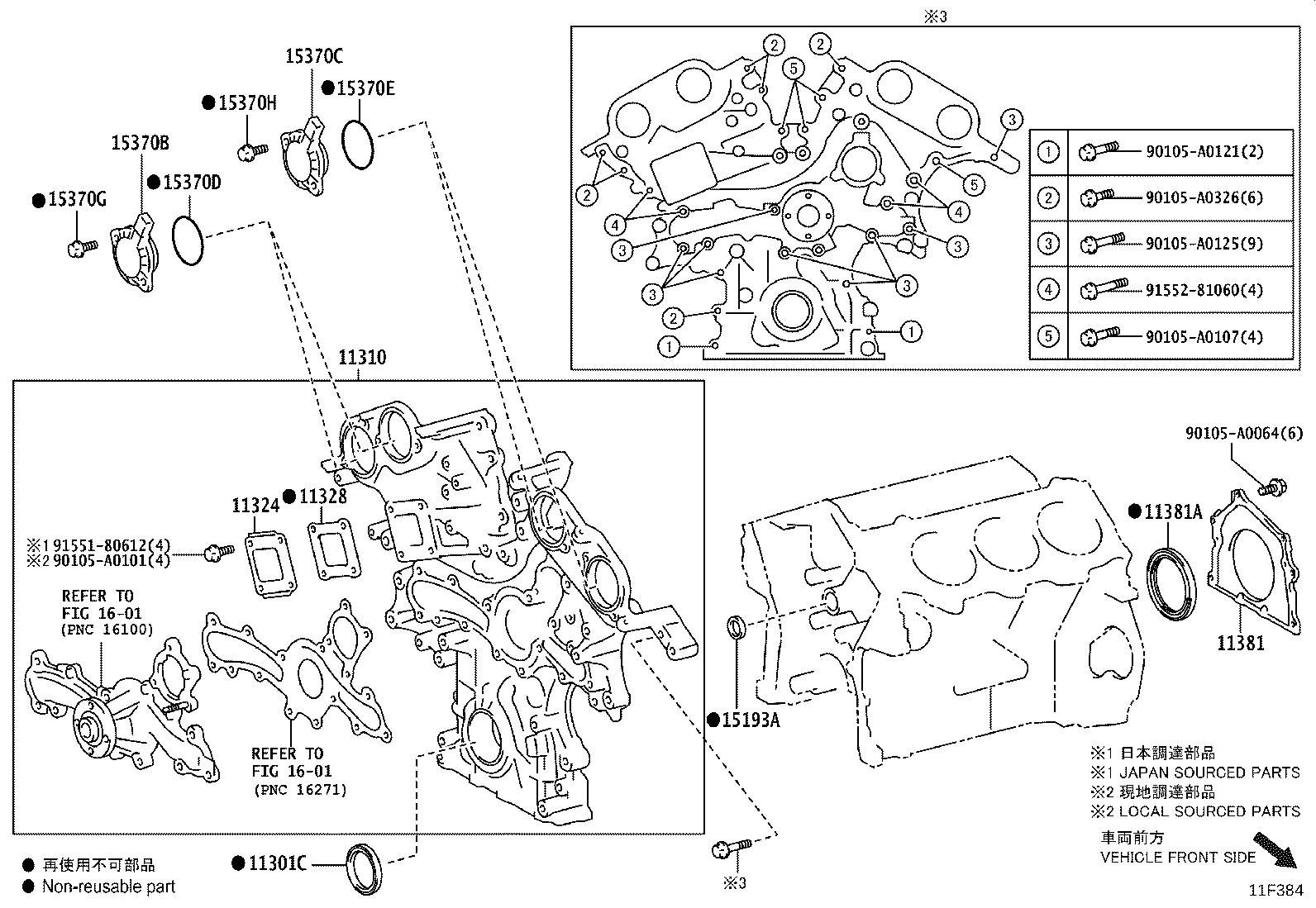

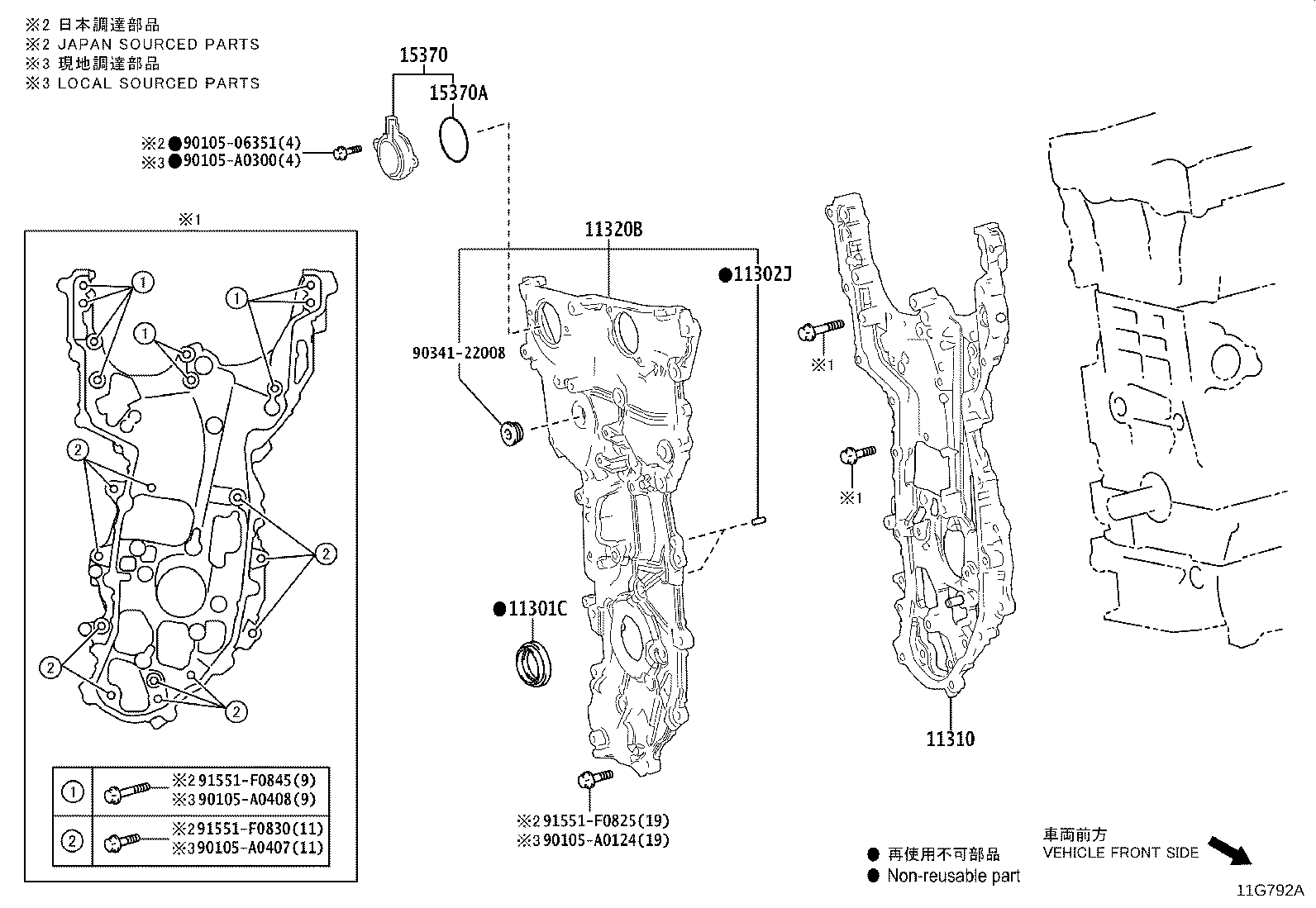

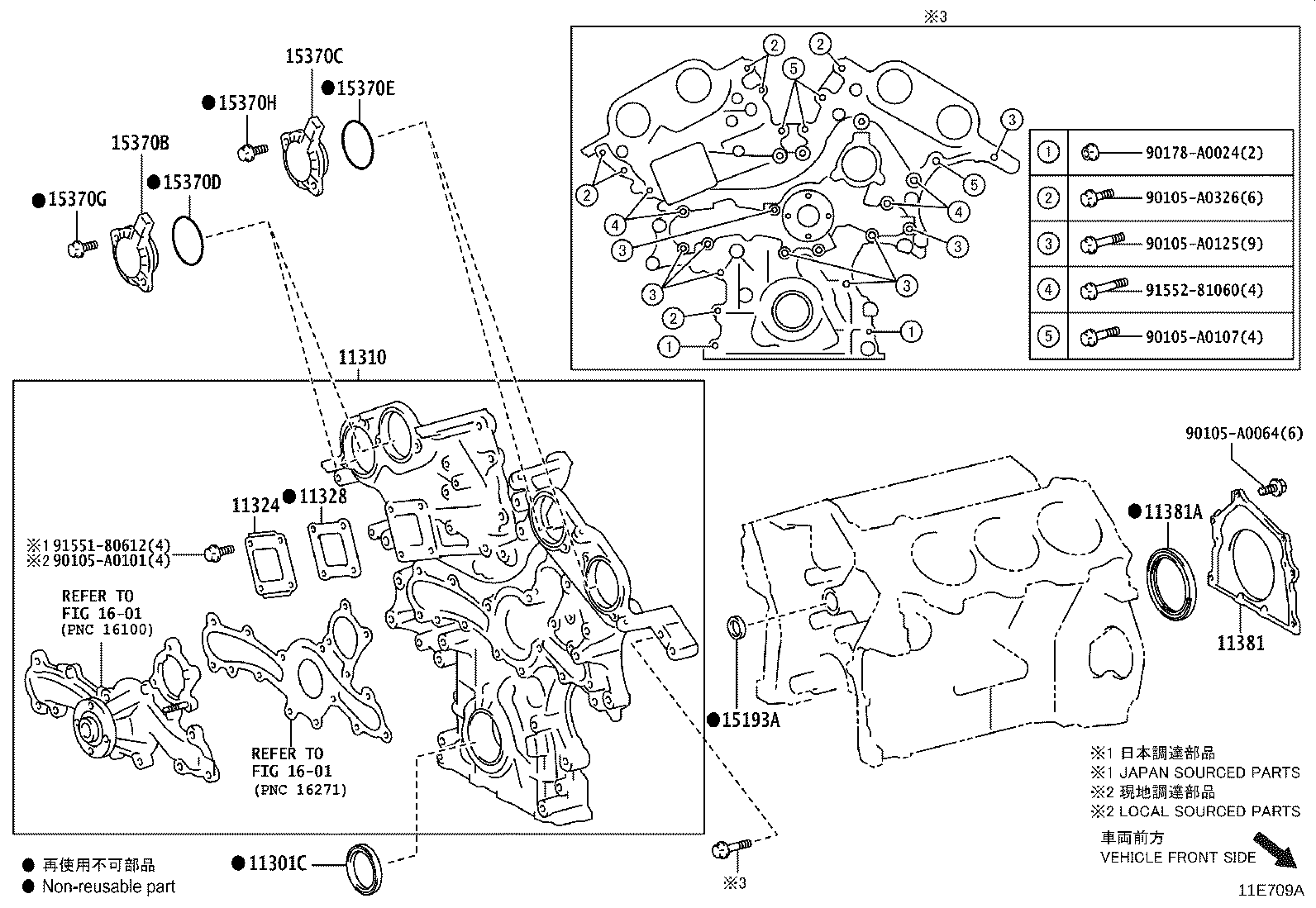

Figure 11E684C 11E684C 2020-02 → — Figure 11E709A 11E709A 2020-03 → 2020-08 Figure 11F384 11F384 2020-08 → — Figure 11G792A 11G792A 2022-10 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302X Bolt, Flange
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370G Bolt(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370H Bolt(FOR CAM TIMING OIL CONTROL SOLENOID LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
