Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11

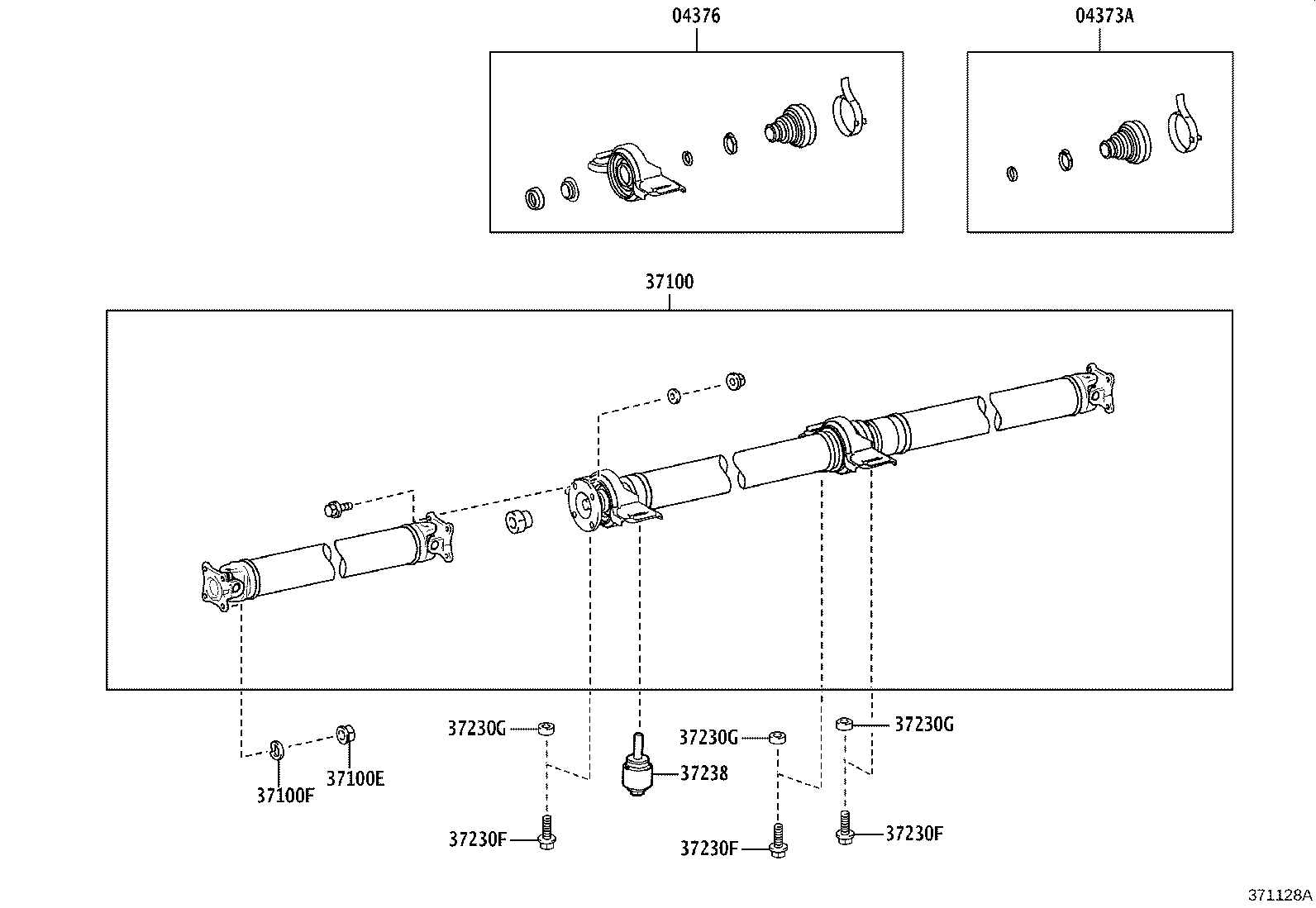

Propeller Shaft & Universal Joint
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04373A | Boot Kit, Universal |
| 04376 | Bearing Kit, Center Support |
| 37100 | Shaft Assy, Propeller W/Center Bearing |
| 37100E | Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37100F | Washer, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) |
| 37230F | Bolt, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37230G | Washer, NO.2 (FOR CENTER SUPPORT BEARING) |
| 37238 | Damper, Center Support Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
