Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11

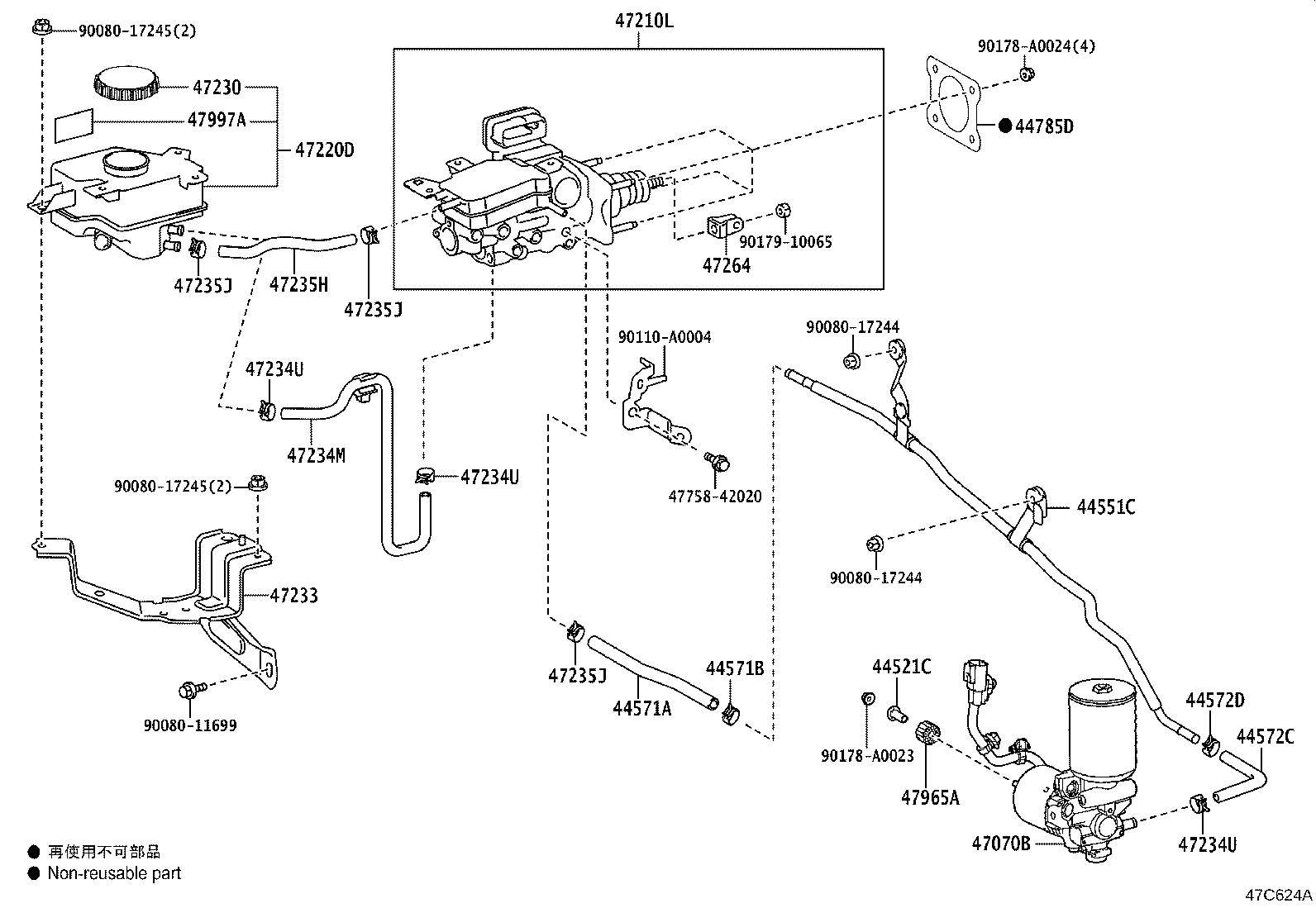

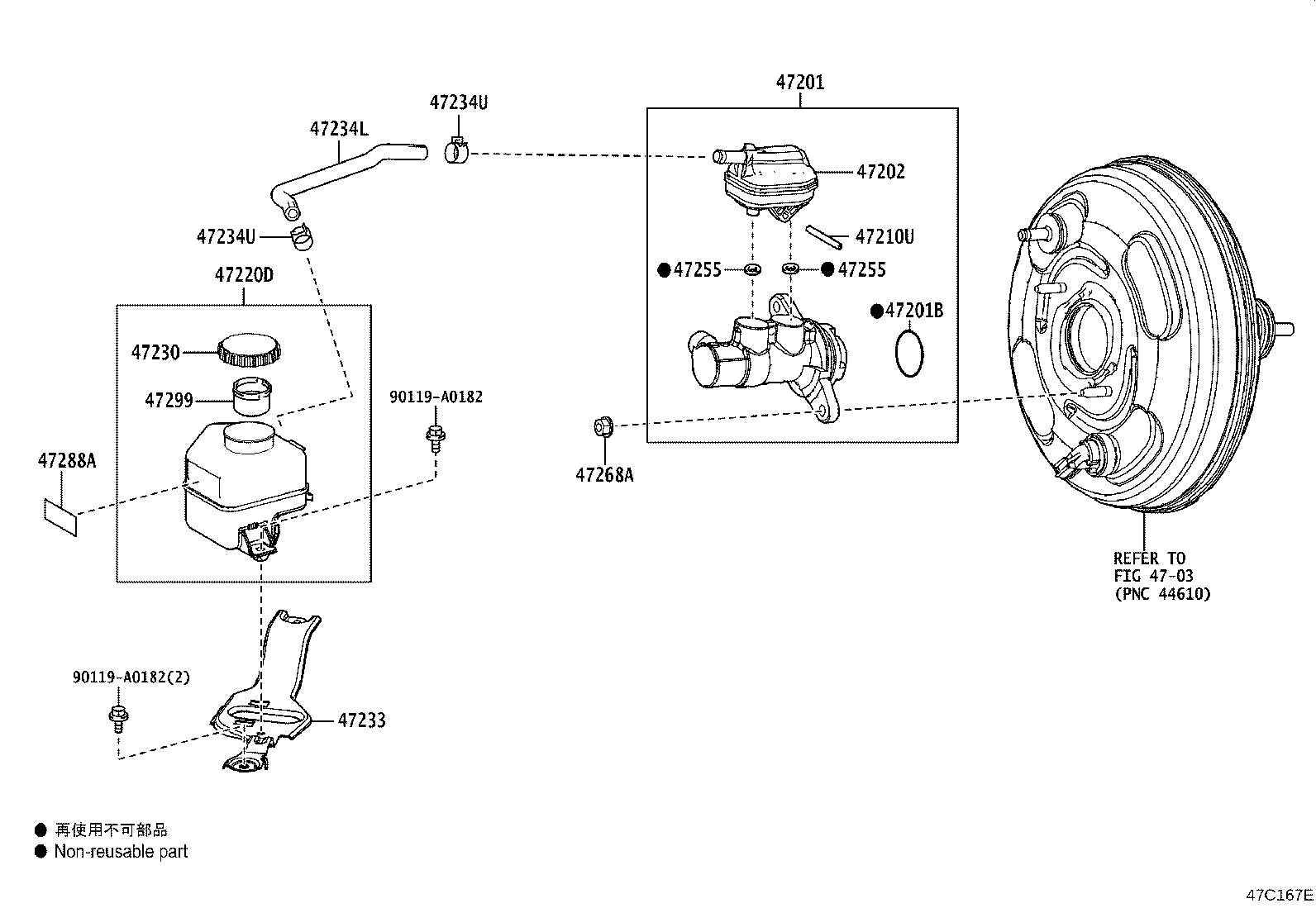

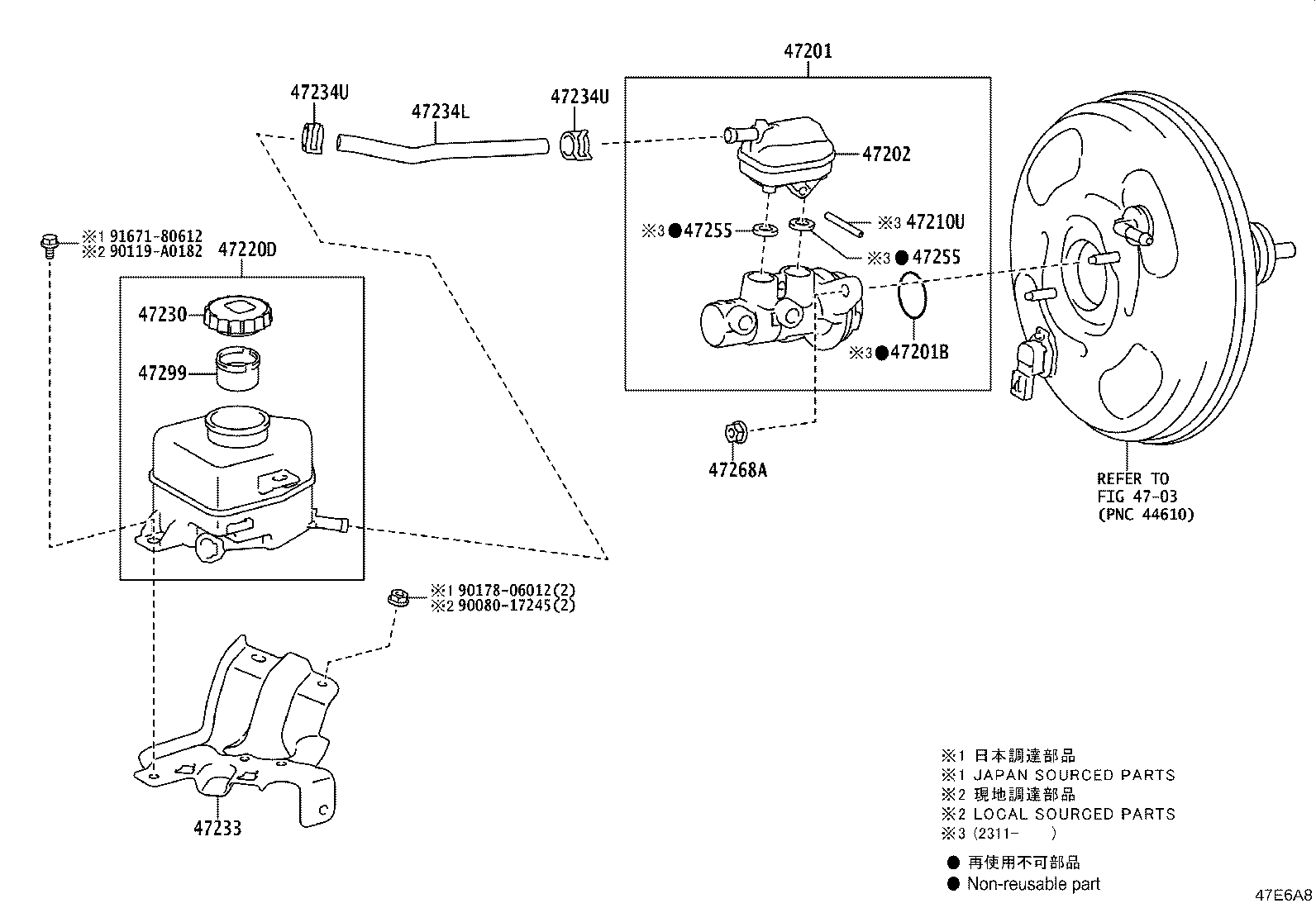

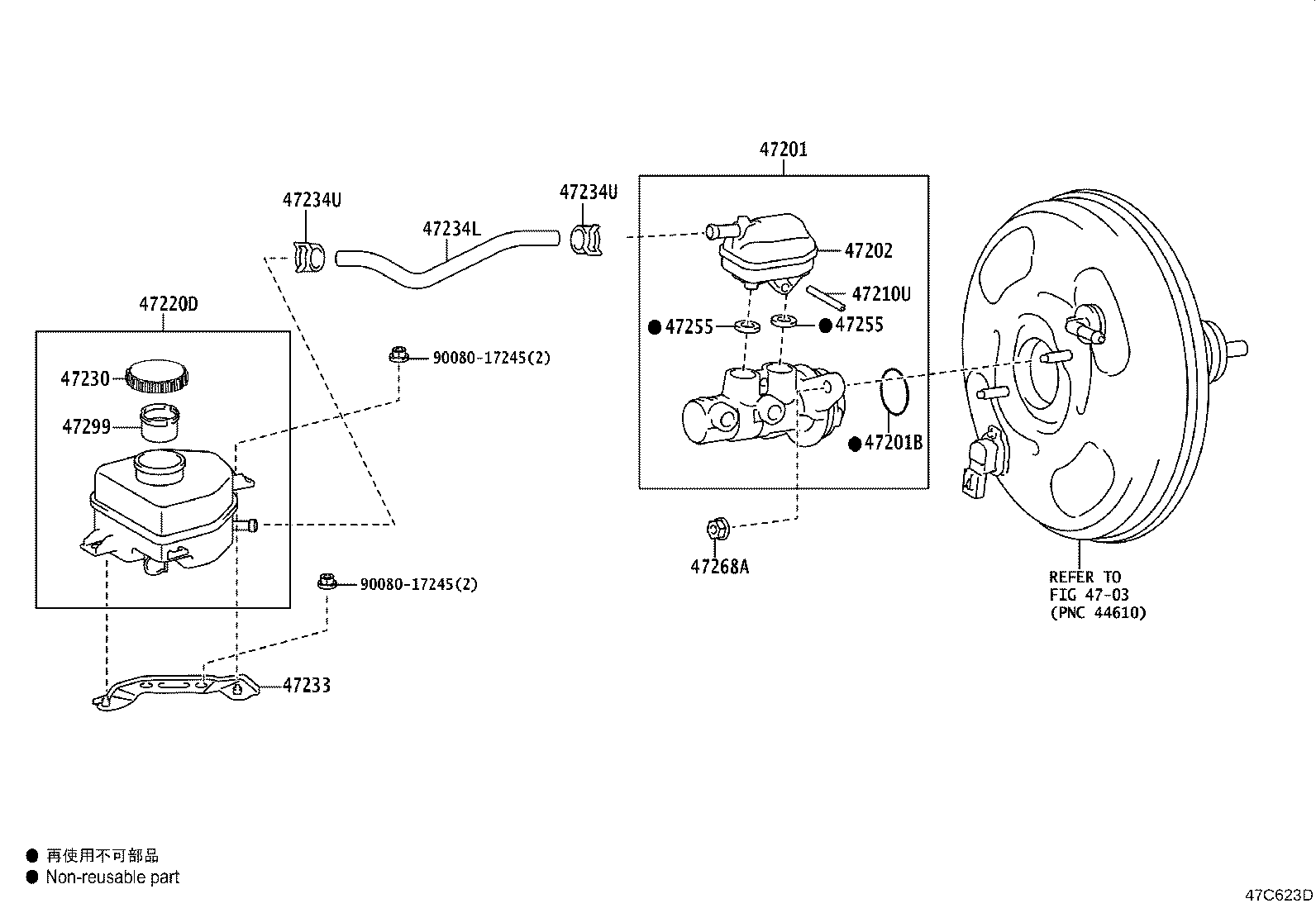

Brake Master Cylinder
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44521C | Collar, Brake Actuator Case |
| 44551C | Tube, Brake Actuator, NO.1 |
| 44571A | Hose, Brake Actuator, NO.1 |
| 44571B | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) |
| 44572C | Hose, Brake Actuator, NO.2 |
| 44572D | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) |
| 44785D | Gasket, Brake Master Cylinder |
| 47070B | Pump Assy, Brake Booster W/Accumulator |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234L | Hose, Reservoir, NO.1 |
| 47234M | Hose, Reservoir, NO.1 |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47235G | Hose, Reservoir, NO.2 |
| 47235H | Hose, Reservoir, NO.2 |
| 47235J | Clip(FOR RESERVOIR HOSE NO.2) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47268A | Nut, Brake Master Cylinder |
| 47288A | Label, Brake Fluid Notice |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47942 | Bracket, Brake Power Supply, NO.2 |
| 47943 | Bracket, Brake Power Supply, NO.3 |
| 47965A | Bush, Brake Booster Pump |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
