Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11

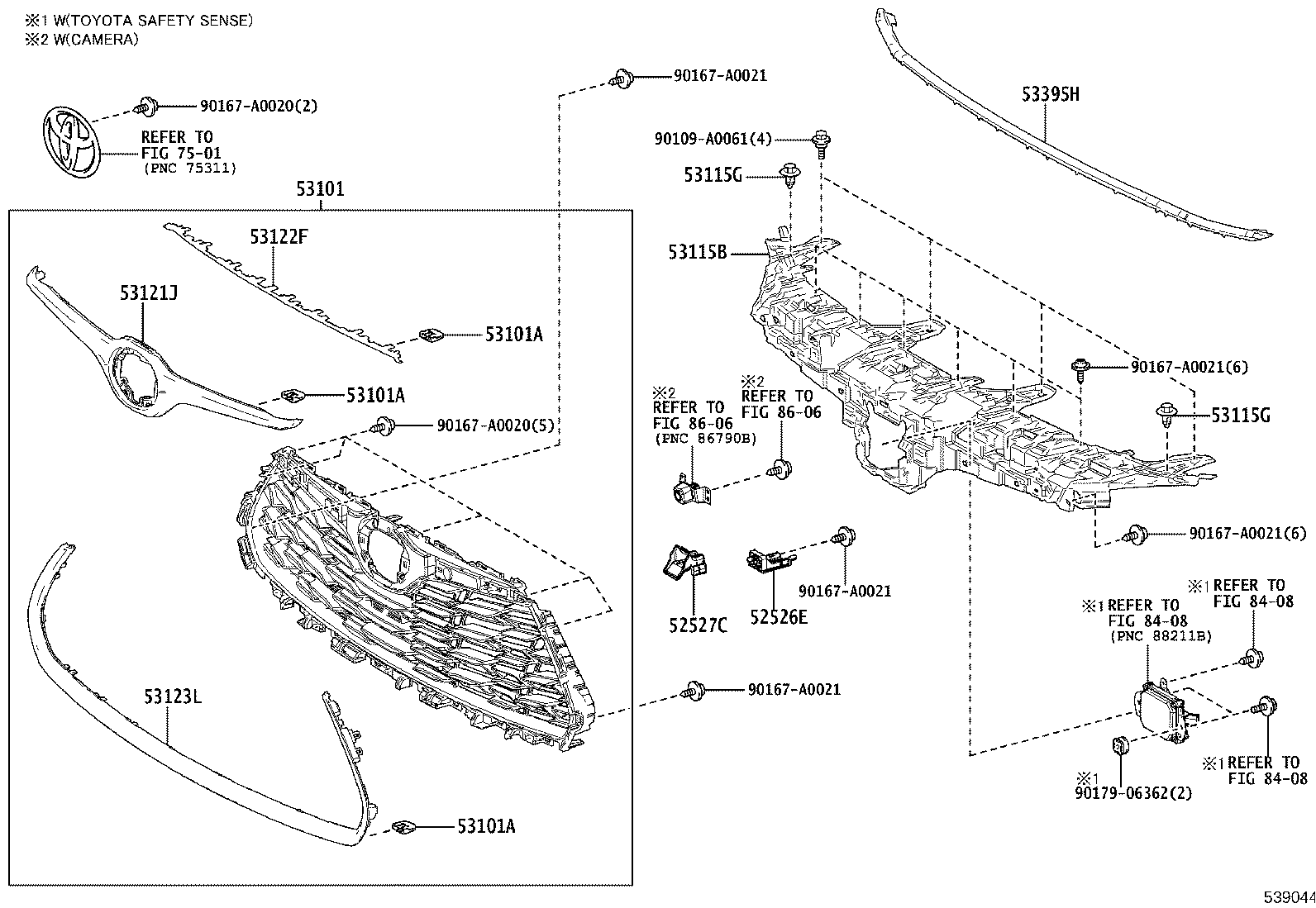

Radiator Grille
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52526E | Retainer, Front Bumper, Lower NO.1 |
| 52527C | Retainer, Front Bumper, Lower NO.2 |
| 53101 | Grille Sub-assy, Radiator |
| 53101A | Clip, Radiator Grille |
| 53115B | Bracket, Radiator Grille |
| 53115G | Clip, Radiator Grille Bracket |
| 53121J | Moulding, Radiator Grille, NO.1 |
| 53122F | Moulding, Radiator Grille, NO.2 |
| 53123L | Moulding, Radiator Grille, NO.3 |
| 53395H | Seal, Hood TO Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
