Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

75 part groups · 11 illustrations

Illustrations

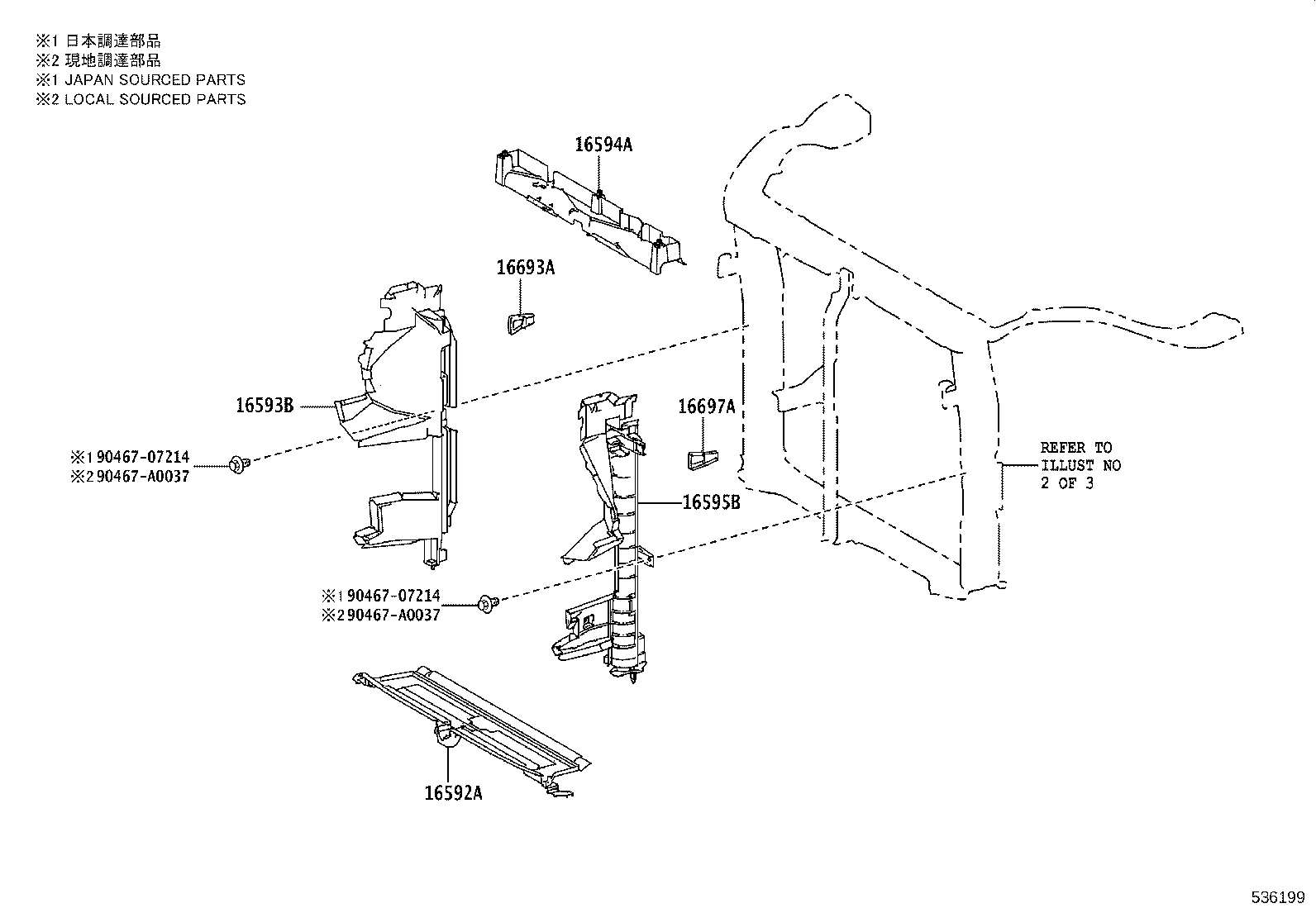

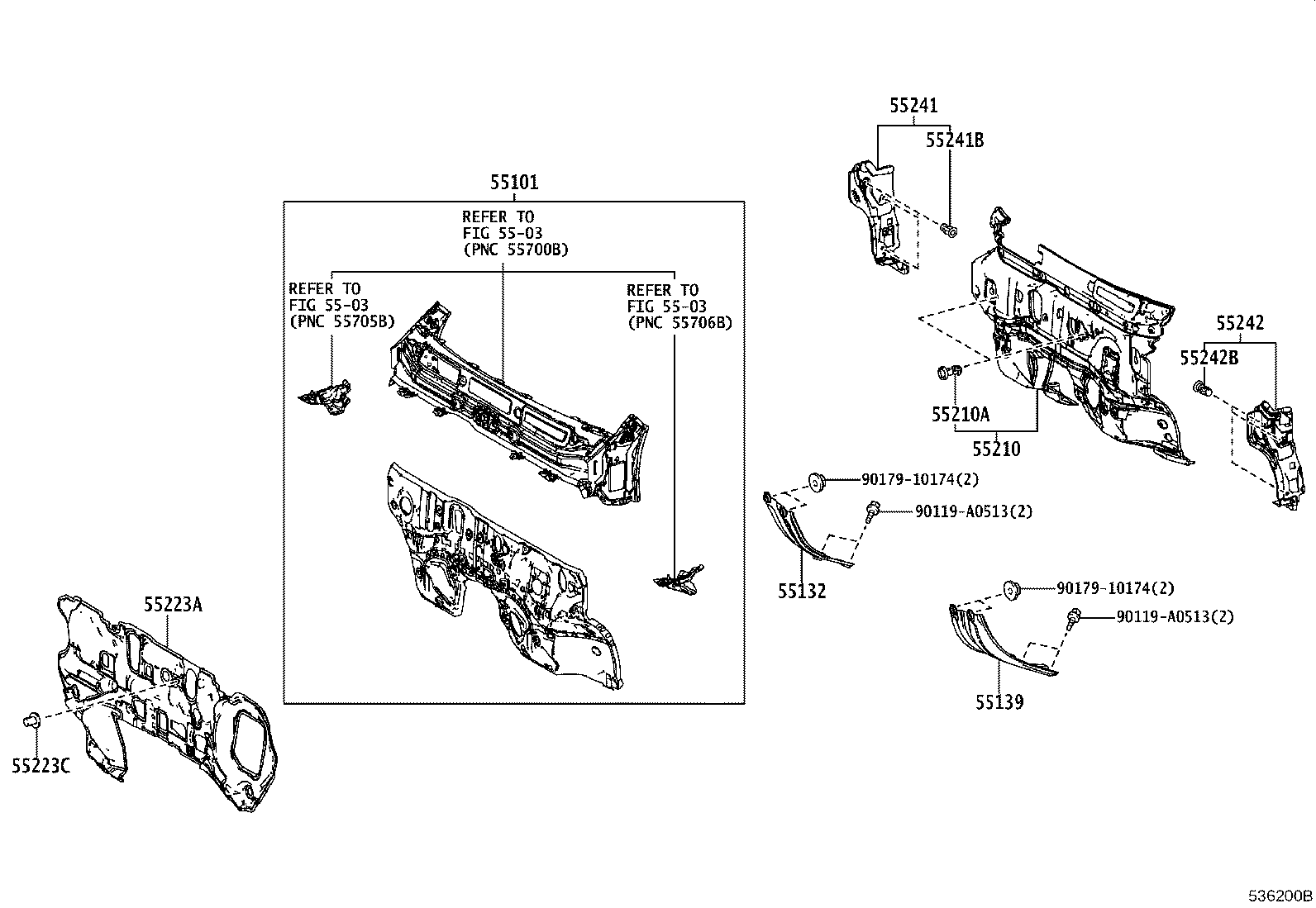

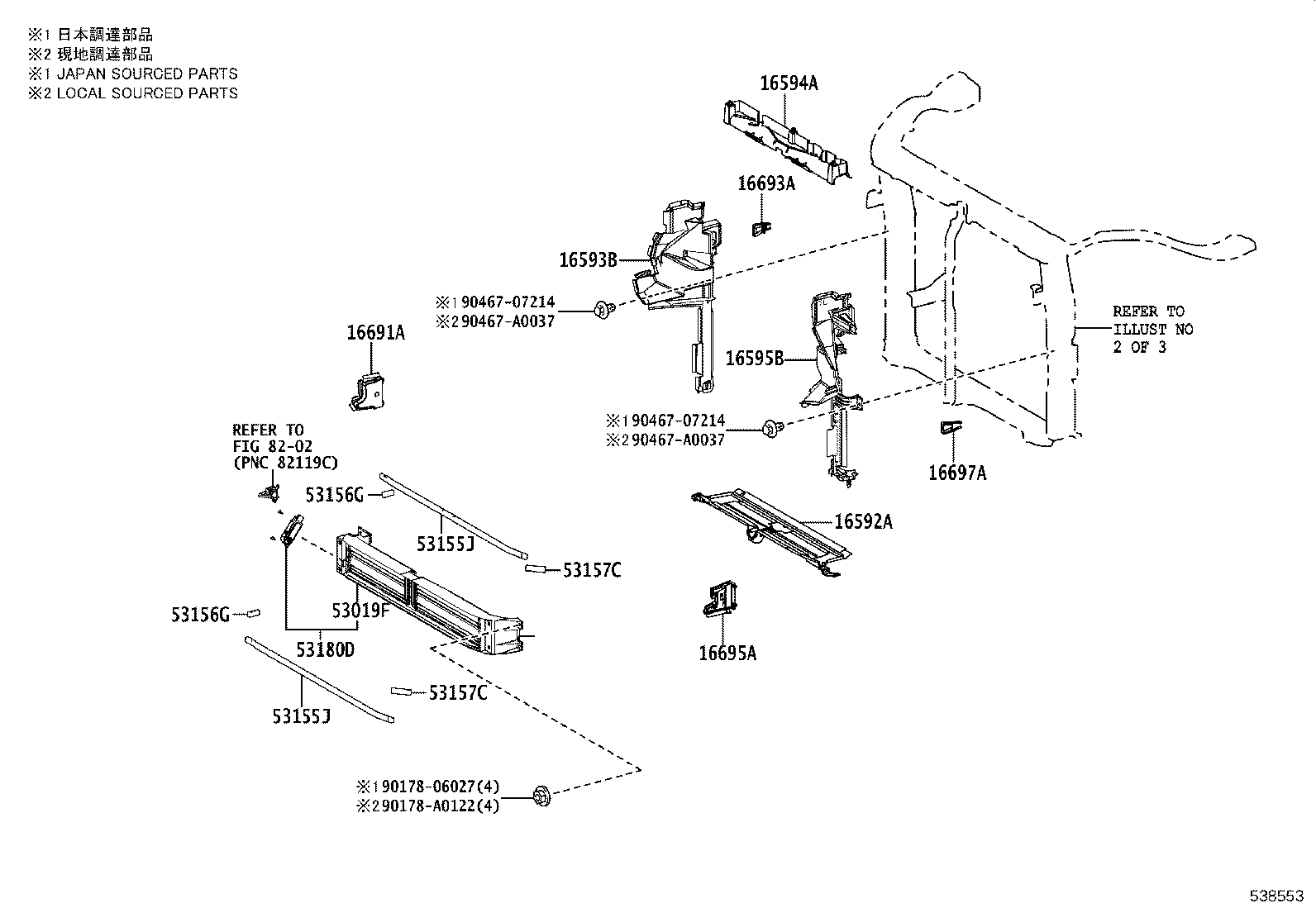

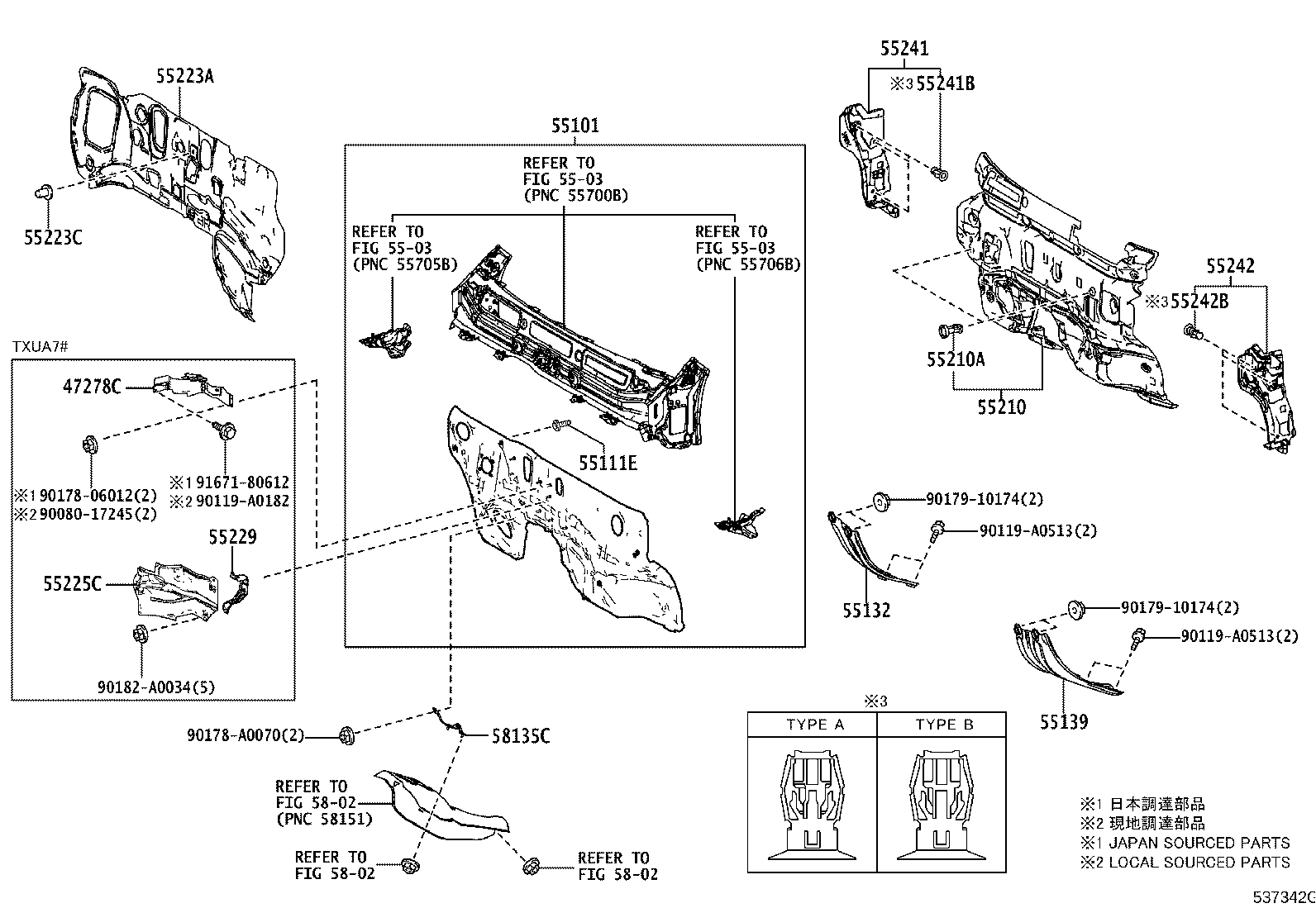

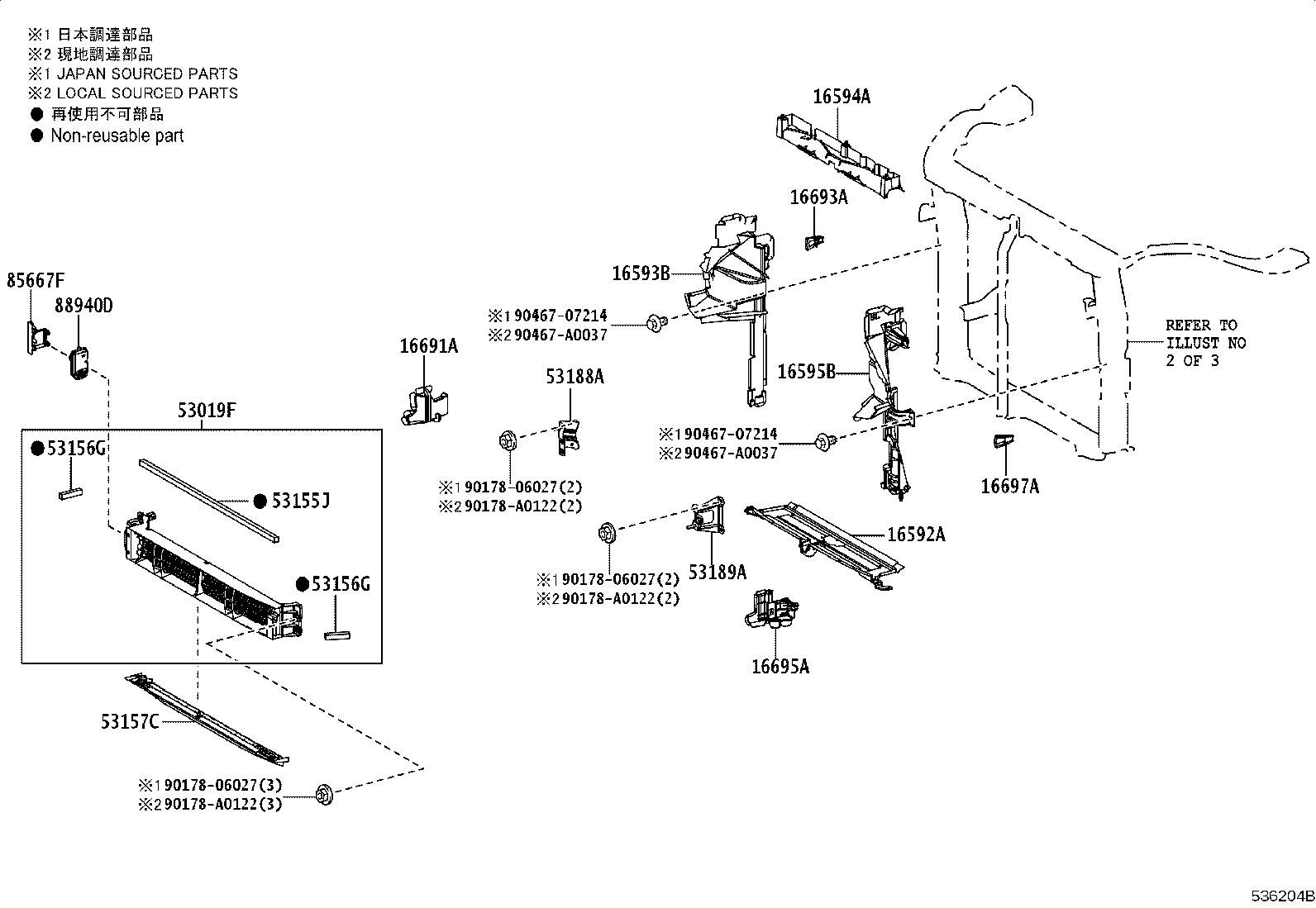

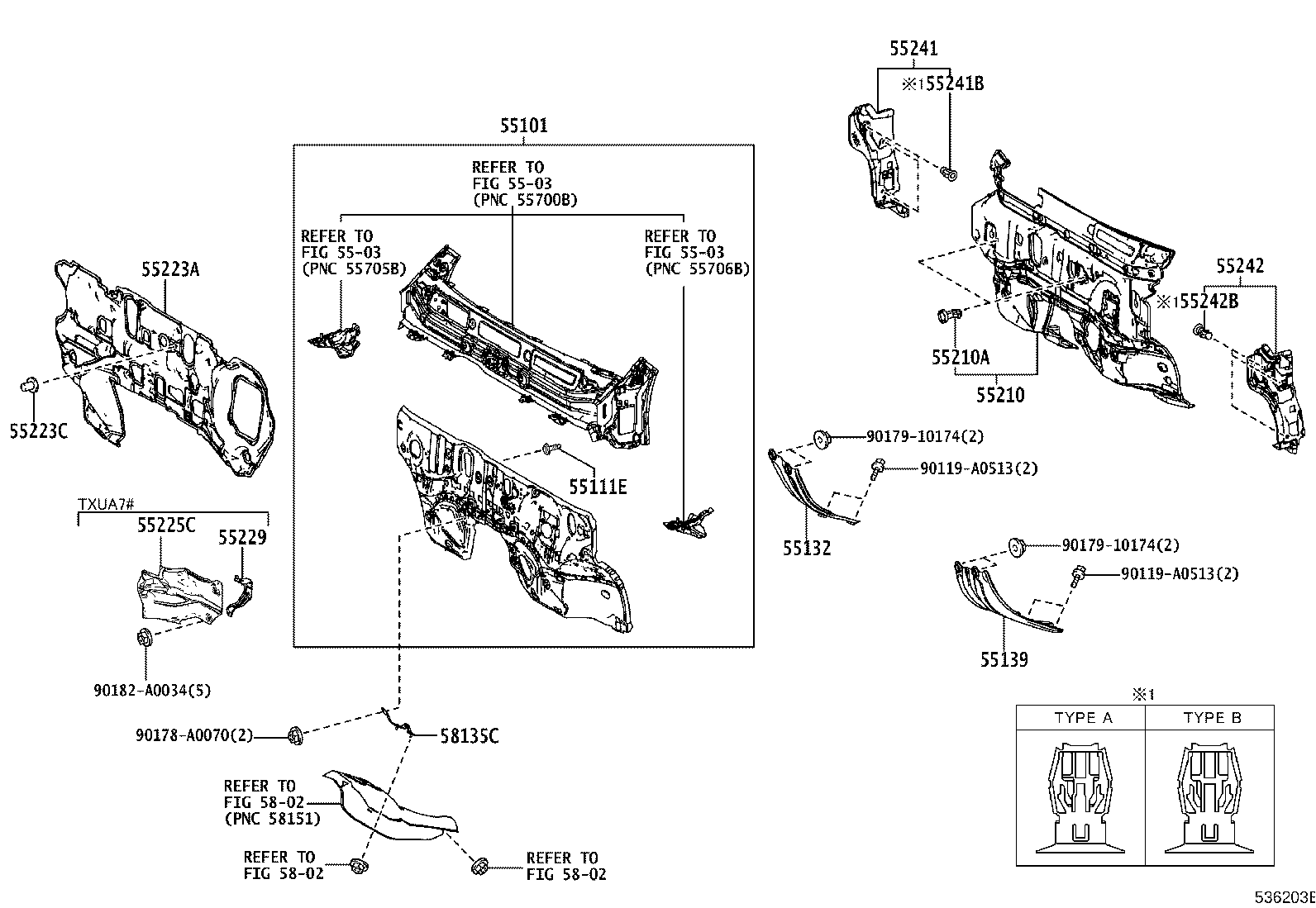

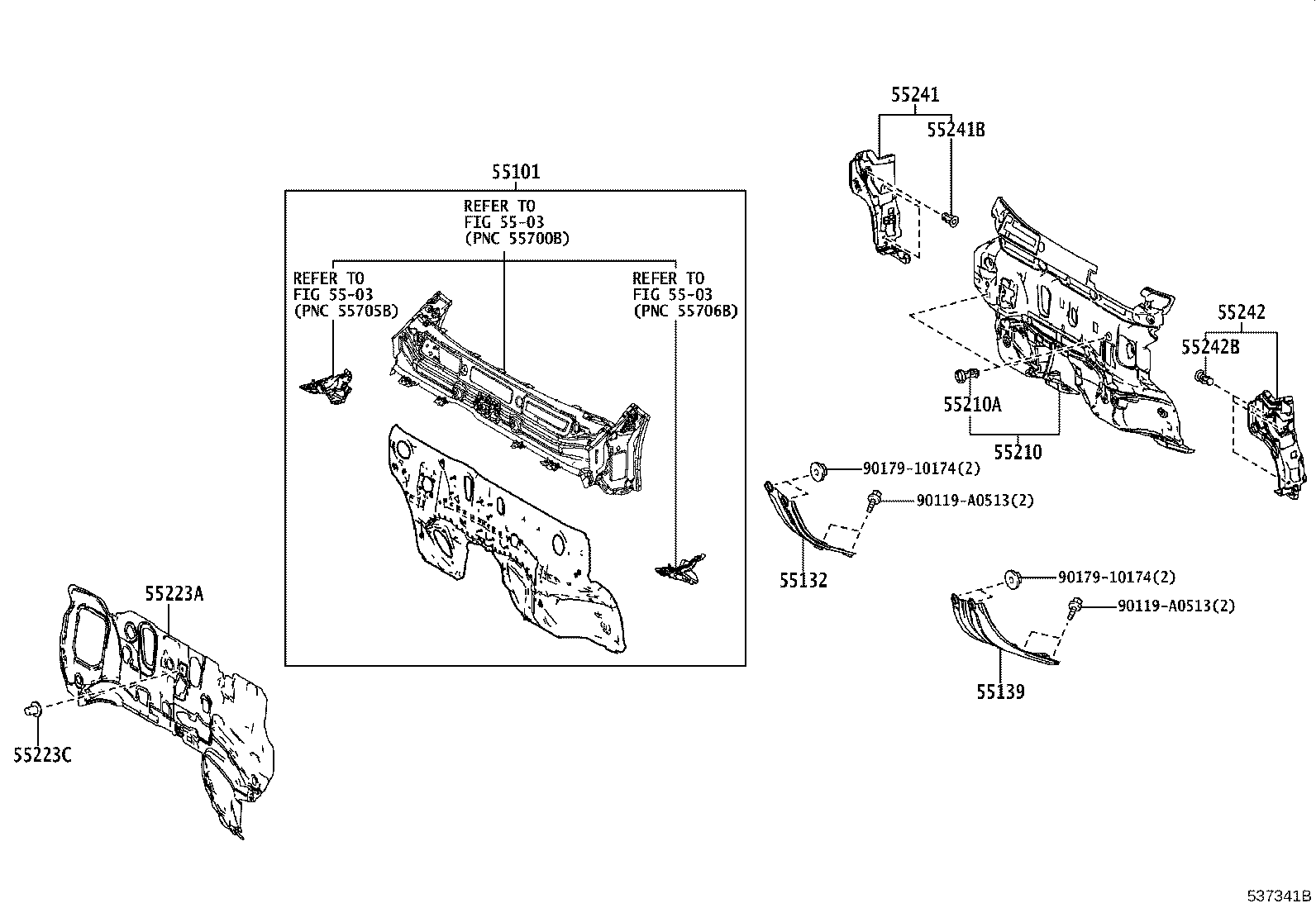

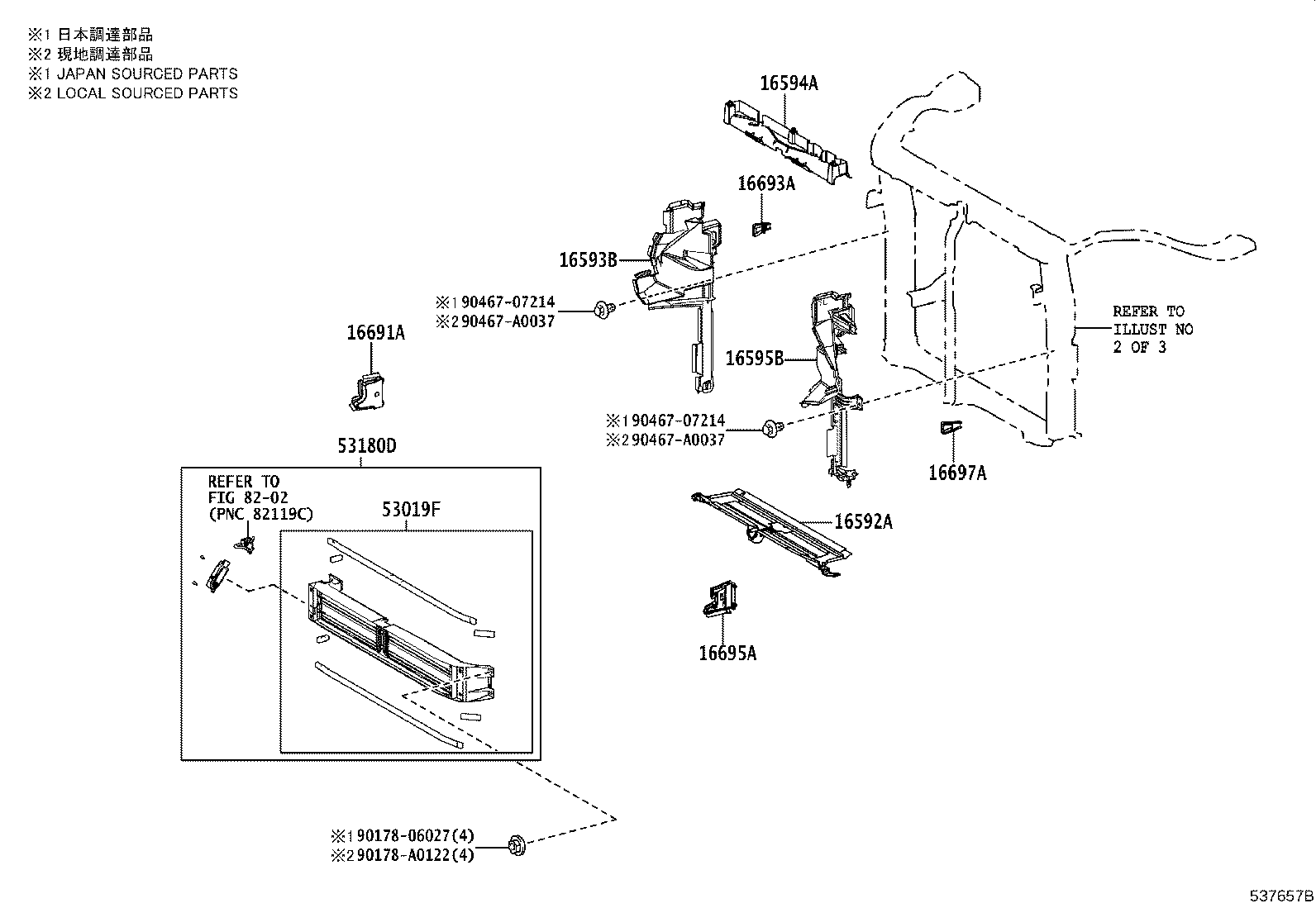

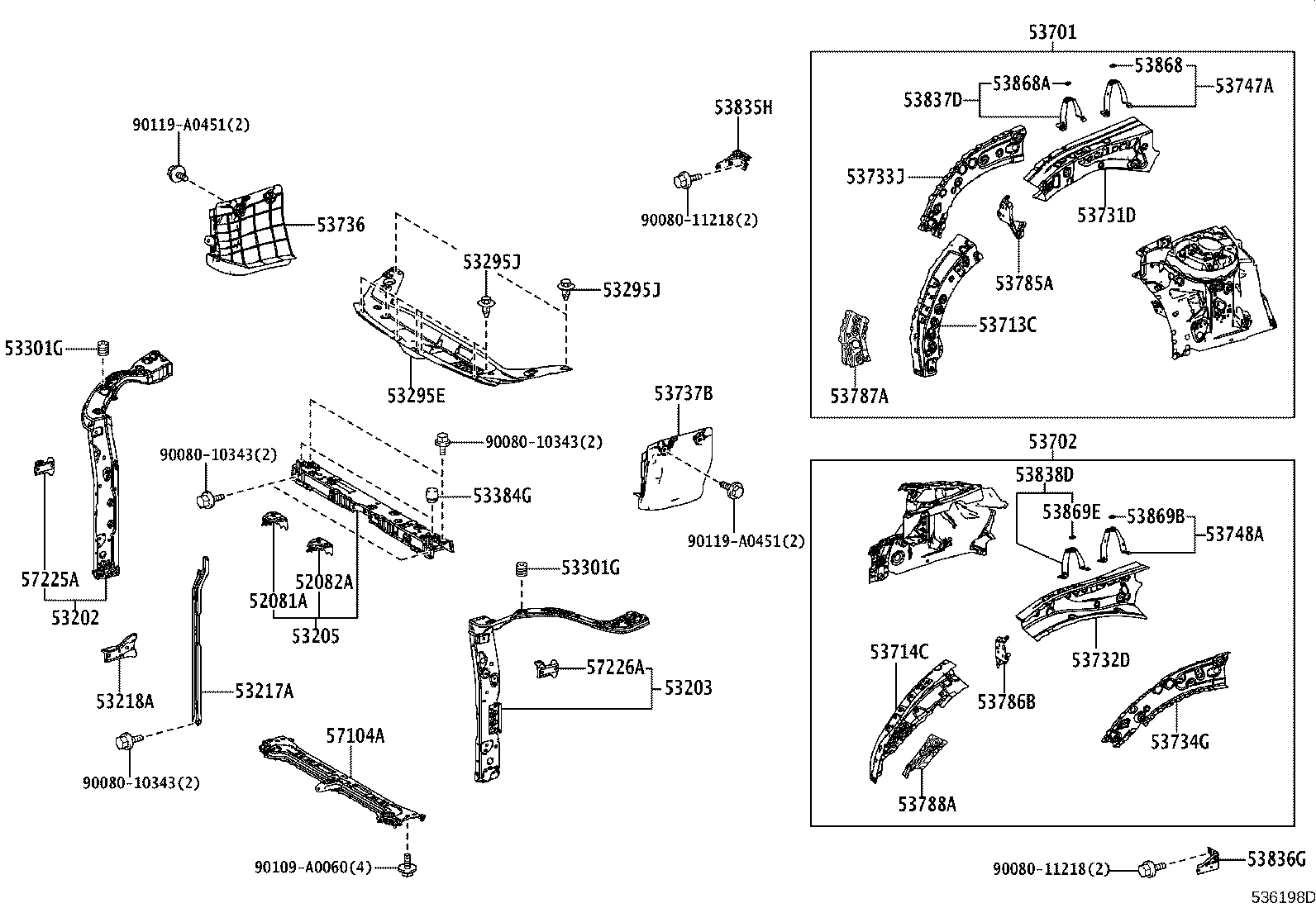

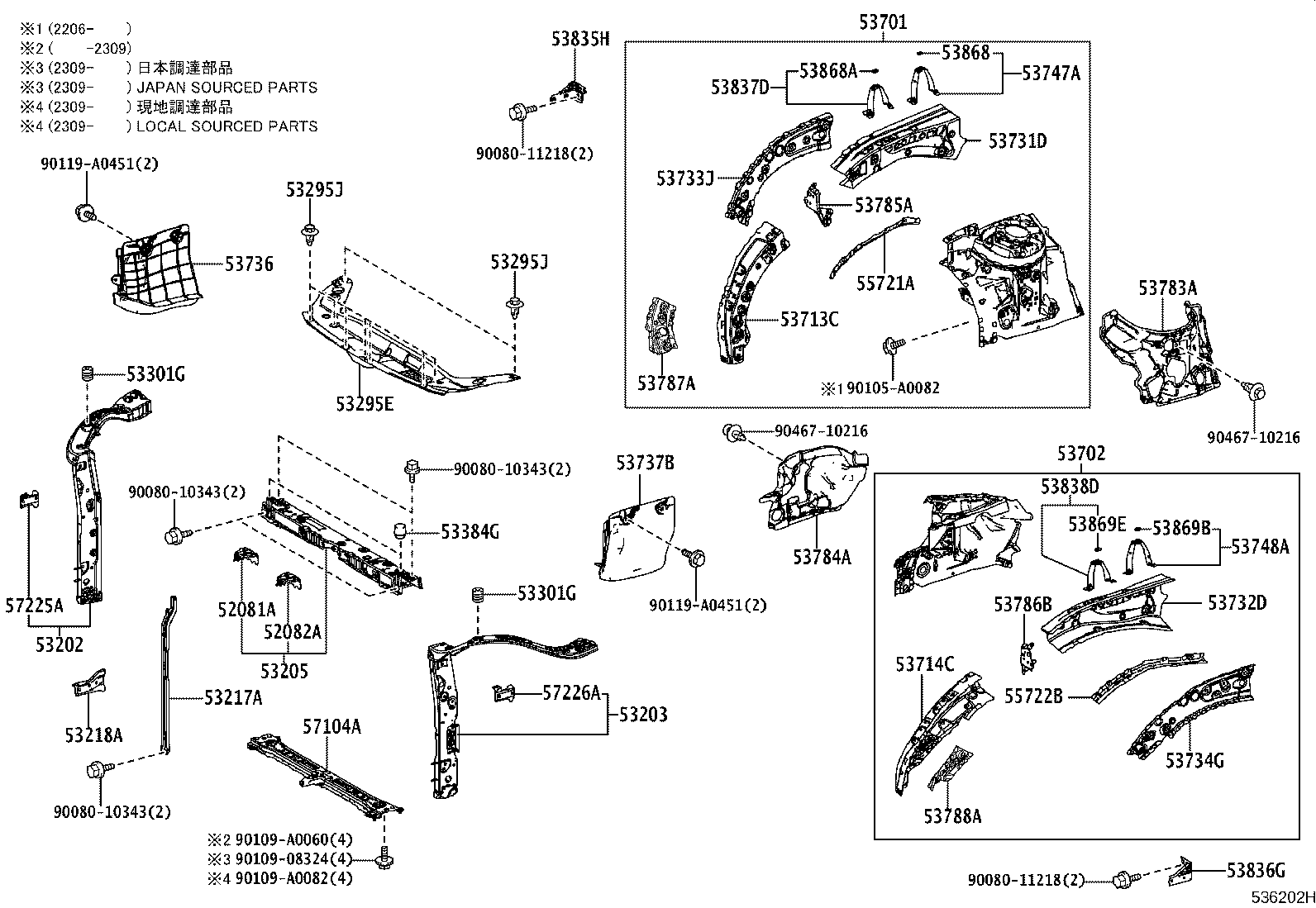

Figure 536201 536201 2020-02 → — Figure 536199 536199 2020-03 → 2022-10 Figure 536204B 536204B 2020-11 → 2021-10 Figure 537657B 537657B 2021-10 → 2022-10 Figure 538553 538553 2022-10 → — Figure 536202H 536202H 2020-02 → — Figure 536198D 536198D 2020-03 → 2022-10 Figure 536203E 536203E 2020-02 → — Figure 536200B 536200B 2020-03 → 2022-10 Figure 537342G 537342G 2020-11 → — Figure 537341B 537341B 2020-12 → 2022-10

Part groups

PNCDescription
16592A Guide, Radiator Air, NO.3
16593B Guide, Radiator Air, NO.1 RH
16594A Guide, Radiator Air, NO.2
16595B Guide, Radiator Air, NO.1 LH
16691A Plate, Radiator Side Air Guide, Front RH
16693A Plate, Radiator Side Air Guide, Rear RH
16695A Plate, Radiator Side Air Guide, Front LH
16697A Plate, Radiator Side Air Guide, Rear LH
47278C Cover, Brake Master Cylinder
52081A Stay Sub-assy, Front Bumper, RH
52082A Stay Sub-assy, Front Bumper, LH
53019F Shutter Sub-assy, Radiator
53155J Seal, Radiator Grille, NO.1
53156G Seal, Radiator Grille, NO.2
53157C Seal, Radiator Grille, NO.3
53180D Shutter Assy, Radiator
53188A Bracket, Radiator Shutter Support, RH
53189A Bracket, Radiator Shutter Support, LH
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53217A Brace, Hood Lock Support
53218A Support, Radiator, Lower
53295E Seal, Cool Air Intake Duct
53295J Clip, Cool Air Intake Duct Seal
53301G Cushion, Hood Bumper
53384G Cushion, Hood, Center
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53713C Extension, Front Fender Apron, Front RH
53714C Extension, Front Fender Apron, Front LH
53731D Member, Front Apron TO Cowl Side, Upper RH
53732D Member, Front Apron TO Cowl Side, Upper LH
53733J Member, Front Apron TO Cowl Side, Outer Front RH
53734G Member, Front Apron TO Cowl Side, Outer Front LH
53736 Seal, Front Fender Apron, RH
53737B Seal, Front Fender Apron, LH
53747A Extension, Apron Fender Side, RH
53748A Extension, Apron Fender Side, LH
53783A Insulator, Apron Front Fender, RH
53784A Insulator, Apron Front Fender, LH
53785A Gusset, Front Fender Apron, Upper RH
53786B Gusset, Front Fender Apron, Upper LH
53787A Gusset, Front Fender Apron, Lower RH
53788A Gusset, Front Fender Apron, Lower LH
53835H Brace, Front Fender TO Extension, RH
53836G Brace, Front Fender TO Extension, LH
53837D Bracket, Front Side Panel, NO.2 RH
53838D Bracket, Front Side Panel, NO.2 LH
53868 Seal, Front Fender TO Cowl Side, NO.2 RH
53868A Seal, Front Fender TO Cowl Side, NO.2 RH
53869B Seal, Front Fender TO Cowl Side, NO.2 LH
53869E Seal, Front Fender TO Cowl Side, NO.2 LH
55101 Panel Sub-assy, Dash
55111E Bolt, Weld(FOR DASH PANEL)
55132 Reinforcement, Dash Panel, NO.2
55139 Reinforcement, Dash TO Frame Brace
55210 Insulator Assy, Dash Panel
55210A Clip
55223A Insulator, Dash Panel, Outer
55223C Clip
55225C Insulator, Dash Panel Heat
55229 Plate, Dash Panel Insulator, NO.4
55241 Silencer, Front Panel Side, NO.1 RH
55241B Clip, Front Panel Side Silencer
55242 Silencer, Front Panel Side, NO.1 LH
55242B Clip, Front Panel Side Silencer
55721A Brace, Cowl Top TO Cowl, Inner NO.1
55722B Brace, Cowl Top TO Cowl, Inner NO.2
57104A Member Sub-assy, Front Cross
57225A Brace, Front Mounting Bracket, RH
57226A Brace, Front Mounting Bracket, LH
58135C Bracket, Floor Insulator Support
85667F Cover, Motor
88940D Actuator Assy, Swing Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
