Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

16 part groups · 4 illustrations

Illustrations

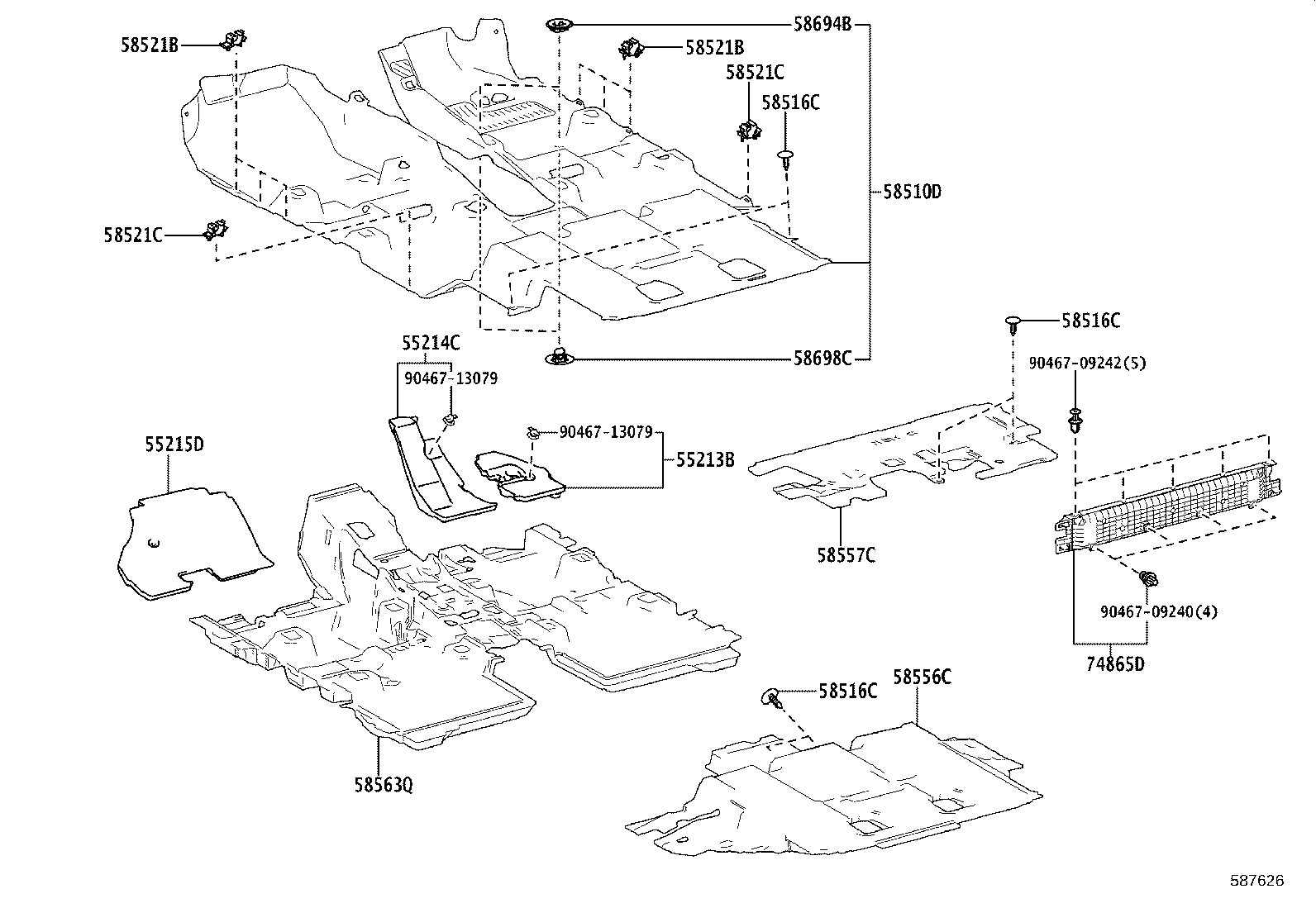

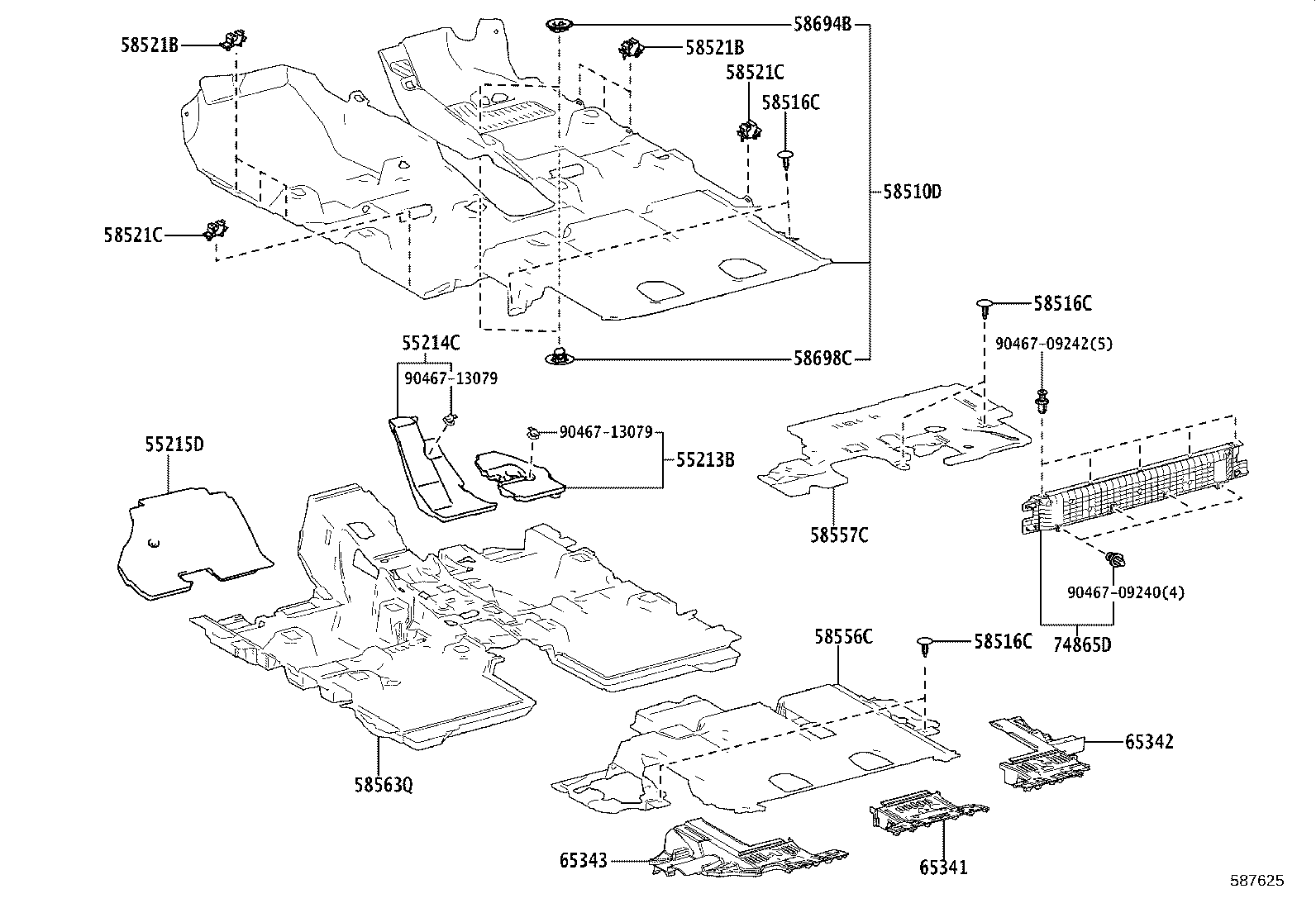

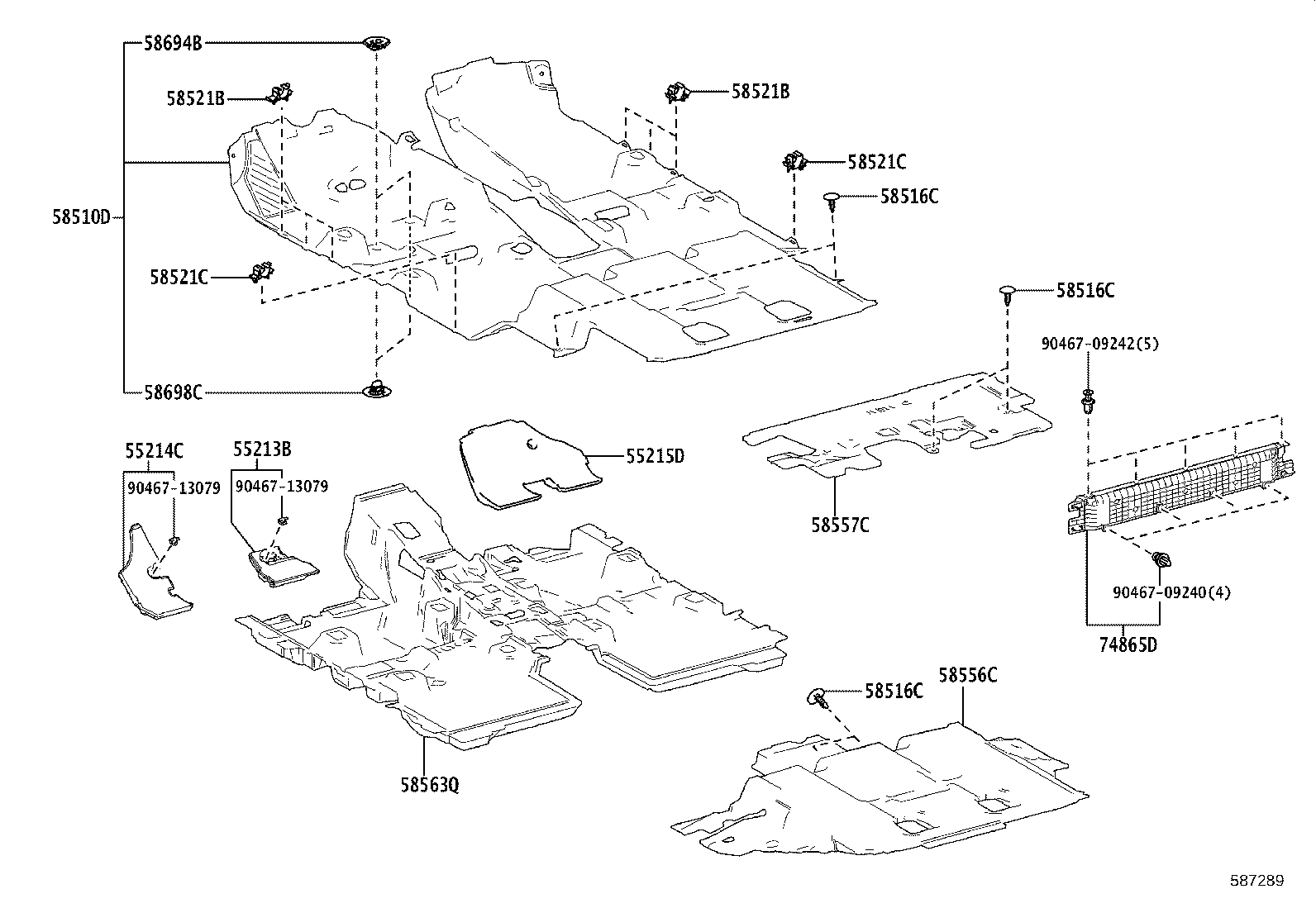

Figure 587290 587290 2020-02 → — Figure 587289 587289 2020-03 → — Figure 587625 587625 2020-11 → — Figure 587626 587626 2020-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58516C Clip(FOR FLOOR MAT)
58521B Hook, Floor Carpet
58521C Hook, Floor Carpet NO.2
58556C Silencer, Rear Floor
58557C Silencer, Rear Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
65341 Board, Floor, NO.1
65342 Board, Floor, NO.2
65343 Board, Floor, NO.3
74865D Cover, Center Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
