Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

27 part groups · 2 illustrations

Illustrations

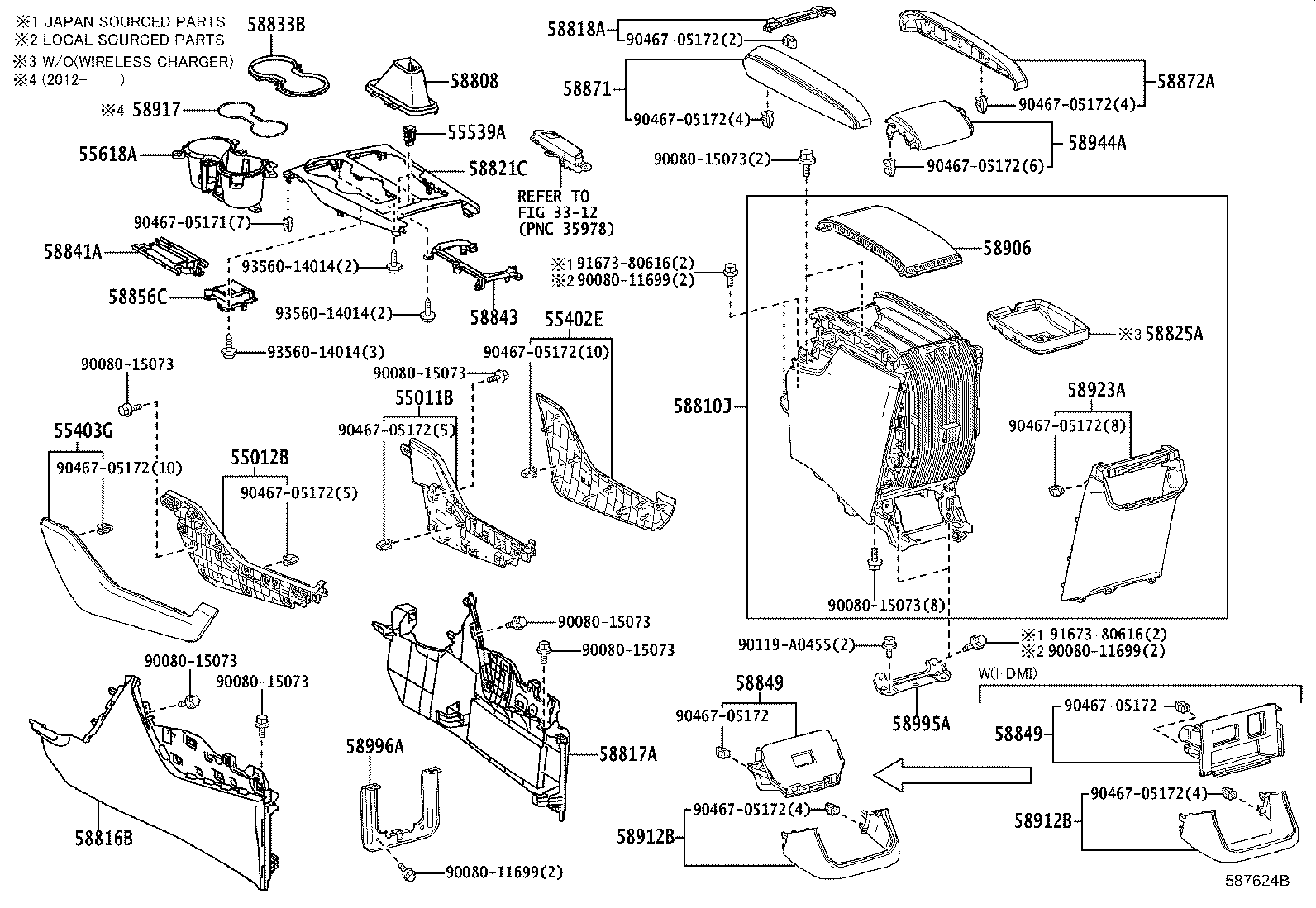

Figure 587296C 587296C 2020-02 → — Figure 587624B 587624B 2020-11 → —

Part groups

PNCDescription
55011B Garnish Sub-assy, Instrument Panel, NO.1
55012B Garnish Sub-assy, Instrument Panel, NO.2
55402E Pad Sub-assy, Instrument Panel, Lower NO.1
55403G Pad Sub-assy, Instrument Panel, Lower NO.2
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58821C Panel, Console, Upper
58825A Pocket, Console Box
58833B Garnish, Console Upper Panel, NO.1
58841A Cover, Shifting Hole
58843 Bezel, Shifting Hole
58849 Cover, Console Box Hole, NO.2
58856C Holder, Console
58871 Cushion, Console Box
58872A Cushion, Console Box, NO.2
58906 Door Sub-assy, Upper Console
58912B Box, Rear Console, Lower
58917 Mat, Box Bottom, NO.2
58923A Panel, Console Rear End
58944A Cover, Console, Rear
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
