Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 7 illustrations

Illustrations

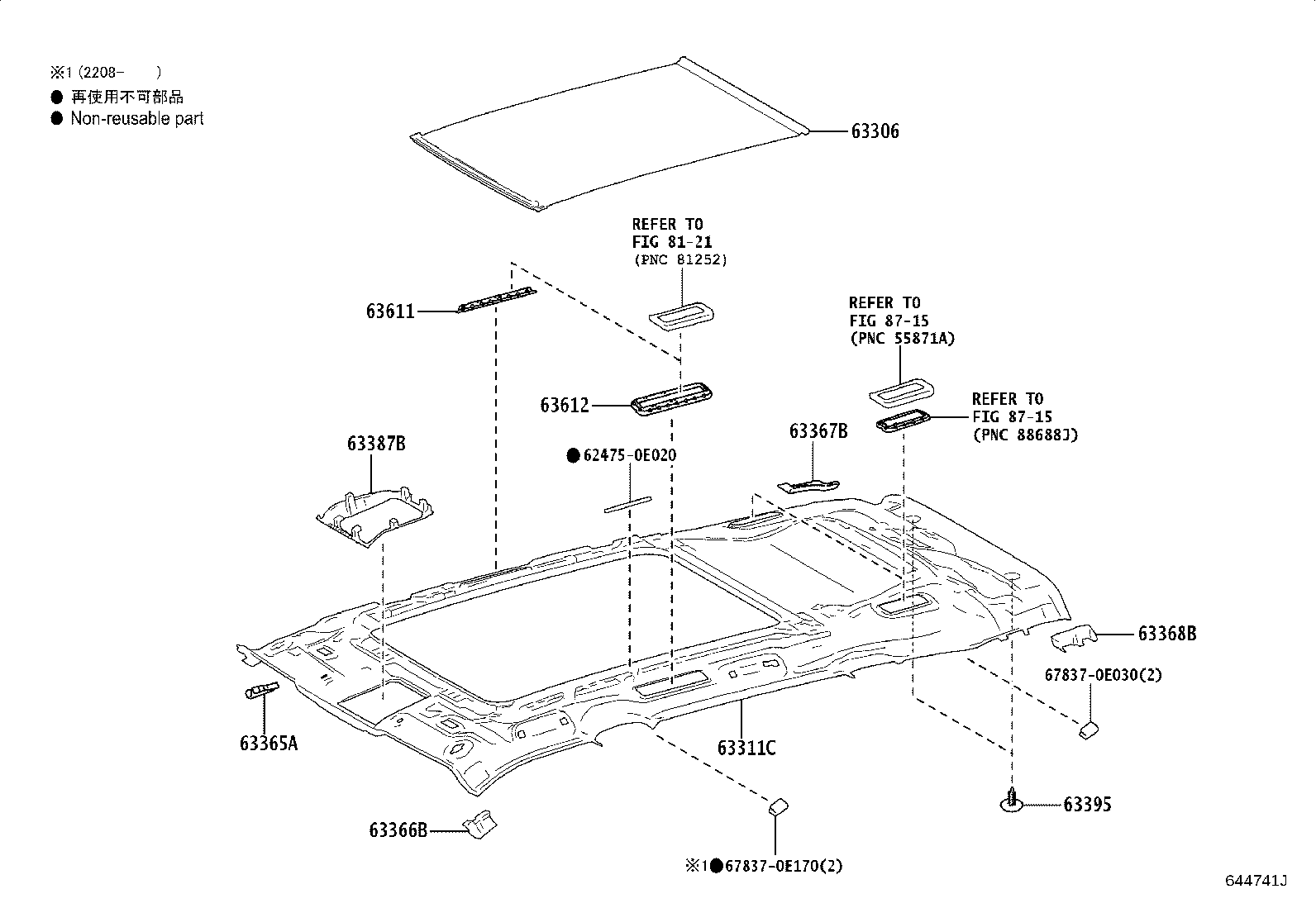

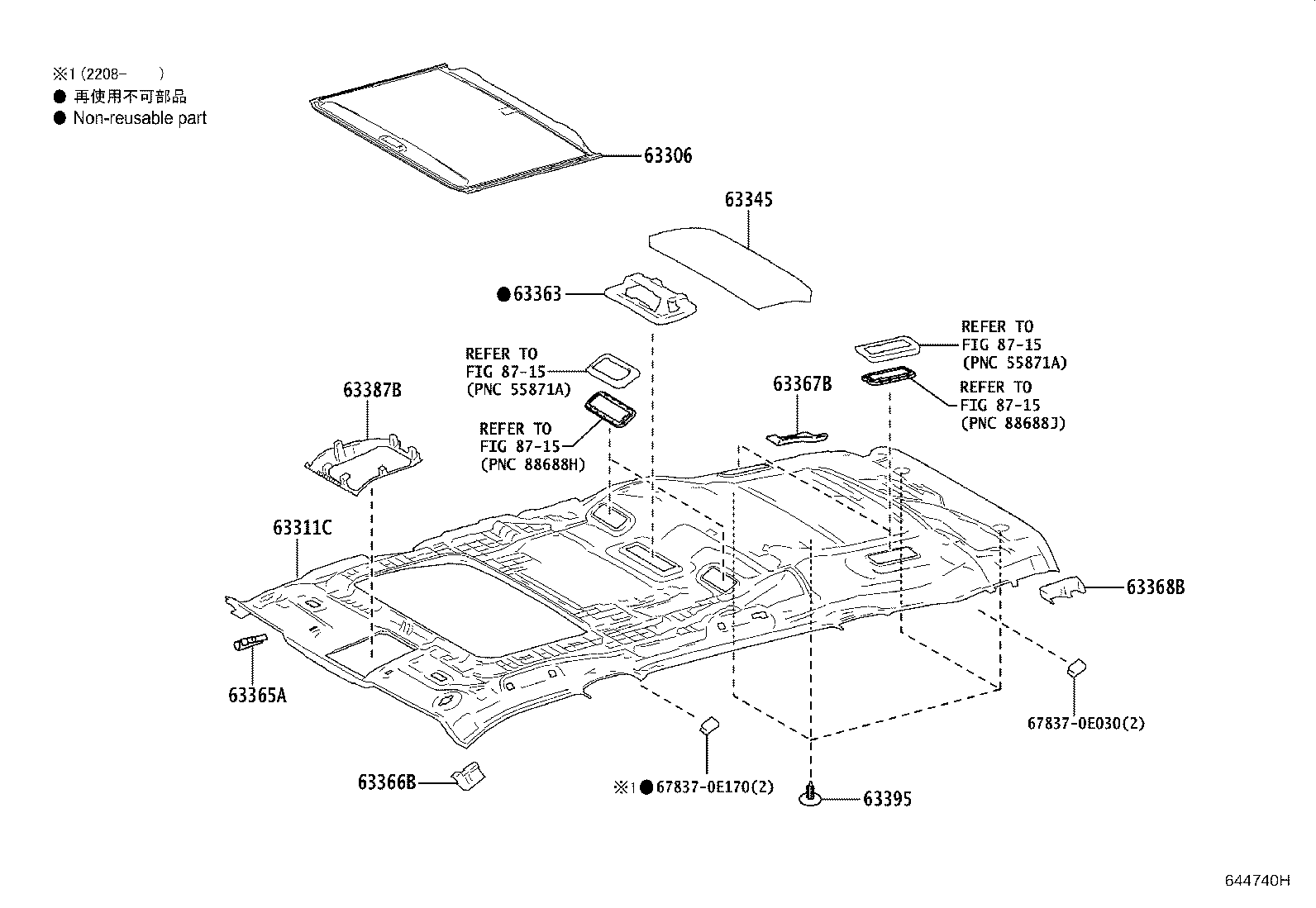

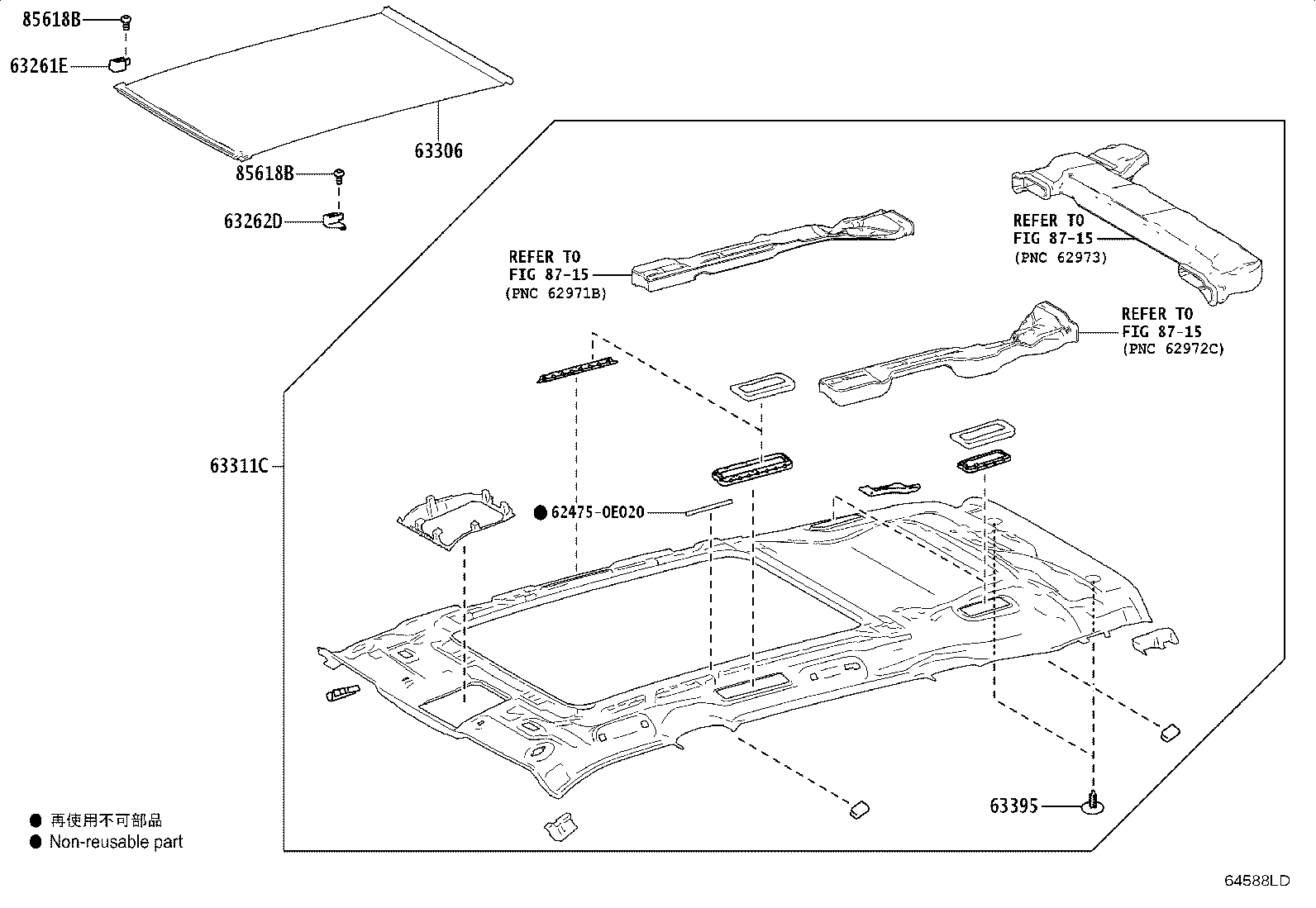

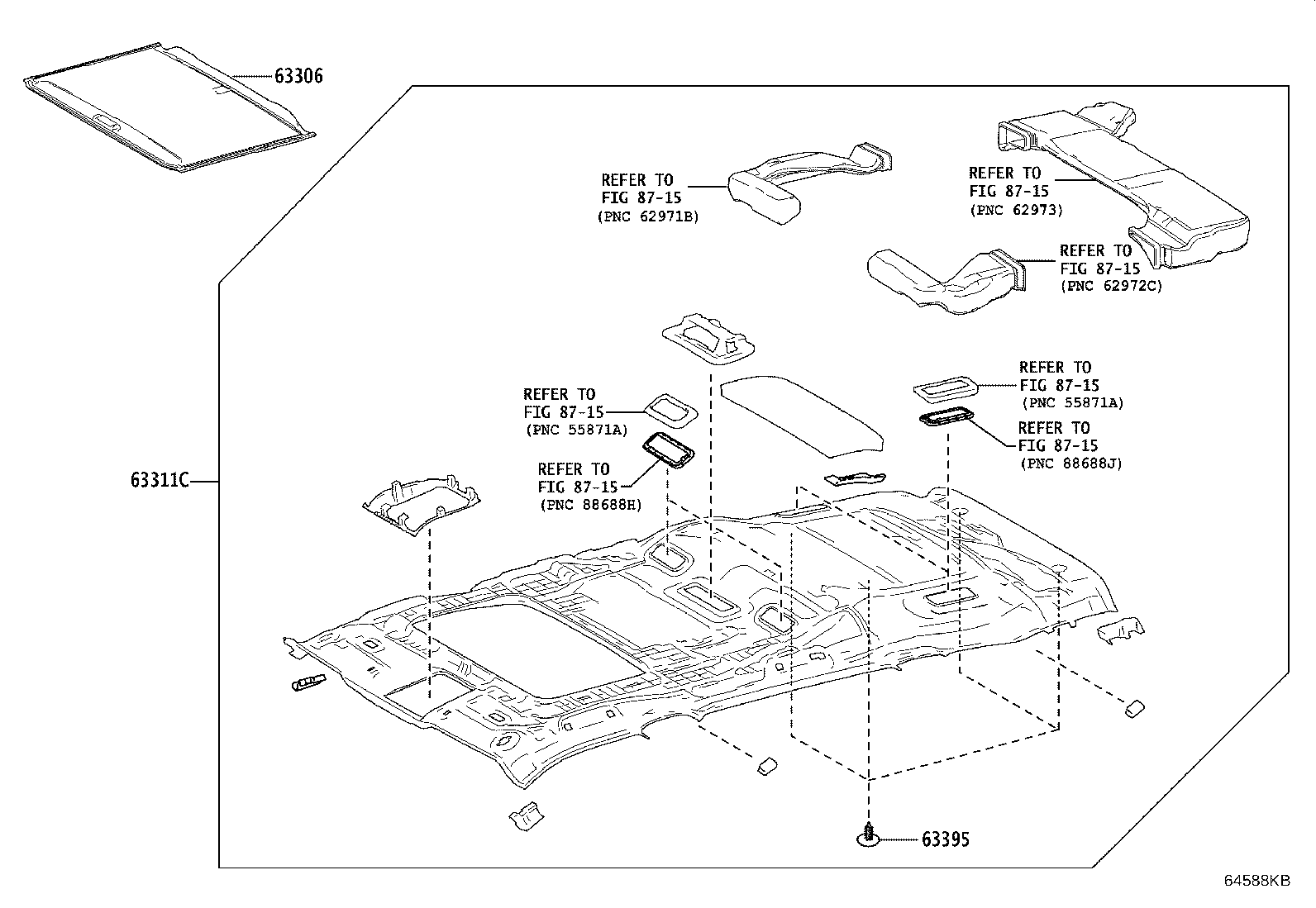

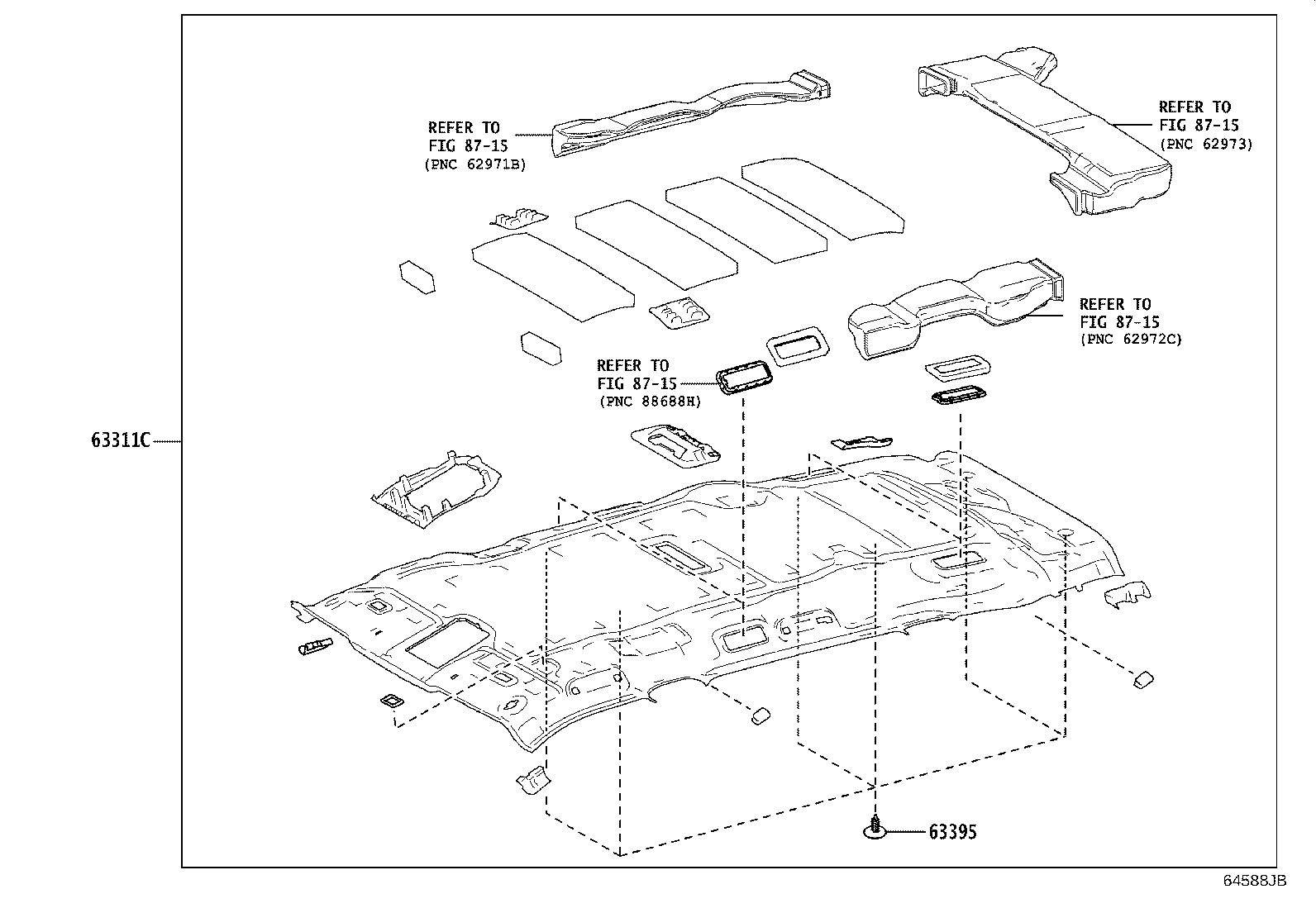

Figure 645348D 645348D 2020-02 → 2023-09 Figure 644740H 644740H 2020-02 → 2023-09 Figure 644740H 644740H 2022-10 → 2023-09 Figure 644741J 644741J 2020-02 → 2023-09 Figure 64588JB 64588JB 2023-09 → — Figure 64588KB 64588KB 2023-09 → — Figure 64588LD 64588LD 2023-09 → —

Part groups

PNCDescription
63261E Shoe, Sliding Roof, Front RH
63262D Shoe, Sliding Roof, Front LH
63306 Trim Sub-assy, Sunshade
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63345 Pad, Roof Silencer, NO.5
63363 Support, Roof Headlining, NO.3
63365A Plate, Roof Headlining Set
63366B Plate, Roof Headlining Set, LH
63367B Plate, Roof Headlining Set, NO.2 RH
63368B Plate, Roof Headlining Set, NO.2 LH
63387B Bracket, Roof Headlining Retainer
63395 Clip, Roof Headlining Trim
63611 Bracket, Rear Cooler, NO.1
63612 Support, Cooler Duct Register, NO.2
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66425B Spacer, Side Rail, Rear NO.2 LH
85618B Screw, Slide Roof Motor Thrust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
