Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11

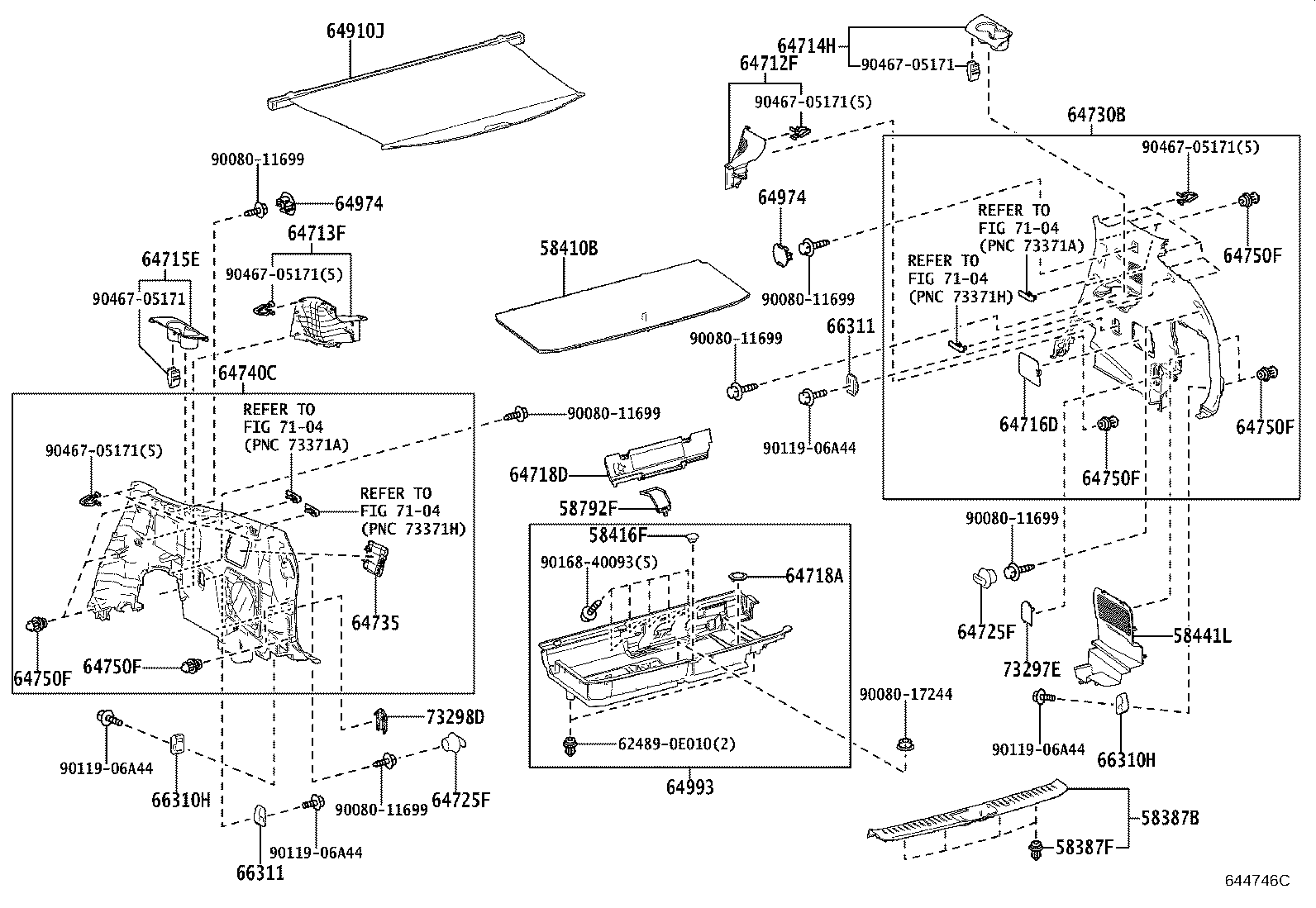

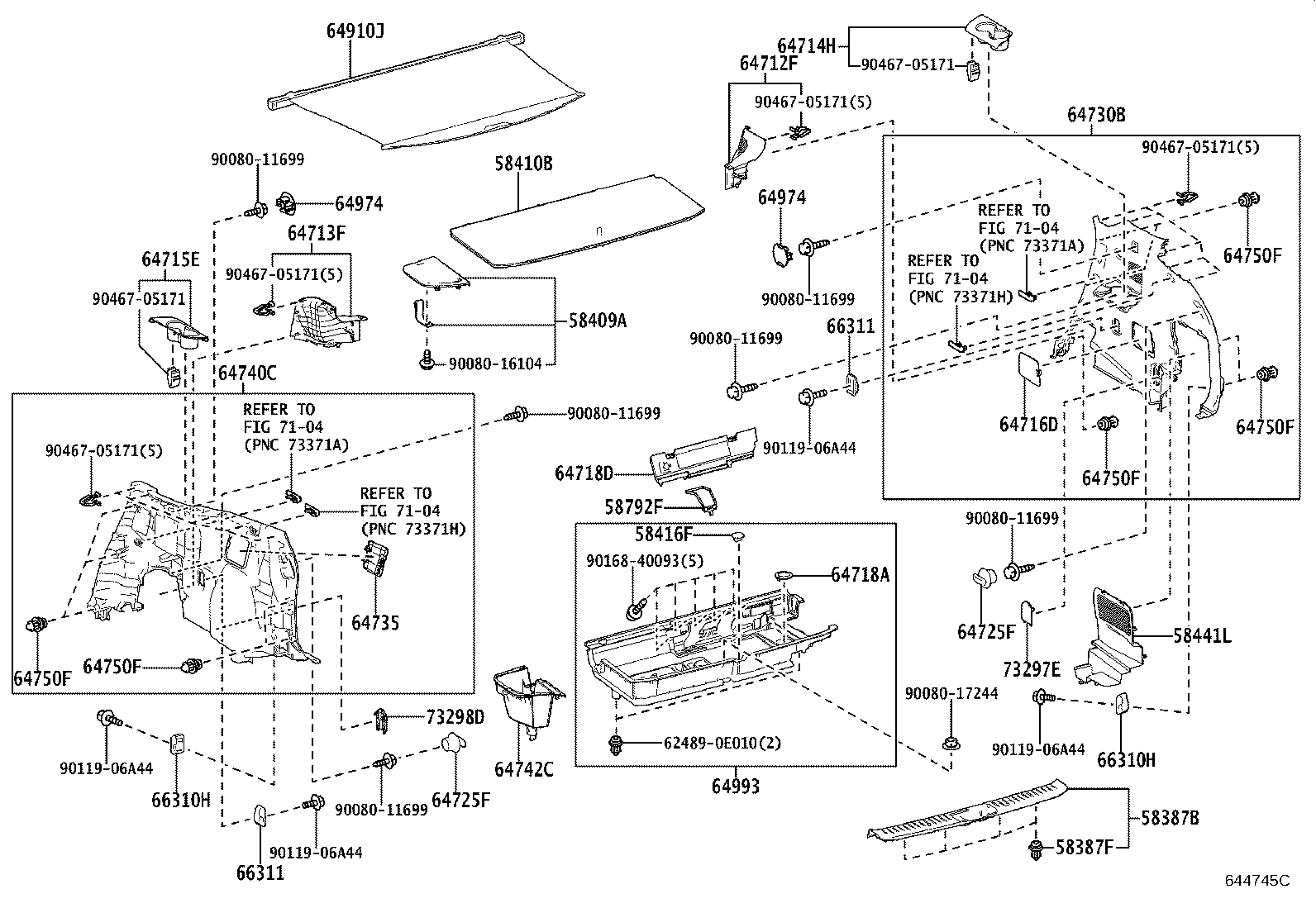

Deck Board & Deck Trim Cover
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58409A | Board Sub-assy, Deck, NO.3 |
| 58410B | Board Assy, Deck |
| 58416F | Bracket, Deck Board, NO.1 |
| 58441L | Cover, Battery Service Hole |
| 58792F | Support, Jack Carrier |
| 62627D | Cover, Side Trim, RH |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714H | Cover, Deck Side Trim, NO.1 |
| 64715E | Cover, Deck Side Trim, NO.2 |
| 64716D | Cover, Deck Trim, Rear |
| 64718A | Cover, Deck Trim Service Hole |
| 64718D | Cover, Deck Trim Service Hole |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64742C | Box, Deck Side Trim, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64910J | Cover Assy, Tonneau |
| 64974 | Cover, Deck Trim Pocket |
| 64993 | Box, Deck Floor, Rear |
| 66310H | Hook Assy, Rope |
| 66311 | Hook, Rope |
| 73297E | Cover, Deck Trim Side Belt Hole, RH |
| 73298D | Cover,Deck Trim Side Belt Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
