Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

81 part groups · 17 illustrations

Illustrations

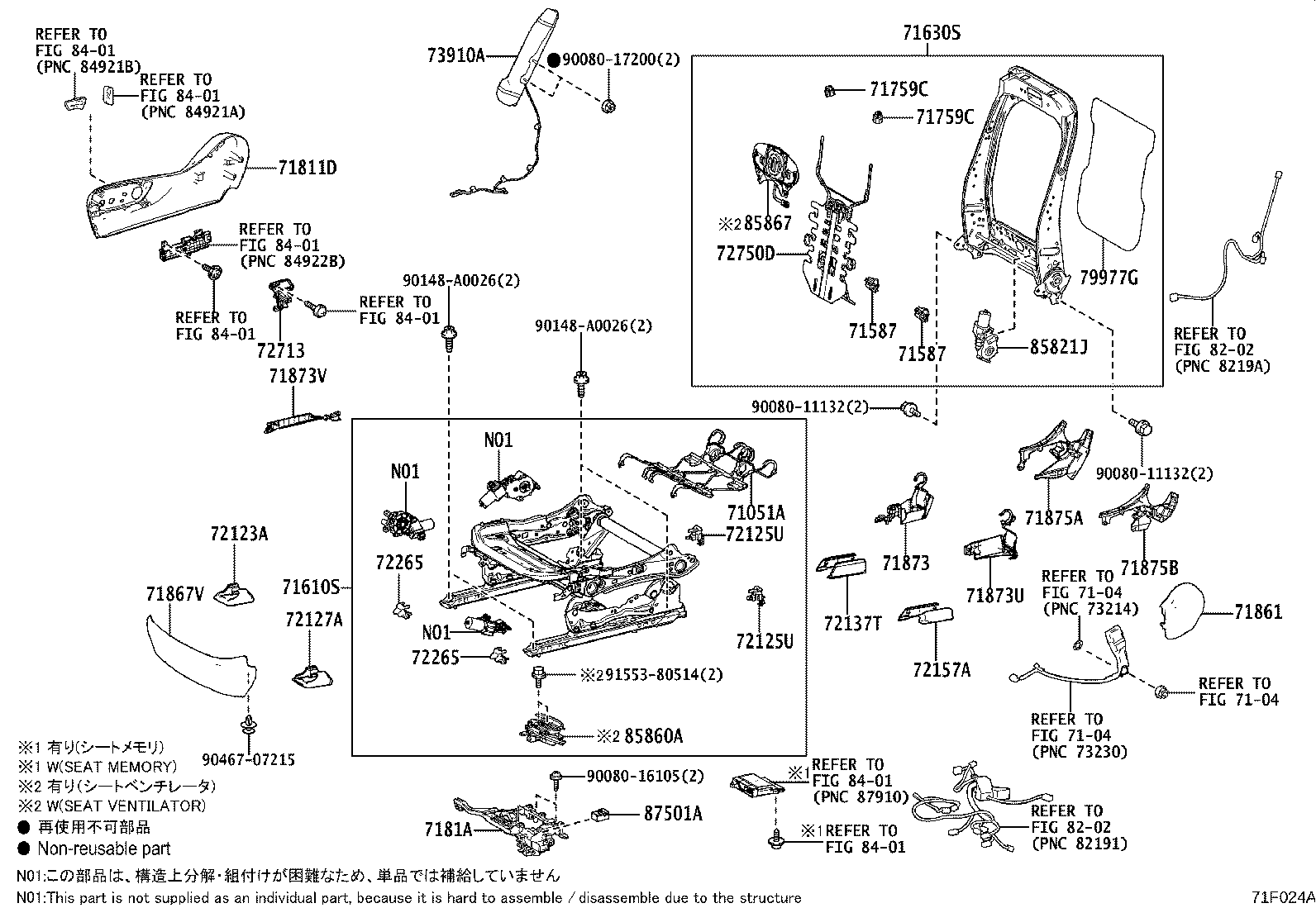

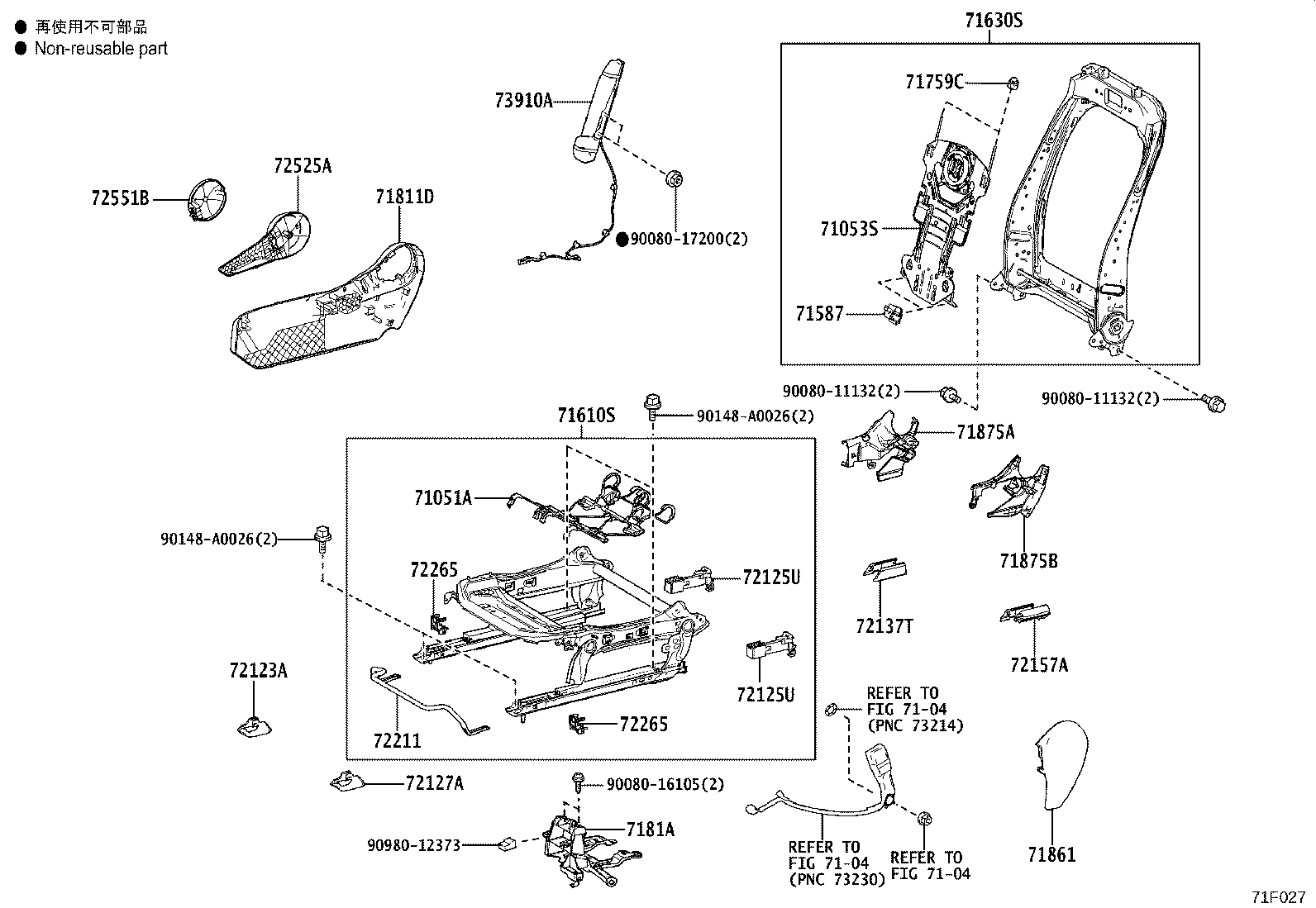

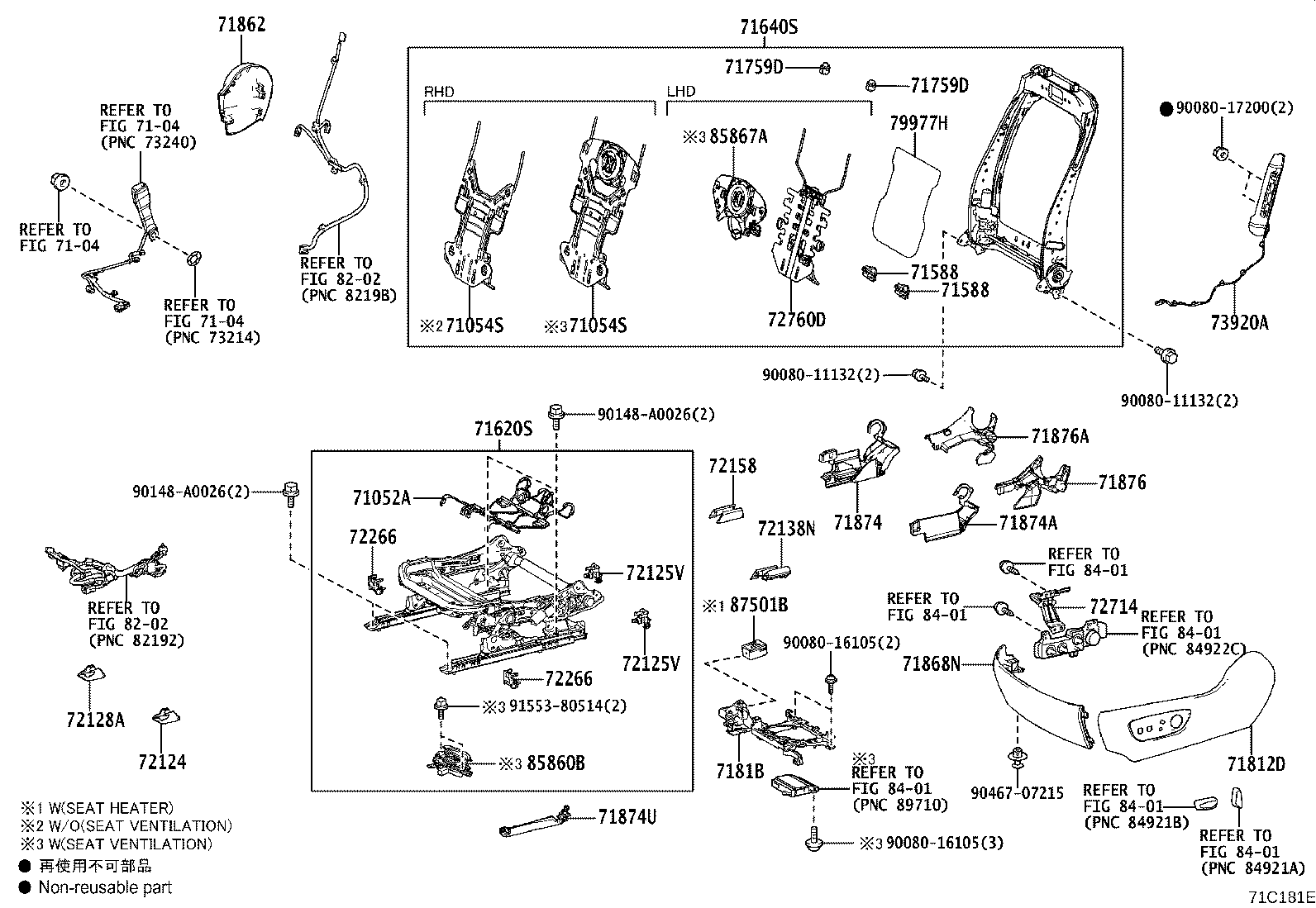

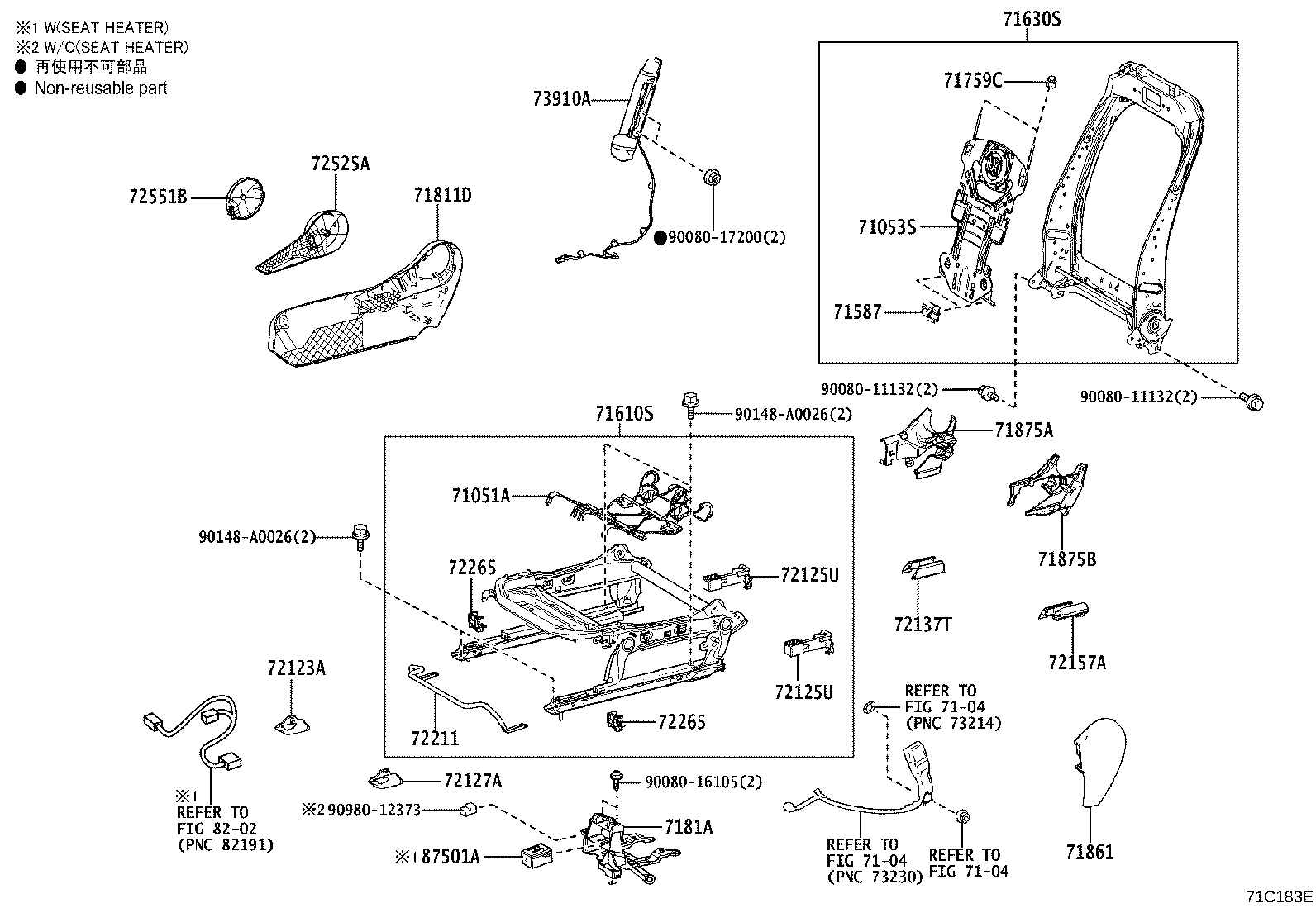

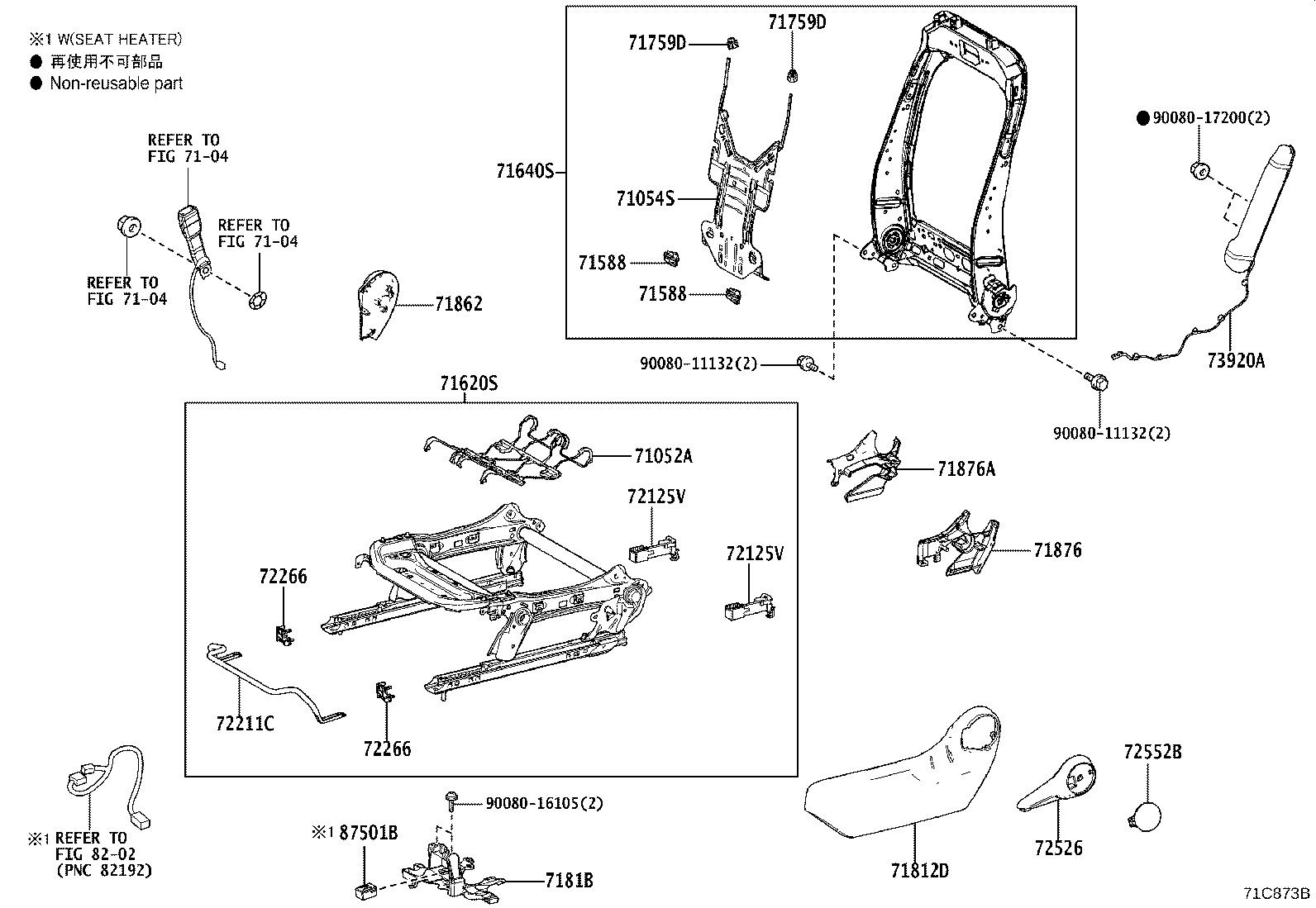

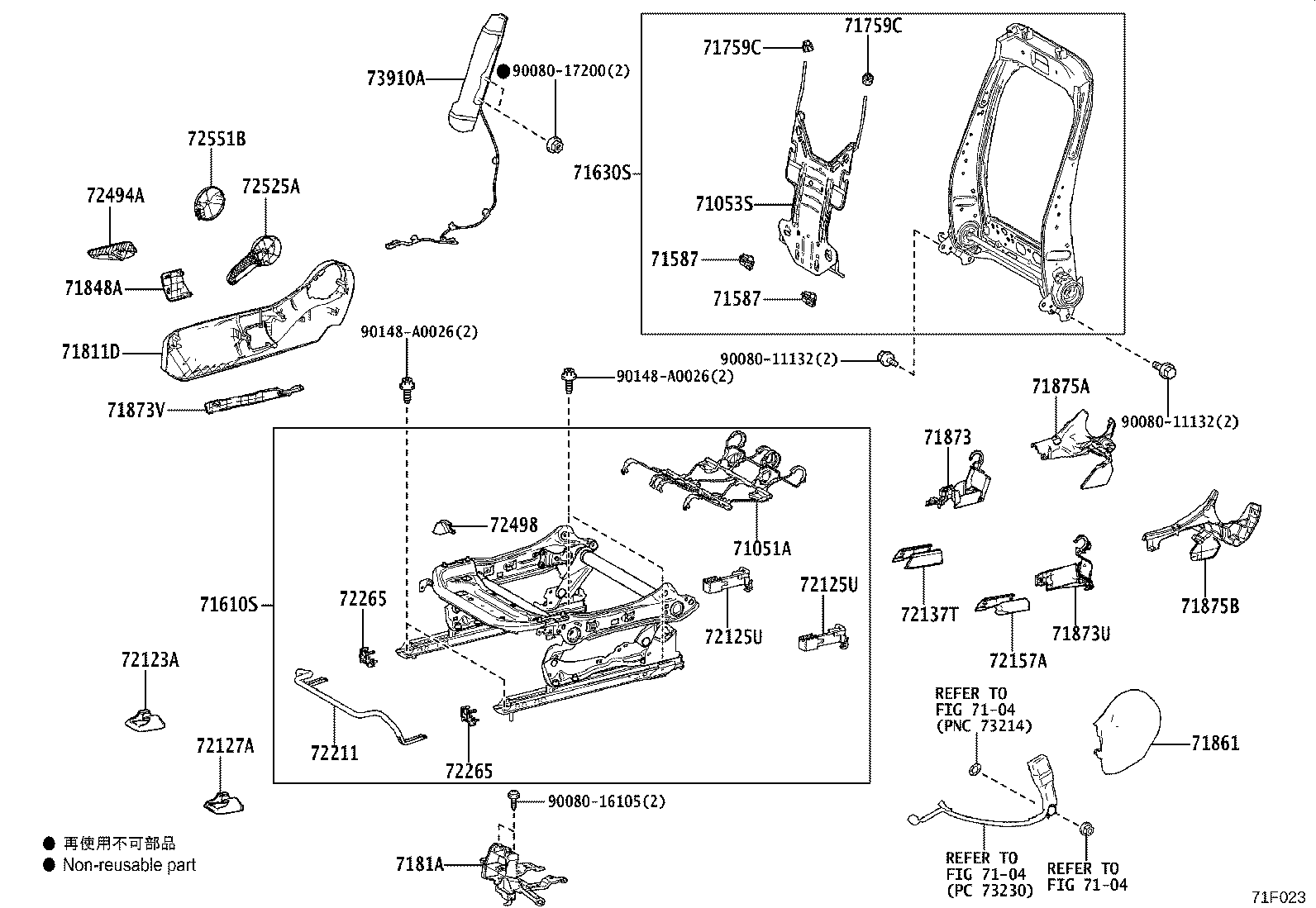

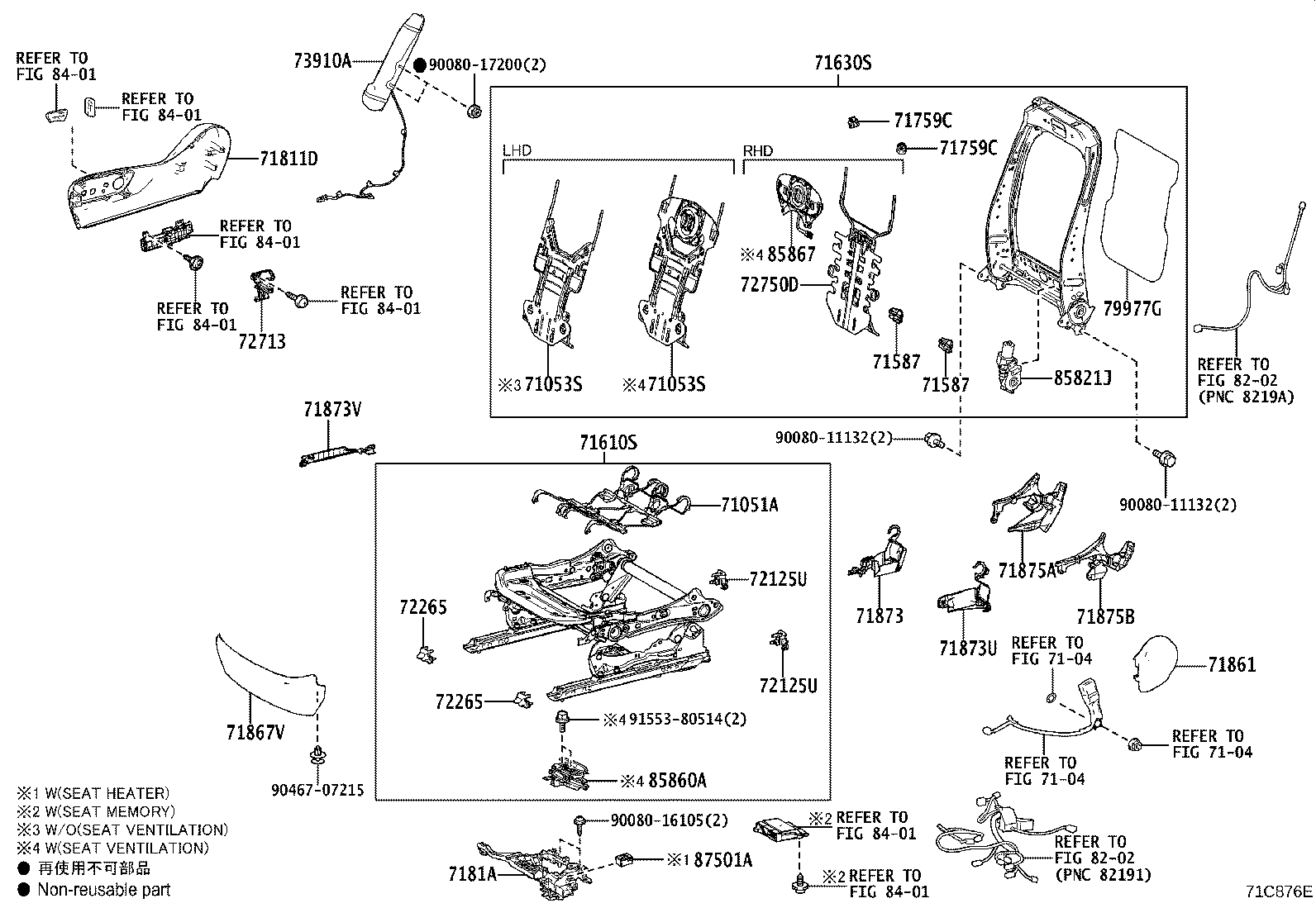

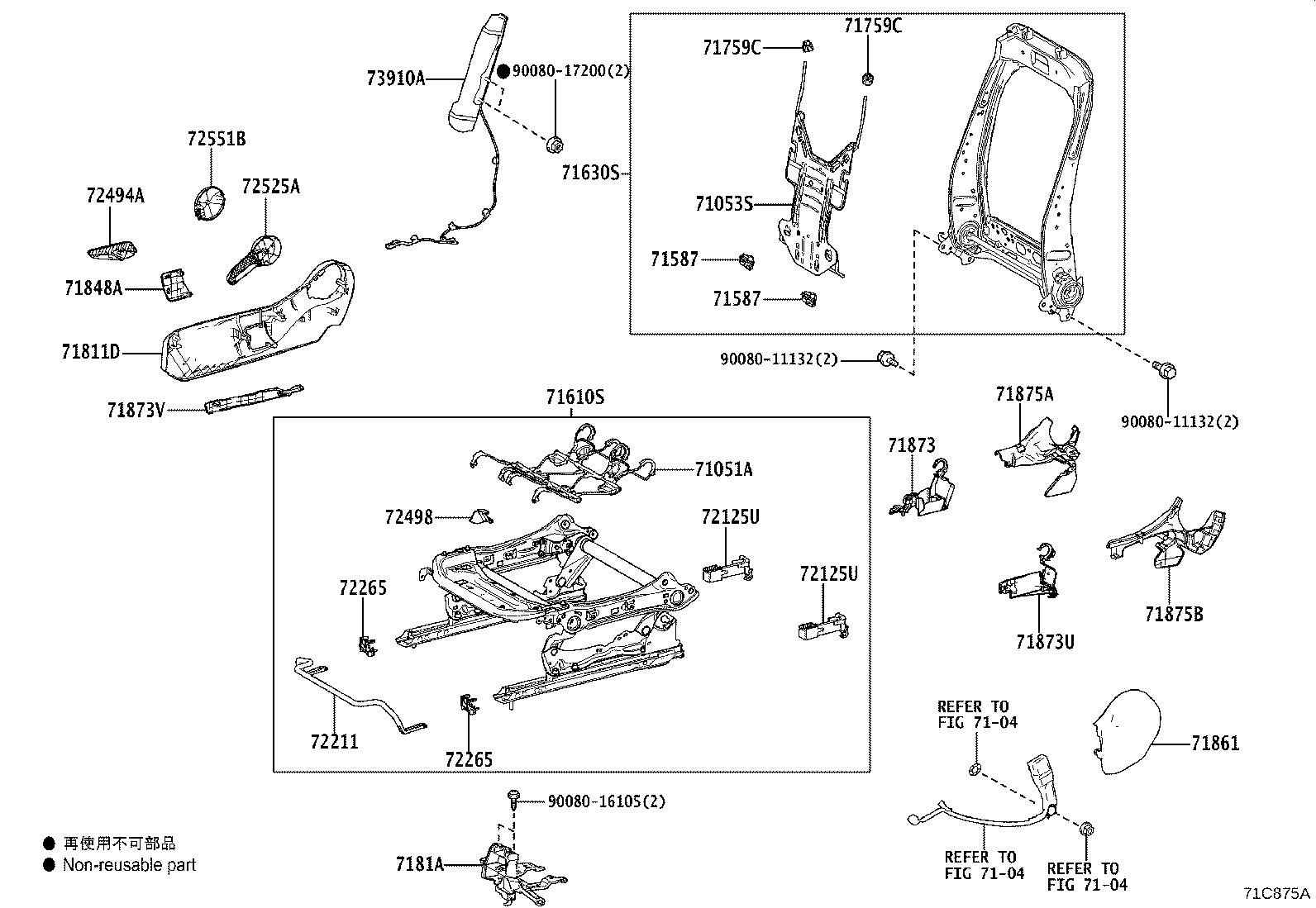

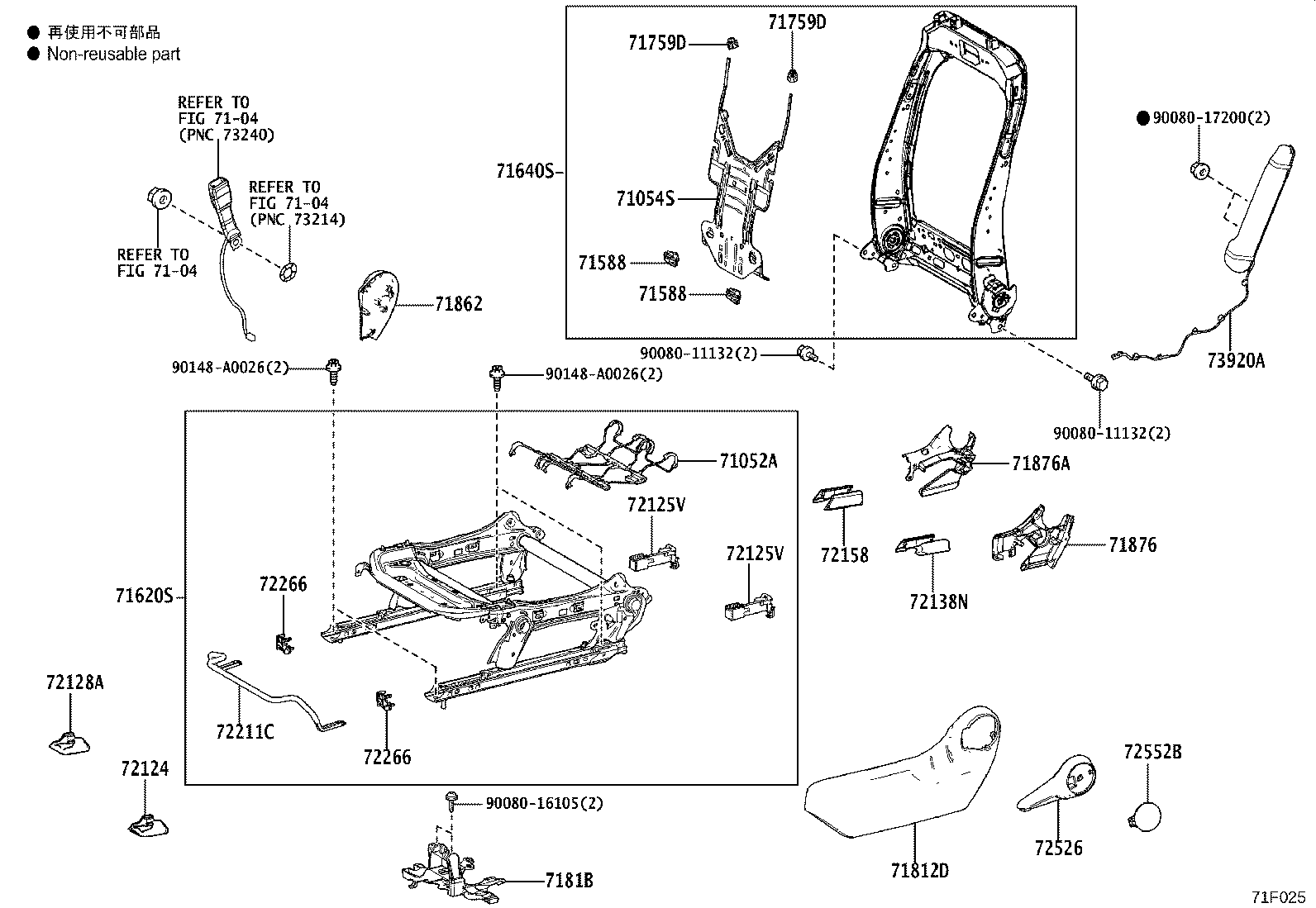

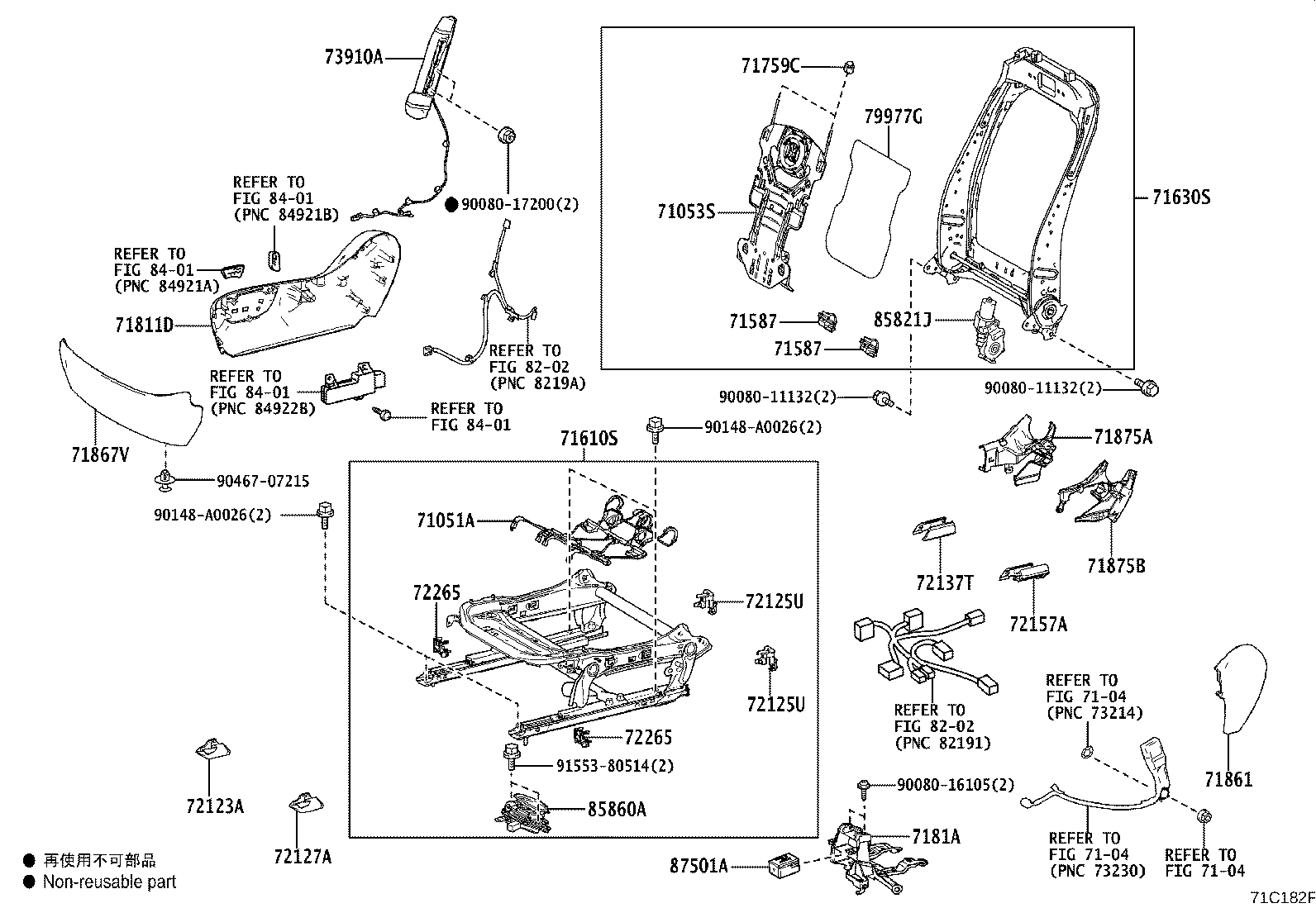

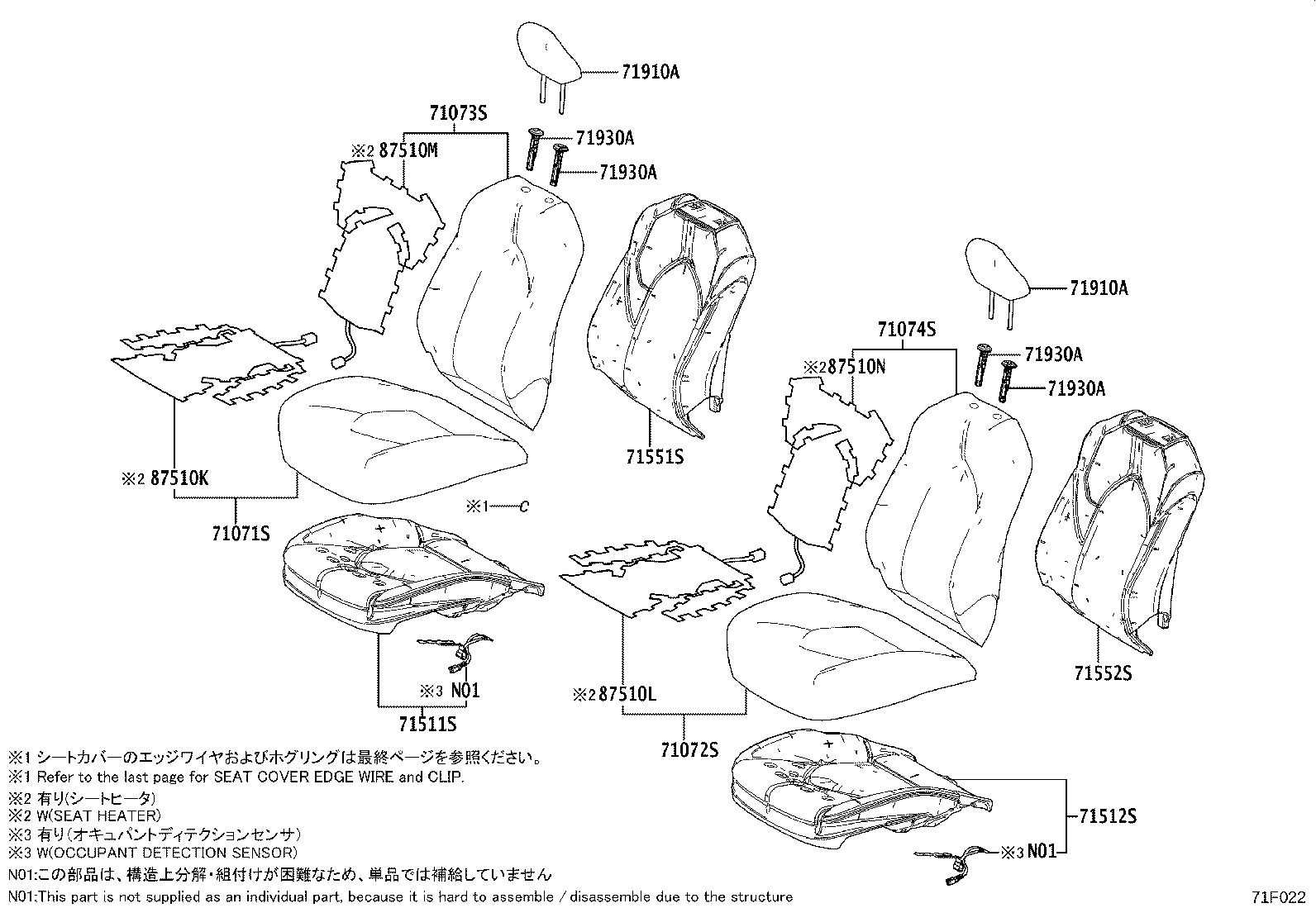

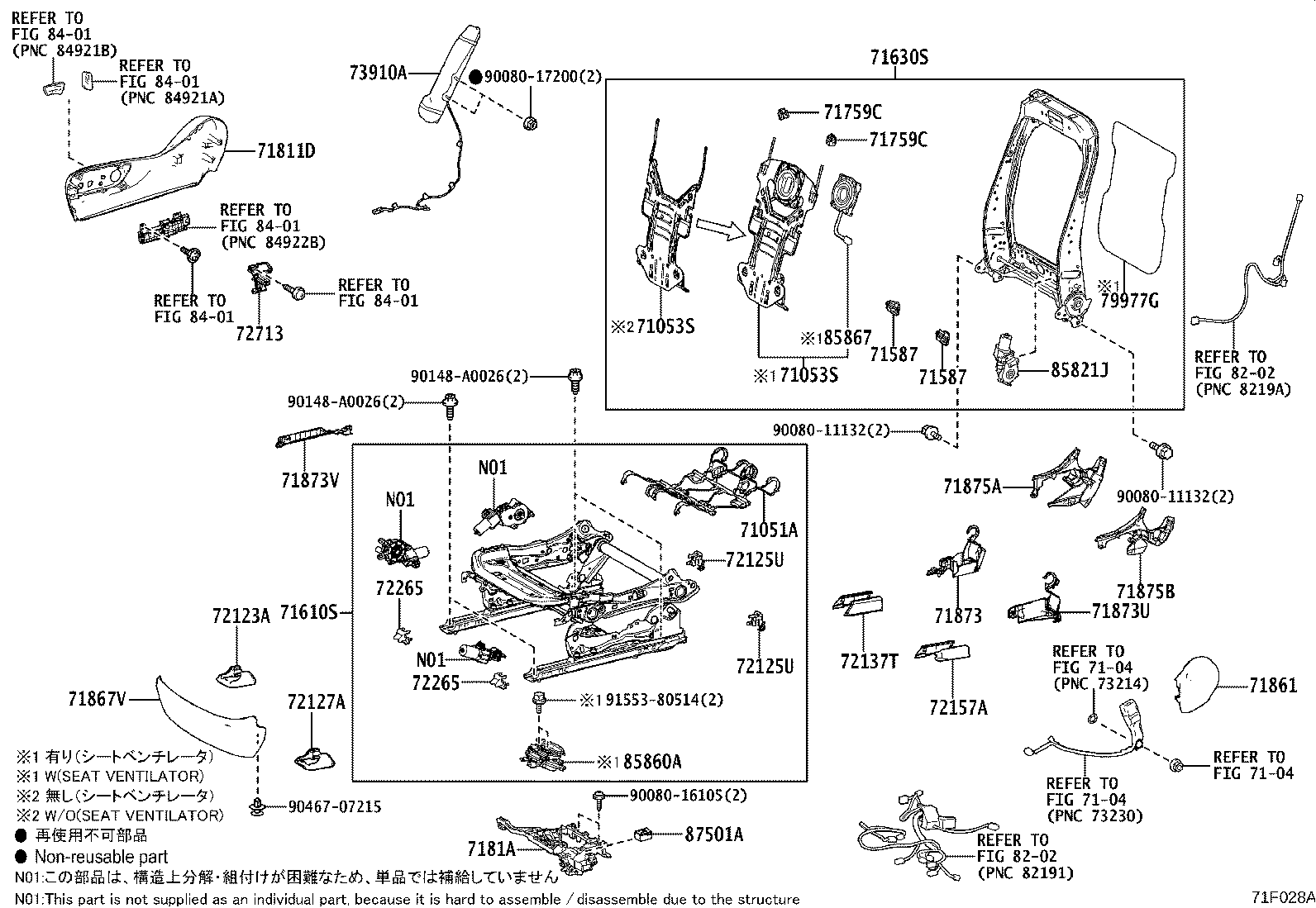

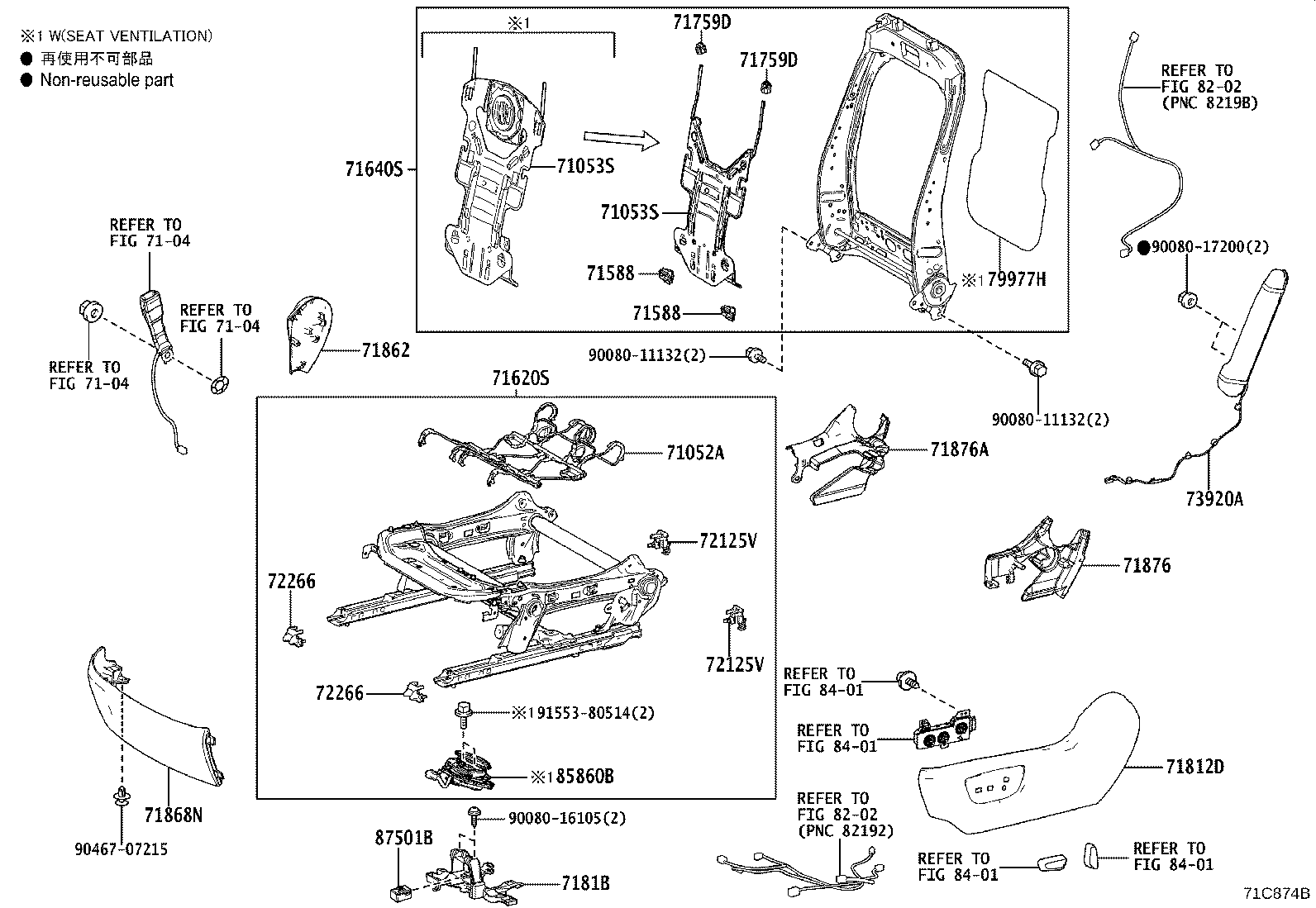

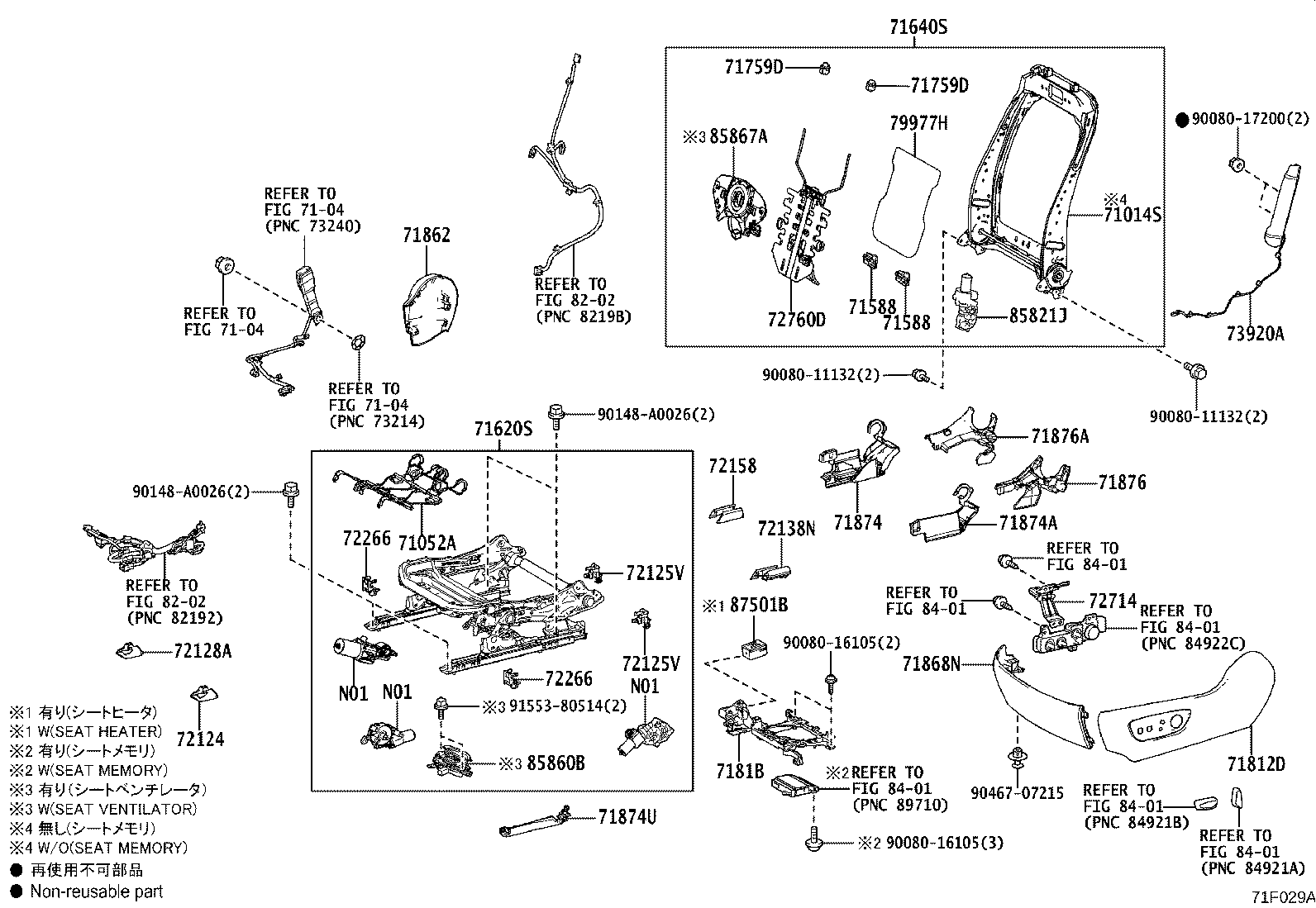

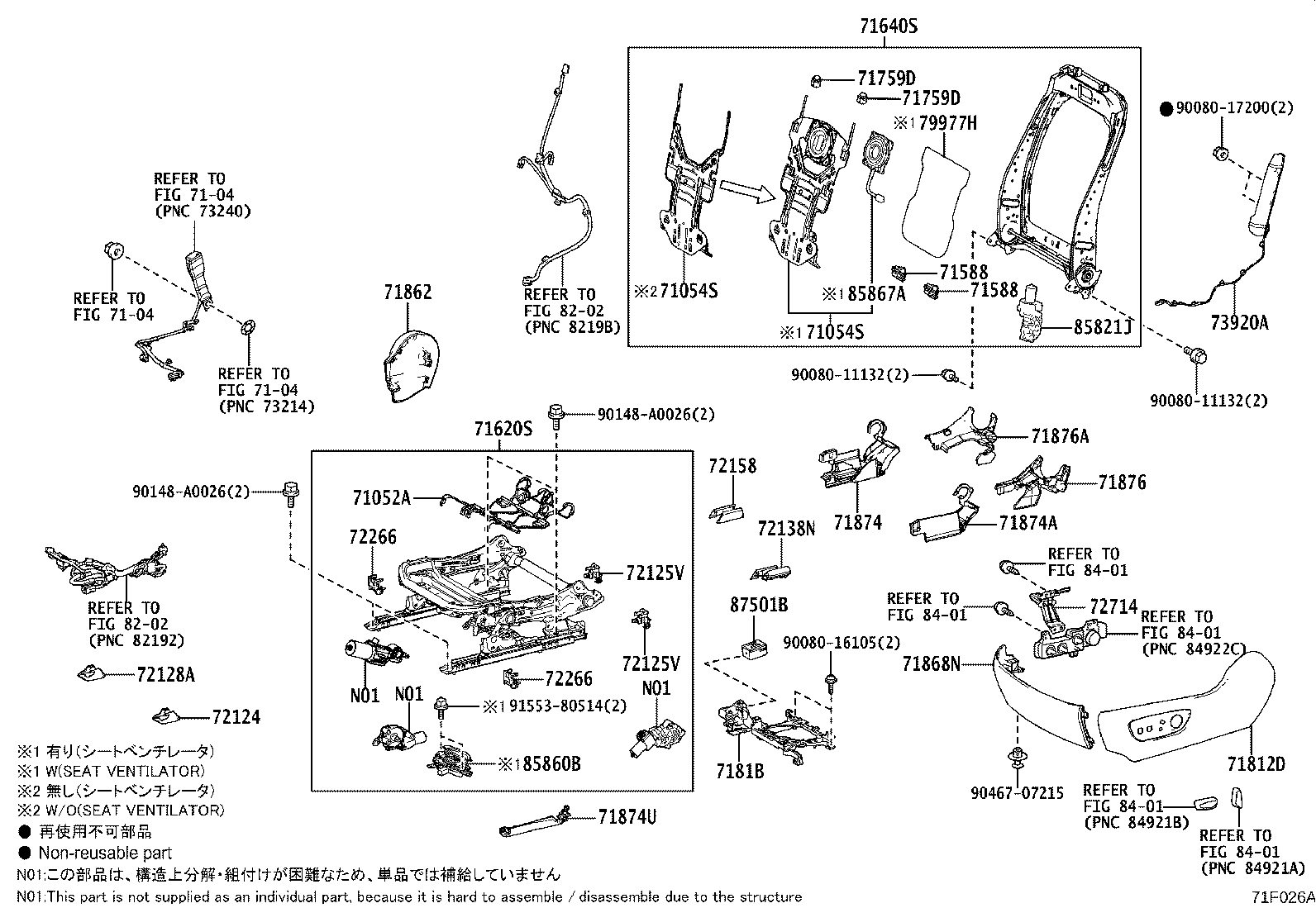

Figure 71C877 71C877 2020-02 → 2022-10 Figure 71C873B 71C873B 2020-11 → 2022-10 Figure 71C874B 71C874B 2020-11 → 2022-10 Figure 71C181E 71C181E 2020-02 → 2022-10 Figure 71C183E 71C183E 2020-02 → 2022-10 Figure 71C875A 71C875A 2020-11 → 2022-10 Figure 71C182F 71C182F 2020-02 → 2022-10 Figure 71C876E 71C876E 2020-11 → 2022-10 Figure 71F022 71F022 2022-10 → — Figure 71F025 71F025 2022-10 → — Figure 71F026A 71F026A 2022-10 → — Figure 71F023 71F023 2022-10 → — Figure 71F024A 71F024A 2022-10 → — Figure 71F029A 71F029A 2022-10 → — Figure 71F027 71F027 2022-10 → — Figure 71F028A 71F028A 2022-10 → — Figure 71A560 71A560 2020-02 → —

Part groups

PNCDescription
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71848A Cap, Seat Adjuster Cover, RH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873U Shield, Front Seat Cushion, Lower RH
71873V Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874U Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125U Cover, Seat Track, Upper Rear RH
72125V Cover, Seat Track, Upper Rear LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72494A Handle, Front Seat Vertical Adjuster, RH
72498 Cover, Vertical Adjuster Bracket
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
85821J Motor Assy, Power Seat Reclining, RH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
