Rear Seat & Seat Track

134 part groups · 5 illustrations

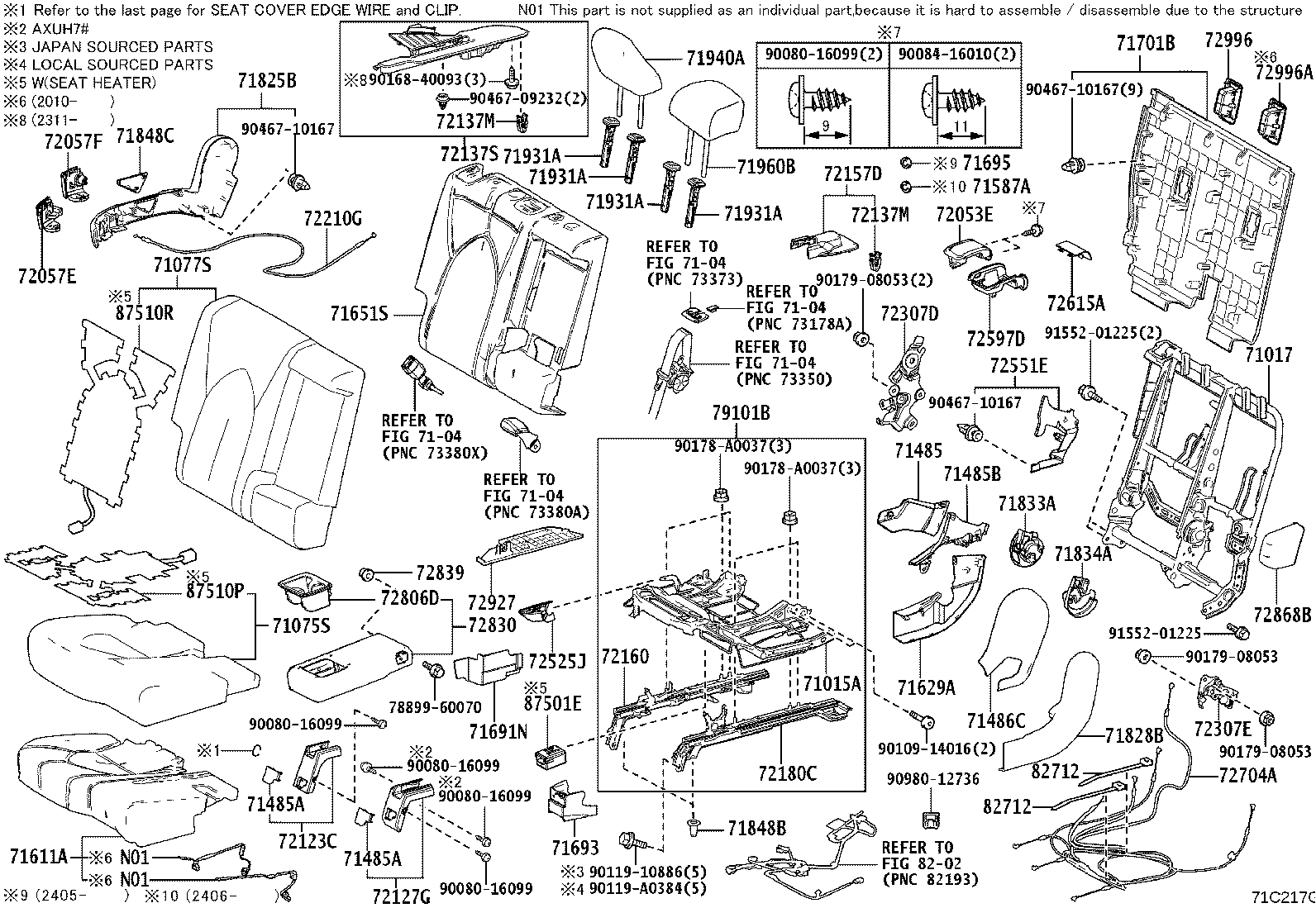

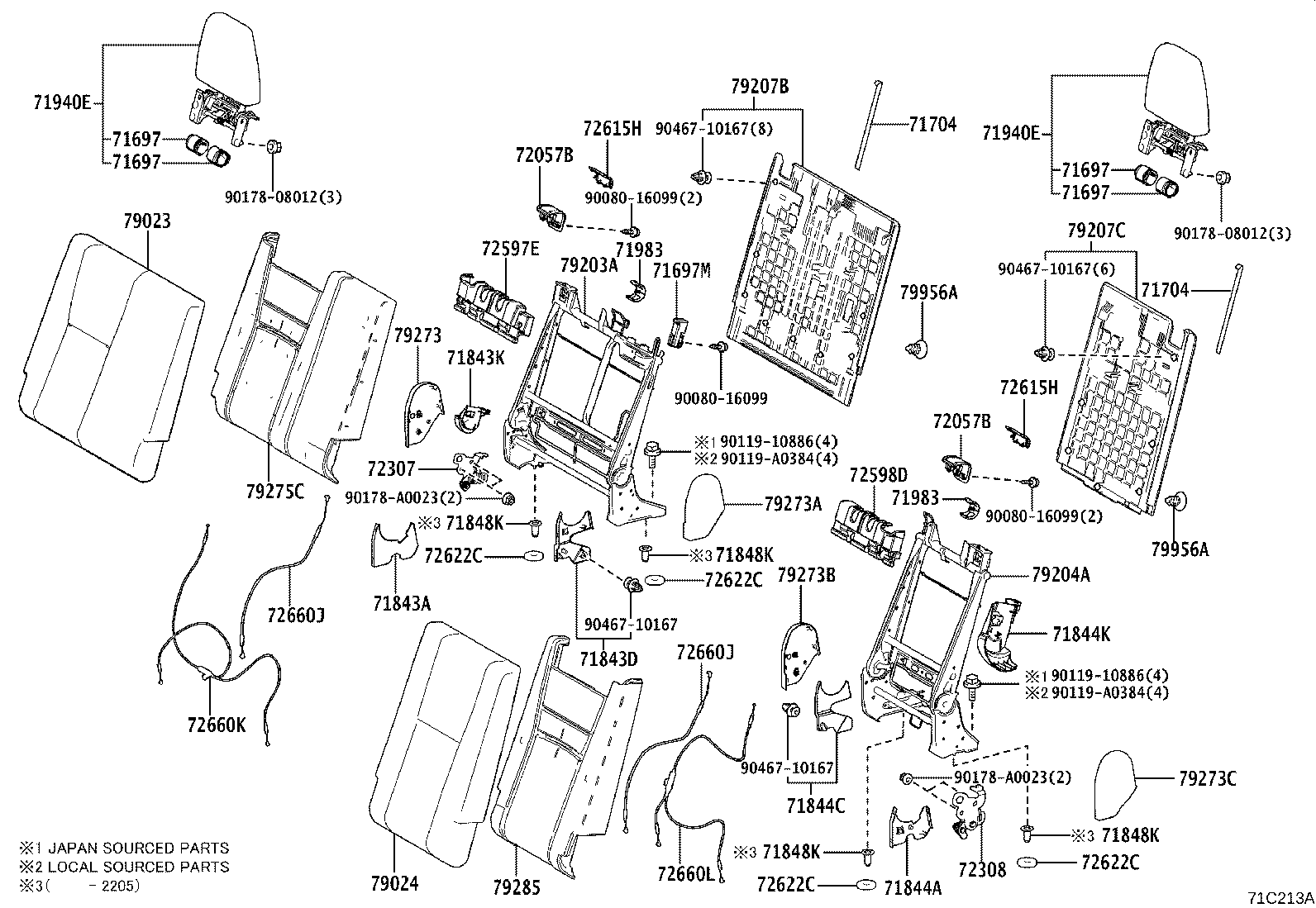

Illustrations

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71485	Cover, Rear Seat Hinge
71485A	Cover, Rear Seat Hinge, NO.2 RH
71485B	Cover, Rear Seat Hinge
71486A	Cover, Rear Seat Hinge, NO.2 LH
71486C	Cover, Rear Seat Hinge, LH
71503A	Pad Sub-assy, Rear Seat Cushion
71587A	Protector, Rear Seatback Edge
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71629A	Cover, Rear Seat Cushion Hinge, RH
71639	Cover, Rear Seat Cushion Hinge, LH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691N	Cover, Rear Seat Cushion Hinge, Upper RH NO.1
71691P	Cover, Rear Seat Cushion Hinge, Upper RH NO.2
71692M	Cover, Rear Seat Cushion Hinge, Upper LH NO.2
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71695	Protector, Rear Seatback
71697	Protector, Rear Seatback Edge
71697M	Protector, Rear Seatback
71701B	Board Sub-assy, Rear Seatback, RH
71702C	Board Sub-assy, Rear Seatback, LH
71704	Band Sub-assy, Rear Side Seat
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833J	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834S	Cover, Rear Seat Reclining, NO.1 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71843K	Cover, Rear NO.2 Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71844K	Cover, Rear NO.2 Seat Reclining, NO.2 LH
71848B	Cap, Seat Adjuster Cover, RH
71848C	Cap, Seat Adjuster Cover, RH
71848K	Cap, Seat Adjuster Cover
71849A	Cap, Seat Adjuster Cover, LH
71849D	Cap, Seat Adjuster Cover, LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
71960B	Headrest Assy, Rear Seat, Center
71983	Guide, Rear Seat Headrest
72053E	Lever Sub-assy, Reclining Remote Control, RH
72054C	Lever Sub-assy, Reclining Remote Control, LH
72057B	Lever Sub-assy, Rear Seat Lock Control
72057E	Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F	Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72058D	Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72058E	Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72123C	Cover, Seat Track Bracket, Outer Front RH
72124C	Cover, Seat Track Bracket, Outer Front LH
72127G	Cover, Seat Track Bracket, Inner Front RH
72128G	Cover, Seat Track Bracket, Inner Front LH
72134A	Bracket, Front Inner Seat Track Upper Rail, LH
72137M	Clip (FOR SEAT TRACK COVER RH)
72137S	Cover, Seat Track Bracket, Outer Rear RH
72137W	Clip (FOR SEAT TRACK COVER LH)
72138M	Cover, Seat Track Bracket, Outer Rear LH
72157D	Cover, Seat Track Bracker, Inner RH
72158B	Cover, Seat Track Bracket, Inner LH
72160	Track Assy, Rear Seat, Outer RH
72170D	Track Assy, Rear Seat, Outer LH
72180C	Track Assy, Rear Seat, Inner RH
72190	Track Assy, Rear Seat Inner, LH
72210G	Cable Assy, Rear NO.1 Seat Track Control, RH
72210H	Cable Assy, Rear NO.1 Seat Track Control, LH
72307	Link Sub-assy, Reclining Control, RH
72307D	Link Sub-assy, Reclining Control, RH NO.1
72307E	Link Sub-assy, Reclining Control, RH NO.2
72308	Link Sub-assy, Reclining Control, LH
72308C	Link Sub-assy, Reclining Control, LH NO.1
72308D	Link Sub-assy, Reclining Control, LH NO.2
72525J	Handle, Reclining Adjuster Release, RH
72526E	Handle, Reclining Adjuster Release, LH
72551E	Cover, Reclining Hinge, RH
72552A	Cover, Reclining Hinge, LH
72597D	Bezel, Reclining Remote Control, RH
72597E	Bezel, Reclining Remote Control, RH NO.2
72598C	Bezel, Reclining Remote Control, LH
72598D	Bezel, Reclining Remote Control, LH NO.2
72615A	Cover, Rear Seatback Lock Striker, RH
72615H	Cover, Rear Seatback Lock Striker, NO.1
72616A	Cover, Rear Seatback Lock Striker, LH
72622C	Bush, Rear Seatback Protector Shaft
72660J	Cable Assy, Rear NO.2 Seat Cushion Lock
72660K	Cable Assy, Rear NO.2 Seat Cushion Lock, RH
72660L	Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72693	Hook, Rear Seat Cushion Lock
72704A	Cable, Rear Seat Reclining Control
72806D	Holder Sub-assy, Rear Seat Center Armrest Cup
72830	Armrest Assy, Rear Seat, Center
72839	Shim, Rear Seat Armrest Hinge
72868B	Cover, Center Armrest Hinge
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
72996	Cover, Rear Seatback, RH
72996A	Cover, Rear Seatback
72997	Cover, Rear Seatback, LH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79101B	Frame Sub-assy, NO.1 Seat Cushion, RH
79102	Frame Sub-assy, NO.1 Seat Cushion, LH
79203A	Frame Sub-assy, NO.2 Seatback, RH
79204A	Frame Sub-assy, NO.2 Seatback, LH
79207B	Board Sub-assy, NO.2 Seatback, RH
79207C	Board Sub-assy, NO.2 Seatback, LH
79273	Cover, NO.2 Seat Hinge
79273A	Cover, NO.2 Seat Hinge, NO.2
79273B	Cover, NO.2 Seat Hinge, NO.3
79273C	Cover, NO.2 Seat Hinge, NO.4
79275C	Pad, NO.2 Seatback, RH
79285	Pad, NO.2 Seatback, LH
79956A	Clip (FOR REAR SEAT LEG BRACKET COVER)
82712	Clamp, Wiring Harness
87501E	Control Sub-assy, Seat Heater, RH
87501F	Control Sub-assy, Seat Heater, LH
87510P	Heater Assy, Seat
87510Q	Heater Assy, Seat
87510R	Heater Assy, Seat
87510S	Heater Assy, Seat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
