Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11

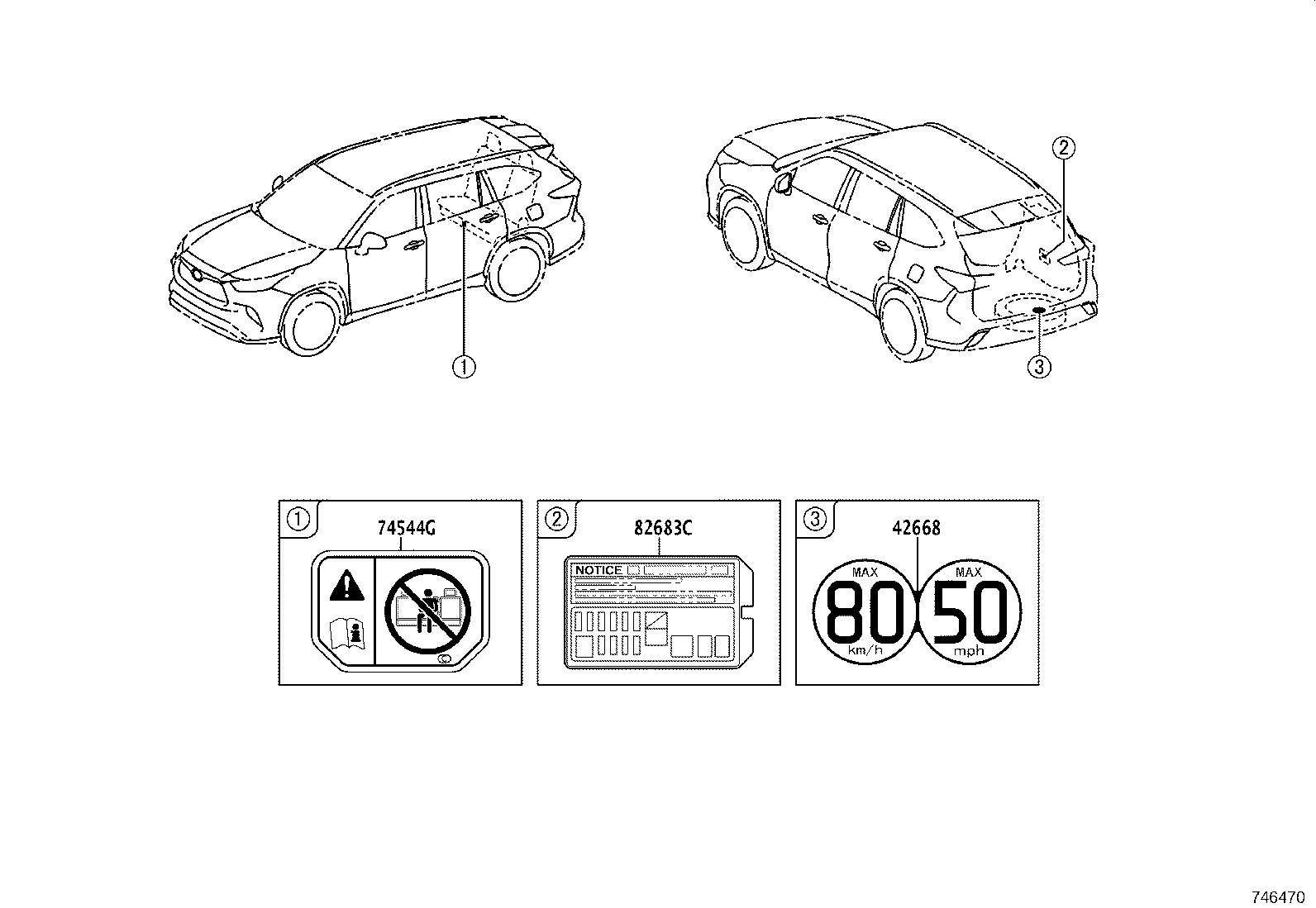

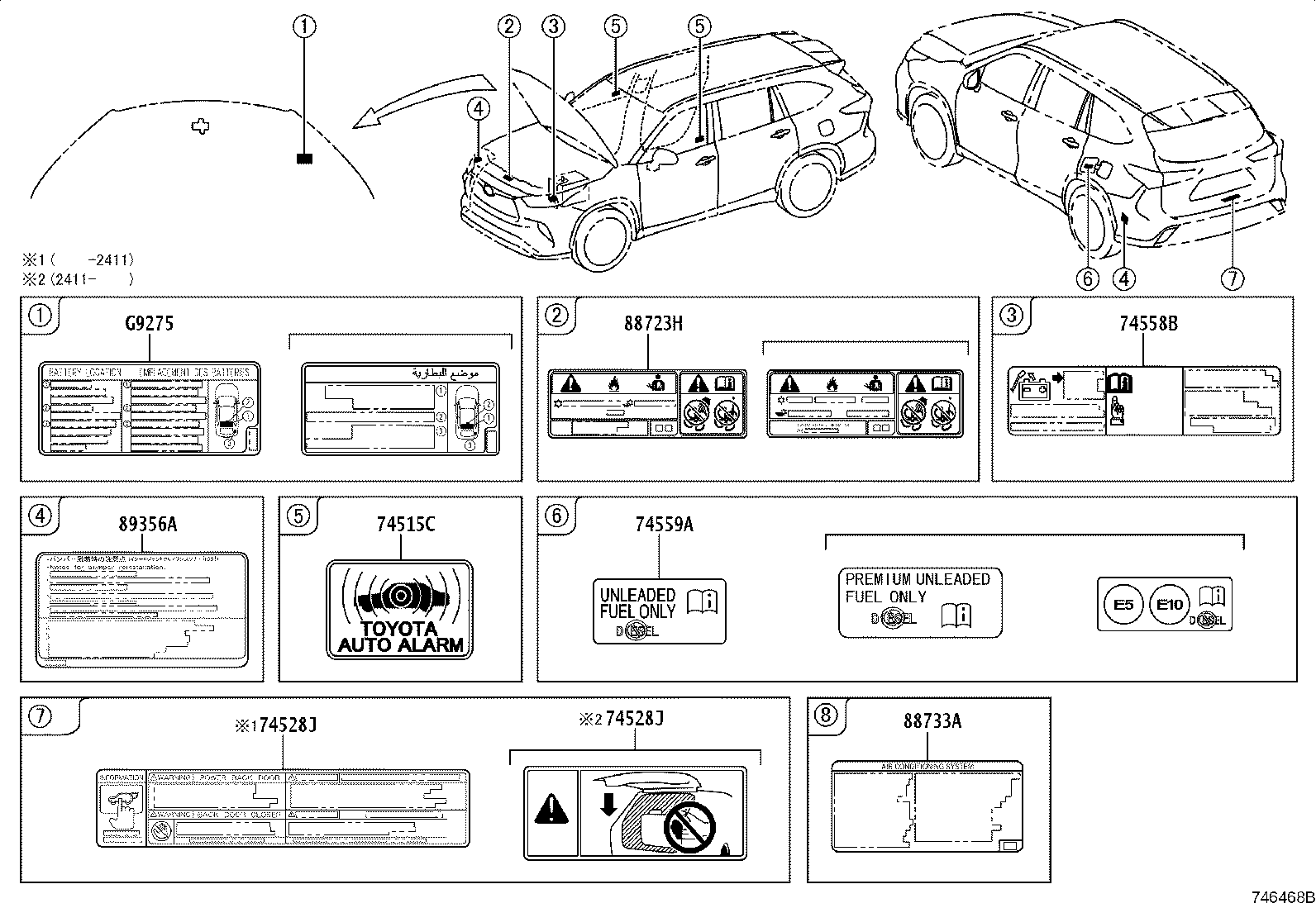

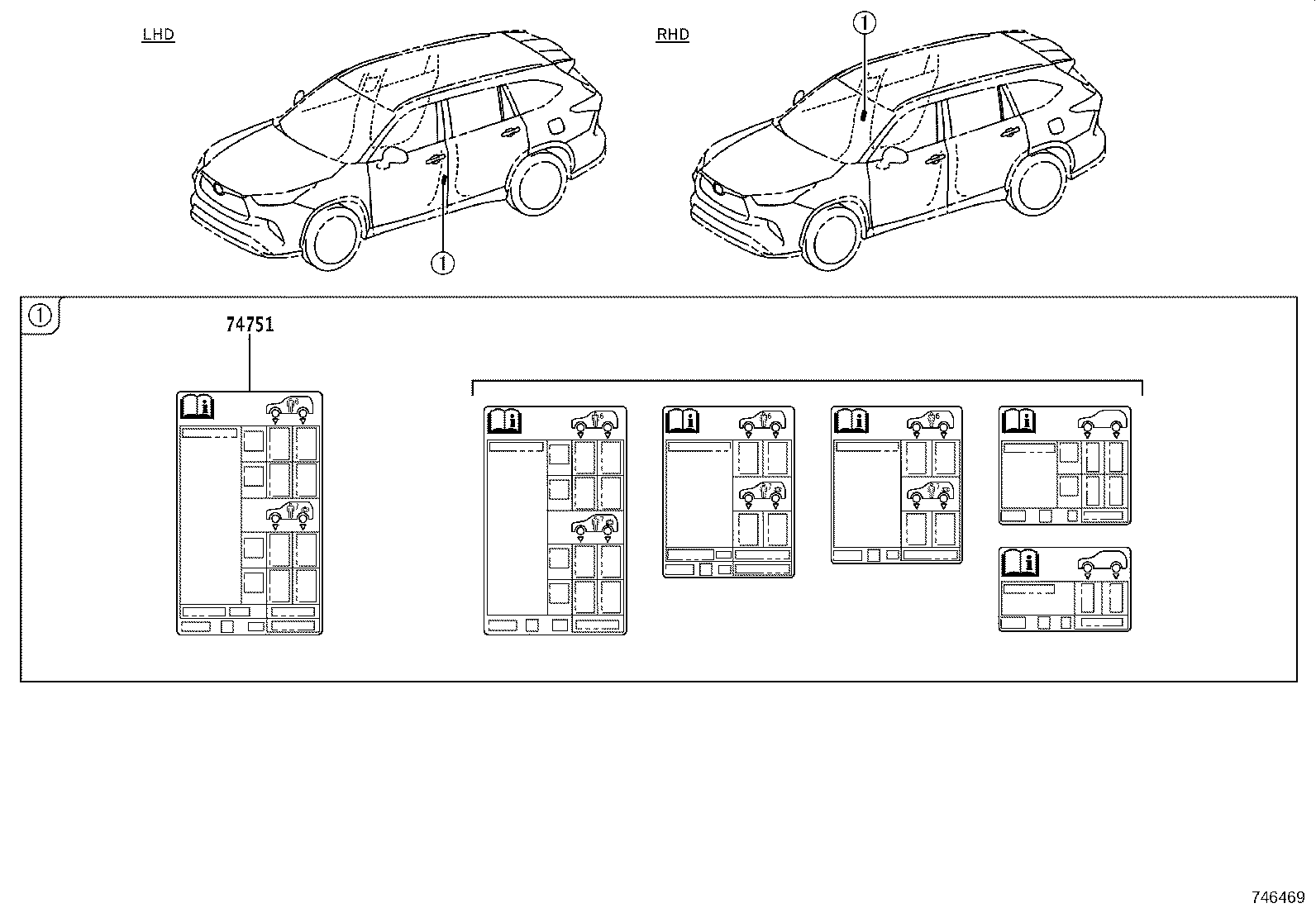

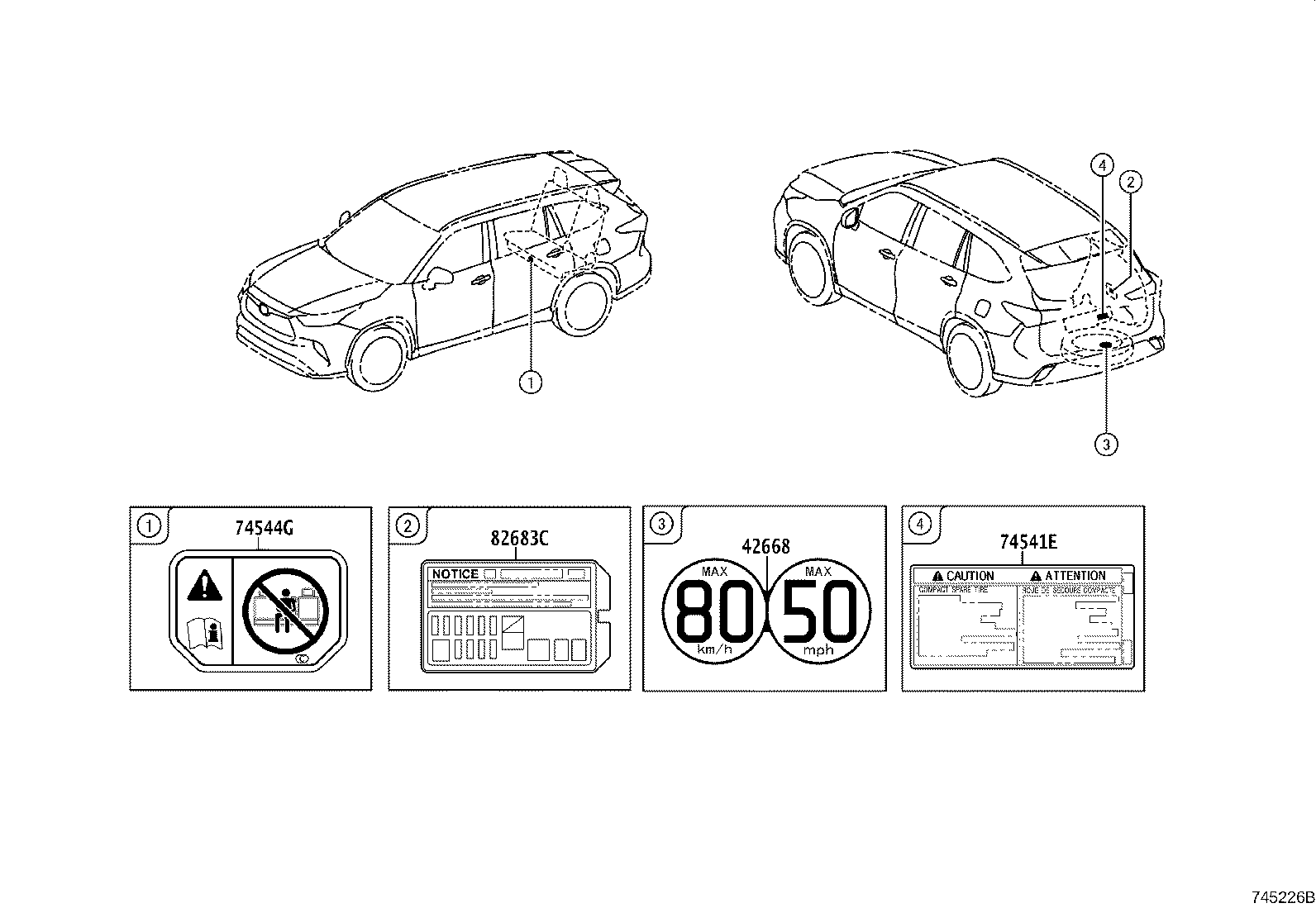

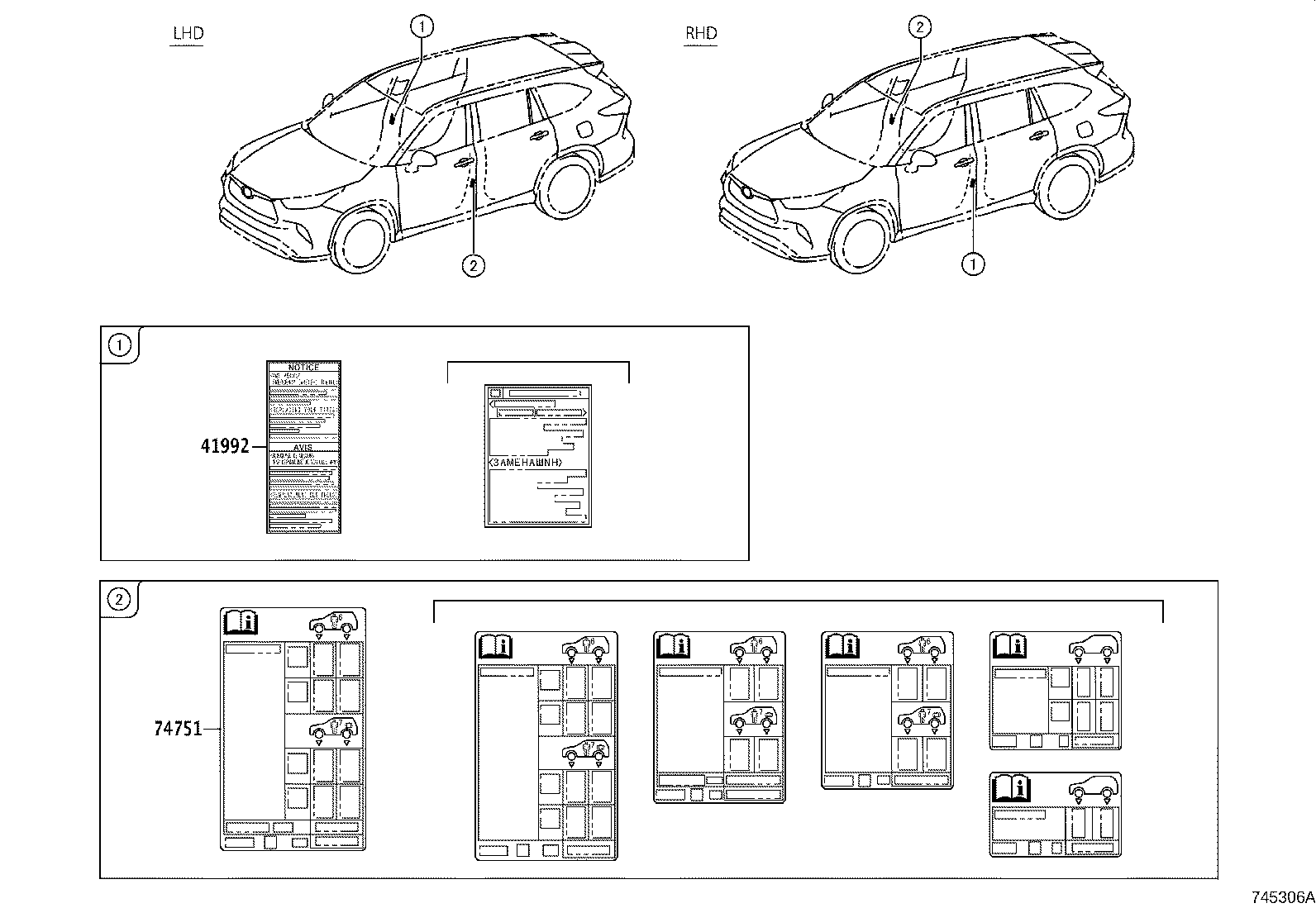

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293D | Label, Engine Caution |
| 41992 | Label, Differential Notice |
| 42668 | Label, Compact Spare Tire Caution |
| 47288 | Label, Brake Fluid Notice |
| 74515C | Label, Theft Warning Information |
| 74528J | Label, Power Back Door Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74544G | Label, Rear NO.2 Seat Caution |
| 74558B | Label, Battery Inspection Information |
| 74559A | Plate, Fuel Caution |
| 74751 | Label, Tire Pressure Information |
| 82683C | Label, Fuse Block Notice |
| 88723H | Label, Cooler Service Caution |
| 88733A | Label, Cooler Service Information |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
