Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

30 part groups · 2 illustrations

Illustrations

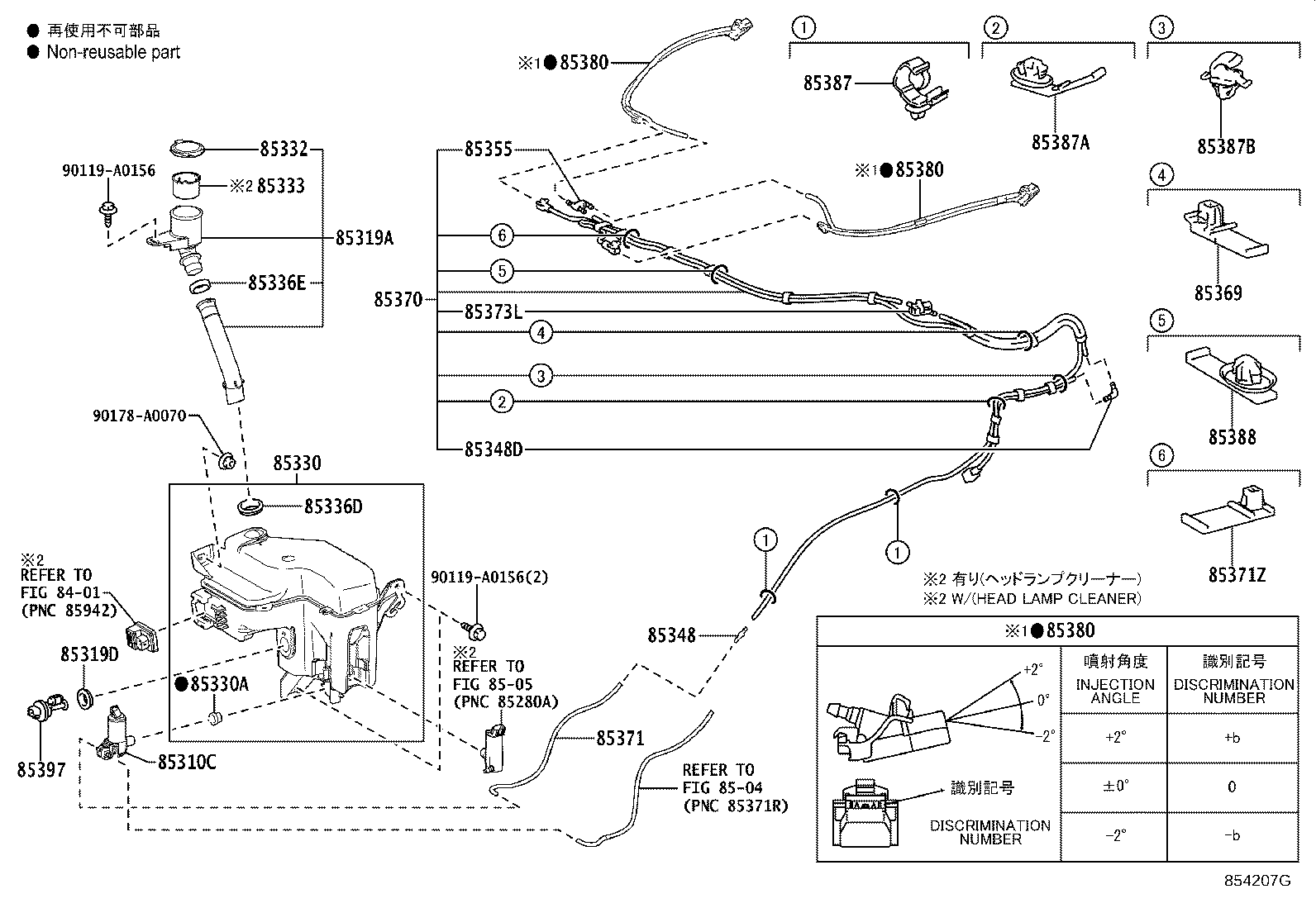

Figure 854205G 854205G 2020-02 → — Figure 854207G 854207G 2020-03 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310C Motor & Pump Assy, Washer
85319A Hose, Inlet
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85355 Valve, Windshield Washer Hose
85369 Clamp
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371Z Clamp, Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85373L Grommet, Washer
85380 Nozzle & Hose Assy, FR Washer
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
85387A Clamp, Washer, NO.2
85387B Clamp, Washer, NO.3
85388 Clamp NO.2 (FOR WINDSEIELD WASHER)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
