Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

20 part groups · 6 illustrations

Illustrations

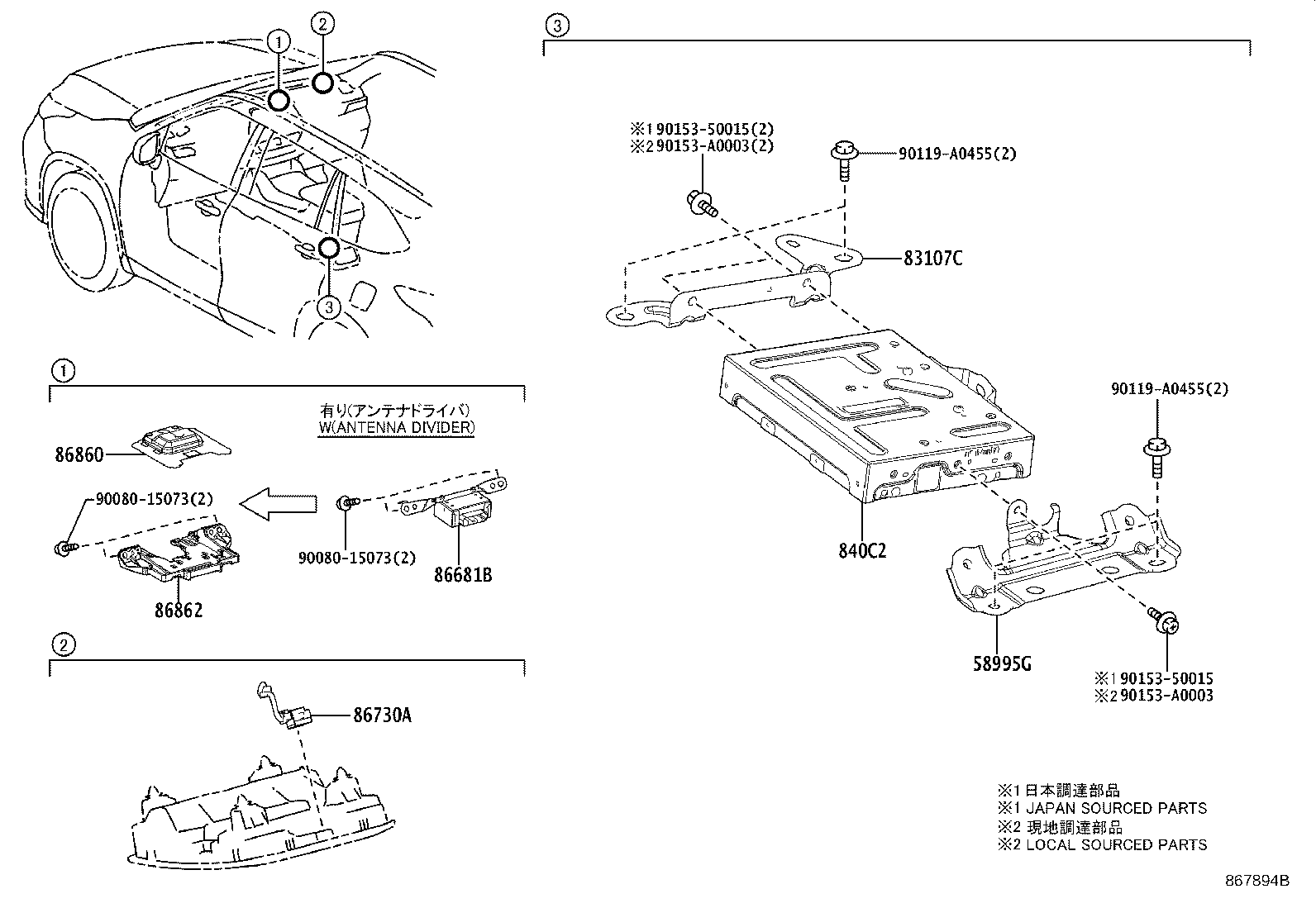

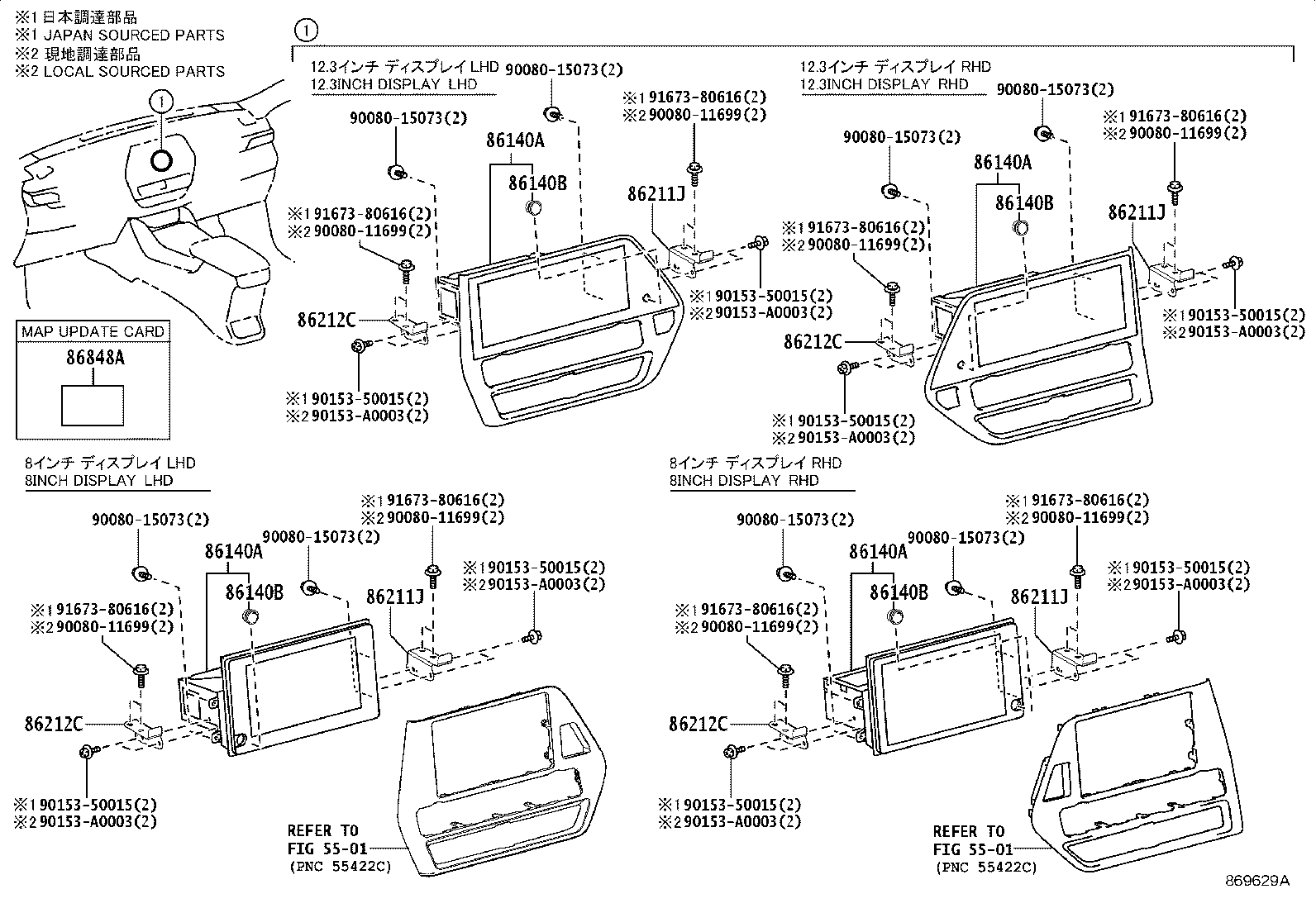

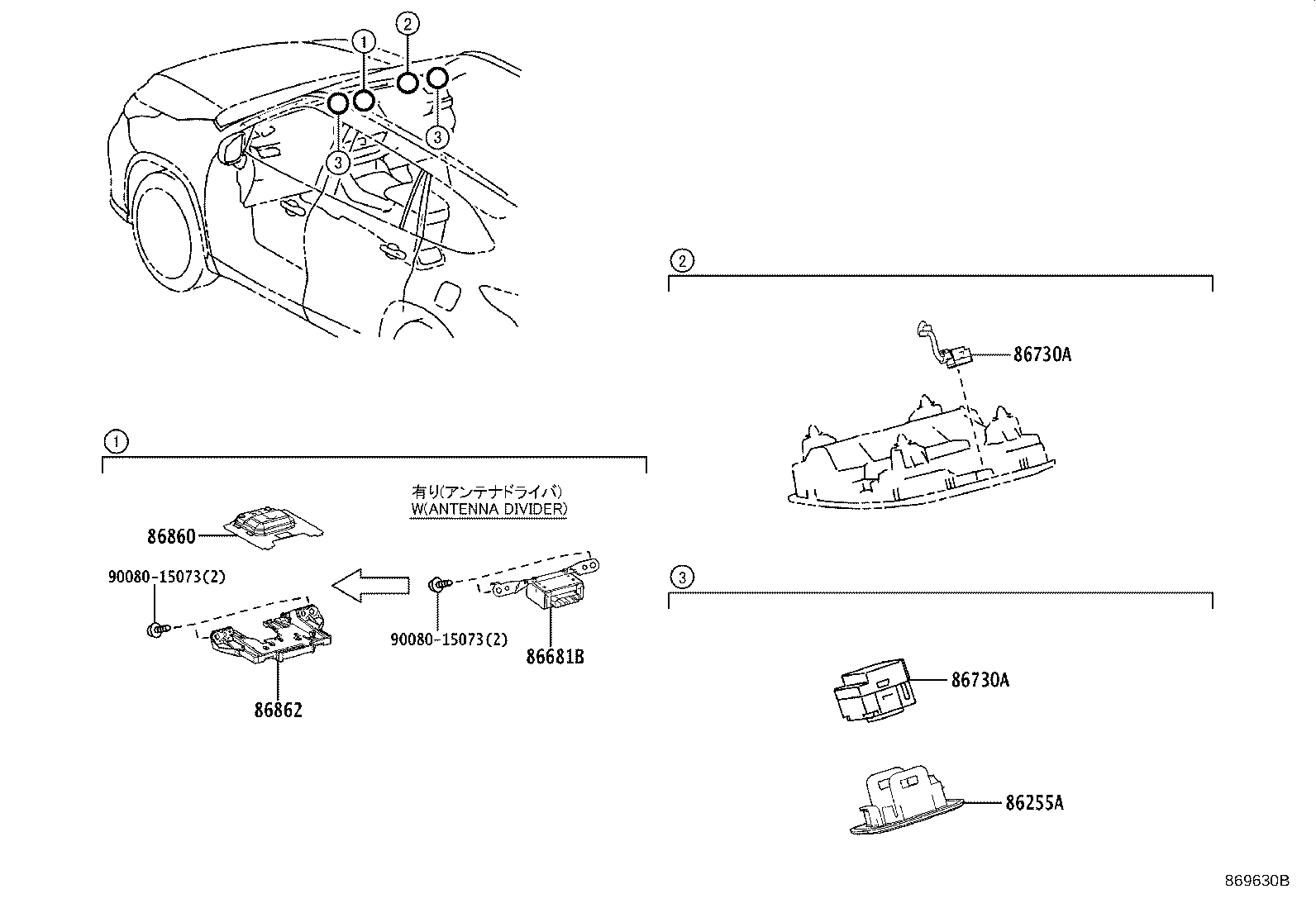

Figure 868258C 868258C 2020-02 → 2022-10 Figure 868258C 868258C 2020-02 → — Figure 869629A 869629A 2022-10 → — Figure 867894B 867894B 2020-02 → 2022-10 Figure 867894B 867894B 2020-02 → — Figure 869630B 869630B 2022-10 → —

Part groups

PNCDescription
58995G Bracket, Console Box Mounting, NO.1
83107C Bracket Sub-assy, Meter, NO.1
840C2 Control Sub-assy, Integration
86101H Cord Sub-assy, Antenna
86110B Multi-display Assy
86110D Knob, Multi-display Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86211M Bracket, Radio Receiver, NO.3
86212C Bracket, Radio Receiver, NO.2
86212F Bracket, Radio Receiver, NO.4
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
