Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe
Supported model
Data version 2023-11
Telephone & Mayday

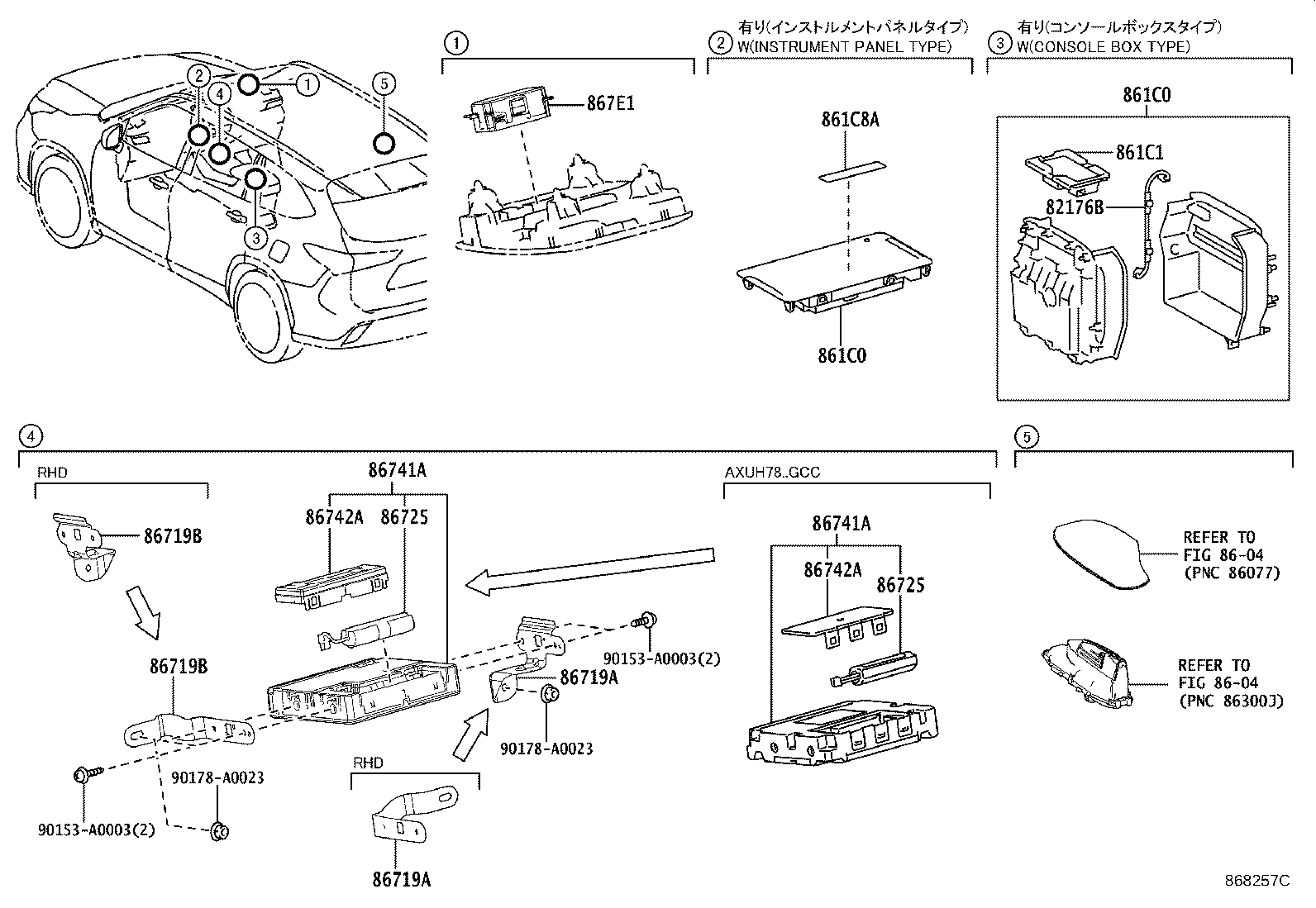

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82176B | Wire, Rear Console Box |
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 861C1 | Cradle, Mobile Wireless Charger |
| 861C8A | Label, Mobile Wireless Charger Caution |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86742A | Cover, Transceiver |
| 867E1 | Box, Communication Telematics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
