Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

29 part groups · 7 illustrations

Illustrations

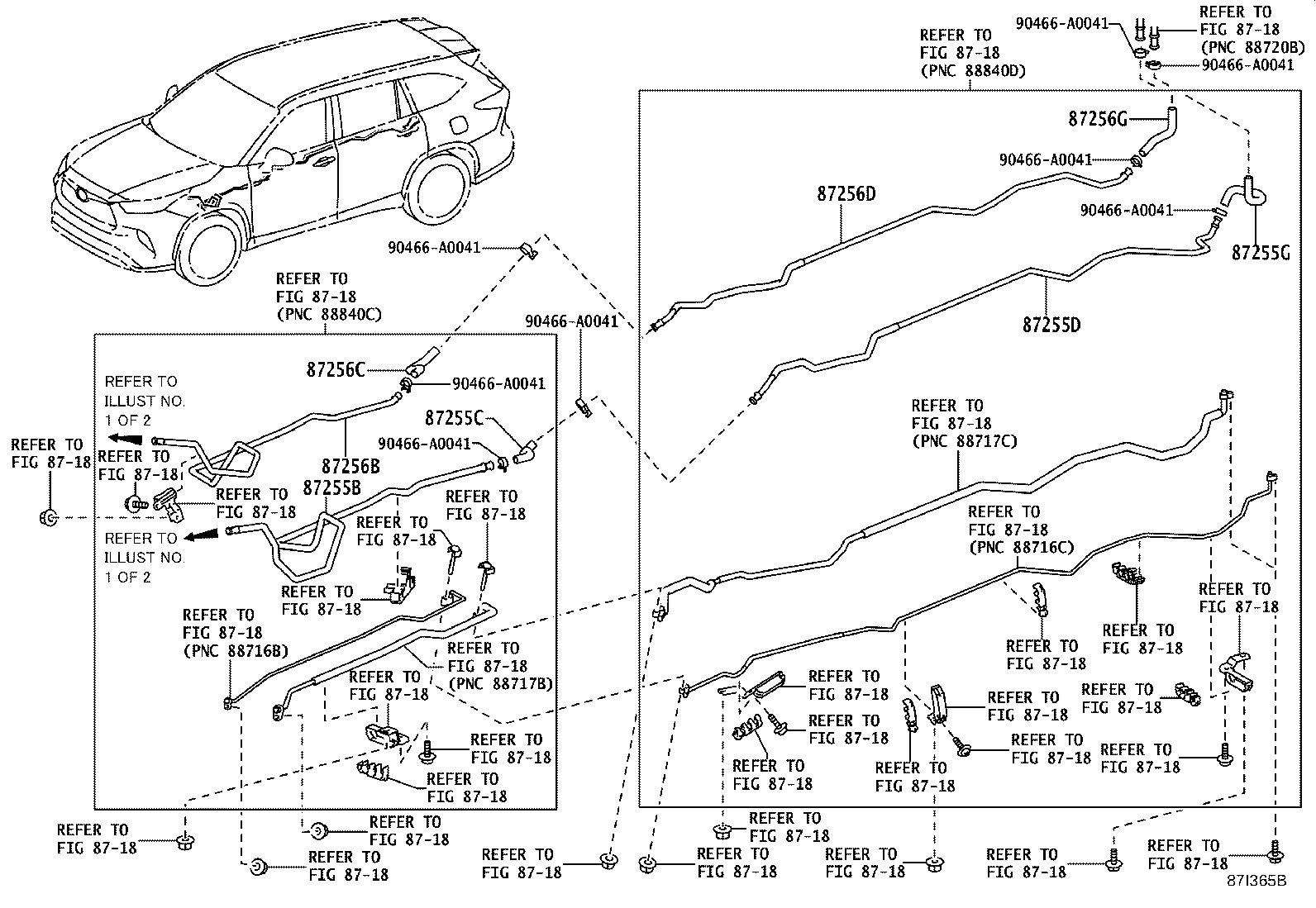

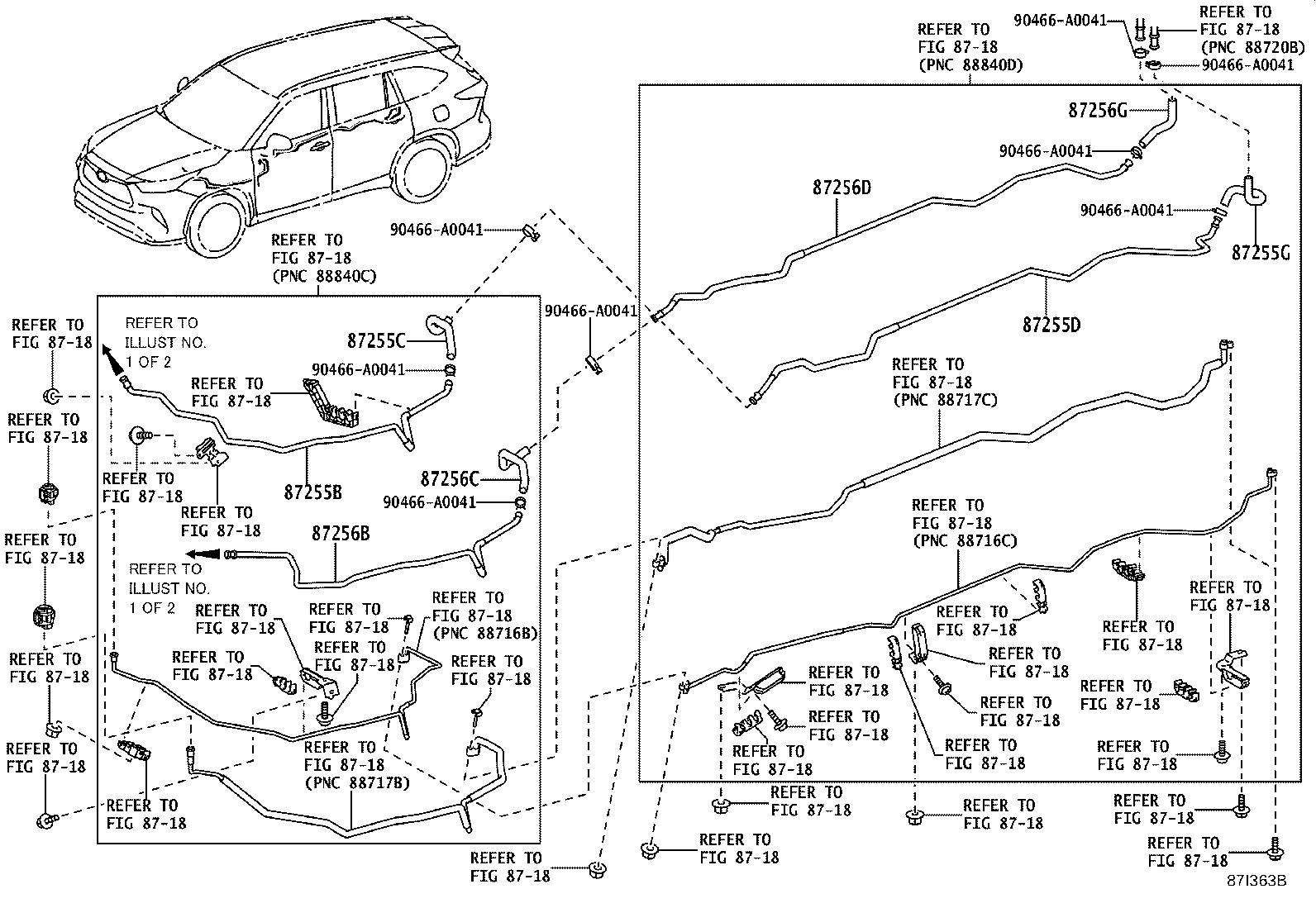

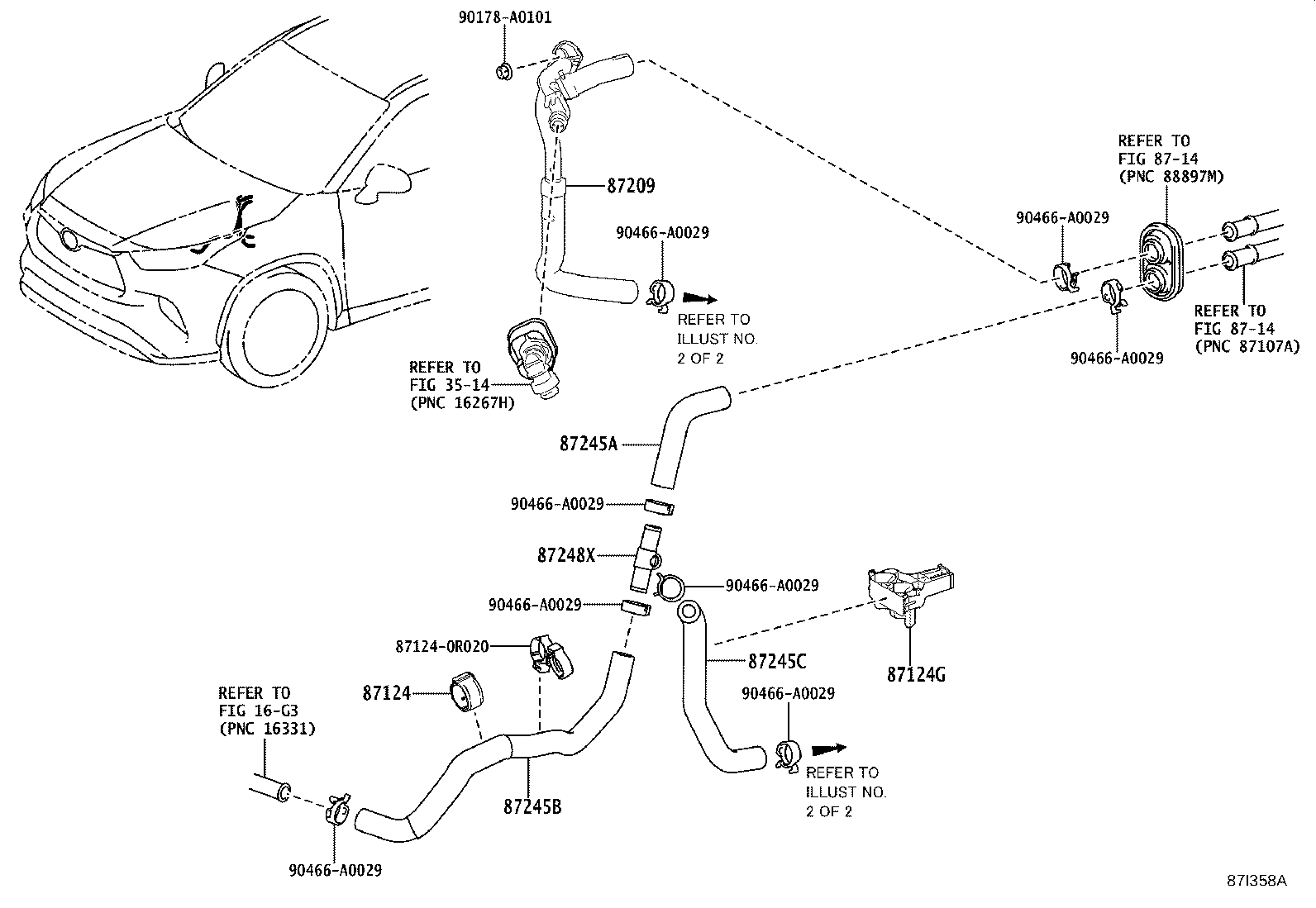

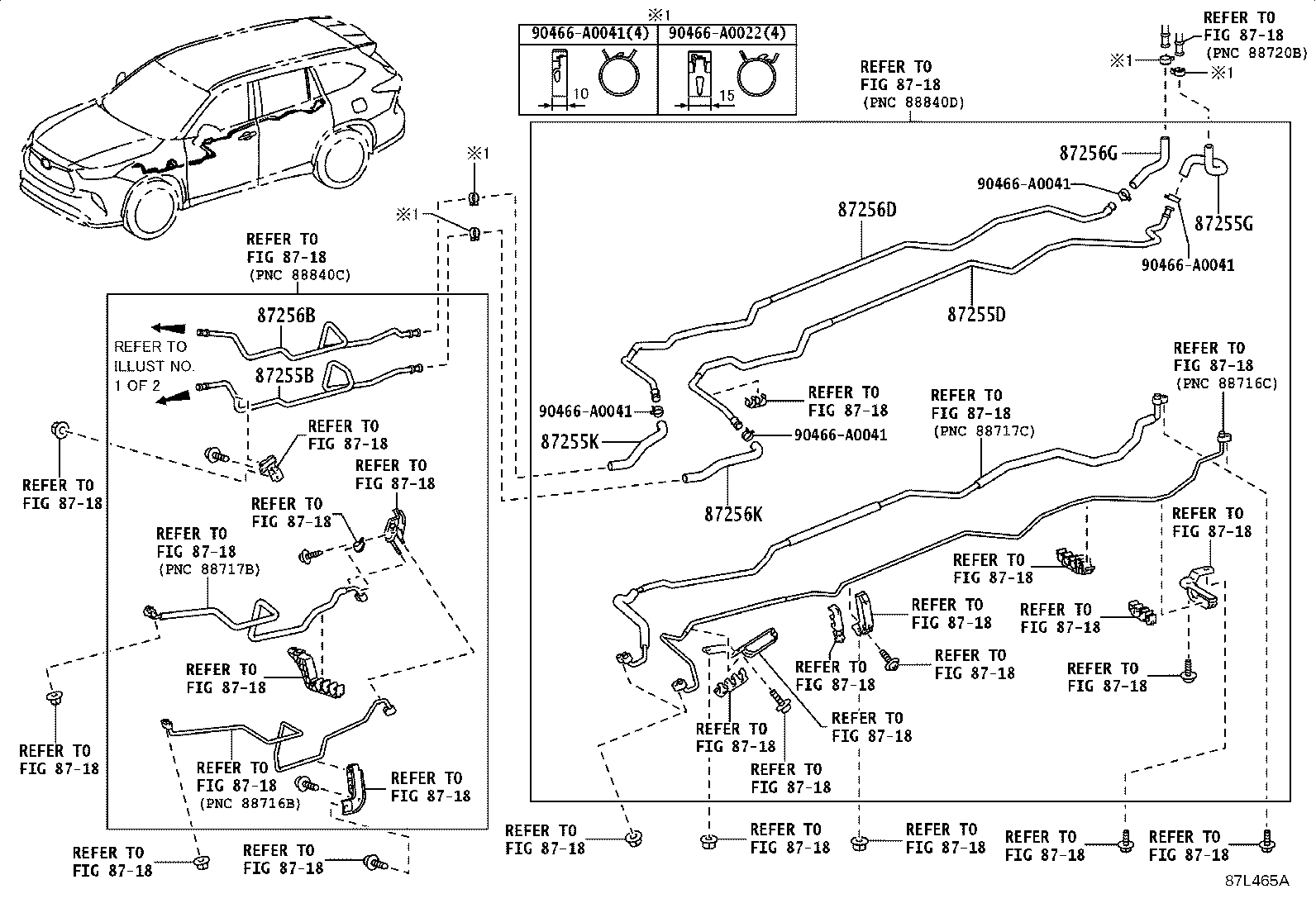

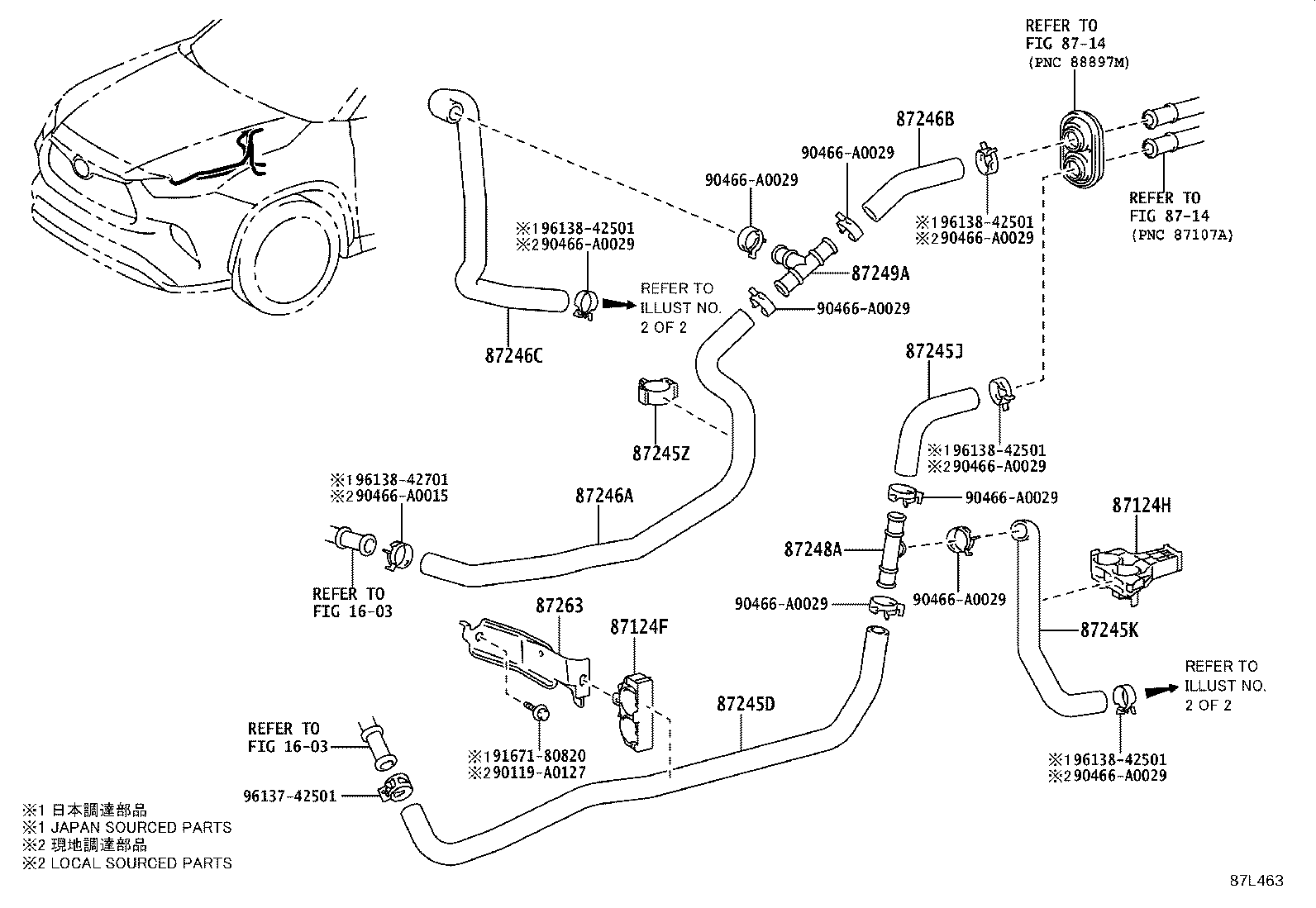

Figure 87I360A 87I360A 2020-02 → — Figure 87I358A 87I358A 2020-03 → — Figure 87I363B 87I363B 2020-02 → — Figure 87I365B 87I365B 2020-03 → — Figure 87I361B 87I361B 2020-10 → — Figure 87L463 87L463 2022-10 → — Figure 87L465A 87L465A 2022-10 → —

Part groups

PNCDescription
87124 Clamp, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245J Hose, Heater Water, Inlet J
87245K Hose, Heater Water, Inlet K
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248A Pipe, Heater Water Inlet, A
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255G Hose, Rear Heater Water Inlet, G
87255K Hose, Rear Heater Water Inlet, K
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256G Hose, Rear Heater Water Outlet, G
87256K Hose, Rear Heater Water Outlet, K
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
