Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

40 part groups · 23 illustrations

Illustrations

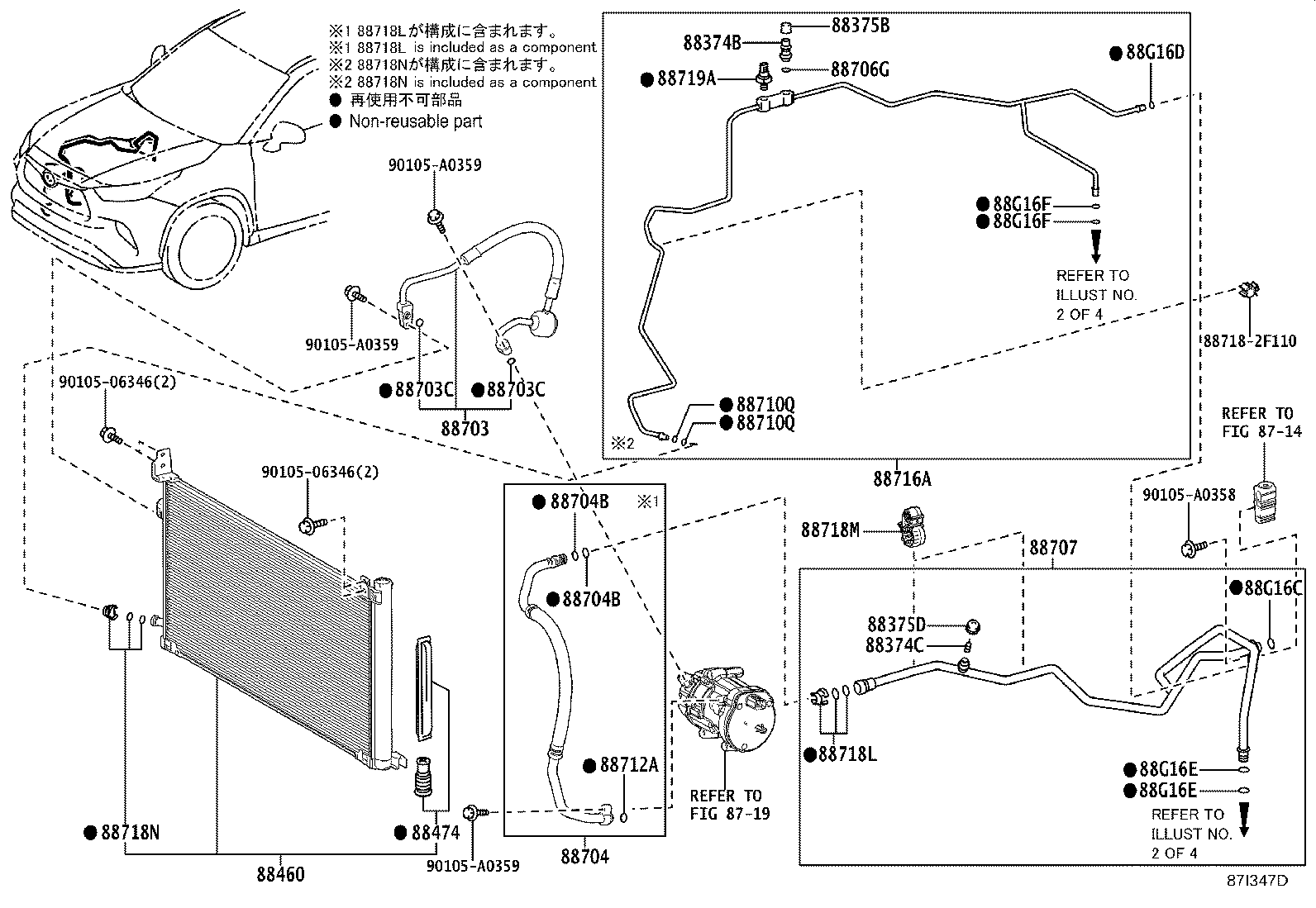

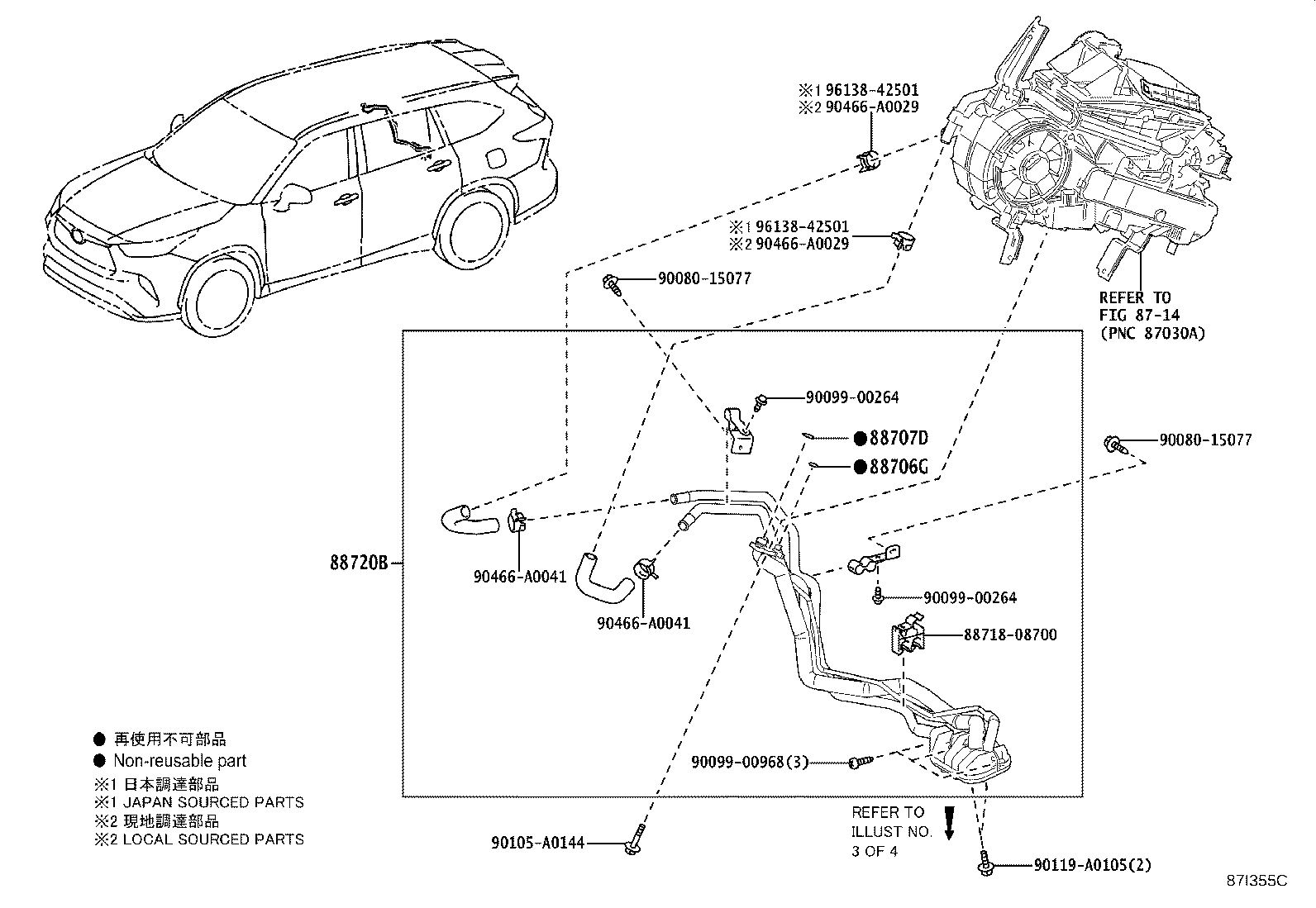

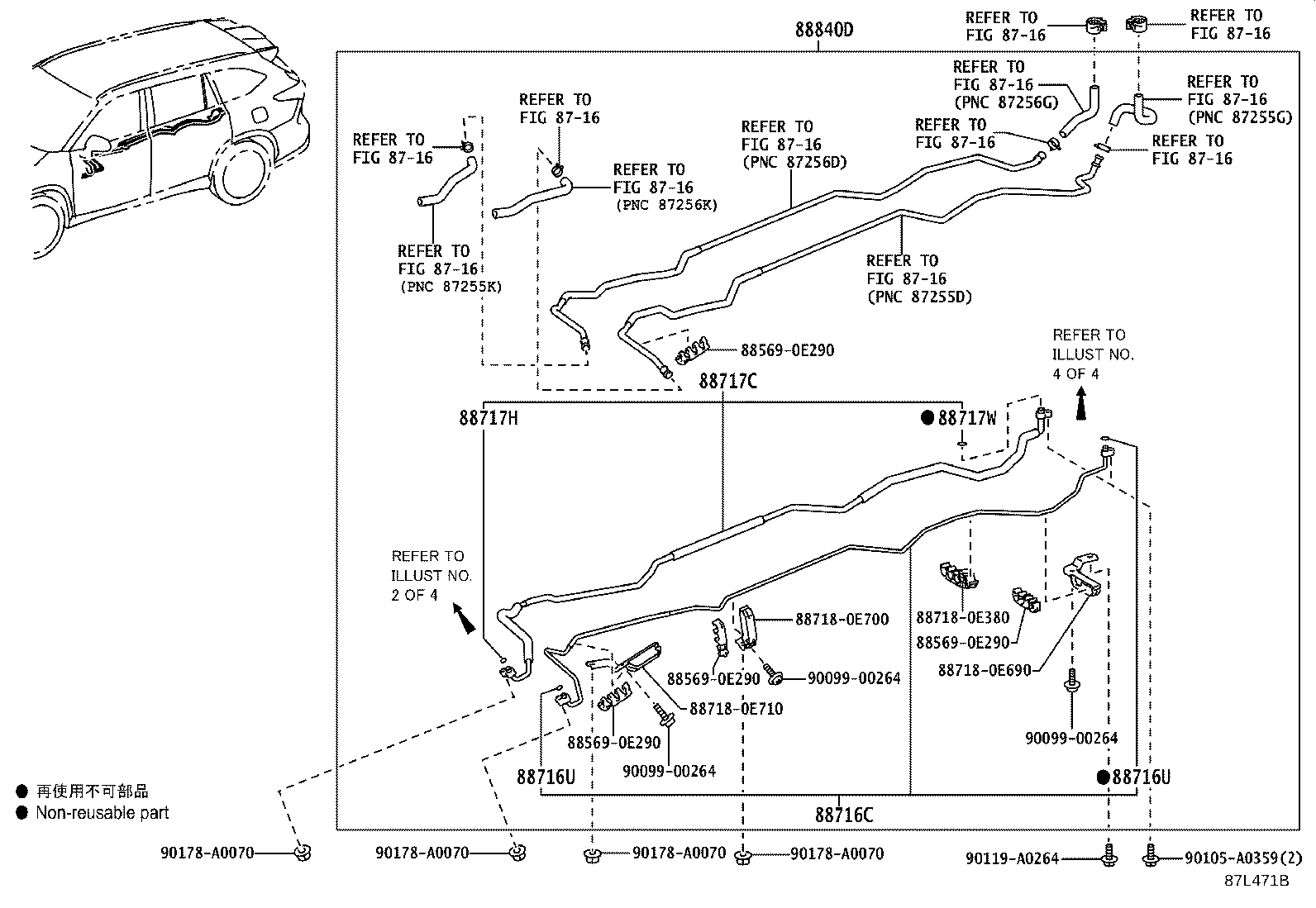

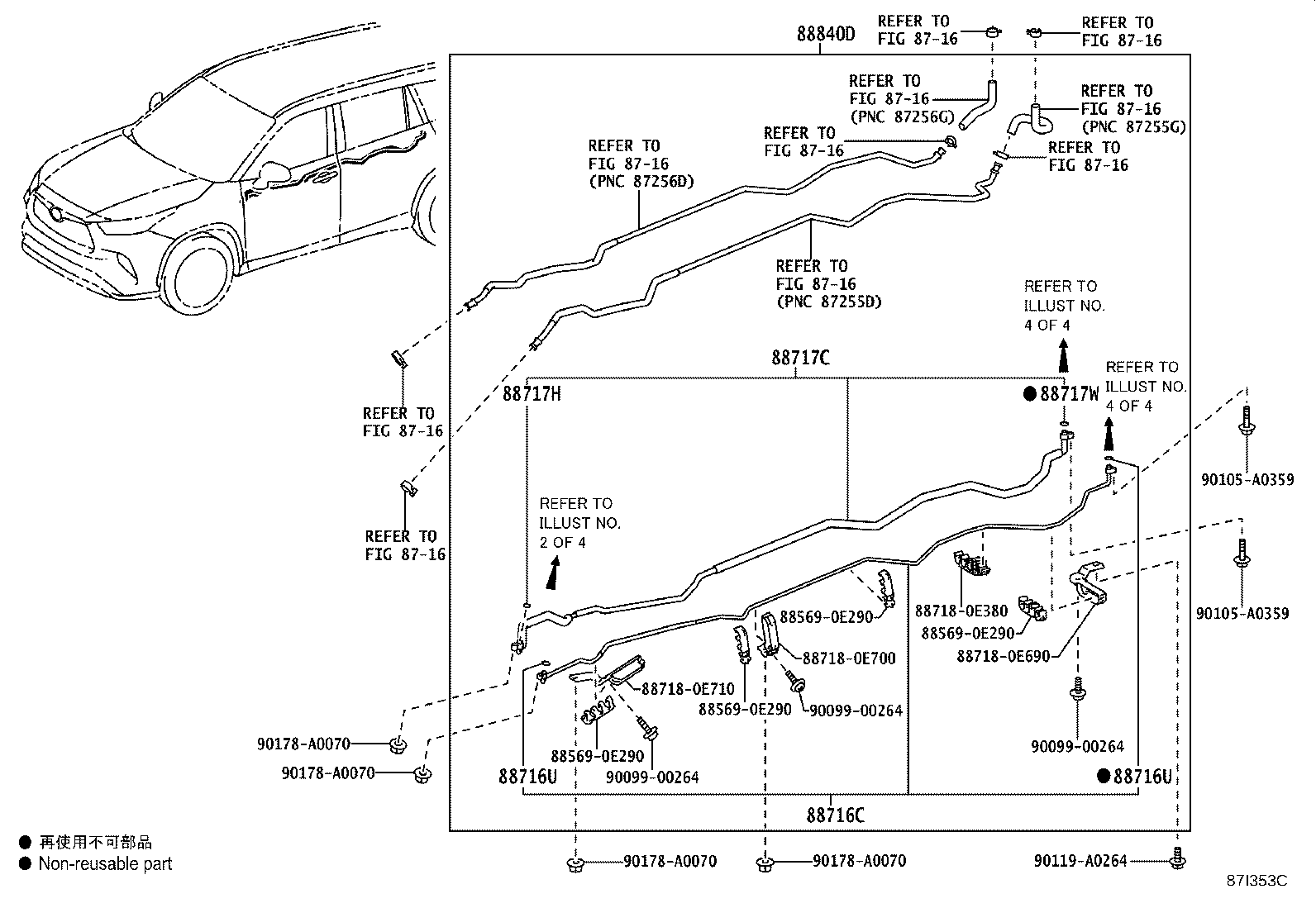

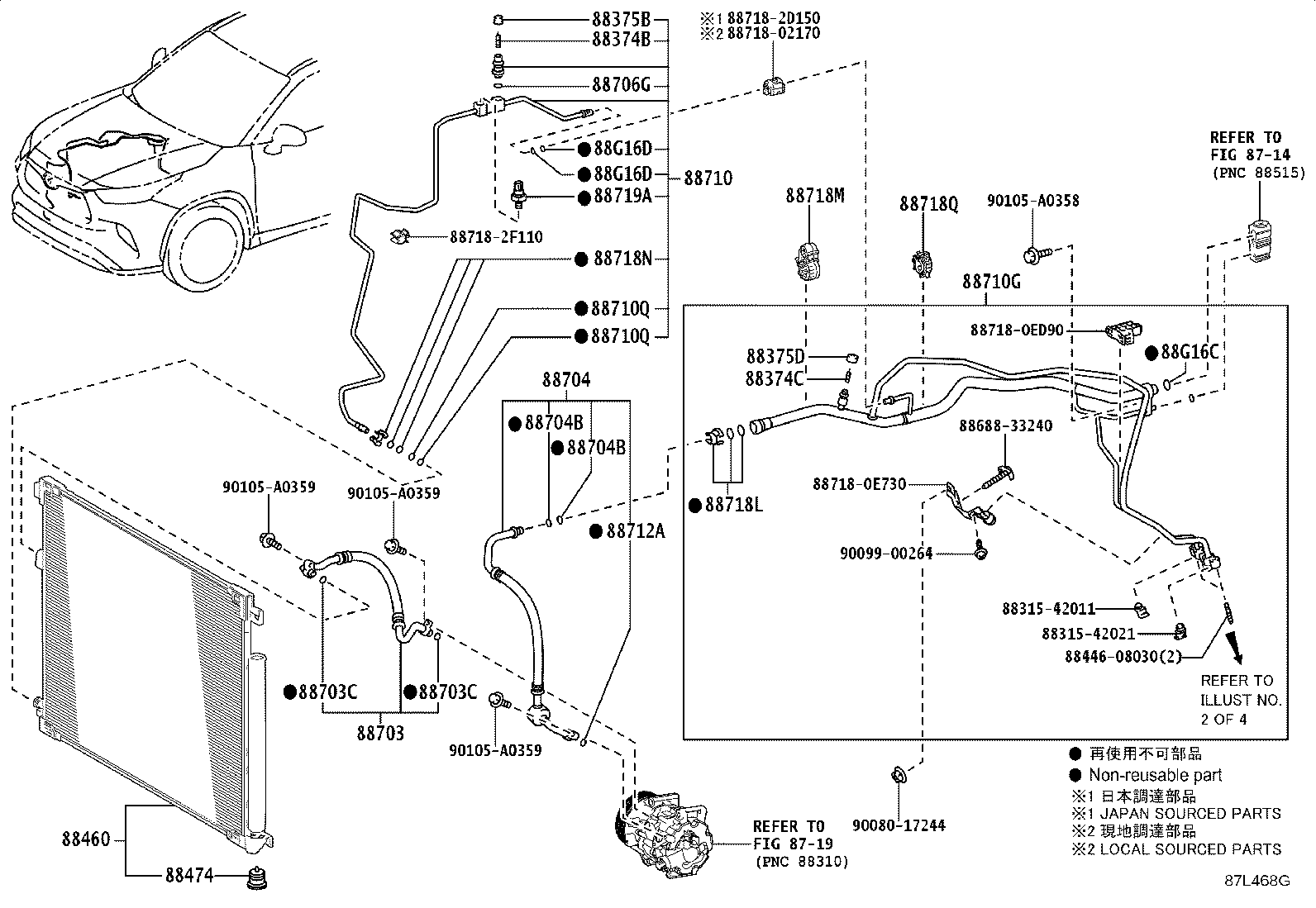

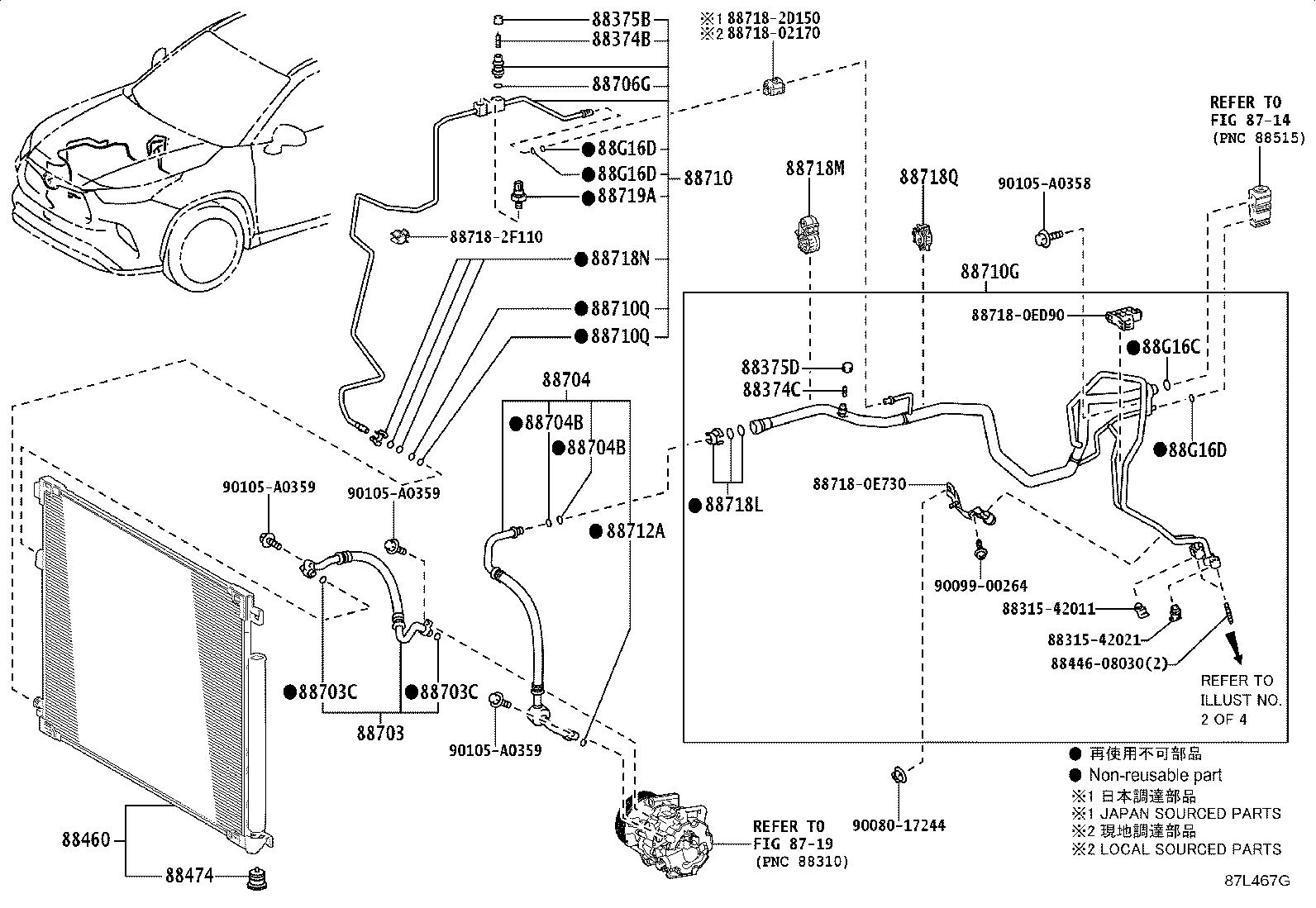

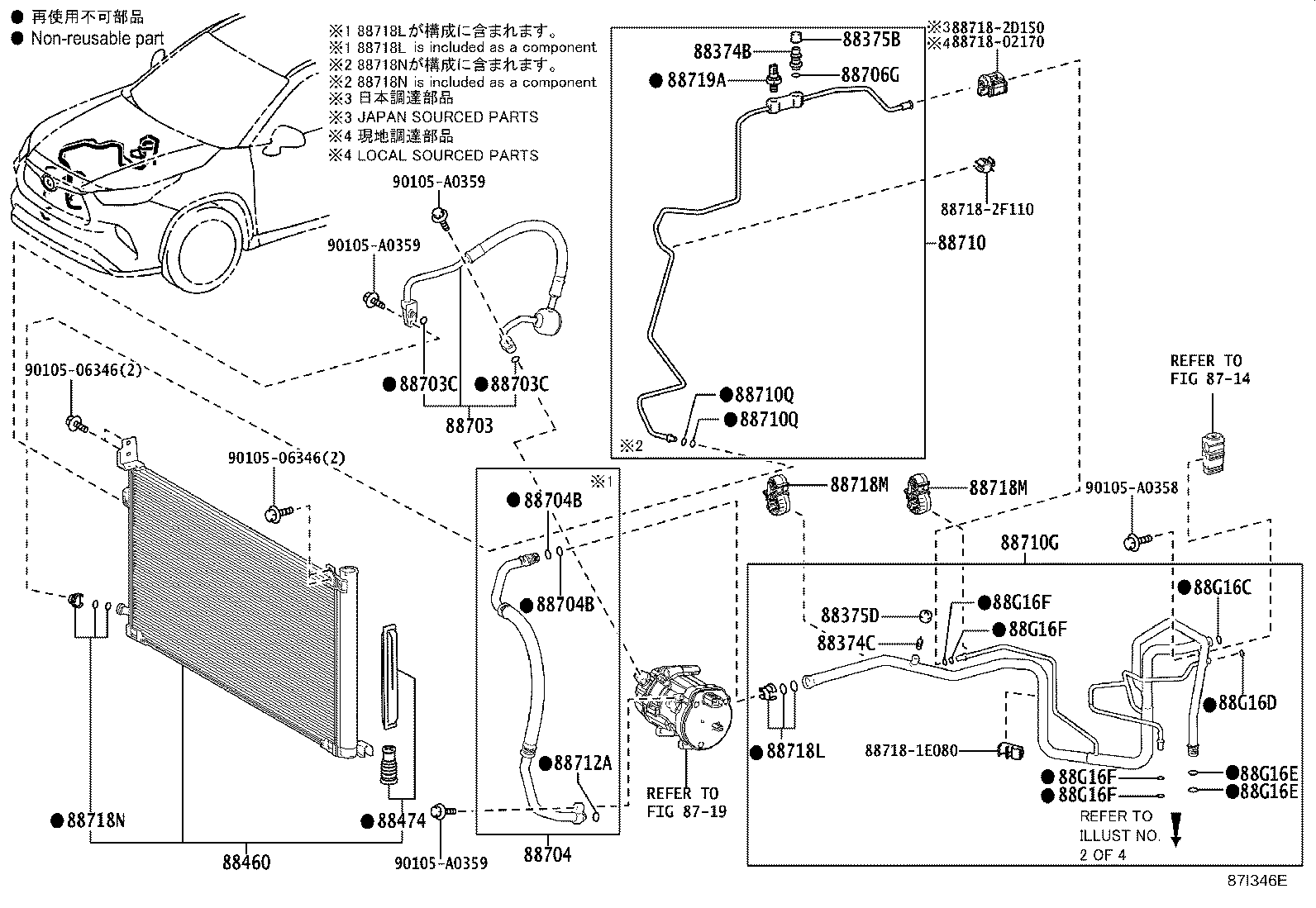

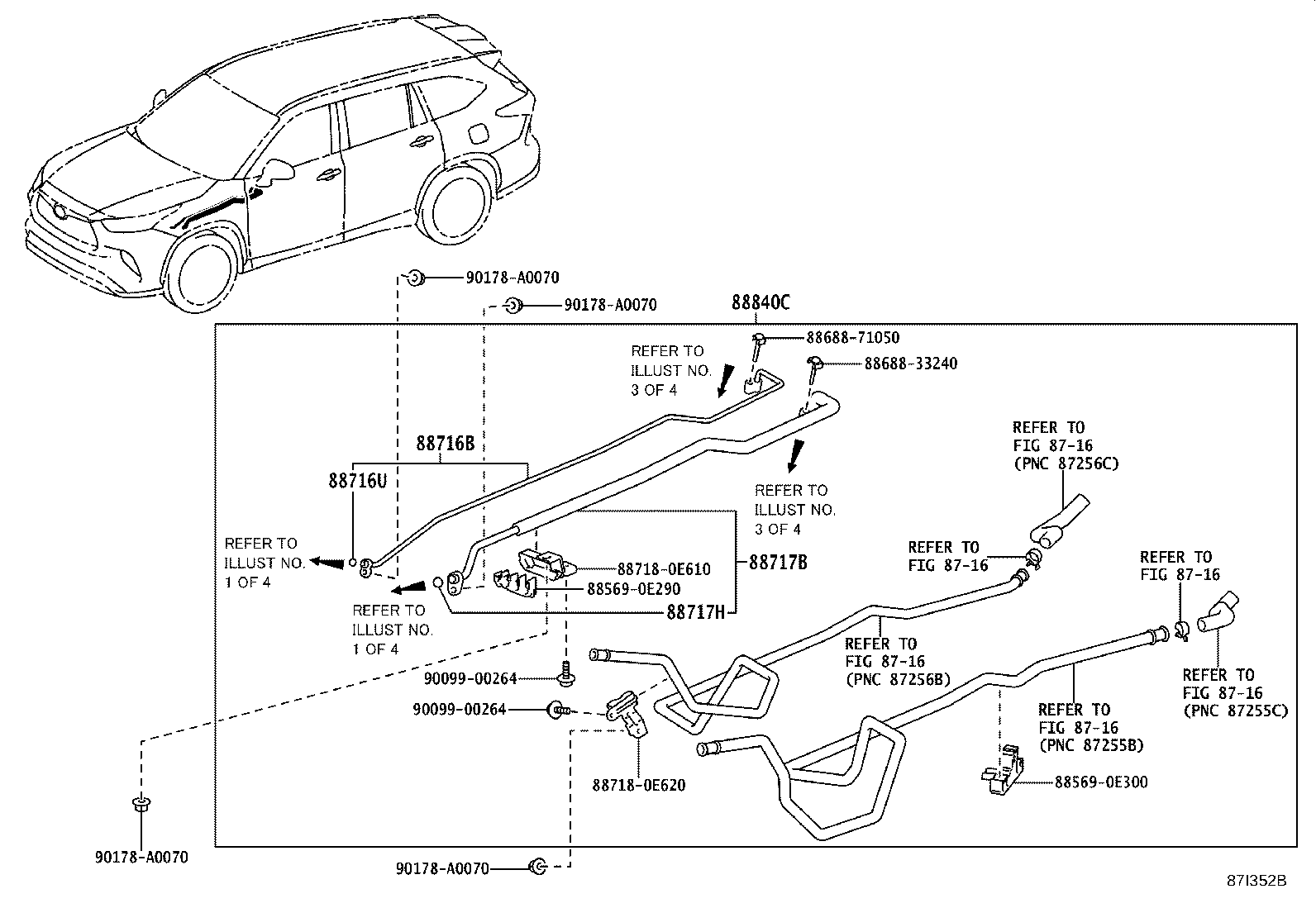

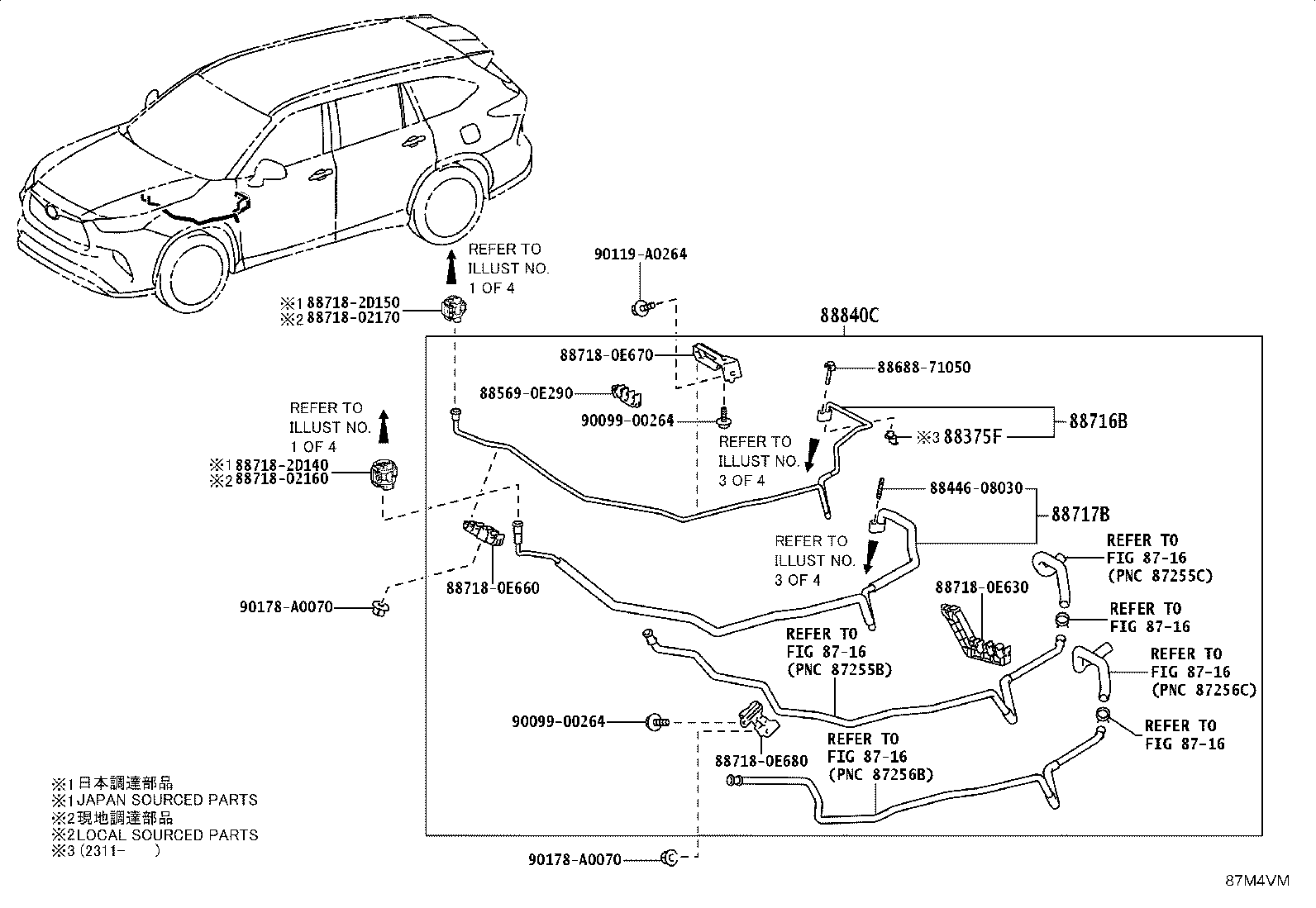

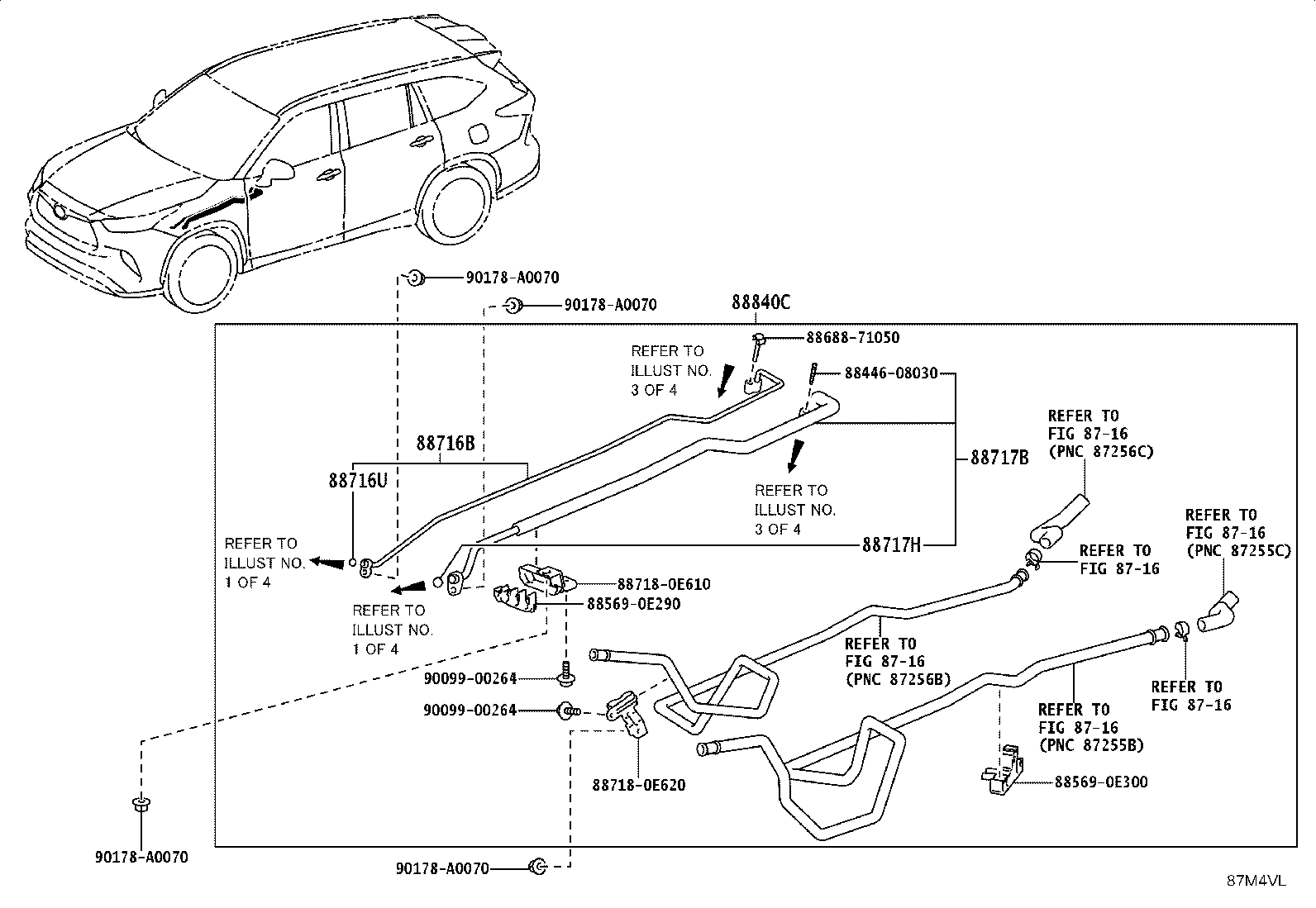

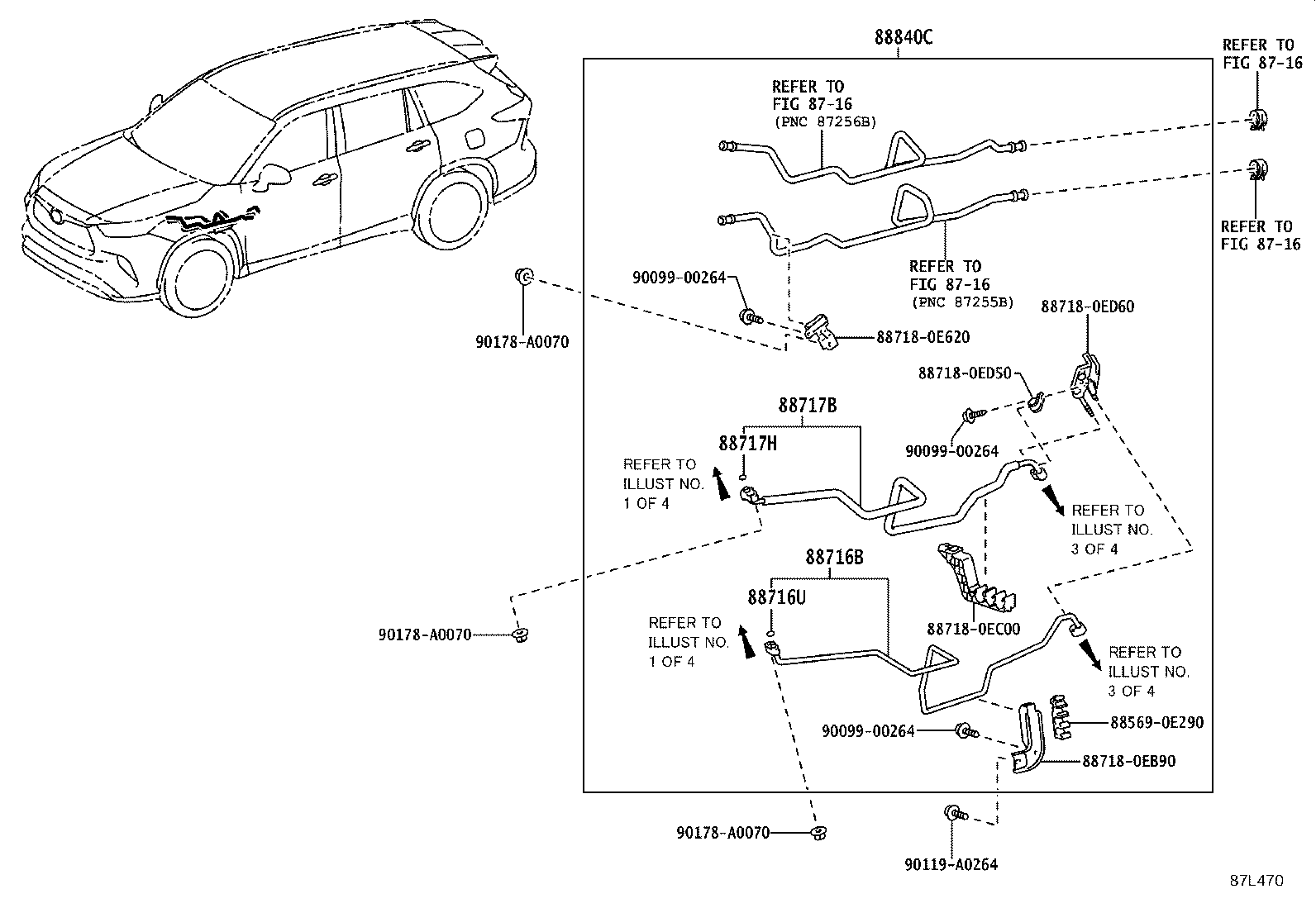

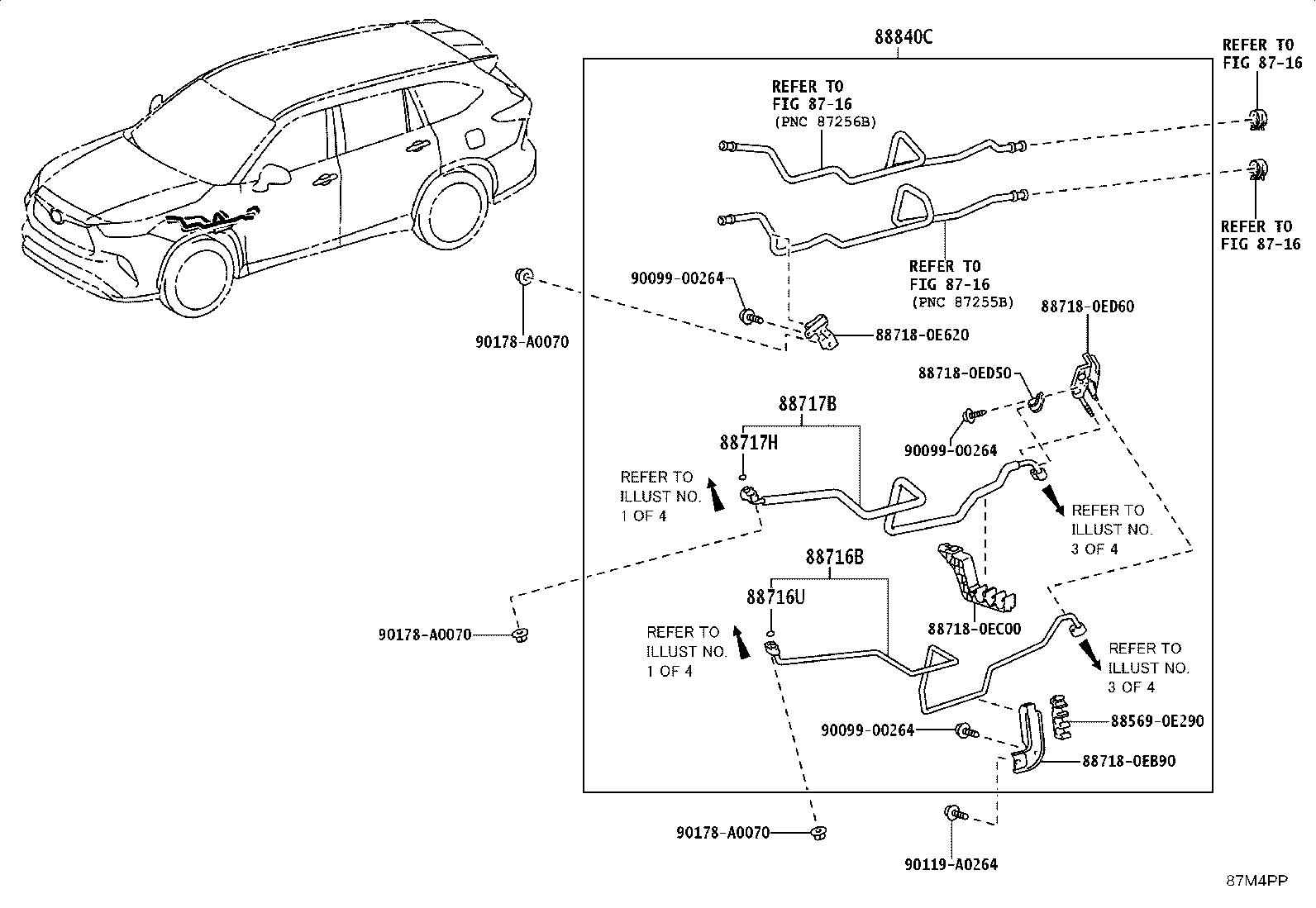

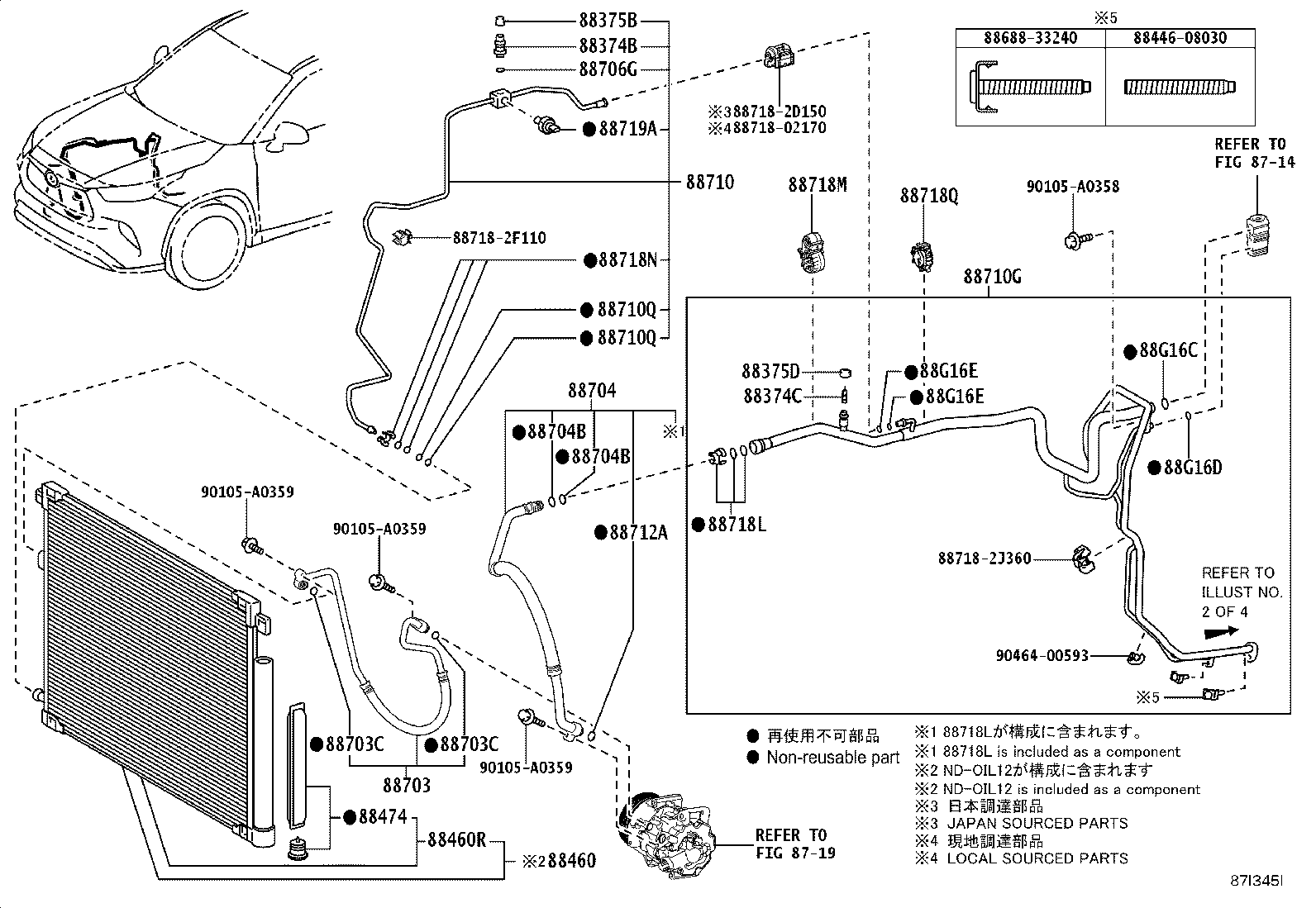

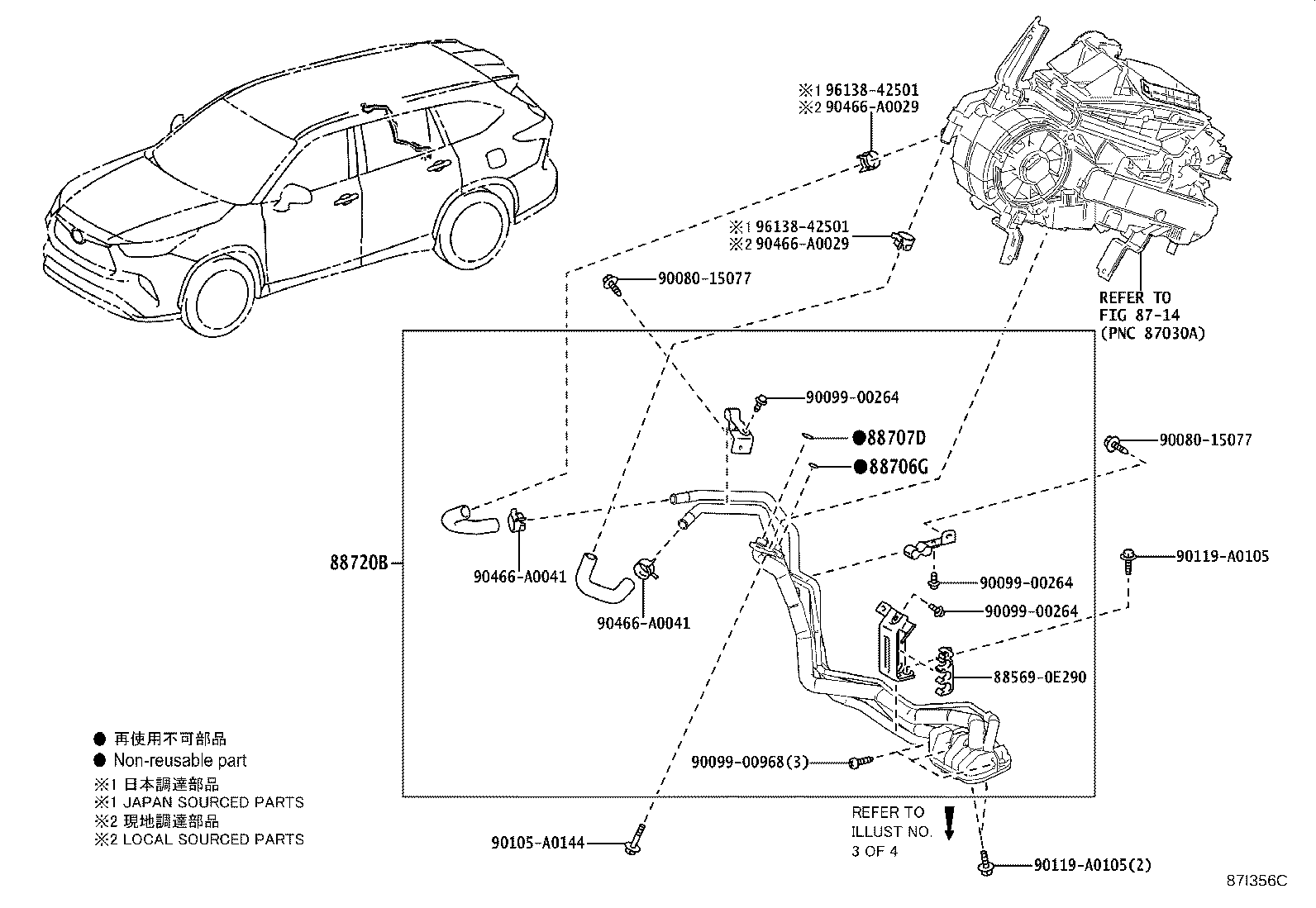

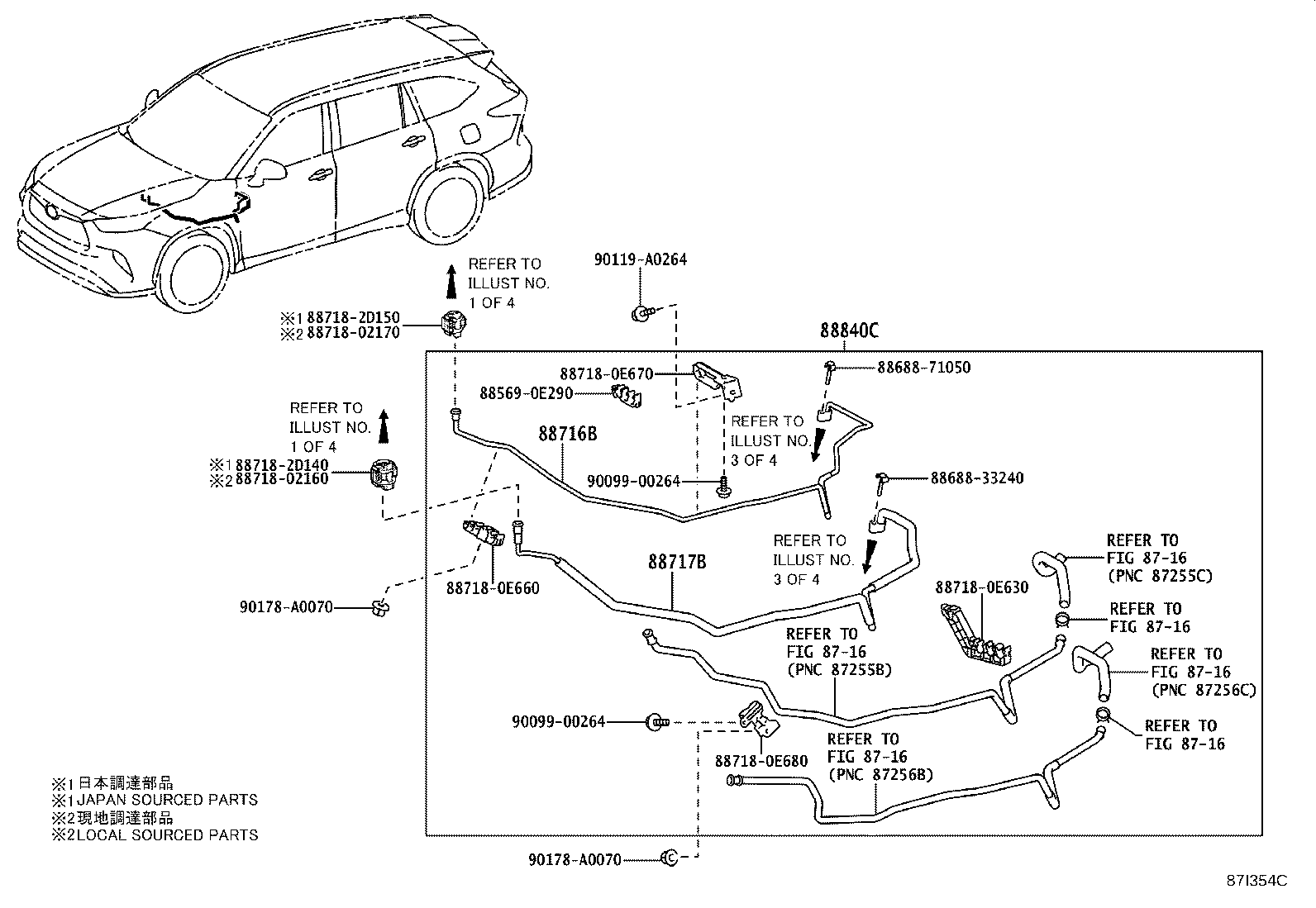

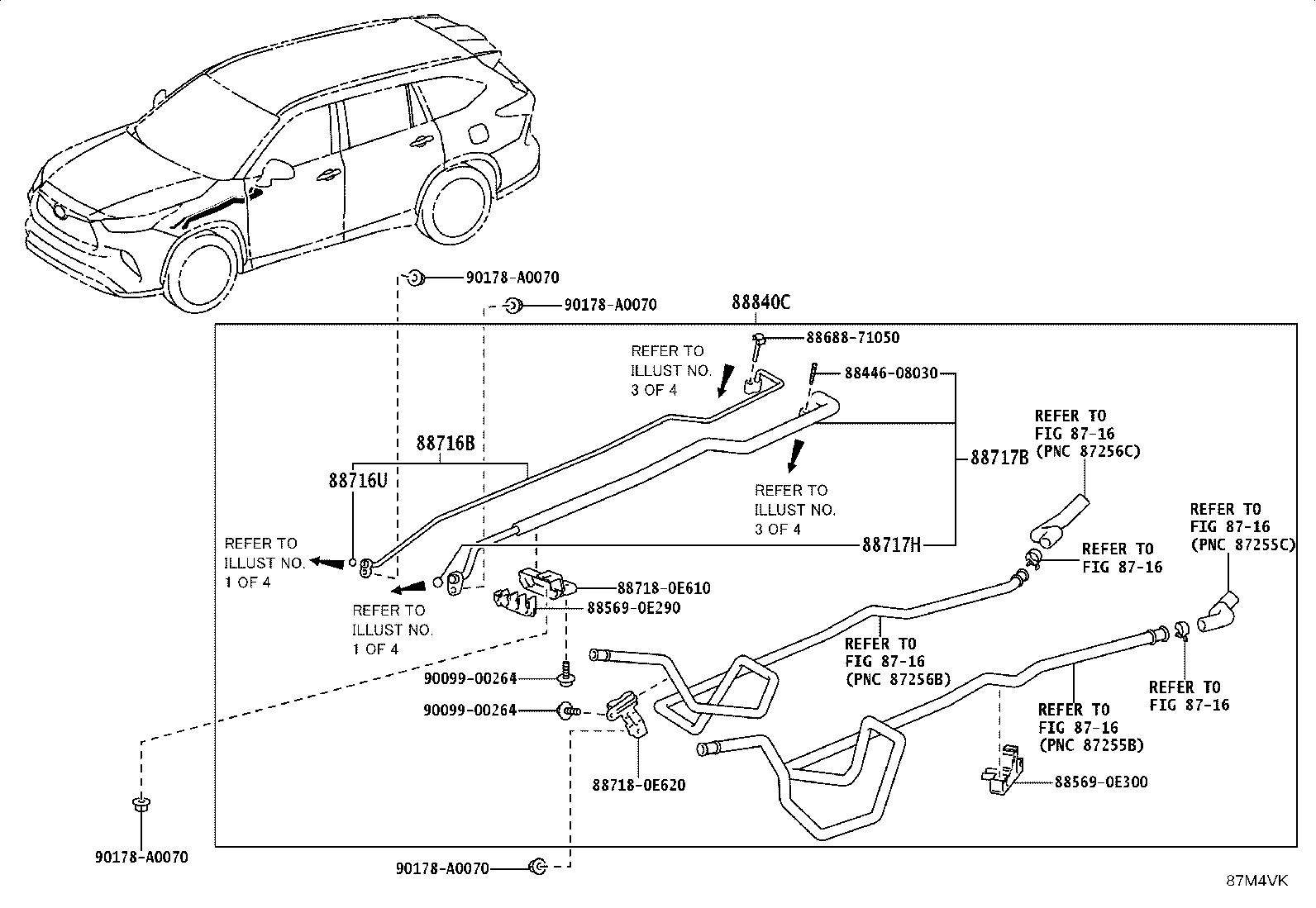

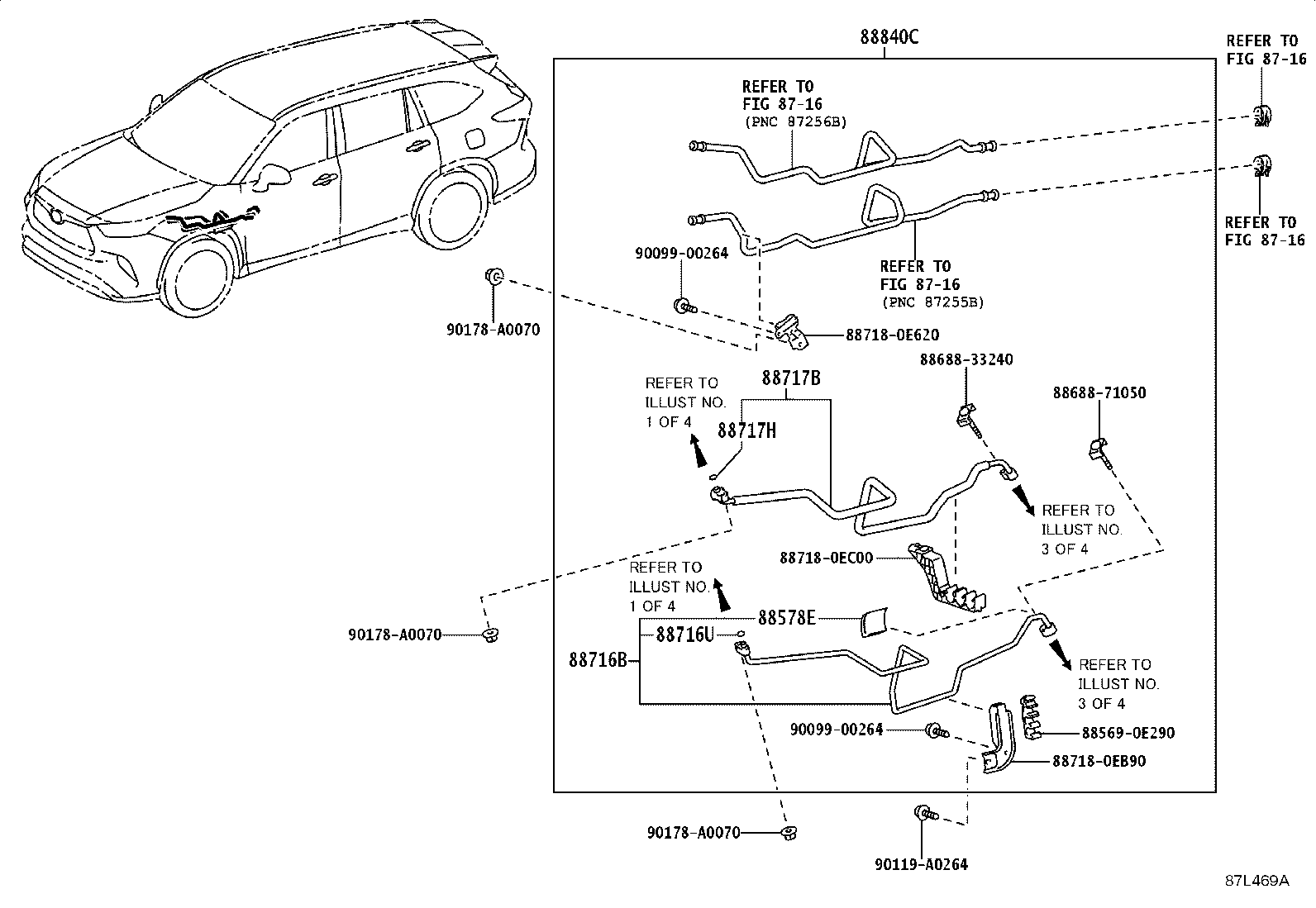

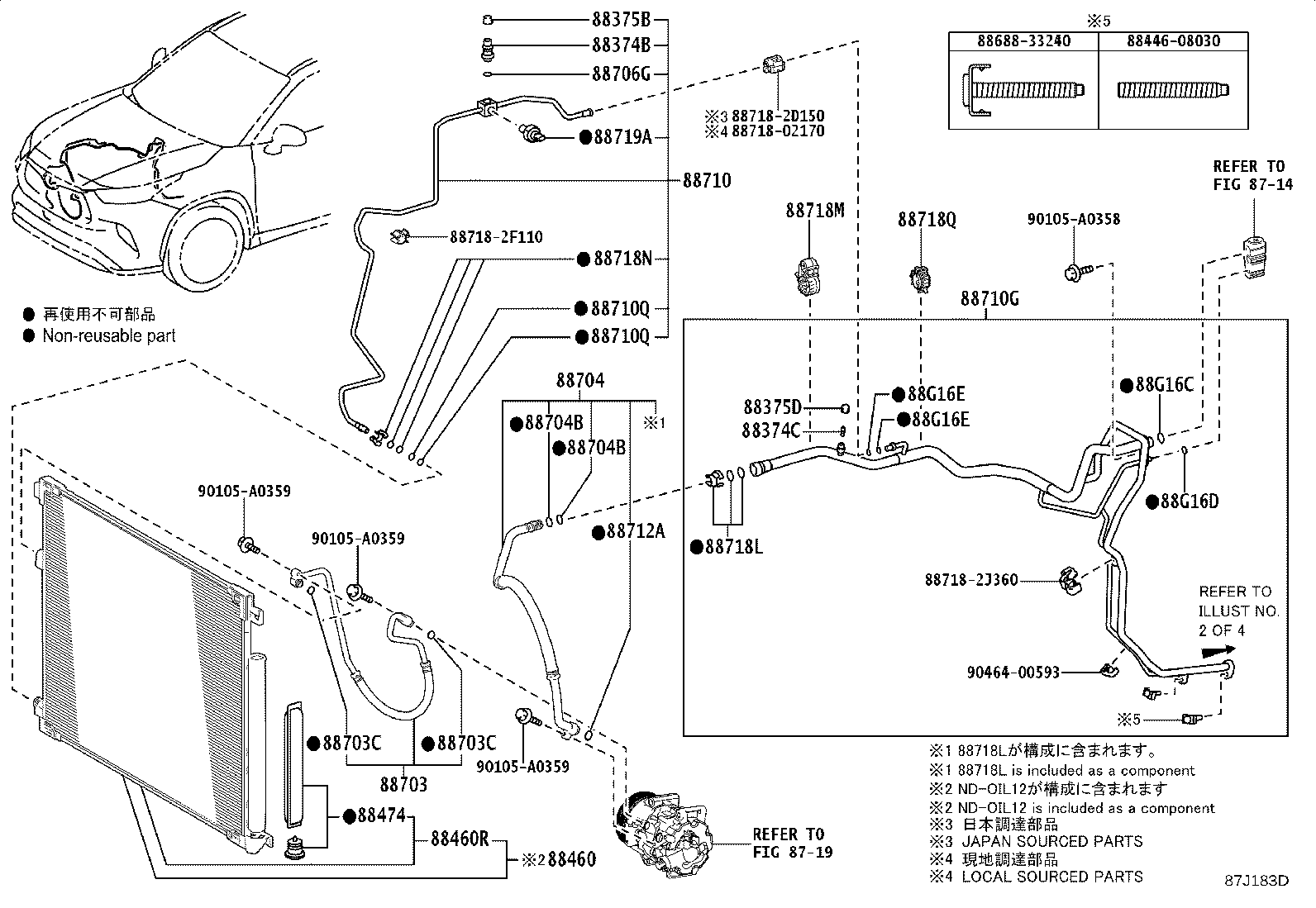

Figure 87J182B 87J182B 2020-11 → — Figure 87I347D 87I347D 2020-11 → — Figure 87I346E 87I346E 2020-02 → — Figure 87J183D 87J183D 2020-12 → — Figure 87I345I 87I345I 2020-03 → — Figure 87L467G 87L467G 2022-10 → — Figure 87L468G 87L468G 2022-10 → — Figure 87I354C 87I354C 2020-02 → 2022-10 Figure 87M4VM 87M4VM 2022-10 → — Figure 87I352B 87I352B 2020-03 → 2021-11 Figure 87M4VK 87M4VK 2021-11 → — Figure 87I348B 87I348B 2020-12 → 2021-11 Figure 87M4VL 87M4VL 2021-11 → — Figure 87M4PP 87M4PP 2022-10 → 2023-01 Figure 87L469A 87L469A 2023-01 → — Figure 87L470 87L470 2022-10 → — Figure 87I349D 87I349D 2020-02 → — Figure 87I353C 87I353C 2020-03 → — Figure 87L471B 87L471B 2022-10 → — Figure 87L472C 87L472C 2022-10 → — Figure 87I356C 87I356C 2020-02 → — Figure 87I355C 87I355C 2020-03 → — Figure 87L473A 87L473A 2022-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88460R Condenser Assy NO.1
88474 Dryer, Cooler
88578E Packing, Cooler Pipe, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706G Ring, O(FOR LIQUID TUBE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88710 Tube Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710Q Ring, O(FOR TUBE ASSY, AIR CONDITIONER)
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717W Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88720B Hose & Accessory, Air Conditioner
88840C Accessory Assy, Air Conditioner, NO.1
88840D Accessory Assy, Air Conditioner, NO.2
88G16C Ring, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
88G16D Ring, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
88G16E Ring, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER)
88G16F Ring, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
