Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

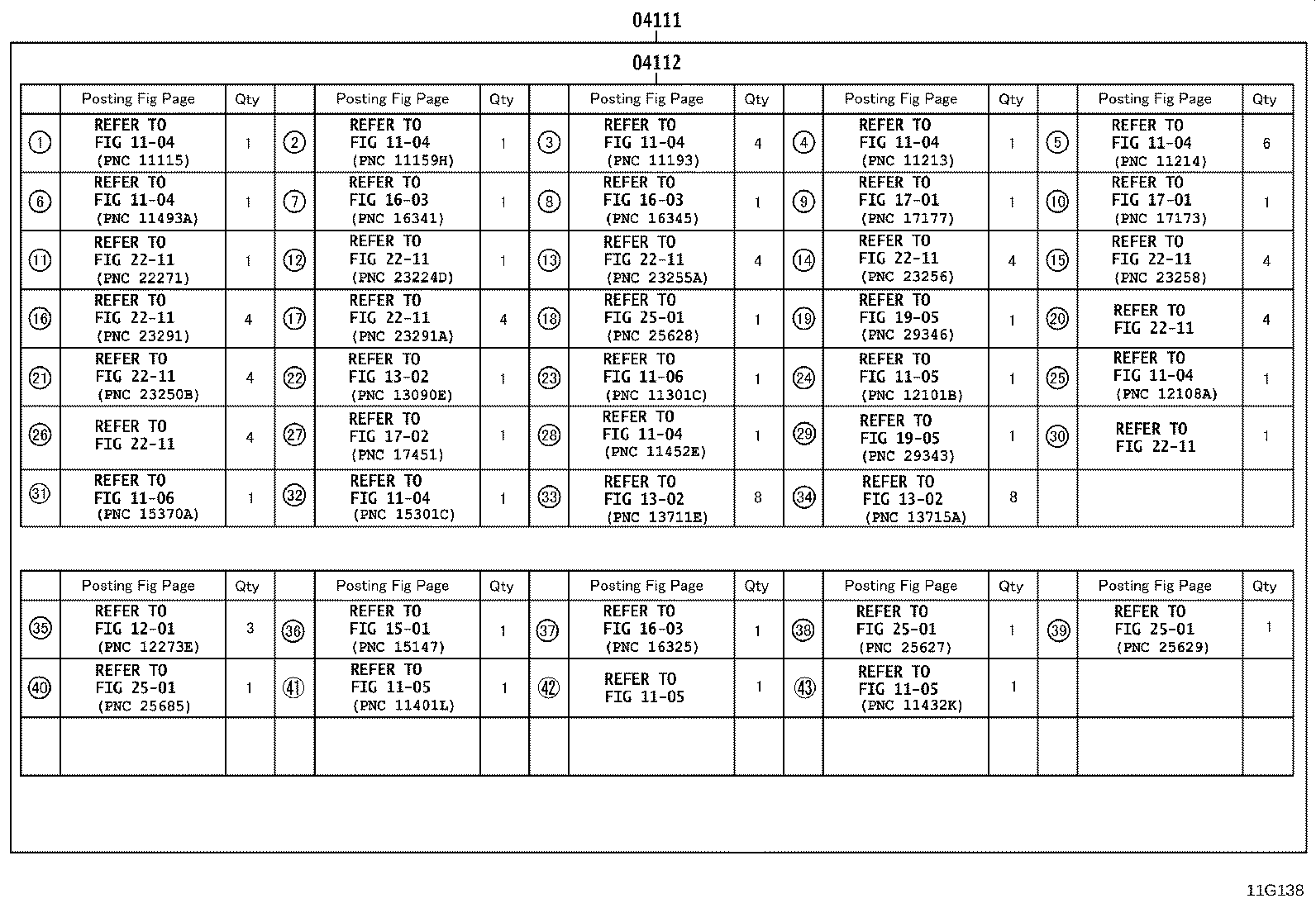

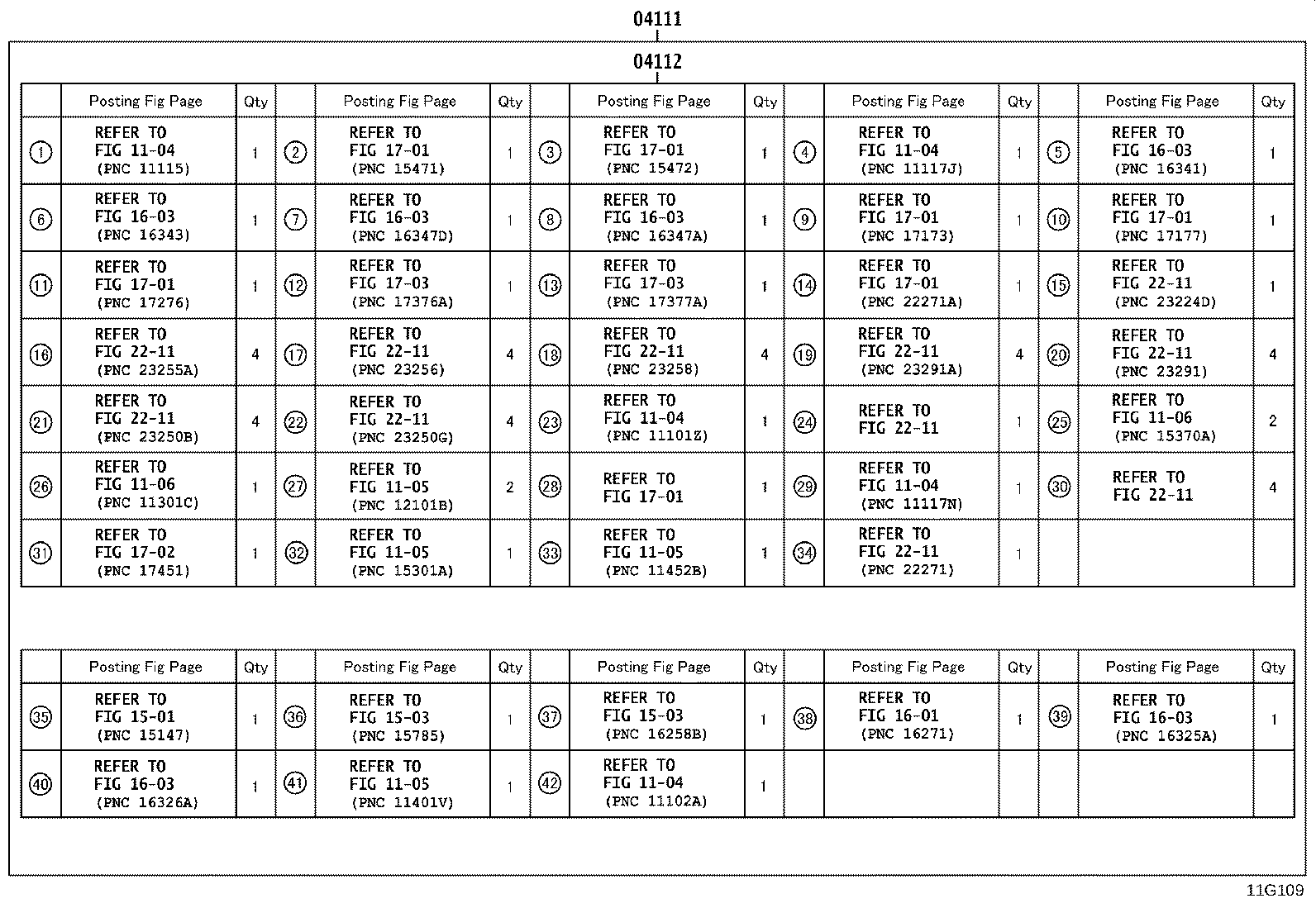

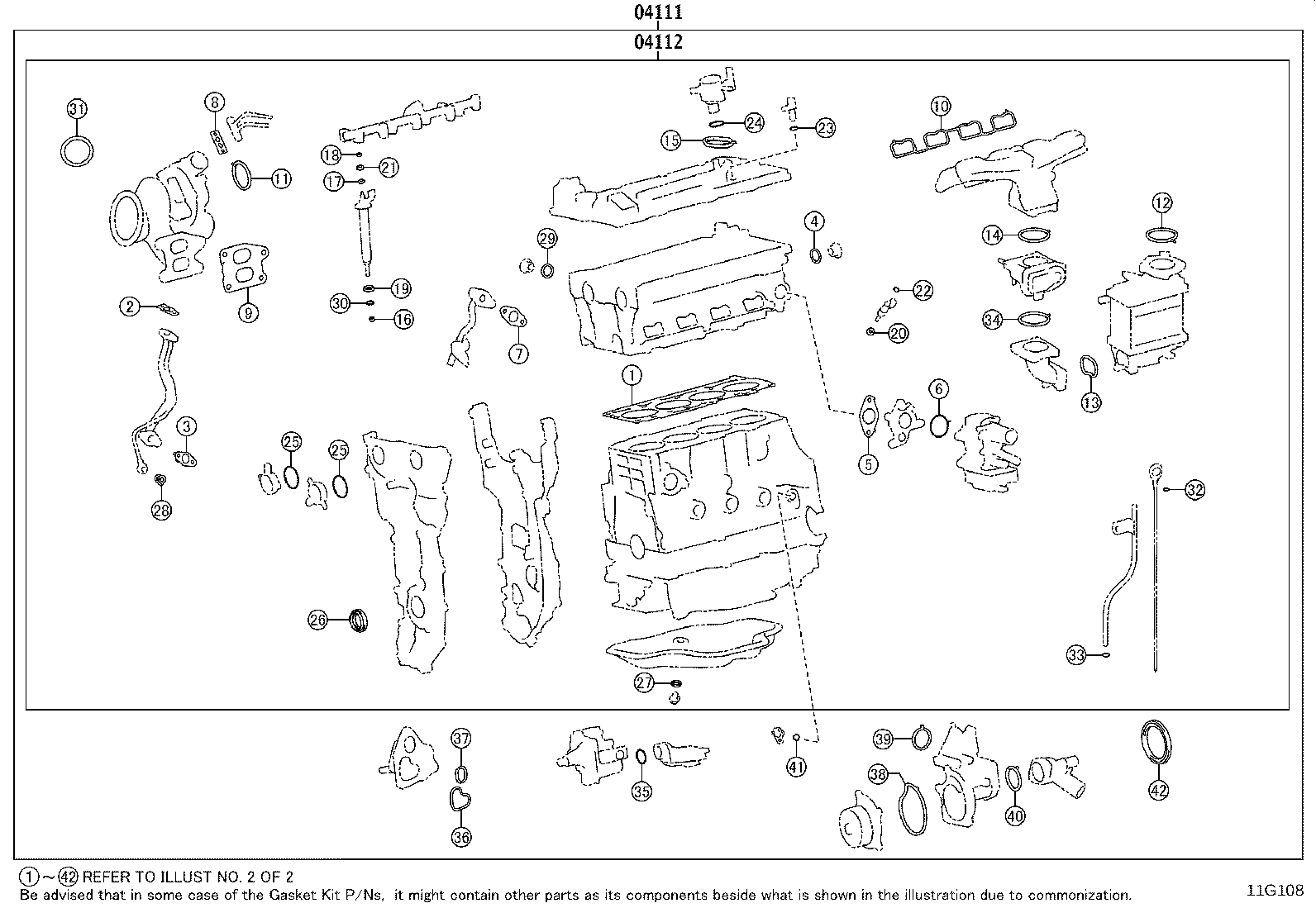

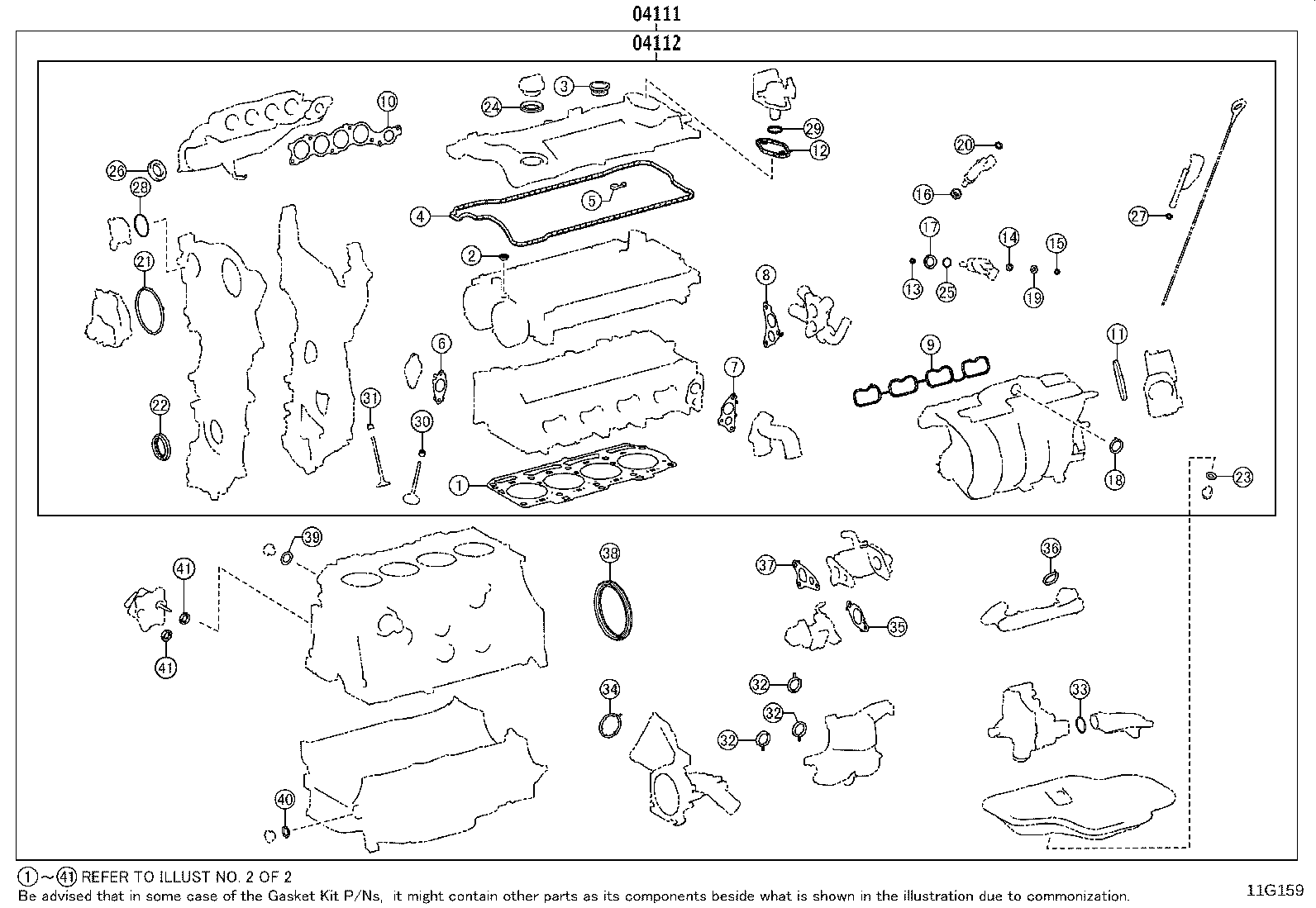

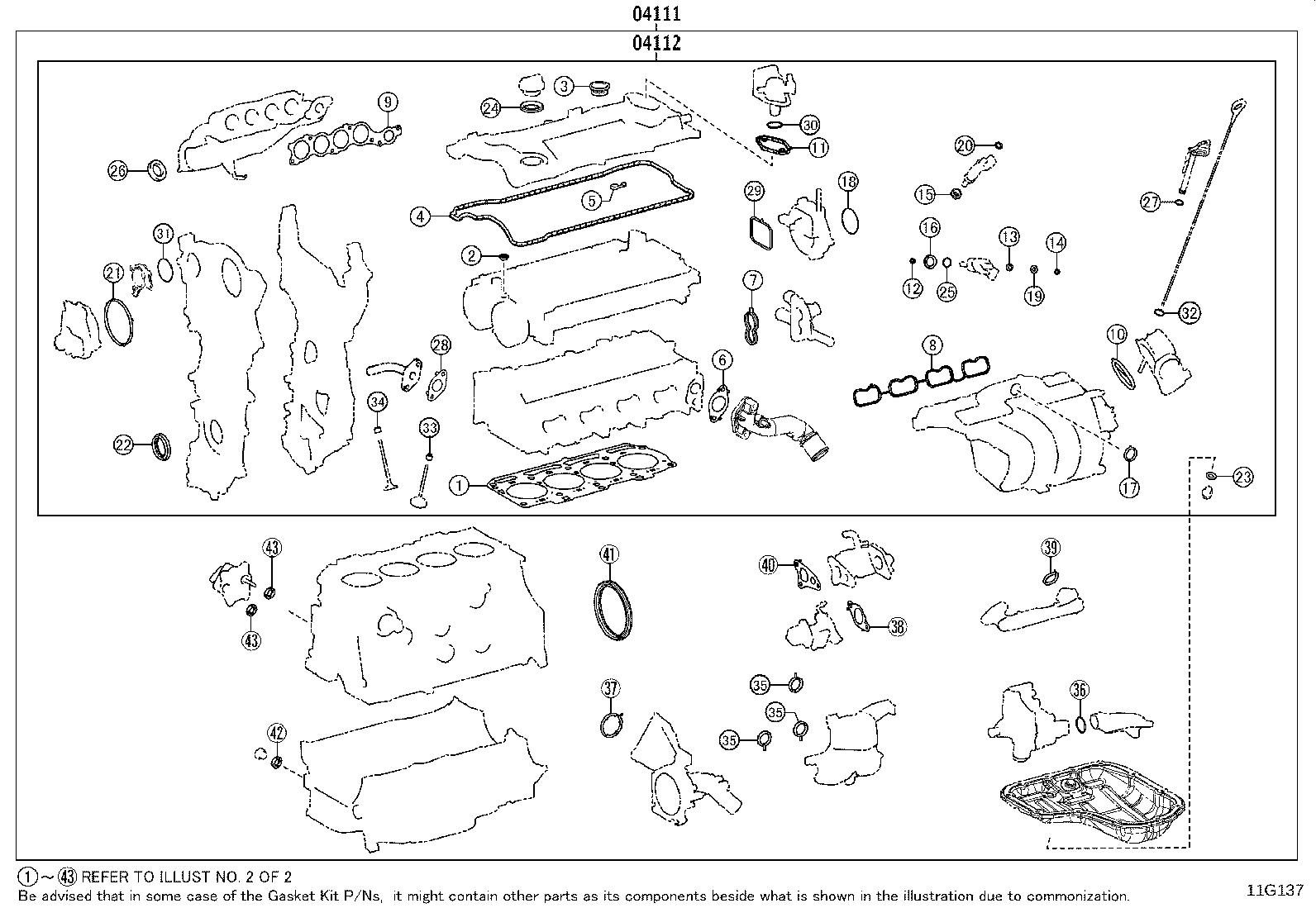

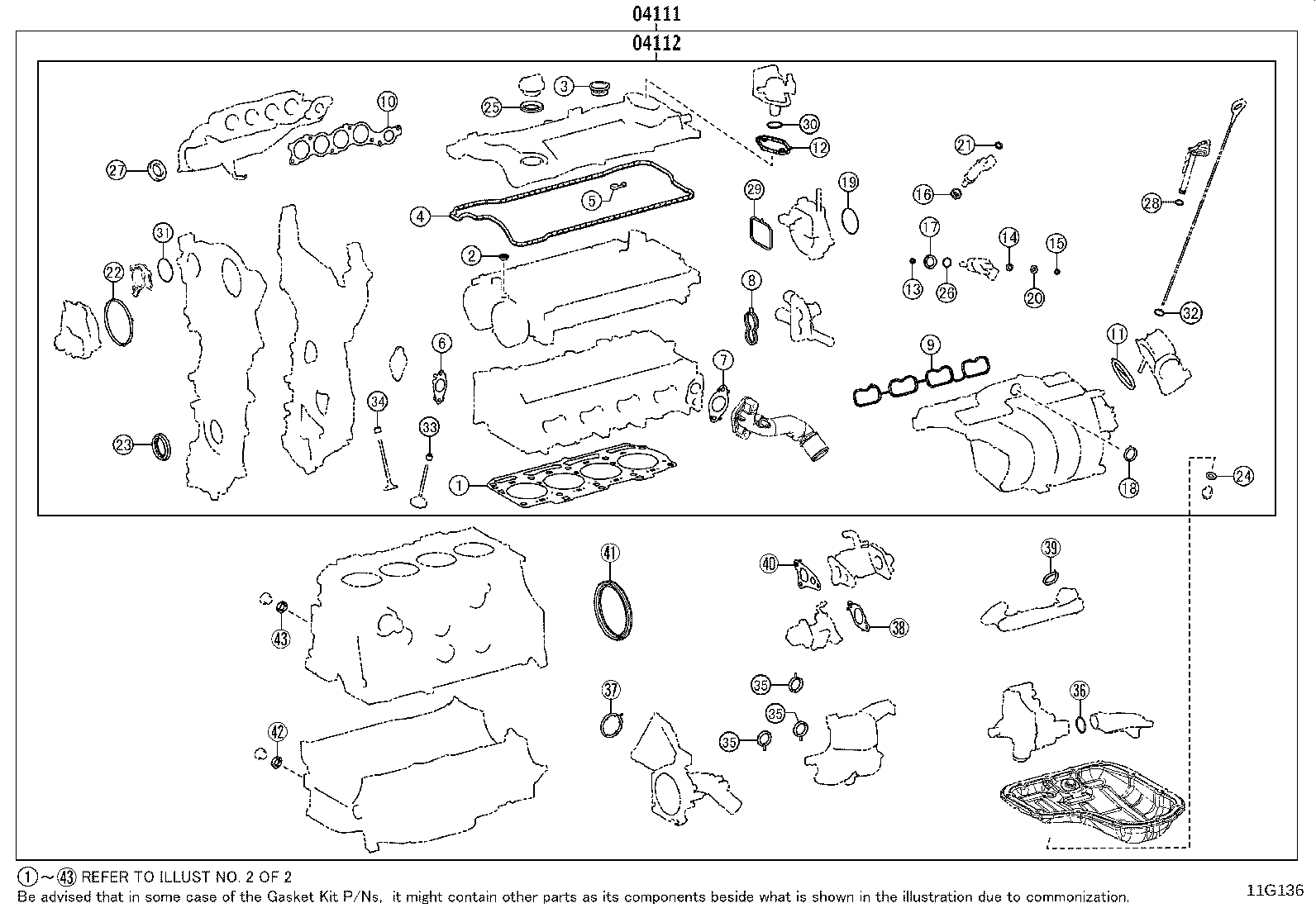

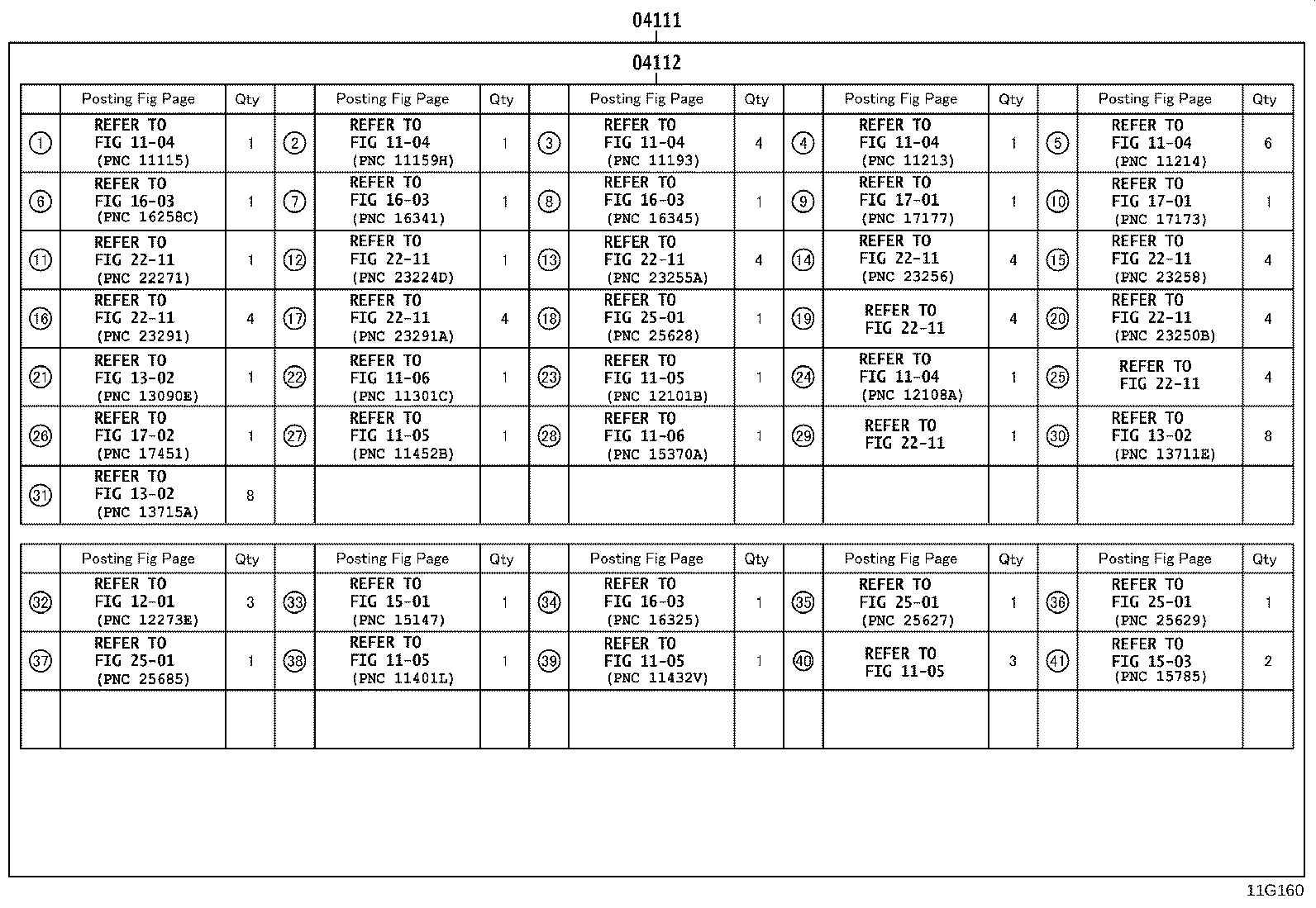

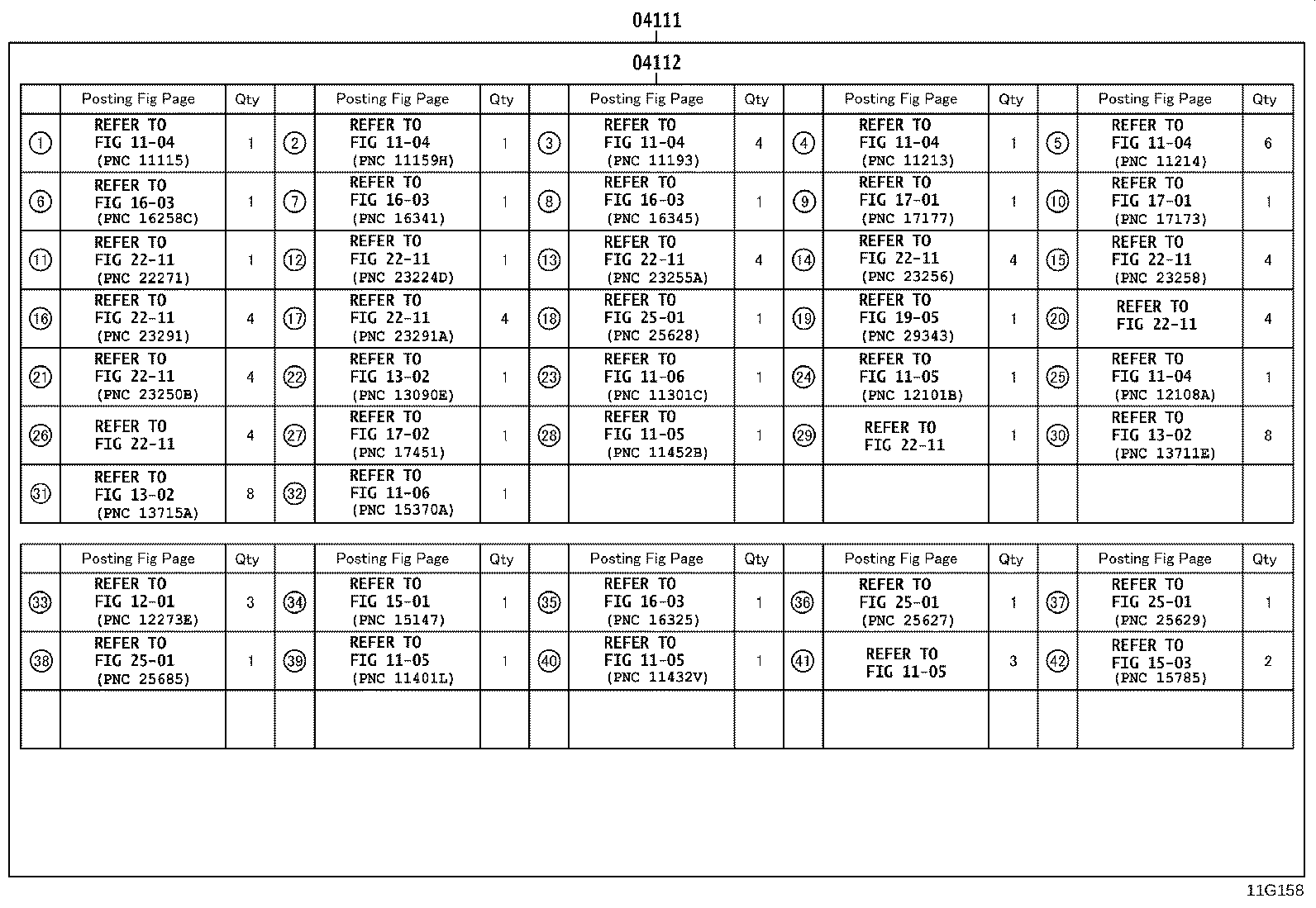

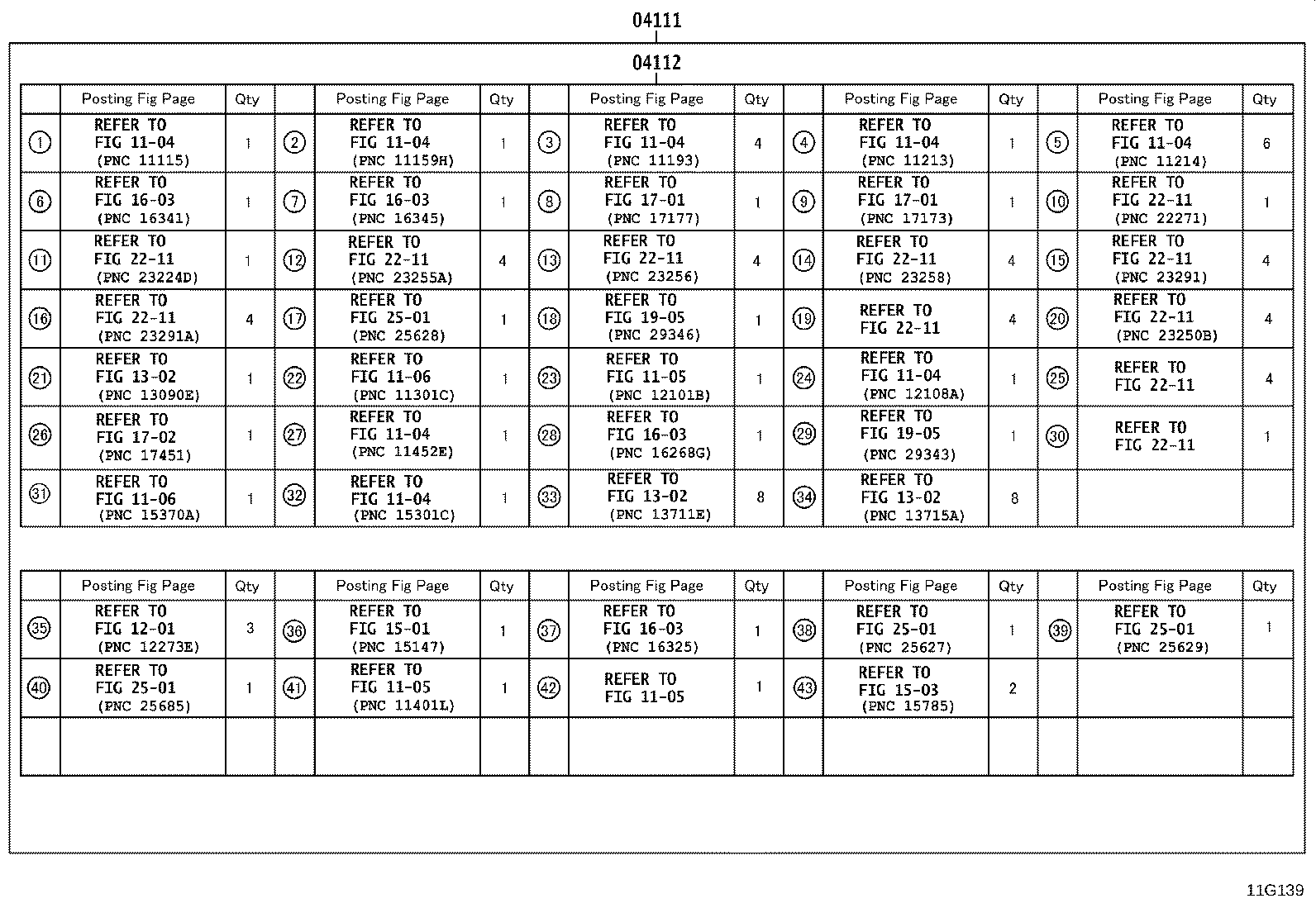

Figure 11G157 11G157 2021-11 → — Figure 11G158 11G158 2021-11 → — Figure 11G159 11G159 2021-11 → — Figure 11G160 11G160 2021-11 → — Figure 11G136 11G136 2022-01 → — Figure 11G137 11G137 2022-01 → — Figure 11G138 11G138 2022-01 → — Figure 11G139 11G139 2022-01 → — Figure 11G108 11G108 2021-11 → — Figure 11G109 11G109 2021-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
