Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

6 part groups · 4 illustrations

Illustrations

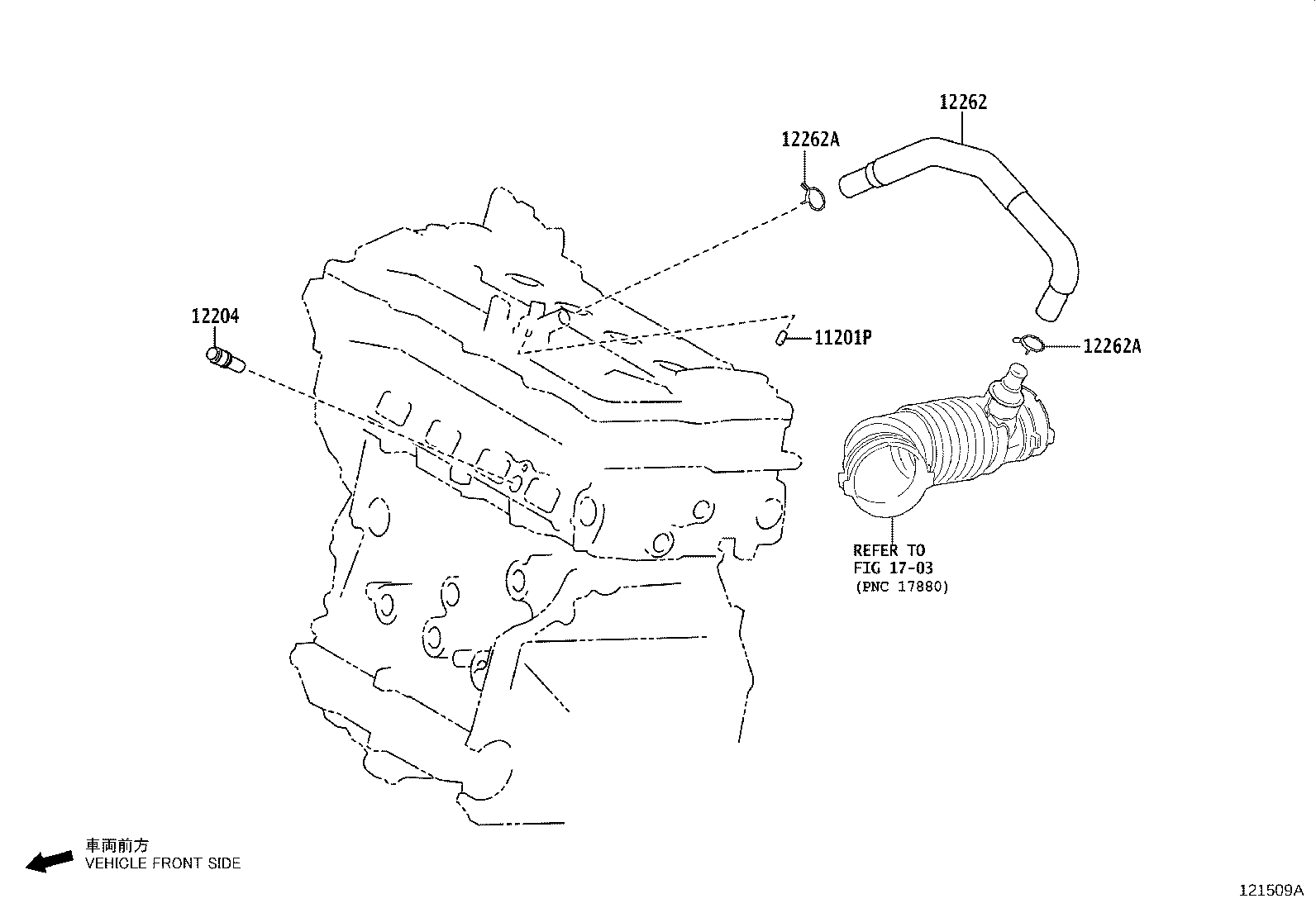

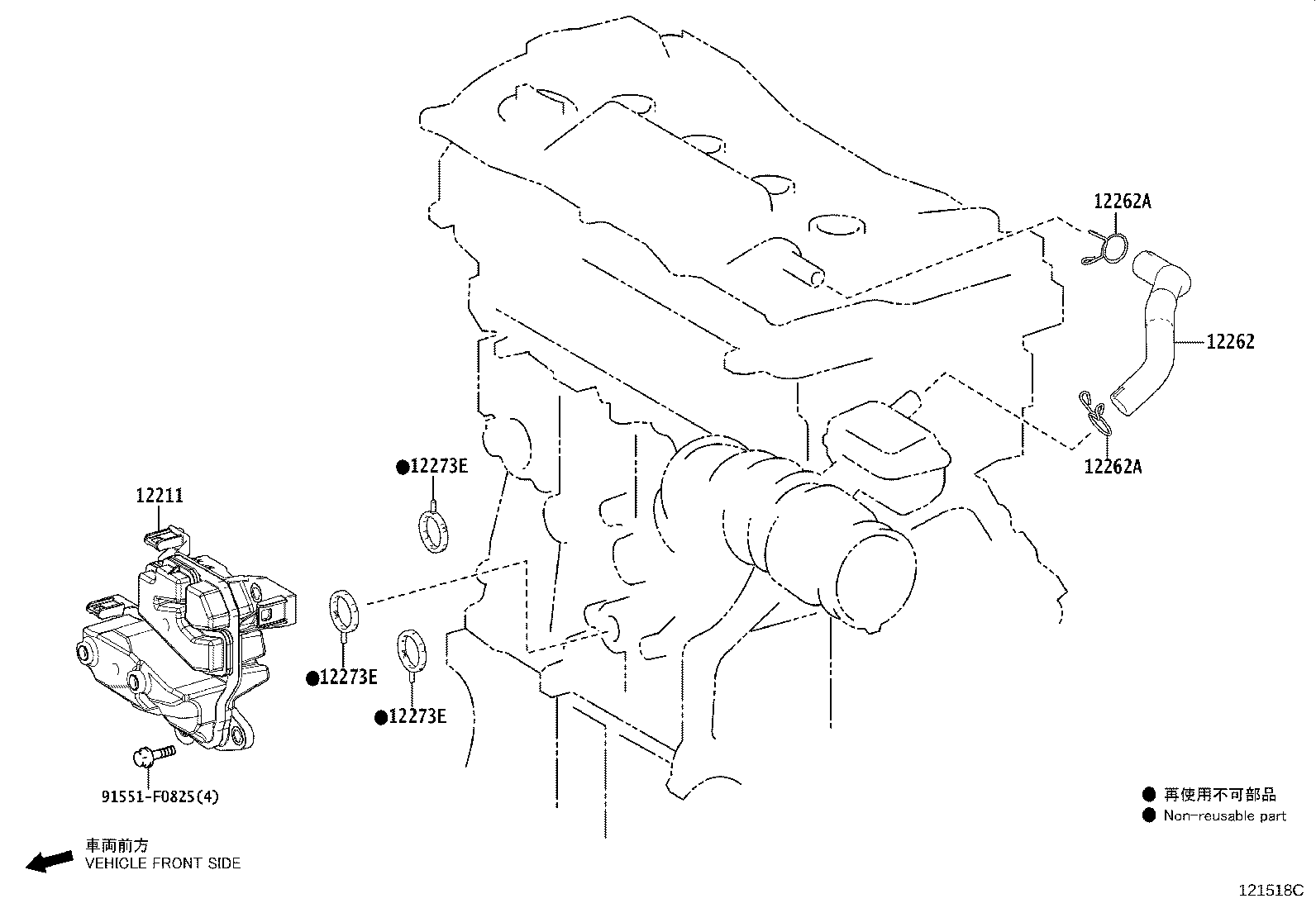

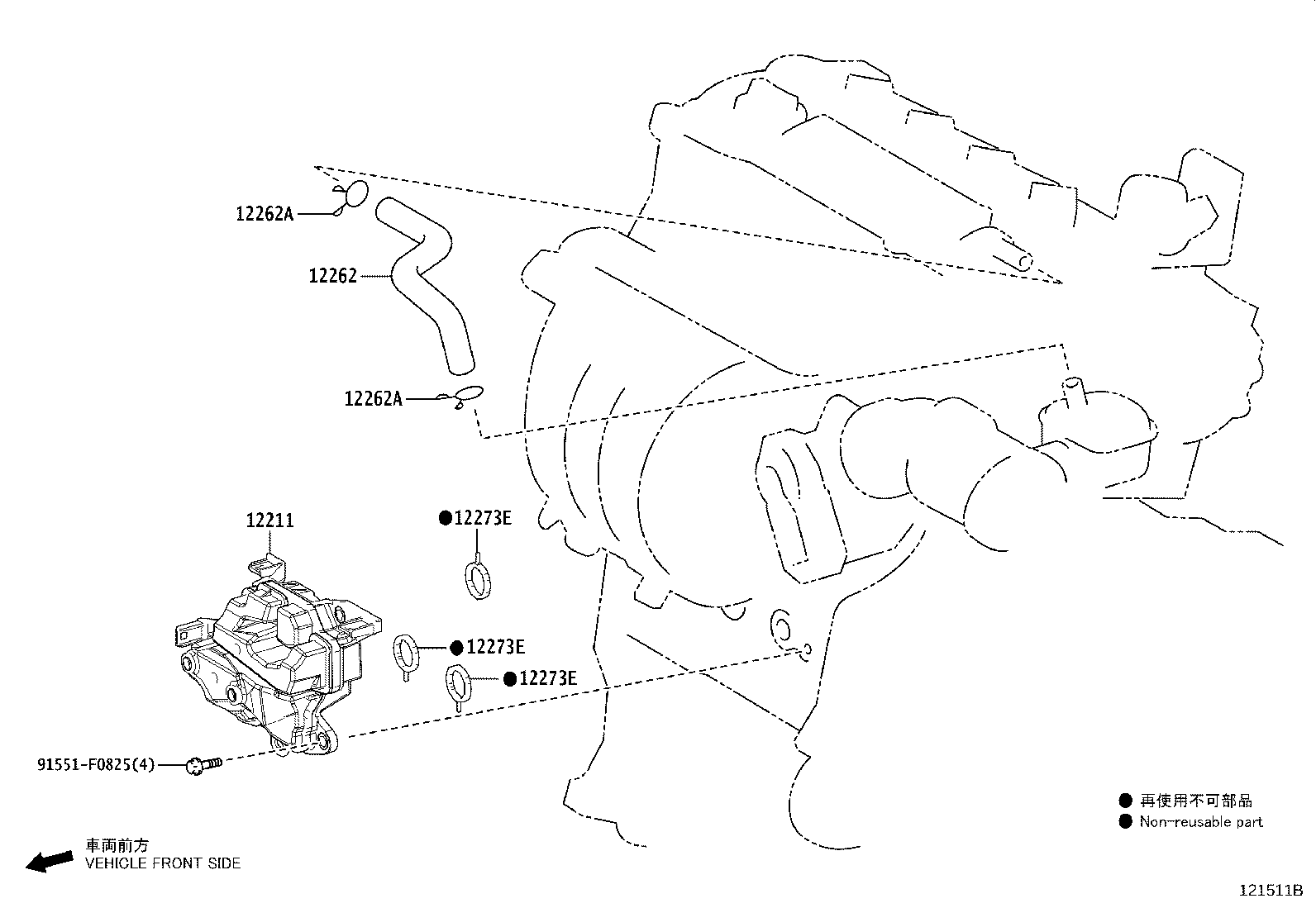

Figure 121517C 121517C 2021-11 → — Figure 121518C 121518C 2021-11 → — Figure 121511B 121511B 2022-01 → — Figure 121509A 121509A 2021-11 → —

Part groups

PNCDescription
11201P Plug(FOR CYLINDER HEAD COVER)
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
