Engine Oil Cooler

3 part groups · 3 illustrations

Illustrations

Figure 153513F

153513F 2021-11 → —

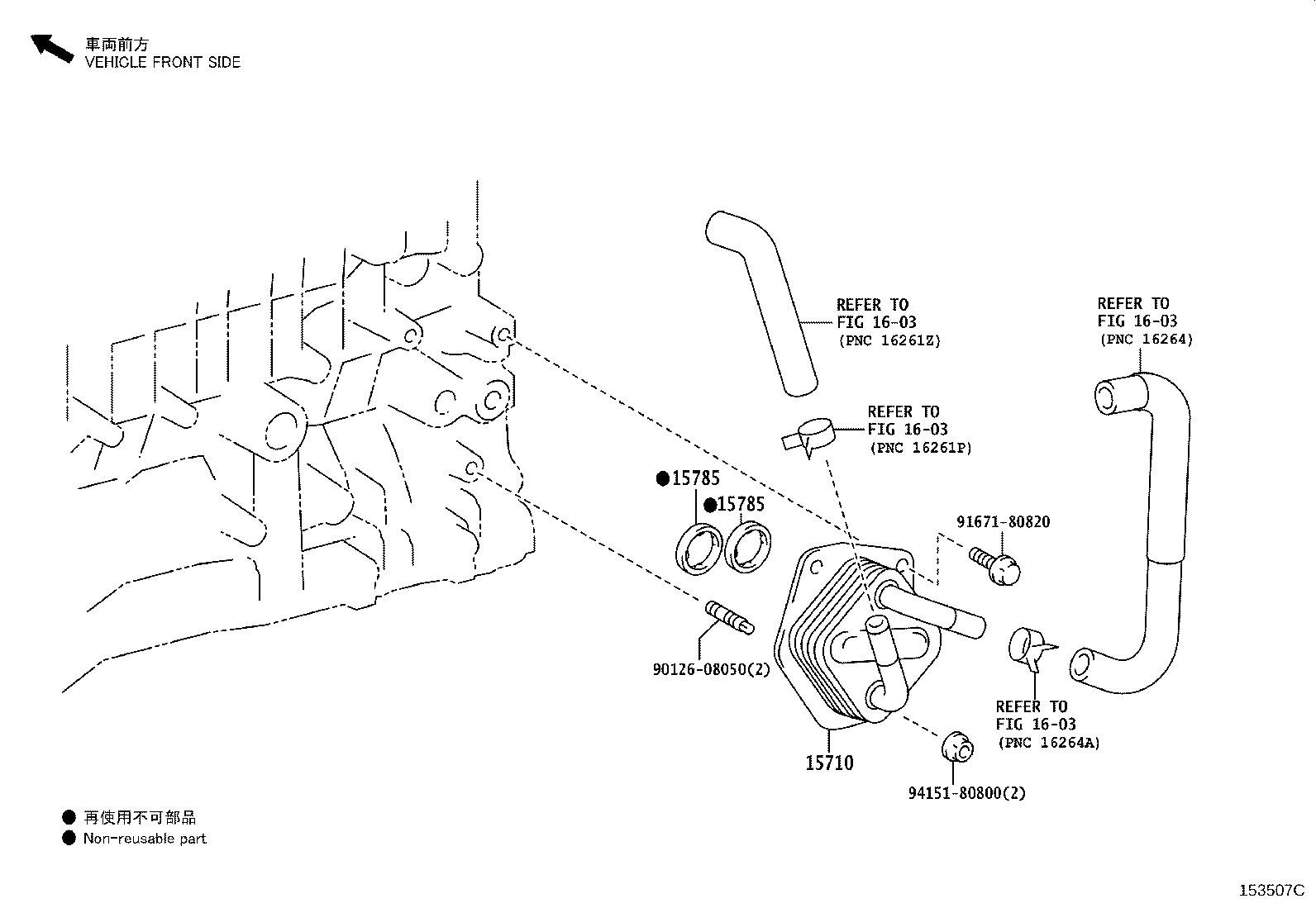

Figure 153507C

153507C 2022-01 → —

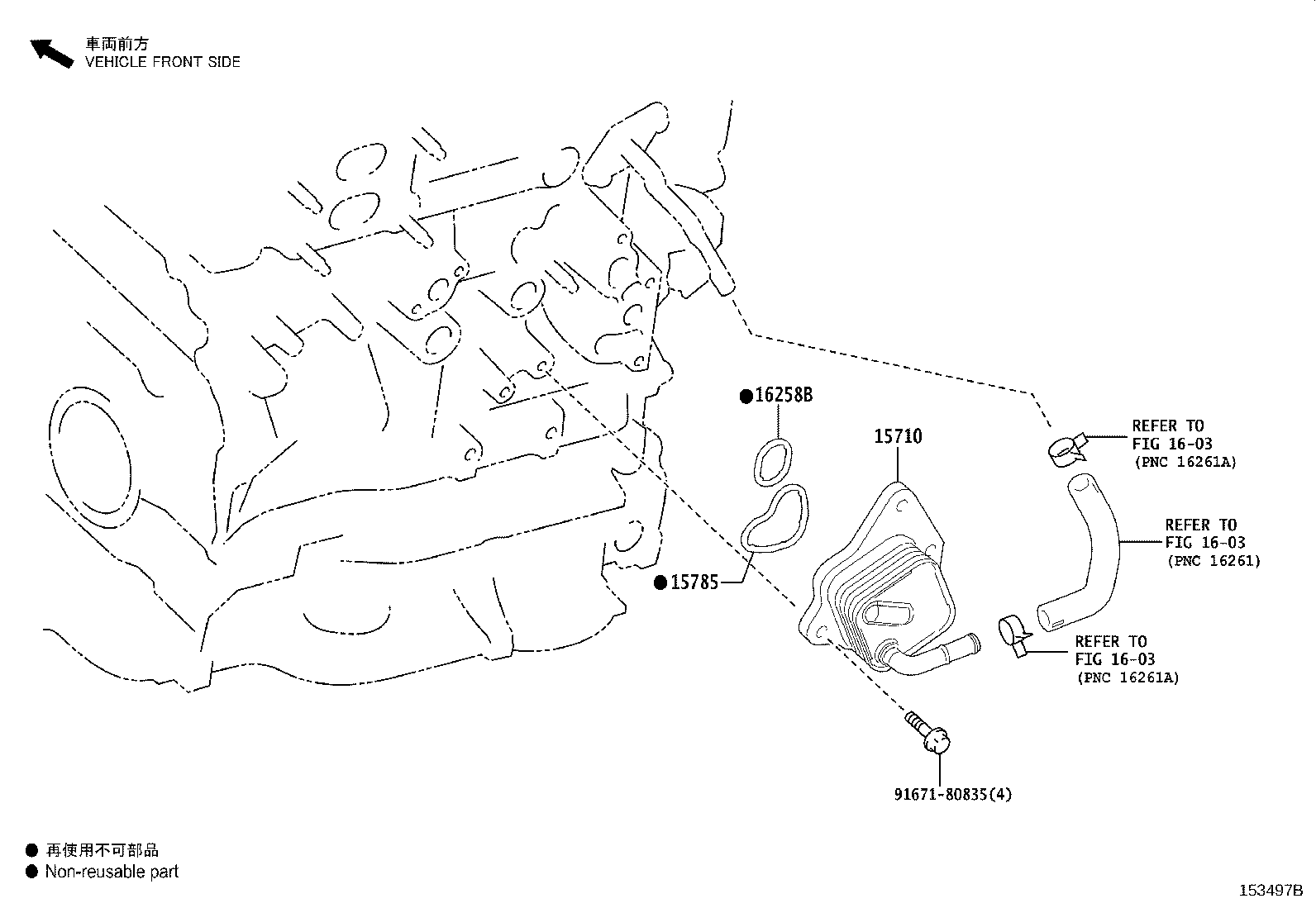

Figure 153497B

153497B 2021-11 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15785	Gasket, Oil Cooler
16258B	Gasket, Oil Cooler Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
