Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

17 part groups · 4 illustrations

Illustrations

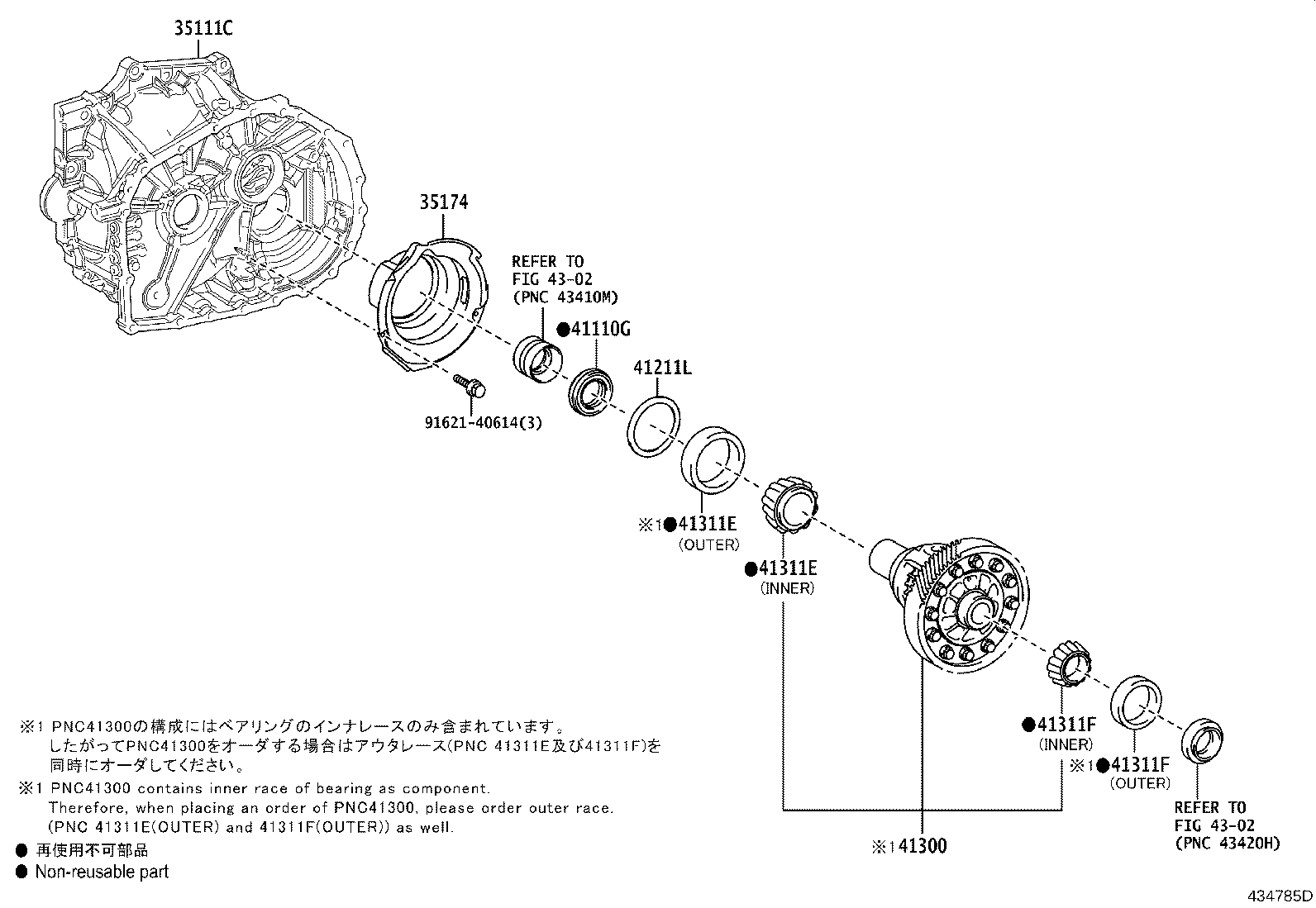

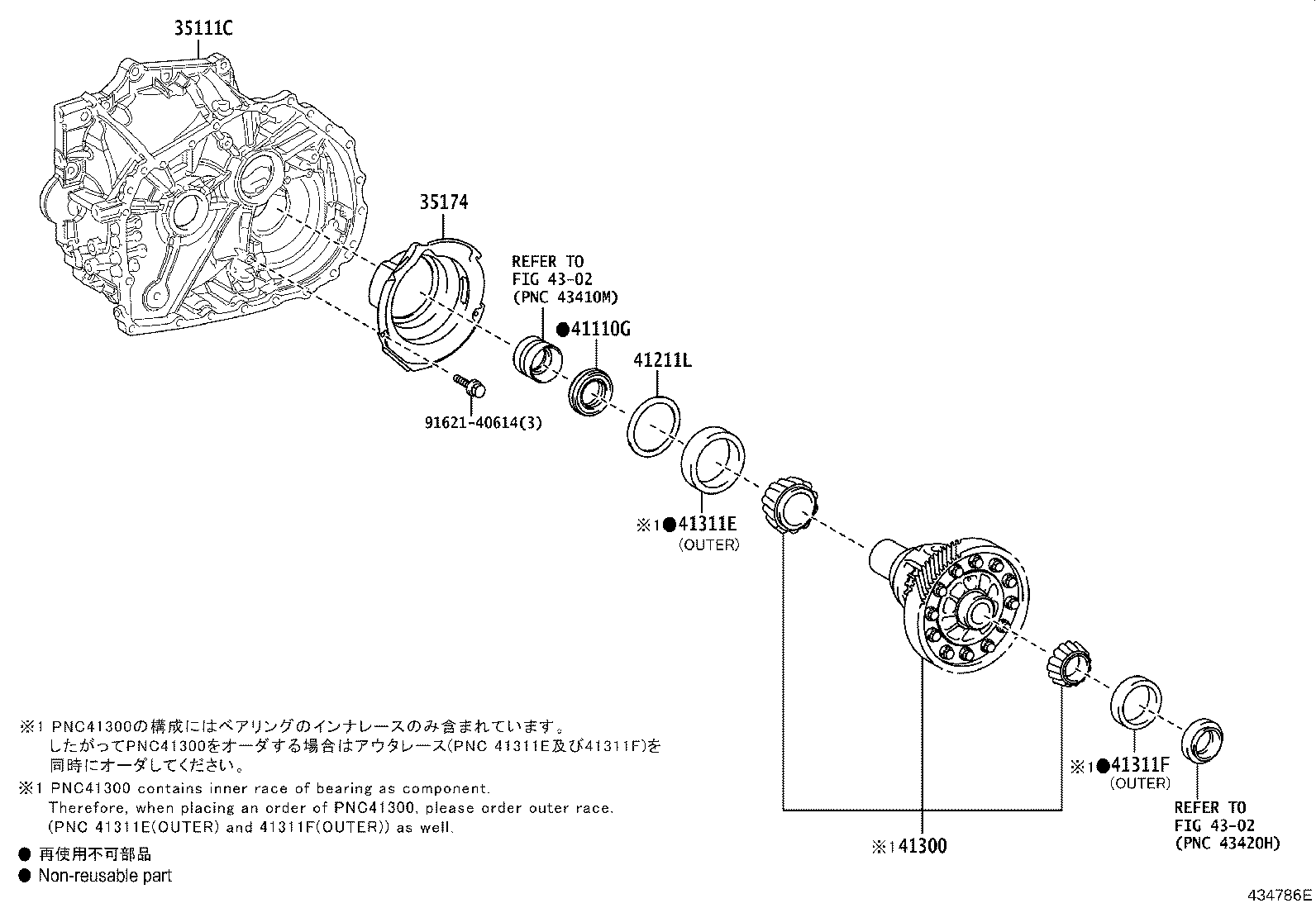

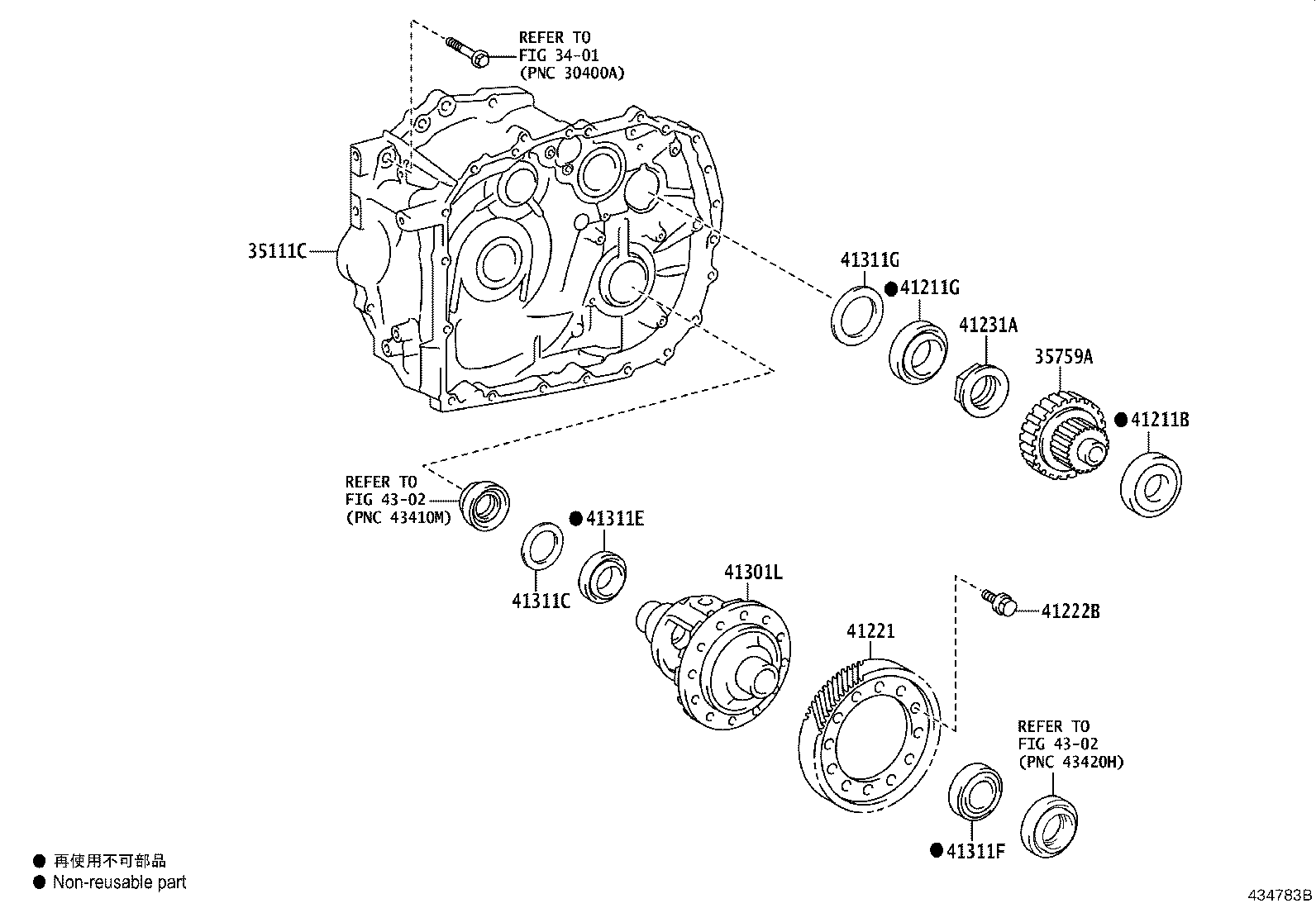

Figure 434784E 434784E 2021-11 → — Figure 434785D 434785D 2021-11 → — Figure 434783B 434783B 2021-11 → — Figure 434786E 434786E 2021-11 → —

Part groups

PNCDescription
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
35759A Gear, Reduction Driven
41110G Seal, Oil (FOR DIFFERENTIAL SIDE)
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41211G Bearing, Thrust Needle Roller(FOR FRONT DRIVE PINION LH)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41221 Gear, Front Differential Ring
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231A Nut, Drive Pinion Lock
41300 Case Assy, Front Differential, W/Ring Gear
41301L Case Sub-assy, Front Differential, NO.1
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311G Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
41361F Washer, Front Differential Side Gear Thrust, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
