Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

6 part groups · 6 illustrations

Illustrations

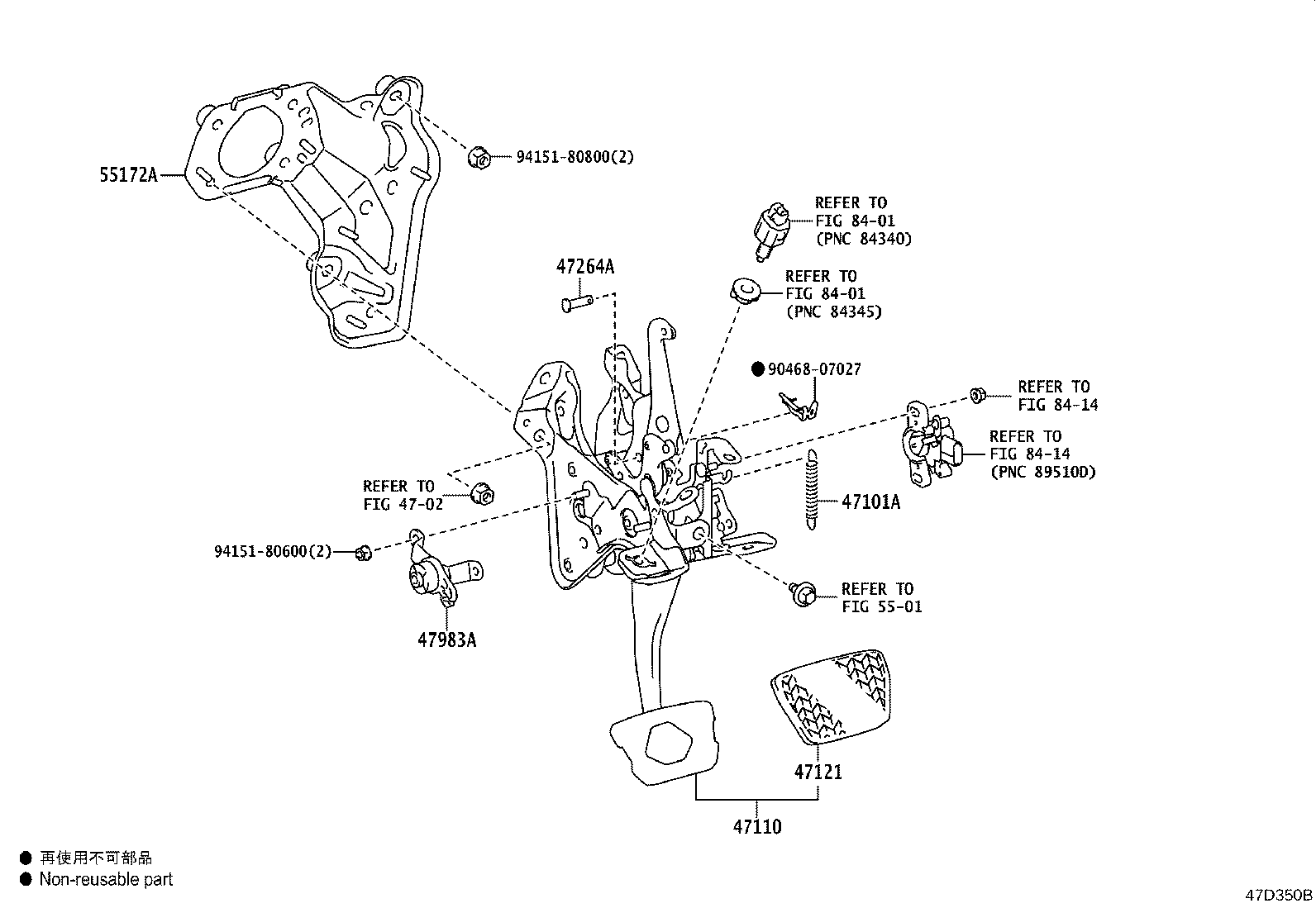

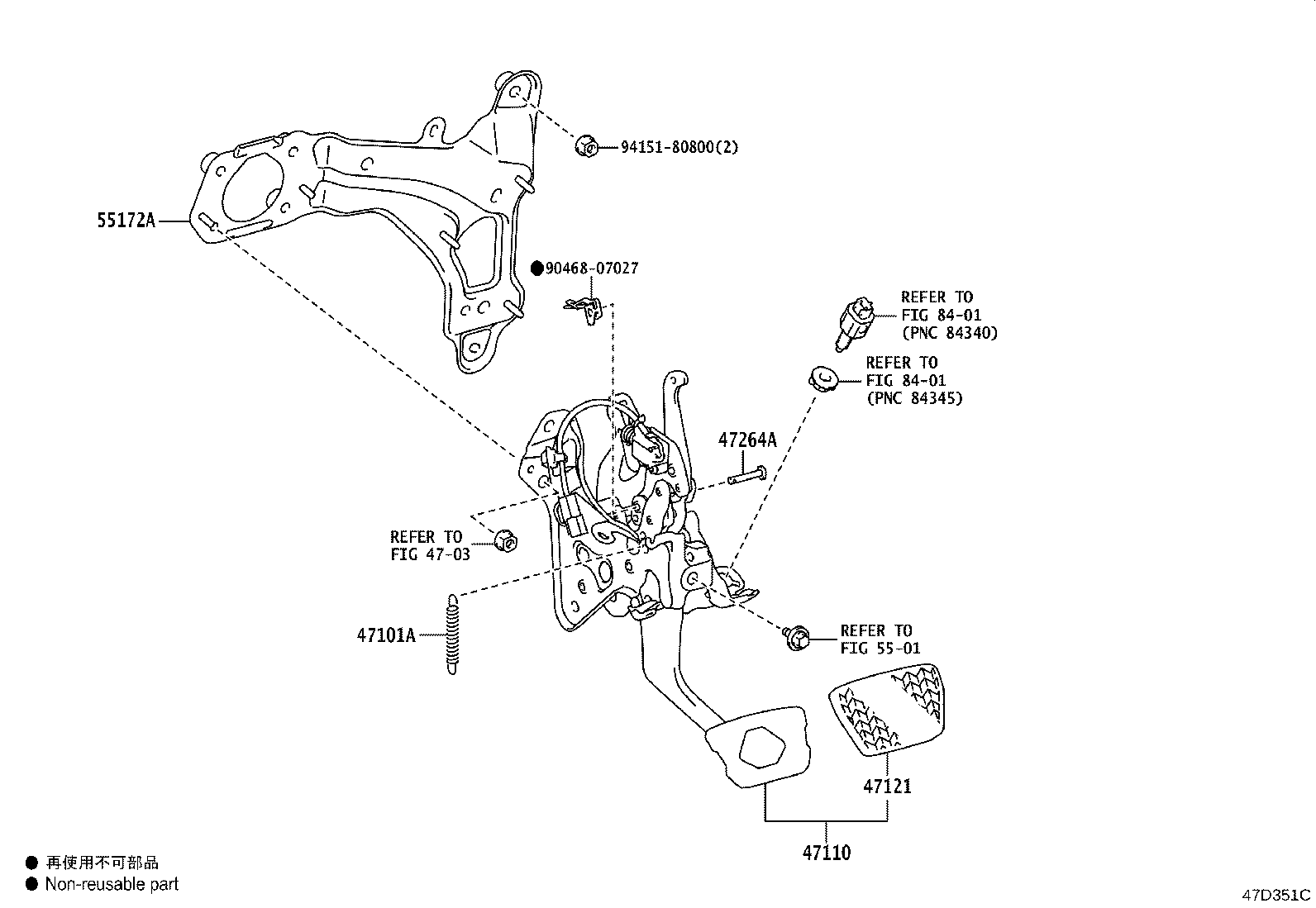

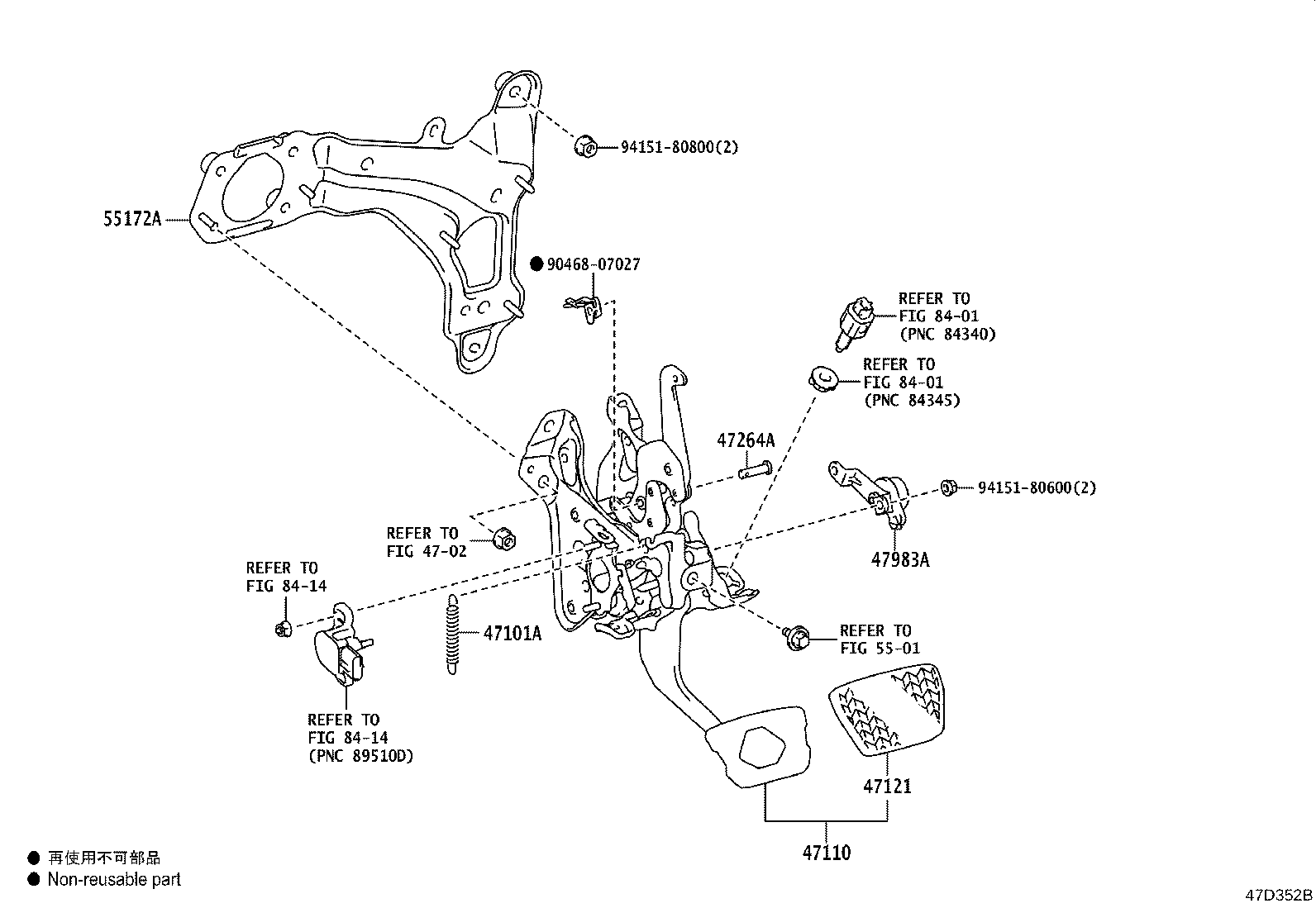

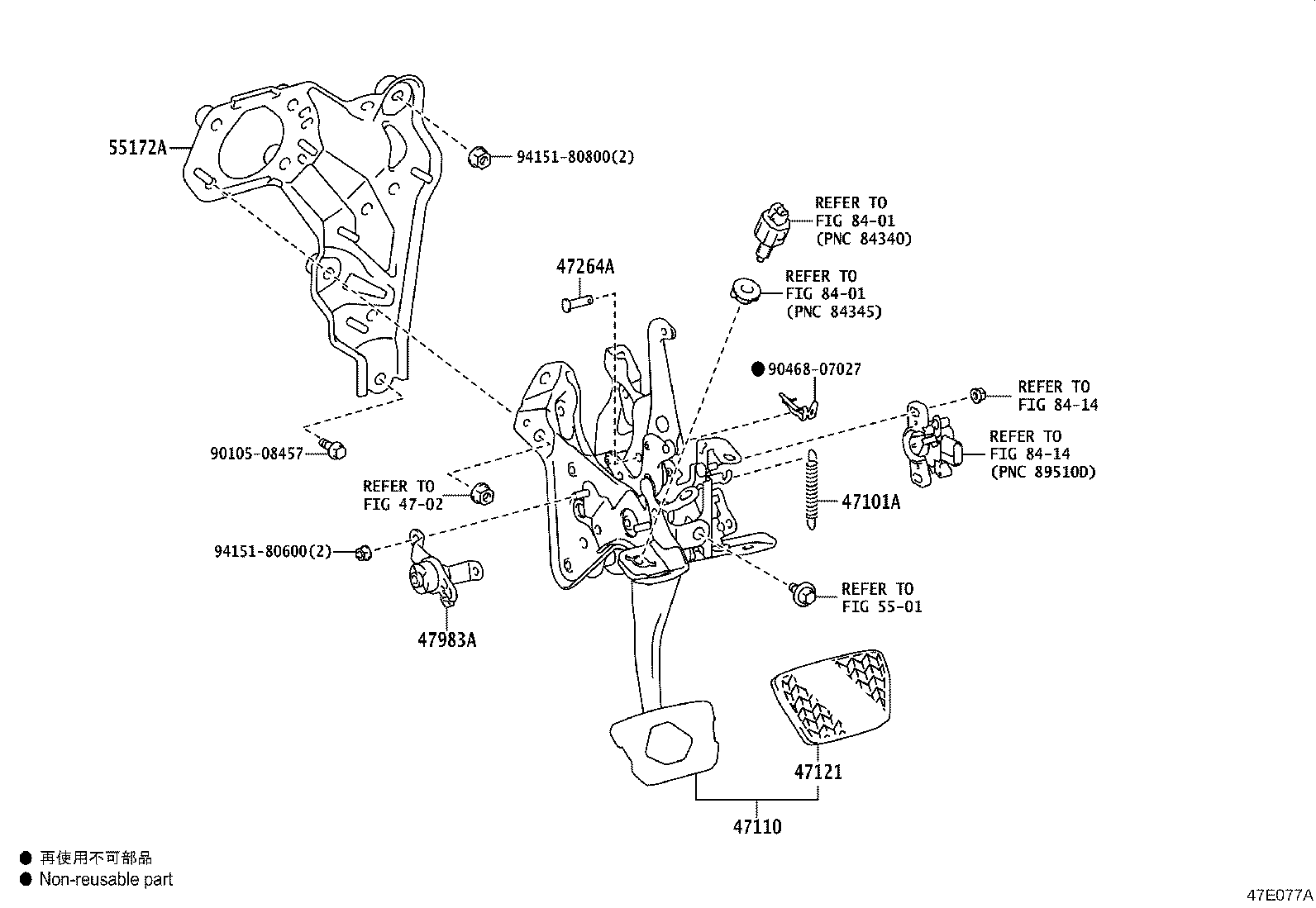

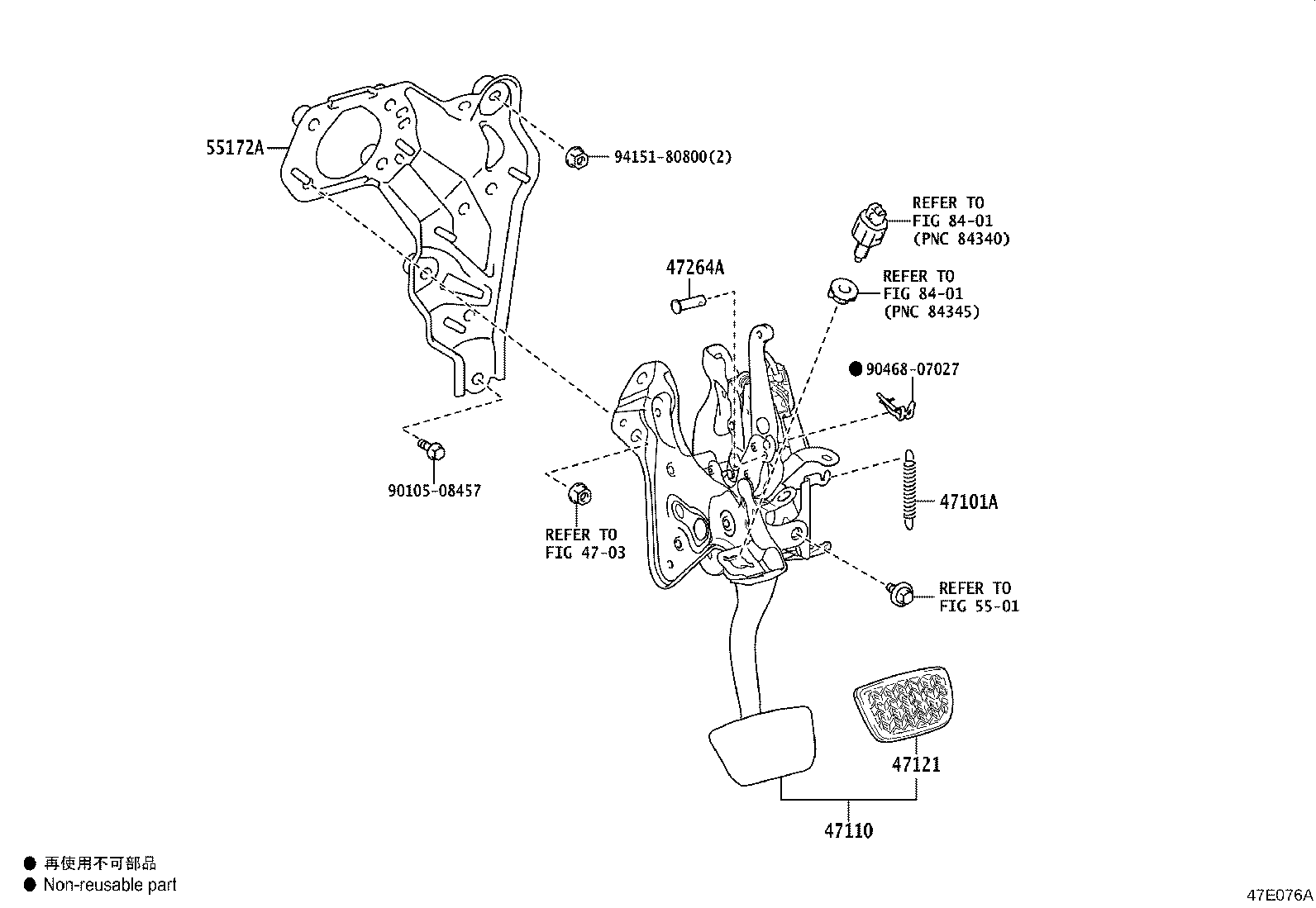

Figure 47D349B 47D349B 2021-11 → 2023-03 Figure 47E076A 47E076A 2023-03 → — Figure 47D351B 47D351B 2021-11 → — Figure 47D350B 47D350B 2021-11 → 2023-03 Figure 47E077A 47E077A 2023-03 → — Figure 47D352B 47D352B 2021-11 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
47983A Damper, Brake Traction
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
