Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

11 part groups · 2 illustrations

Illustrations

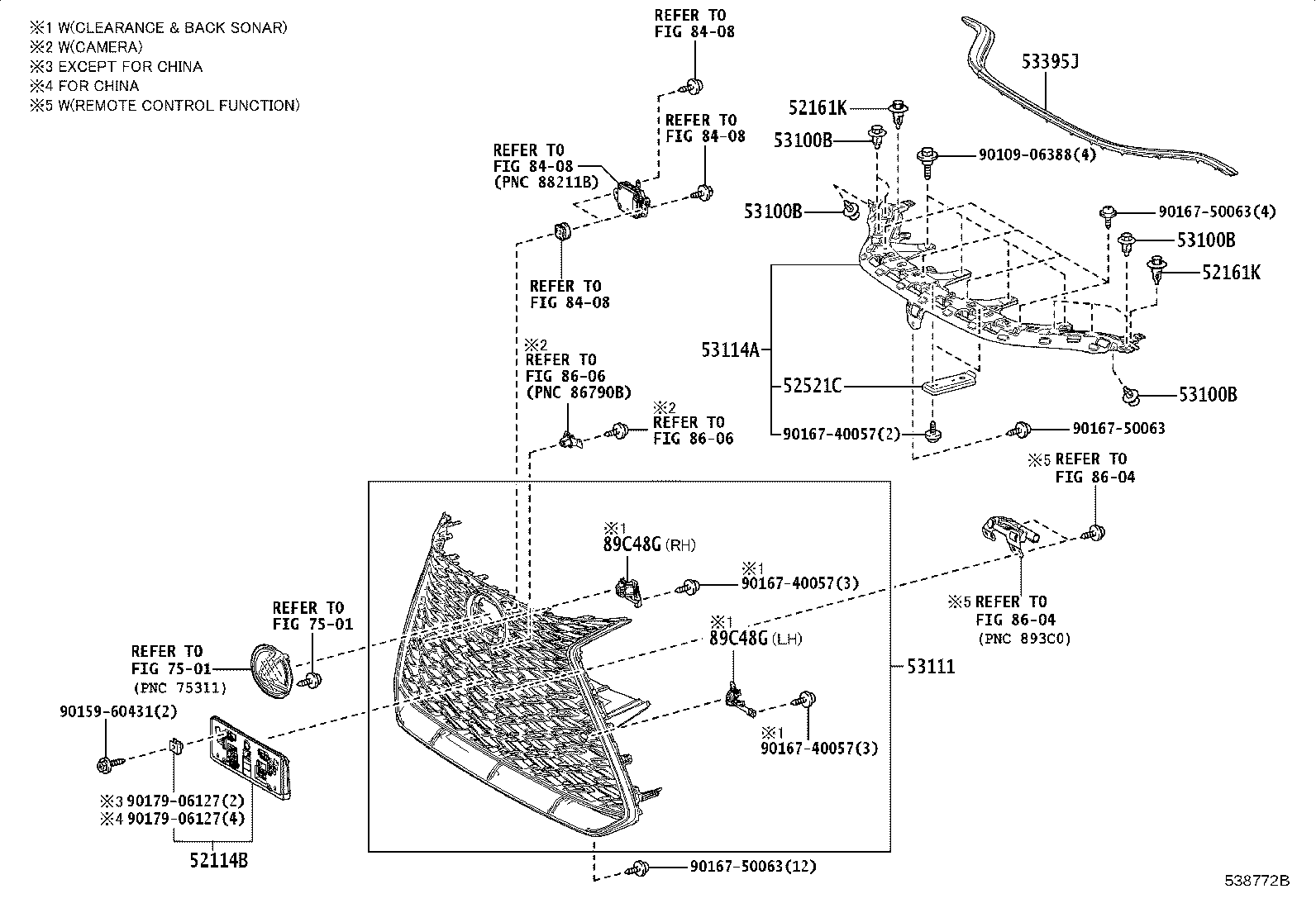

Figure 538046D 538046D 2021-11 → — Figure 538772B 538772B 2021-11 → —

Part groups

PNCDescription
52114B Bracket, Front Bumper Extension Mounting
52161K Piece, Front Bumper
52521C Retainer, Front Bumper, Upper
53100B Clip, Radiator Grille
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53155D Seal, Radiator Grille, NO.1
53285N Seal, Radiator Side Air, RH
53286F Seal, Radiator Side Air, LH
53395J Seal, Hood TO Front End Panel
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
