Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05

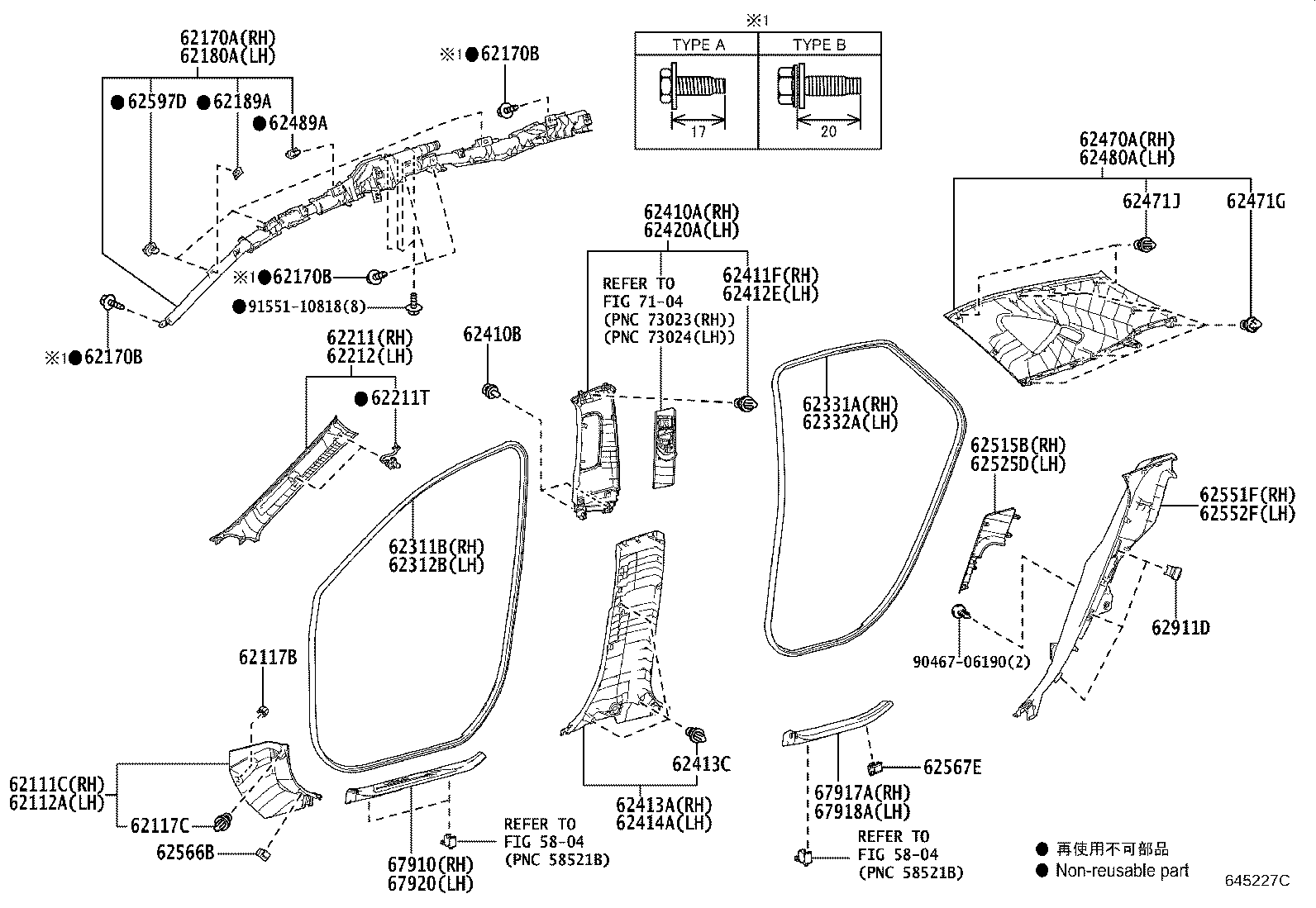

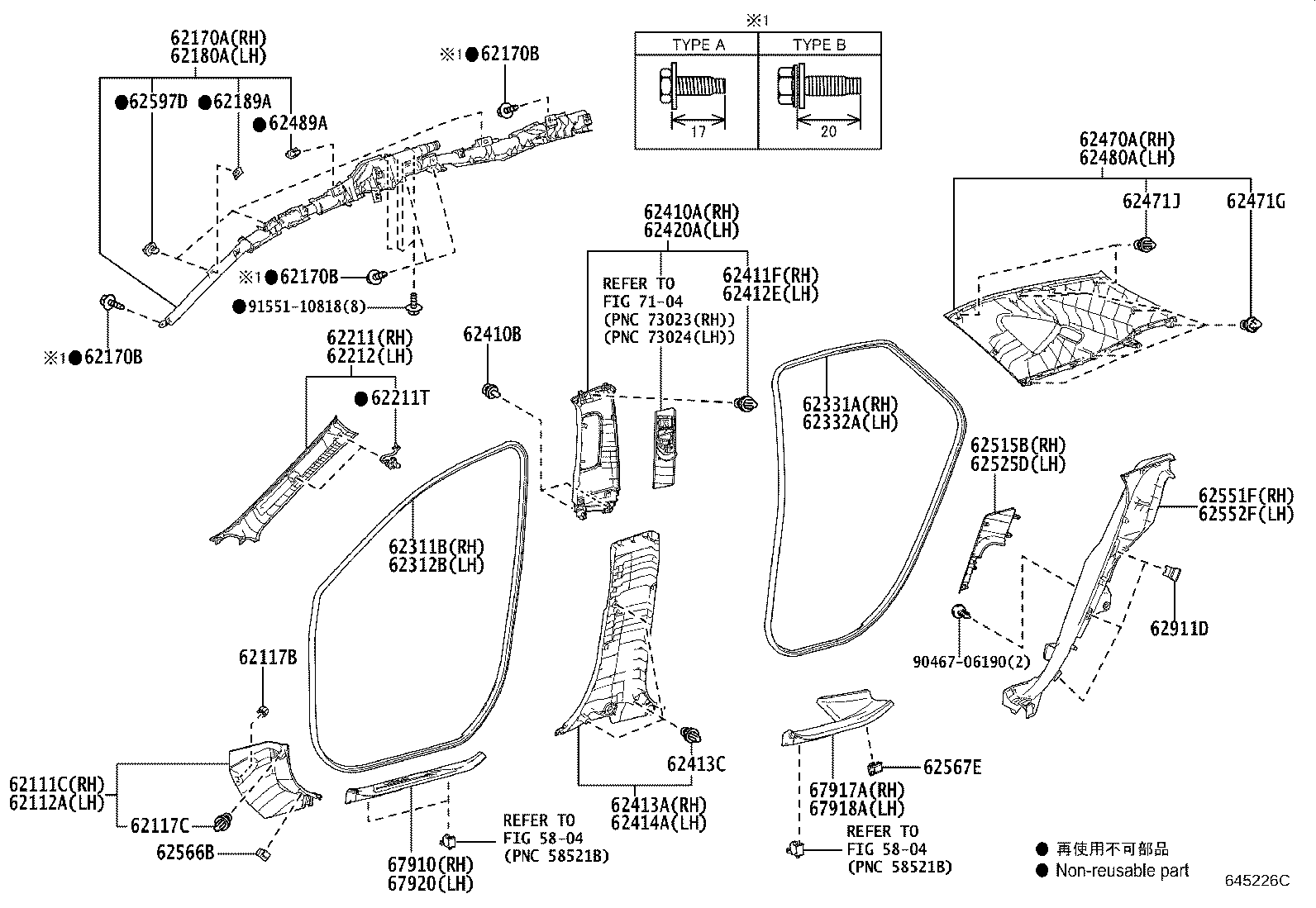

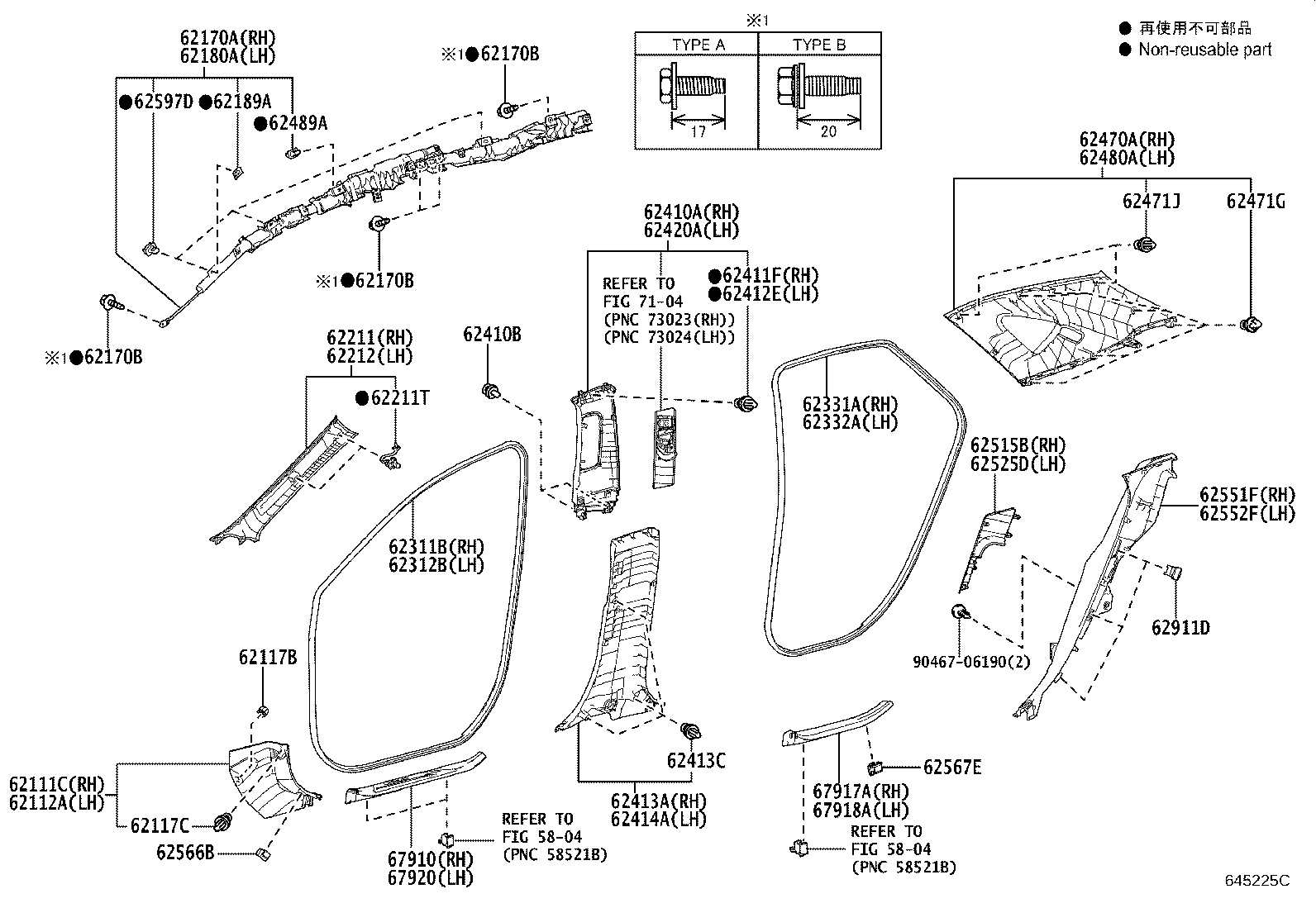

Inside Trim Board & Door Opening Trim Moulding

40 part groups · 4 illustrations

PNC	Description
62111C	Board, Cowl Side Trim, RH
62112A	Trim Sub-assy, Cowl Side, LH
62117B	Clip, NO.1(FOR COWL SIDE TRIM)
62117C	Clip, NO.2(FOR COWL SIDE TRIM)
62170A	Airbag Assy, Curtain Shield, RH
62170B	Bolt, W/Washer
62180A	Airbag Assy, Curtain Shield, LH
62189A	Spacer, Curtain Shield Airbag Clip
62211	Garnish, Front Pillar, RH
62211T	Clip(FOR FRONT PILLAR GARNISH)
62212	Garnish, Front Pillar, LH
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62331A	Weatherstrip, Rear Door Opening Trim, RH
62332A	Weatherstrip, Rear Door Opening Trim, LH
62410A	Garnish Assy, Center Pillar, RH
62410B	Clip
62411F	Clip, Center Pillar Garnish, RH
62412E	Clip, Center Pillar Garnish, LH
62413A	Garnish, Center Pillar, Lower RH
62413C	Clip (FOR CENTER LOWER GARNISH)
62414A	Garnish, Center Pillar, Lower LH
62420A	Garnish Assy, Center Piller, LH
62470A	Garnish Assy, Roof Side, Inner RH
62471G	Clip, Roof Side Inner Garnish
62471J	Clip (FOR ROOF SIDE GARNISH)
62480A	Garnish Assy, Roof Side, Inner LH
62489A	Clip, Roof Side Inner Garnish
62515B	Cover, Side Trim Base, NO.1 RH
62525D	Cover, Side Trim Base, NO.1 LH
62551F	Garnish, Rear Seat Side, RH
62552F	Garnish, Rear Seat Side, LH
62566B	Clamp, Rocker Panel Inner Protecter, NO.1
62567E	Clamp, Rocker Panel Inner Protector, NO.2
62597D	Clip
62911D	Hook, Side Window Lock
67910	Plate Assy, Door Scuff, RH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH
67920	Plate Assy, Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
