Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

60 part groups · 11 illustrations

Illustrations

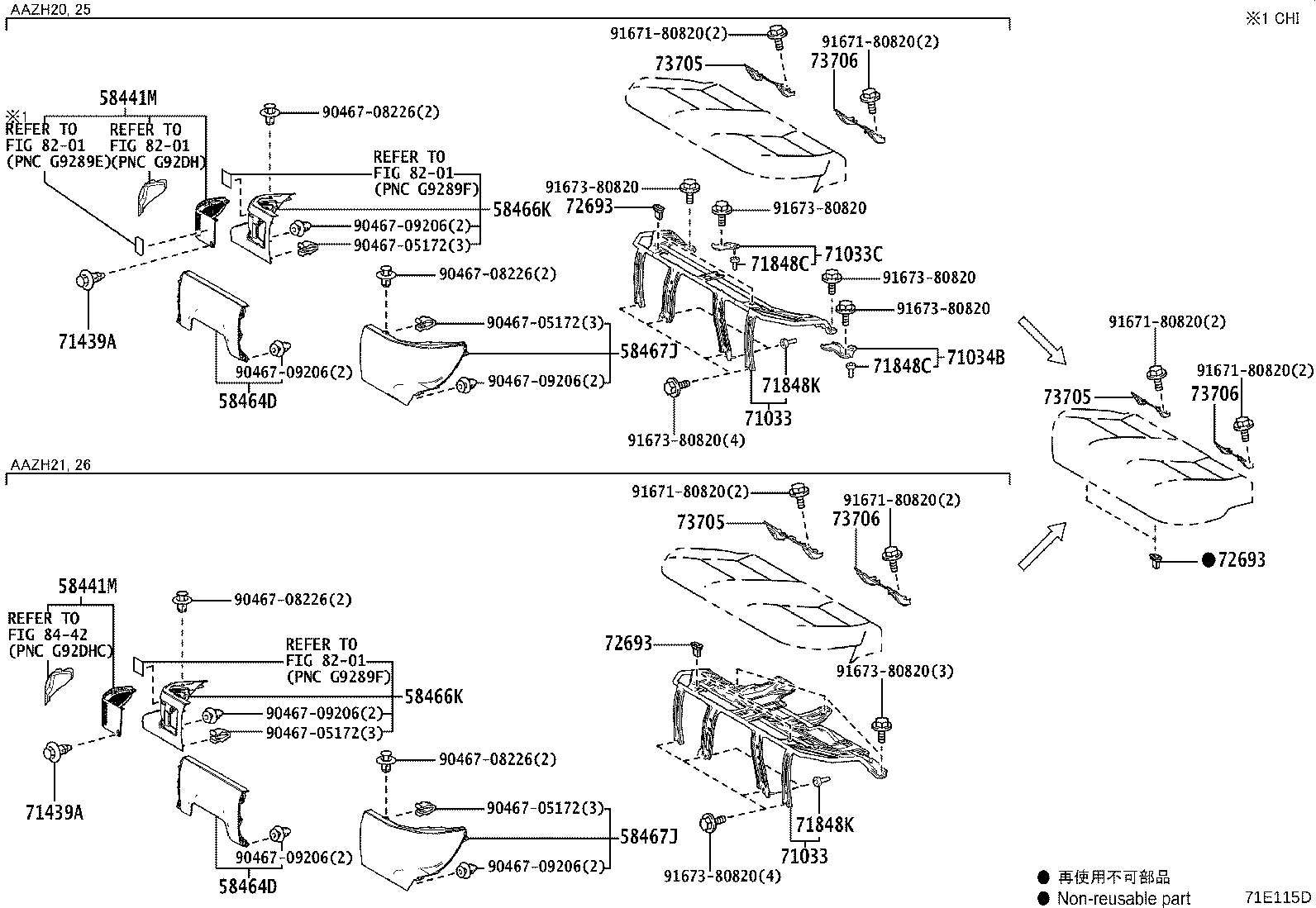

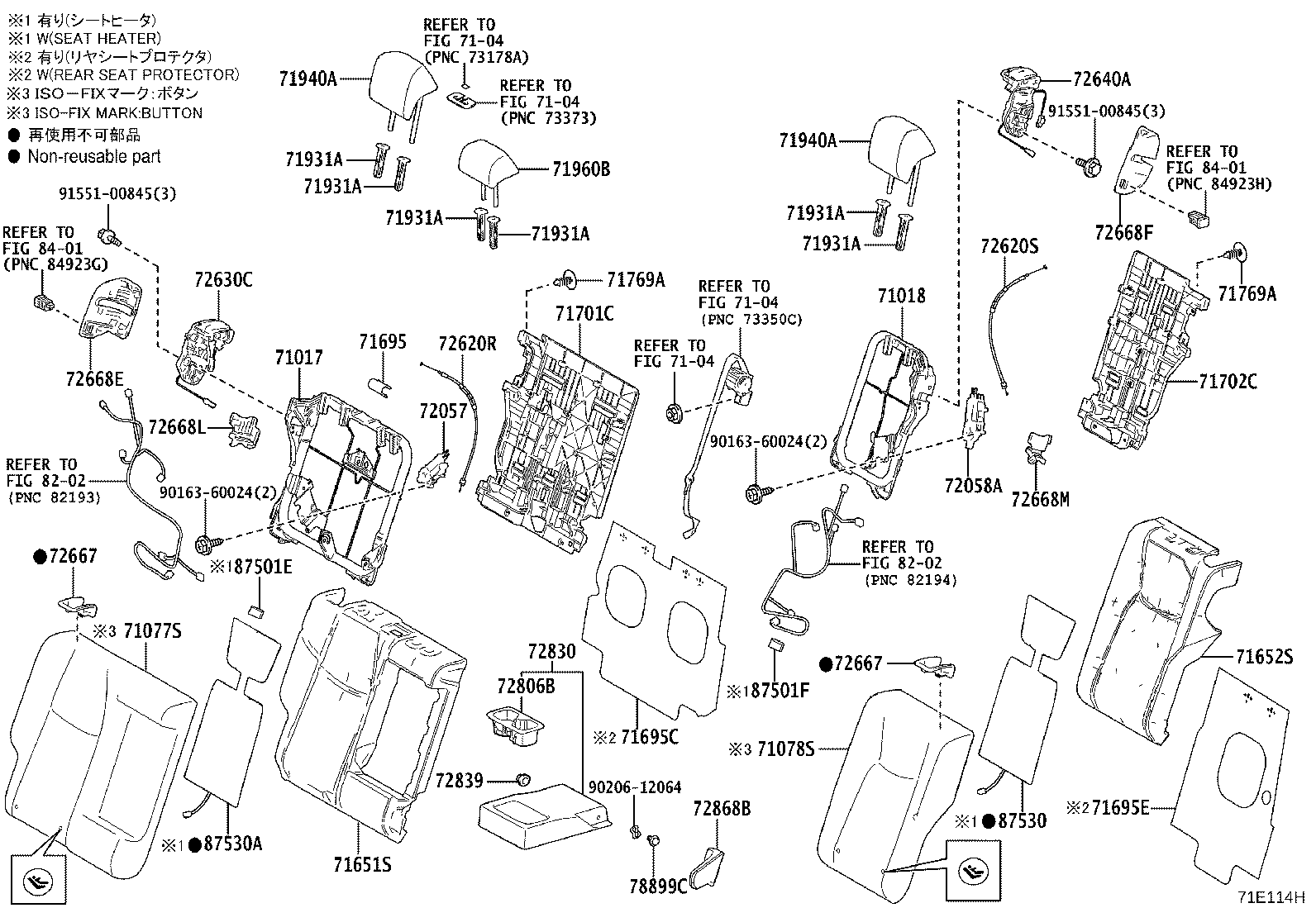

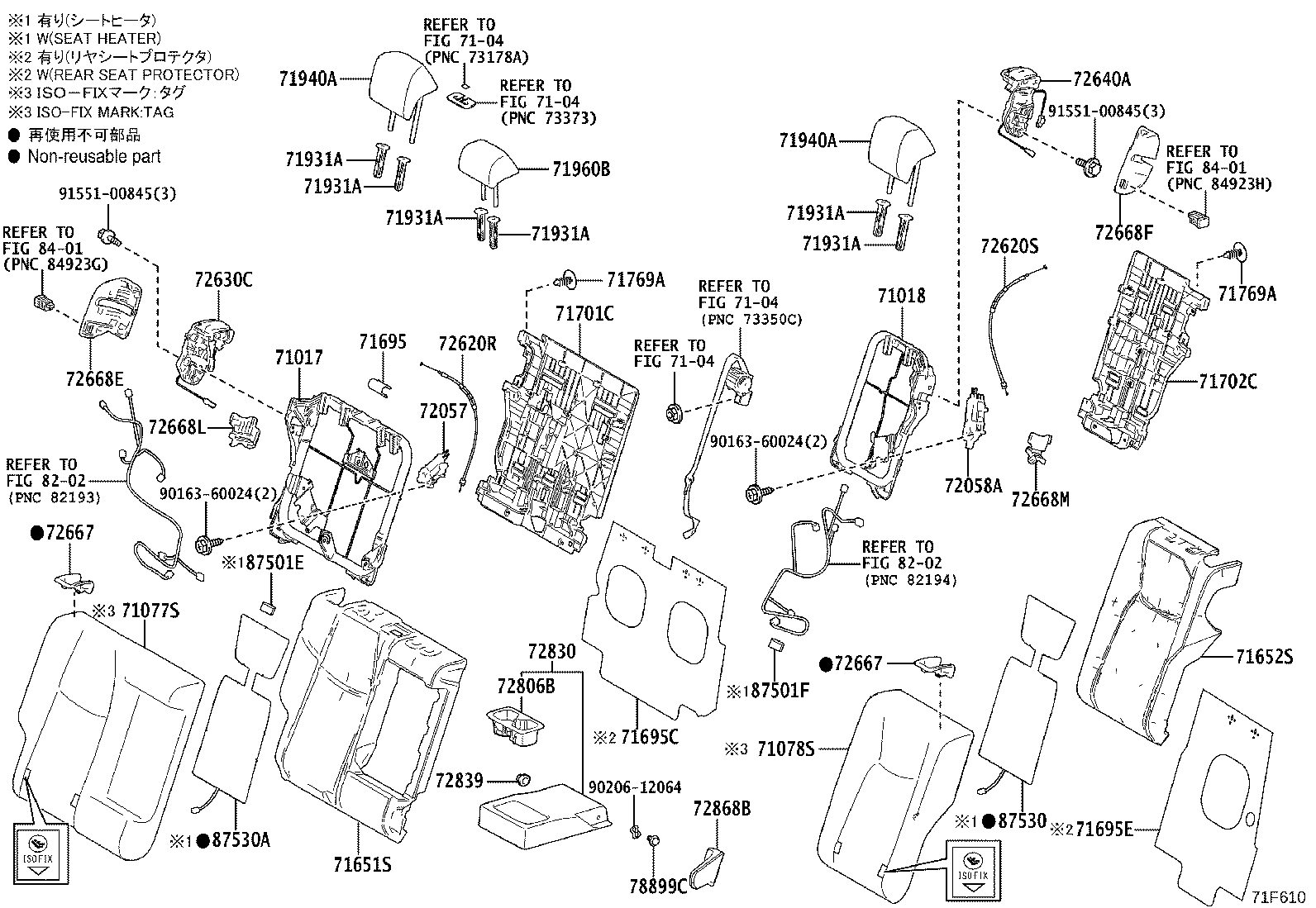

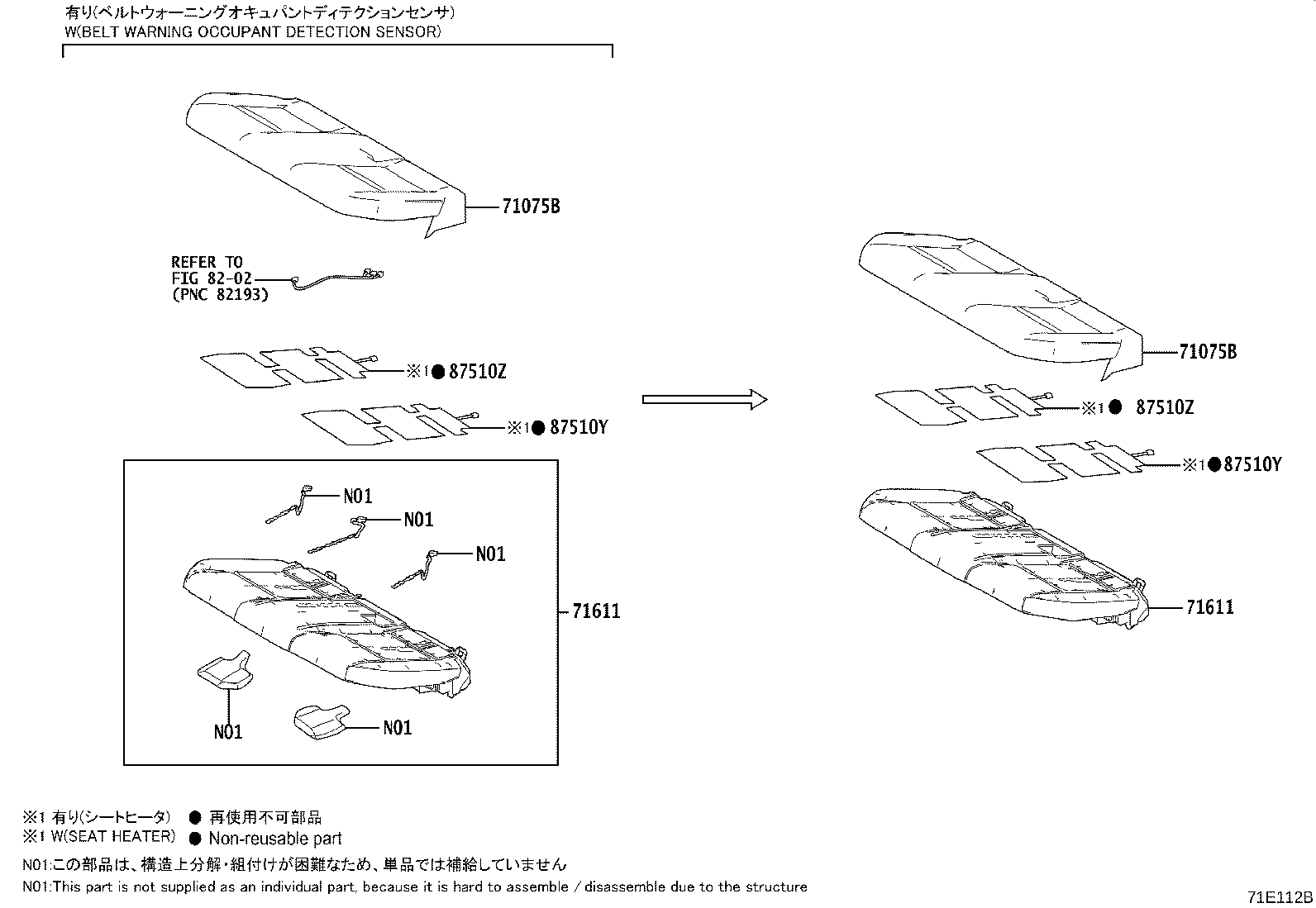

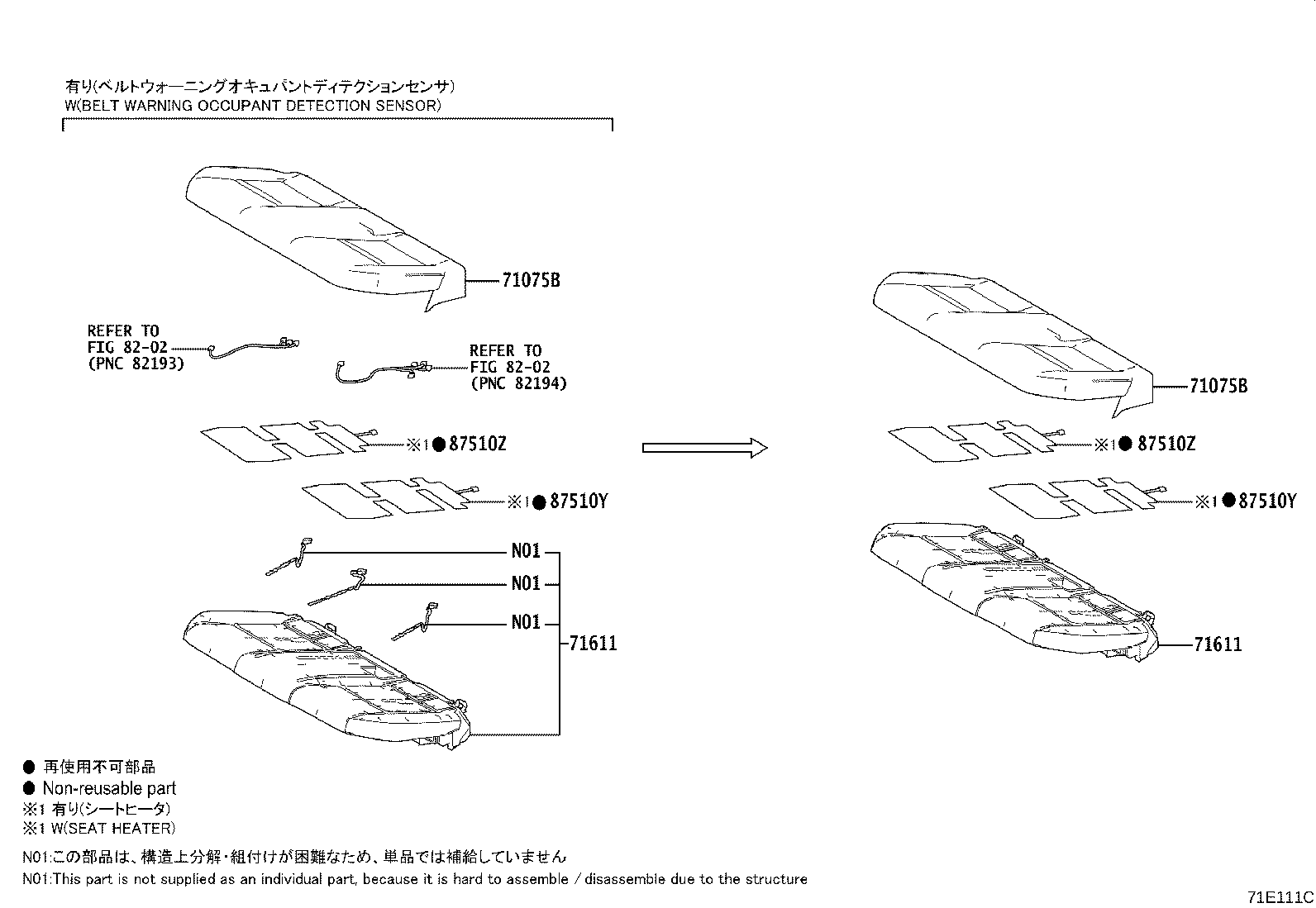

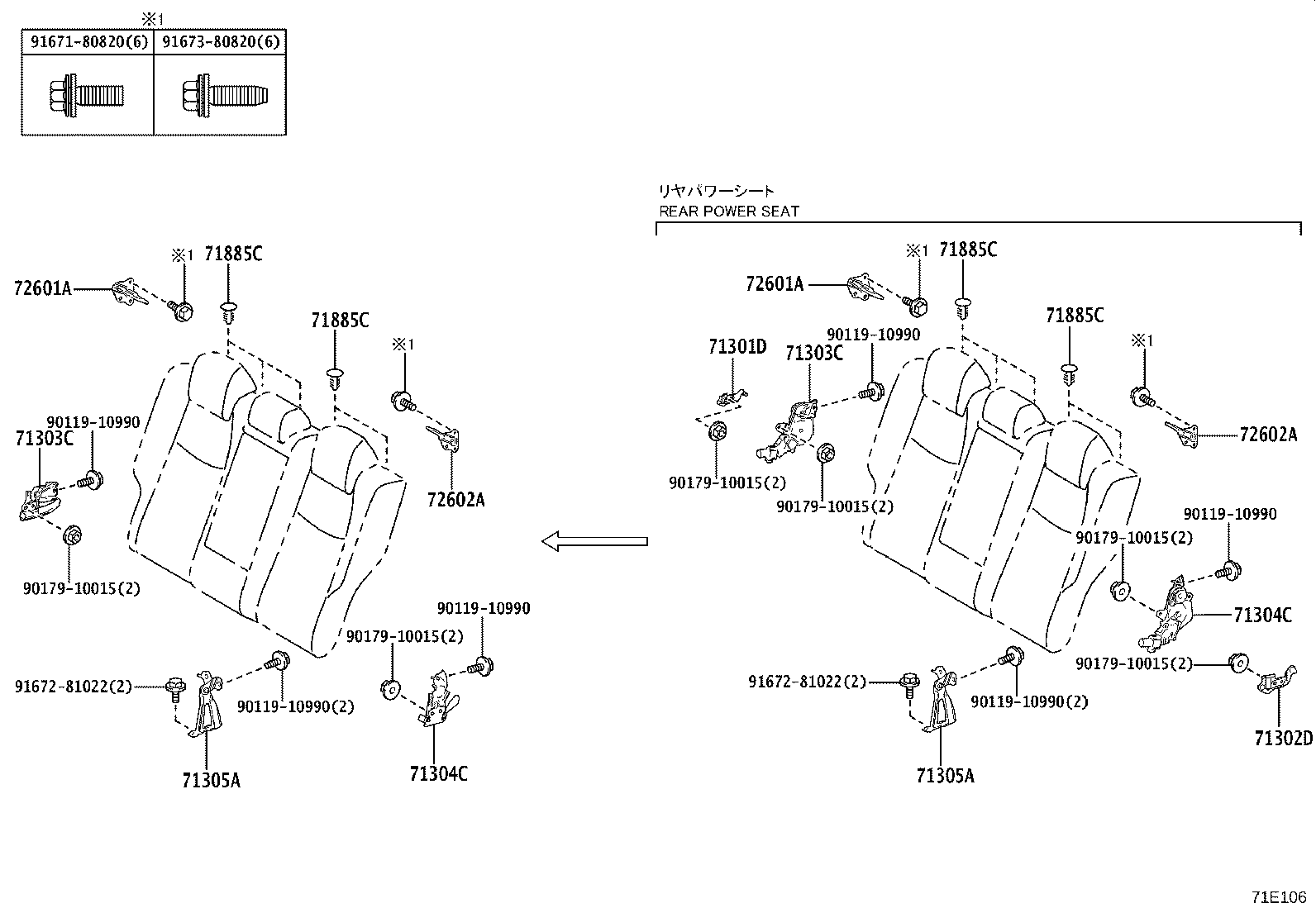

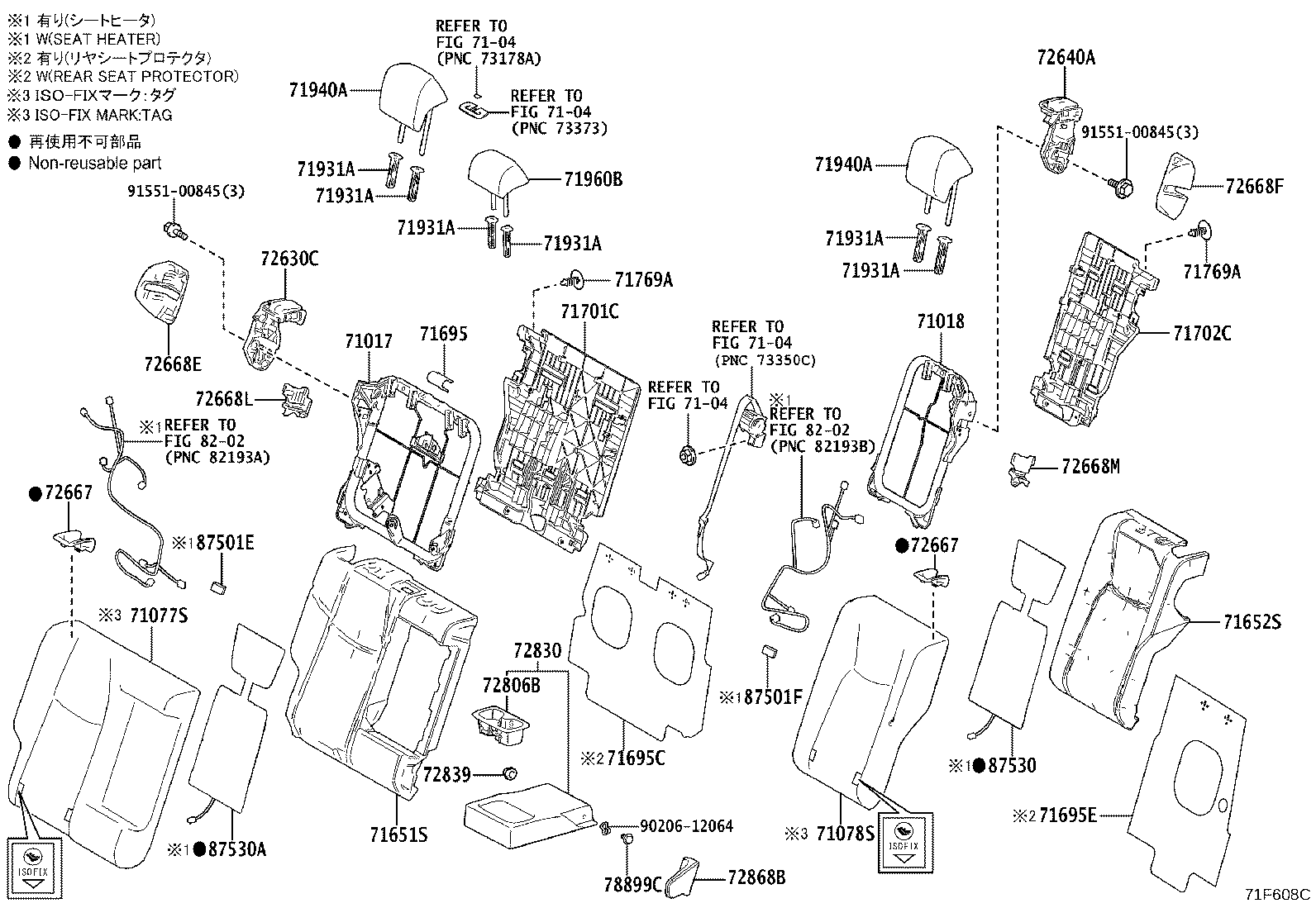

Figure 71E110C 71E110C 2021-11 → — Figure 71E111C 71E111C 2021-11 → — Figure 71E112C 71E112C 2021-11 → — Figure 71F620A 71F620A 2021-11 → 2023-01 Figure 71F620A 71F620A 2021-11 → — Figure 71F608C 71F608C 2023-01 → — Figure 71E114H 71E114H 2021-11 → 2023-01 Figure 71E114H 71E114H 2021-11 → — Figure 71F610 71F610 2023-01 → — Figure 71E115D 71E115D 2021-11 → — Figure 71E106 71E106 2021-11 → —

Part groups

PNCDescription
58441M Cover, Battery Service Hole
58464D Board, Battery Service Cover
58466K Board, Battery Service Cover, NO.2
58467J Board, Battery Service Cover, NO.3
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71033C Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH
71034B Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301D Hinge Sub-assy, Rear Seat, RH
71302D Hinge Sub-assy, Rear Seat, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71439A Clip
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71695 Protector, Rear Seatback
71695C Protector, Rear Seat, NO.1
71695E Protector, Rear Seat, NO.2
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71769A Clip, Rear Seatback Board
71848C Cap, Seat Adjuster Cover, RH
71848K Cap, Seat Adjuster Cover
71885C Clip(FOR REAR SEATBACK CARPET)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72620R Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667 Bezel, Rear Seatback Lock, Upper
72668E Bezel, Rear Seatback Lock, Lower RH
72668F Bezel, Rear Seatback Lock, Lower LH
72668L Bezel, Rear Seatback Lock, Lower RH NO.2
72668M Bezel, Rear Seatback Lock, Lower LH NO.2
72693 Hook, Rear Seat Cushion Lock
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72868B Cover, Center Armrest Hinge
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
78899C Bolt, Rear Sub Seat
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
87510Y Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z Heater Assy, Rear NO.1 Seat Cushion, RH
87530 Heater Assy, Rear NO.1 Seatback, LH
87530A Heater Assy, Rear NO.1 Seatback, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
