Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

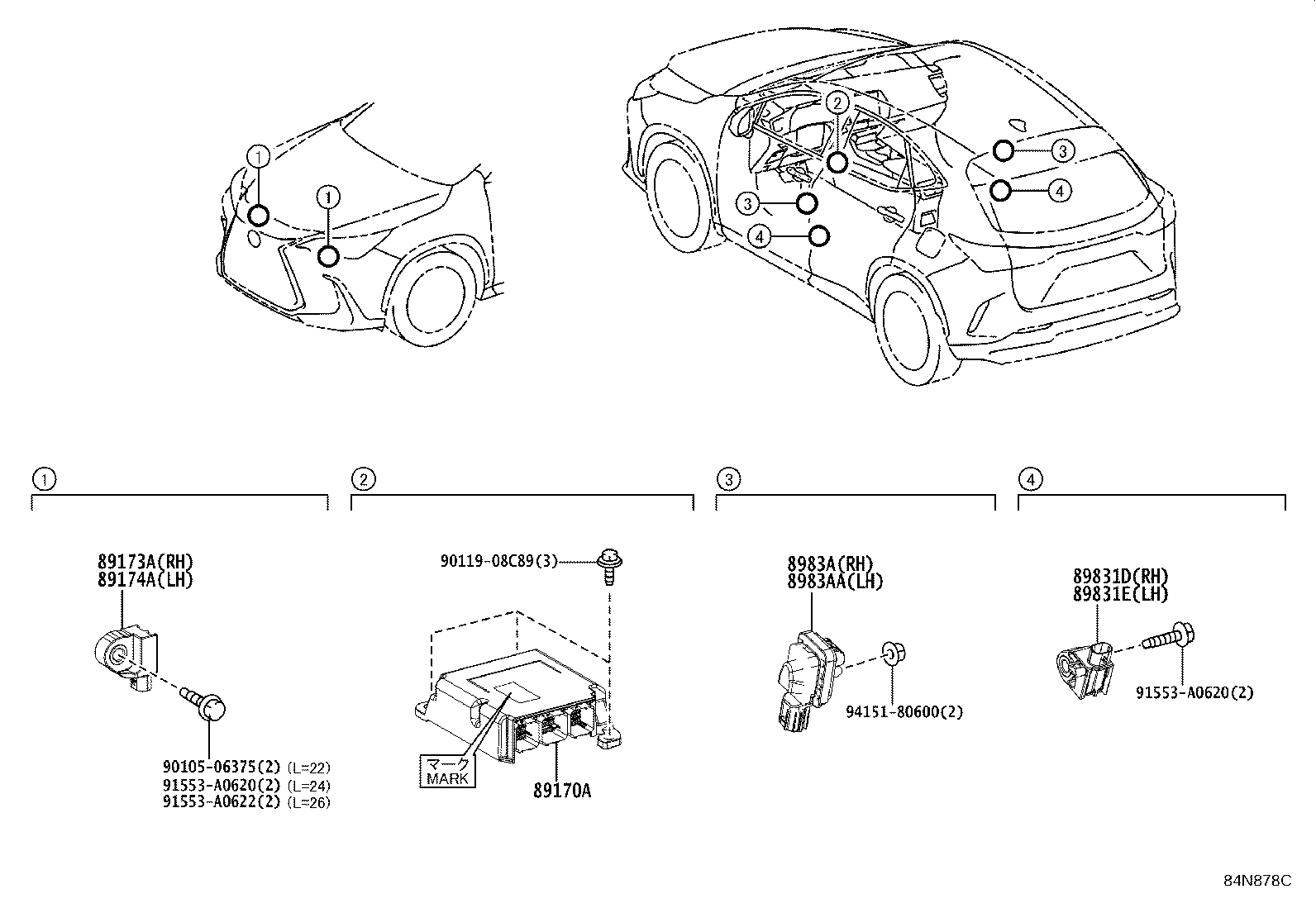

Figure 84N877C 84N877C 2021-11 → — Figure 84N878C 84N878C 2021-11 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89831D Sensor, Floor Side Airbag, RH
89831E Sensor, Floor Side Airbag, LH
8983A Sensor, Side Airbag Pressure, RH
8983AA Sensor, Side Airbag Pressure, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
