Toyota Lexus NX Series
2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe
Supported model
Data version 2024-05
Hev Inverter
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

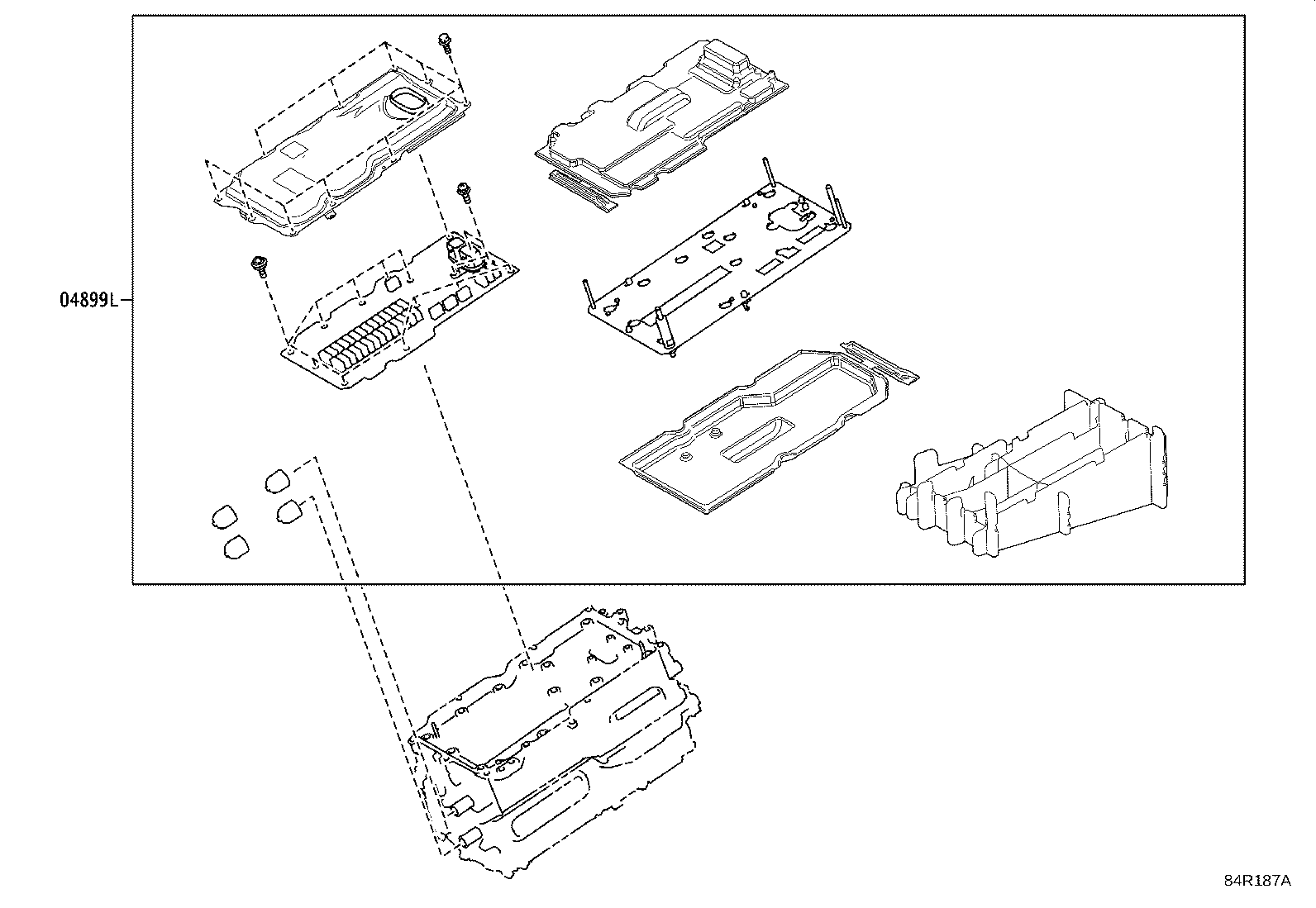

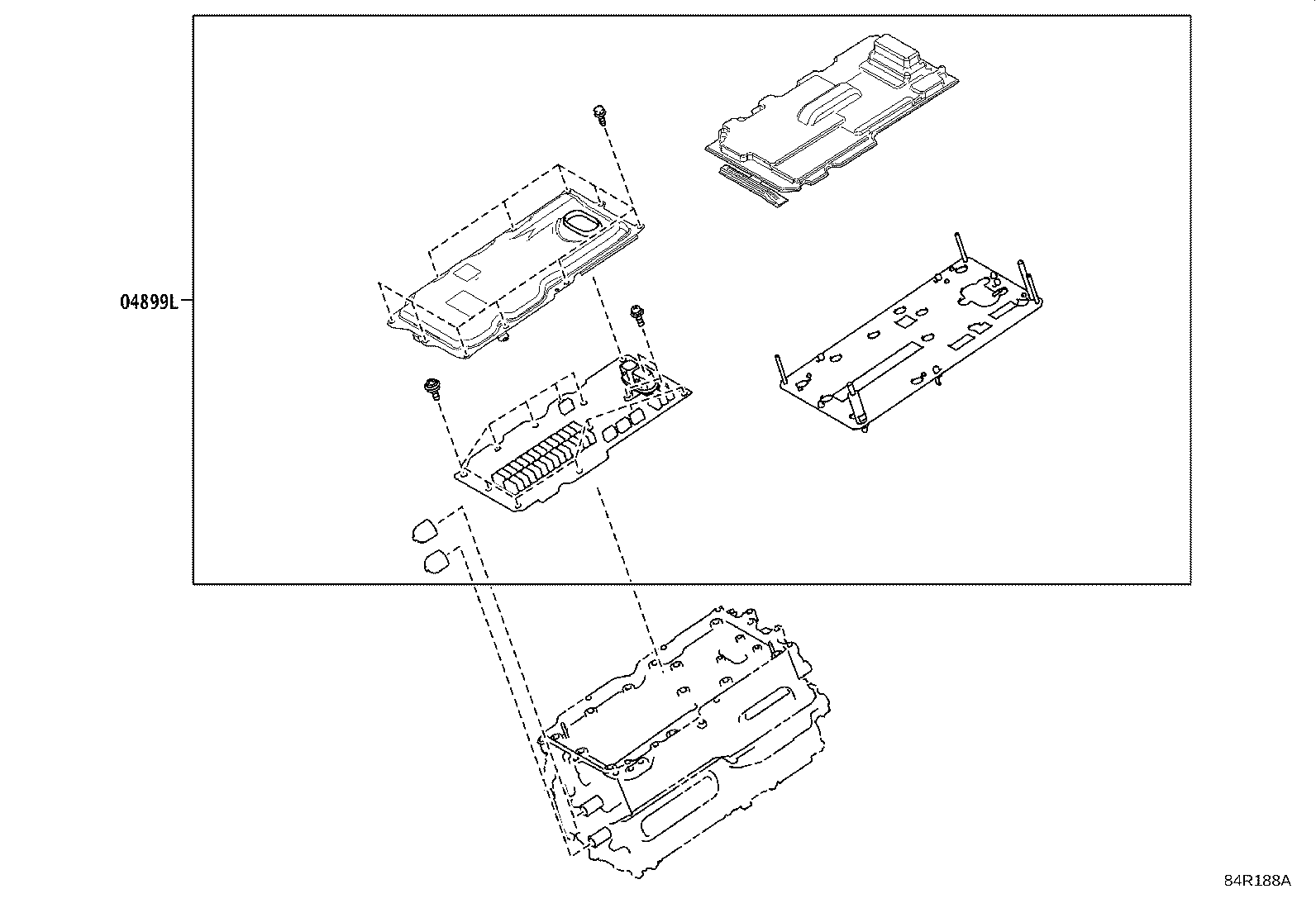

| 04899L | Computer Kit, Motor Generator Control |

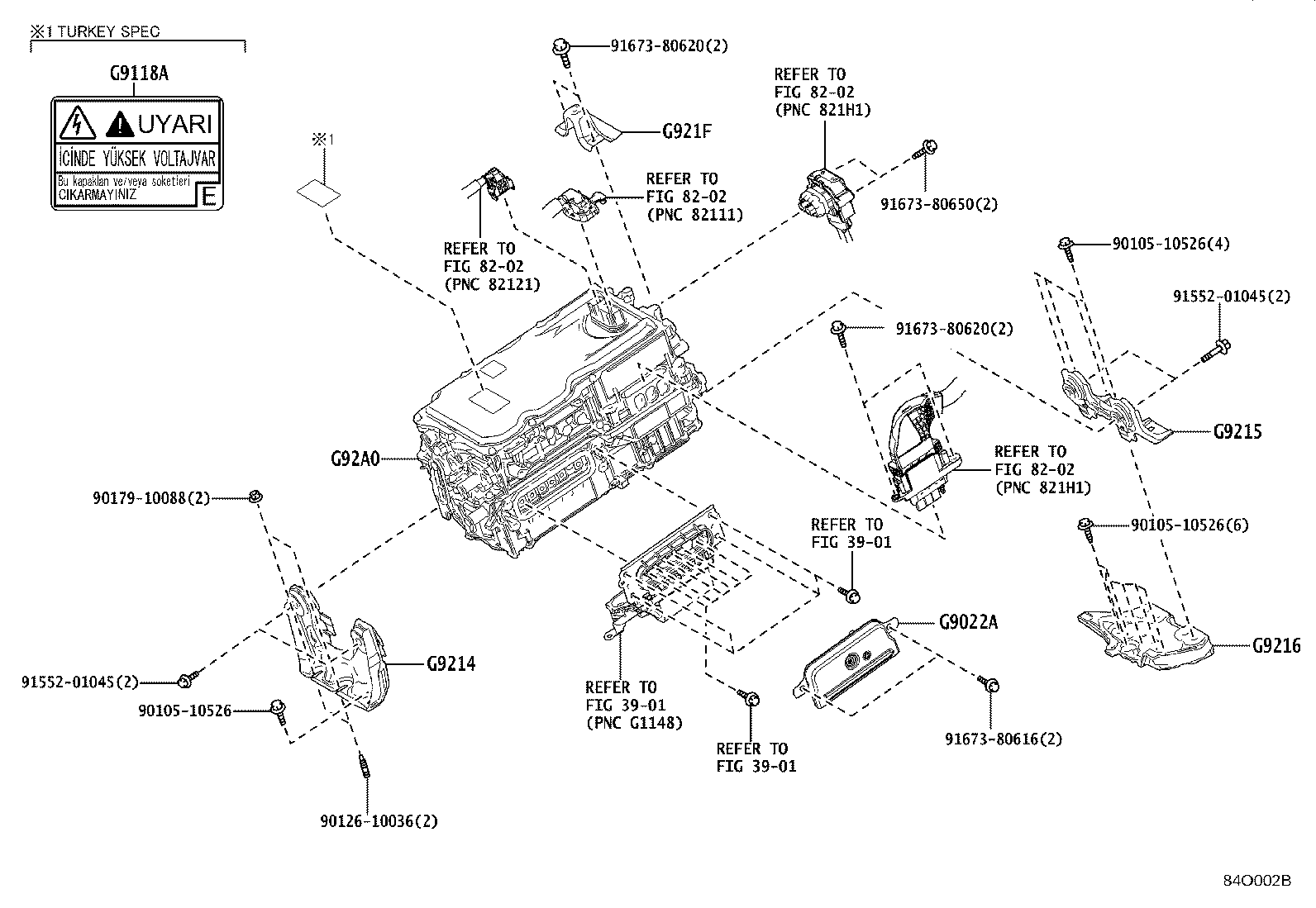

| G9022A | Cover Sub-assy, Inverter, Upper |
| G9118A | Label, HV Motor Control Inverter Caution |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G9216 | Bracket, Inverter, NO.3 |
| G921F | Protector, Inverter, NO.2 |
| G92A0 | Inverter Assy, Hybrid Motor Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
