Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

12 part groups · 6 illustrations

Illustrations

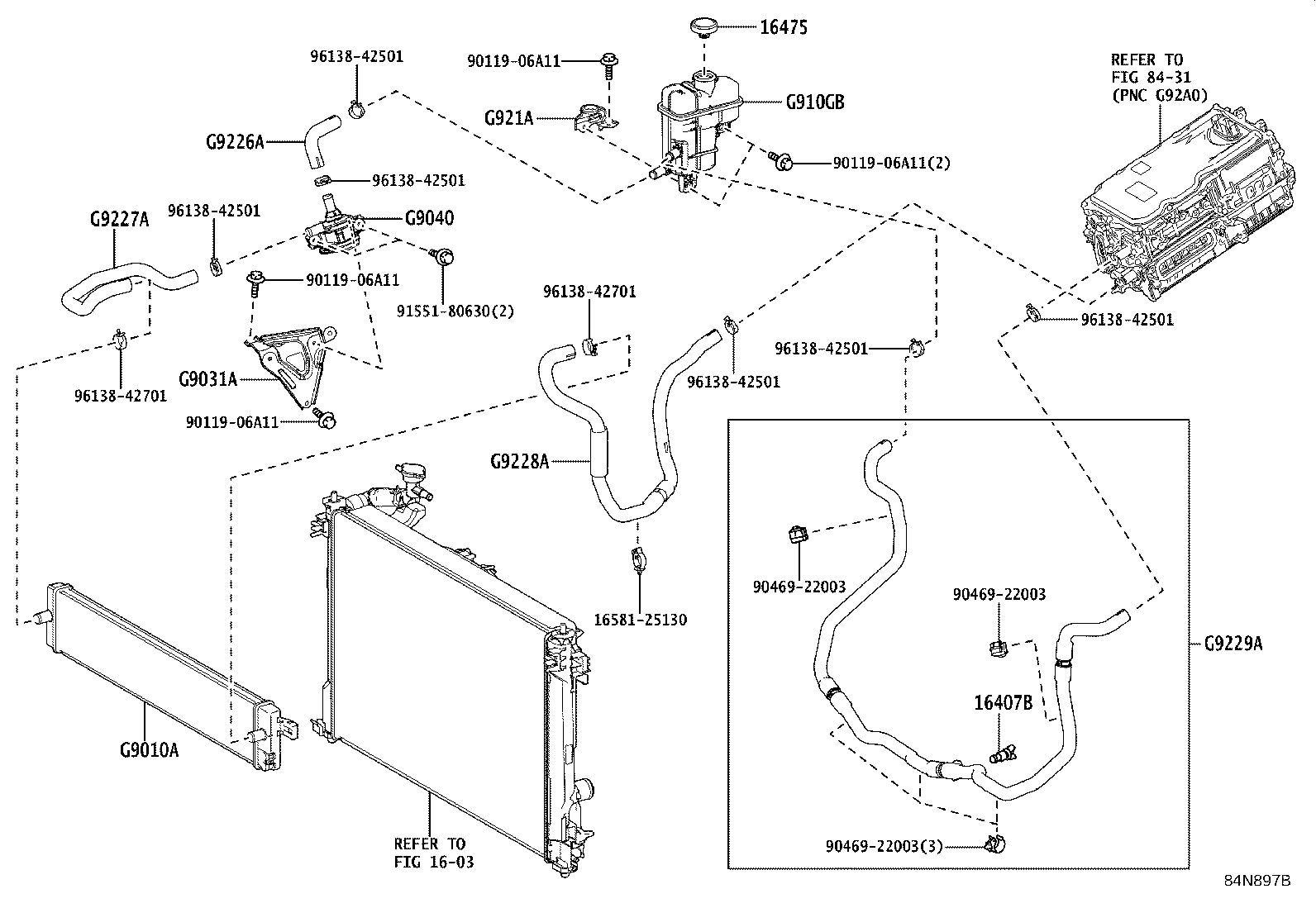

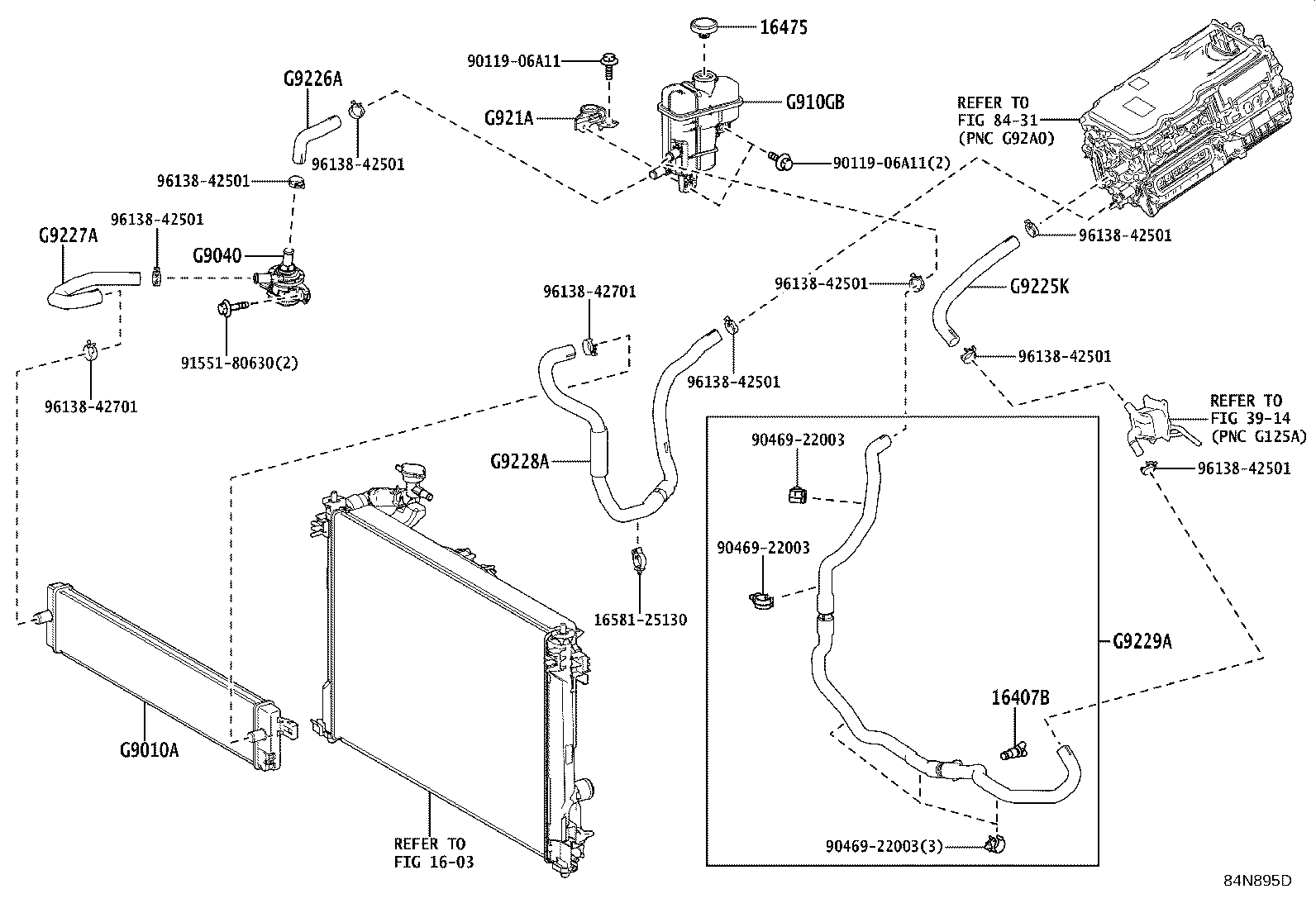

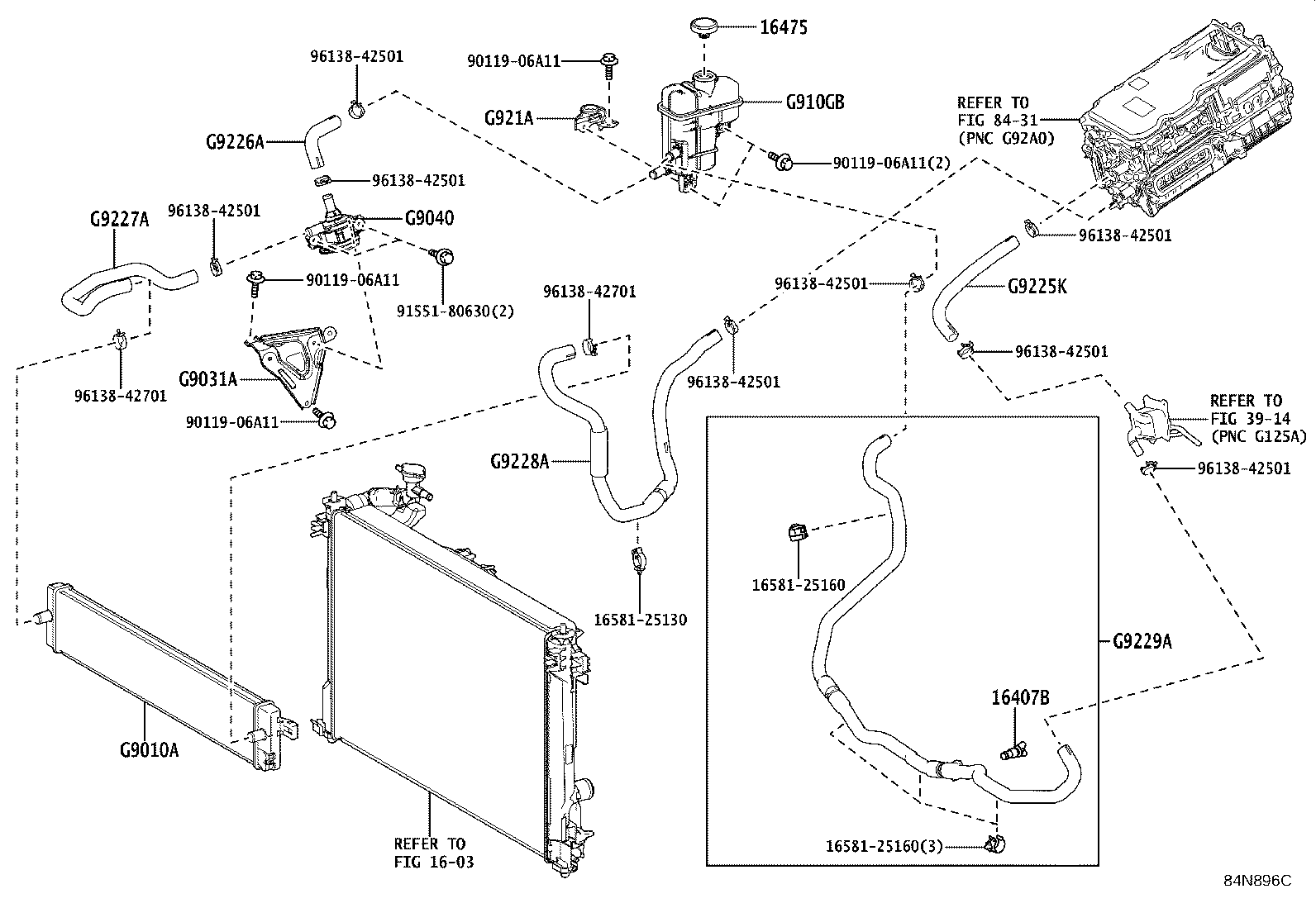

Figure 84N894B 84N894B 2021-11 → 2024-03 Figure 84N897B 84N897B 2021-11 → 2024-03 Figure 84N897B 84N897B 2024-03 → — Figure 84N896C 84N896C 2021-11 → 2024-03 Figure 84N896C 84N896C 2024-03 → — Figure 84N895D 84N895D 2021-11 → —

Part groups

PNCDescription
16407B Cock Sub-assy, Radiator Drain
16475 Cap, Reserve Tank
G9010A Radiator Assy
G9031A Bracket Sub-assy, HV Water Pump
G9040 Inverter Water Pump Assy(W/MOTOR)
G910GB Tank Sub-assy, Inverter Reserve W/O Cap
G921A Bracket, Inverter Reserve Tank, NO.1
G9225K Hose, Inverter Cooling, NO.1
G9226A Hose, Inverter Cooling, NO.2
G9227A Hose, Inverter Cooling, NO.3
G9228A Hose, Inverter Cooling, NO.4
G9229A Hose, Inverter Cooling, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
