Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

16 part groups · 2 illustrations

Illustrations

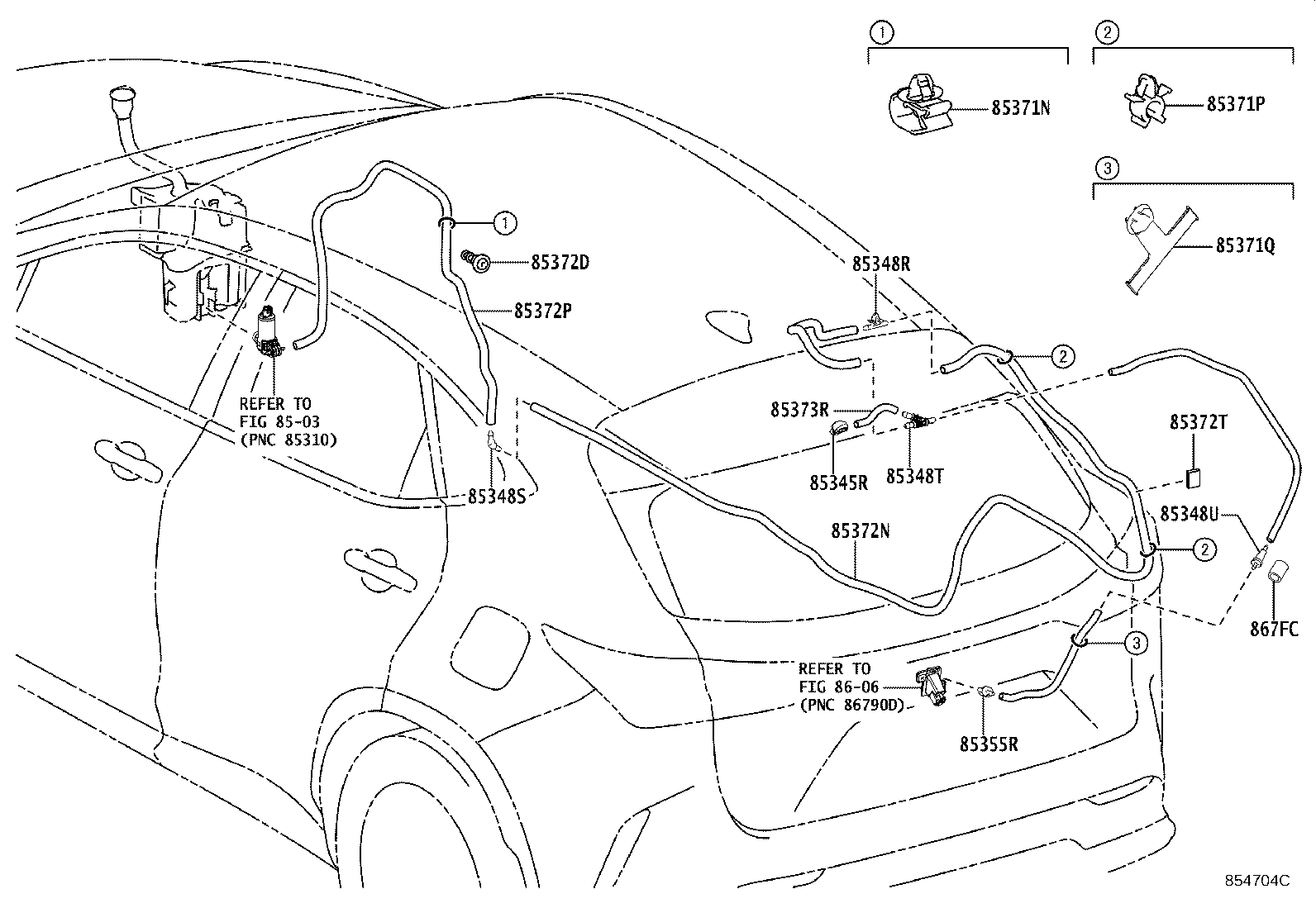

Figure 854705B 854705B 2021-11 → — Figure 854704B 854704B 2021-11 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85349K Joint, Rear Washer Elbow, NO.2
85355R Valve, Rear Washer Hose
85371N Clamp, Rear Washer Hose
85371P Clamp, Rear Washer Hose, NO.2
85371Q Clamp, Rear Washer Hose, NO.3
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372T Grommet, Washer
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
867FC Cushion, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
