Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 3 illustrations

Illustrations

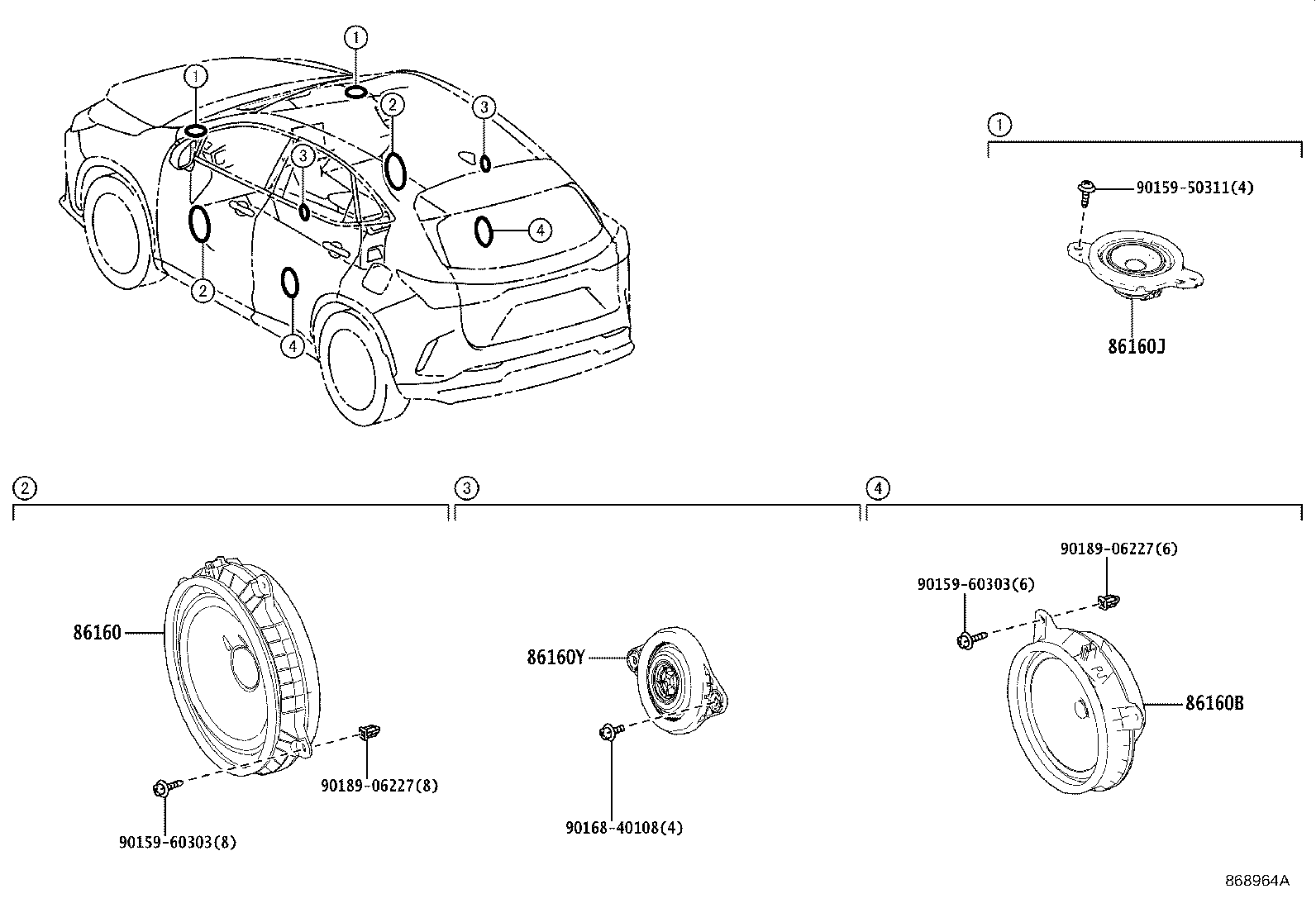

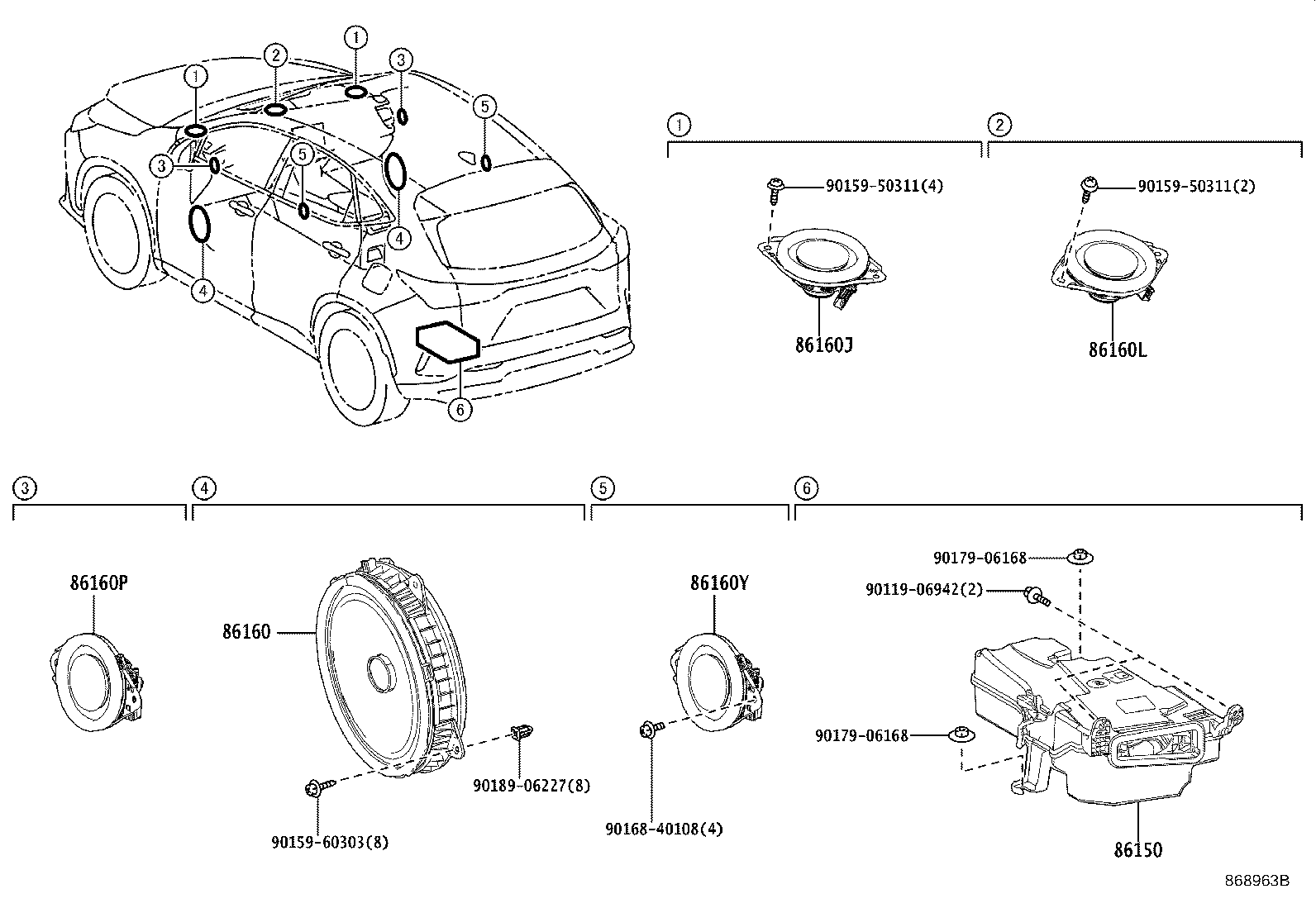

Figure 868962B 868962B 2021-11 → — Figure 868963B 868963B 2021-11 → — Figure 868964A 868964A 2022-01 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
