Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 2 illustrations

Illustrations

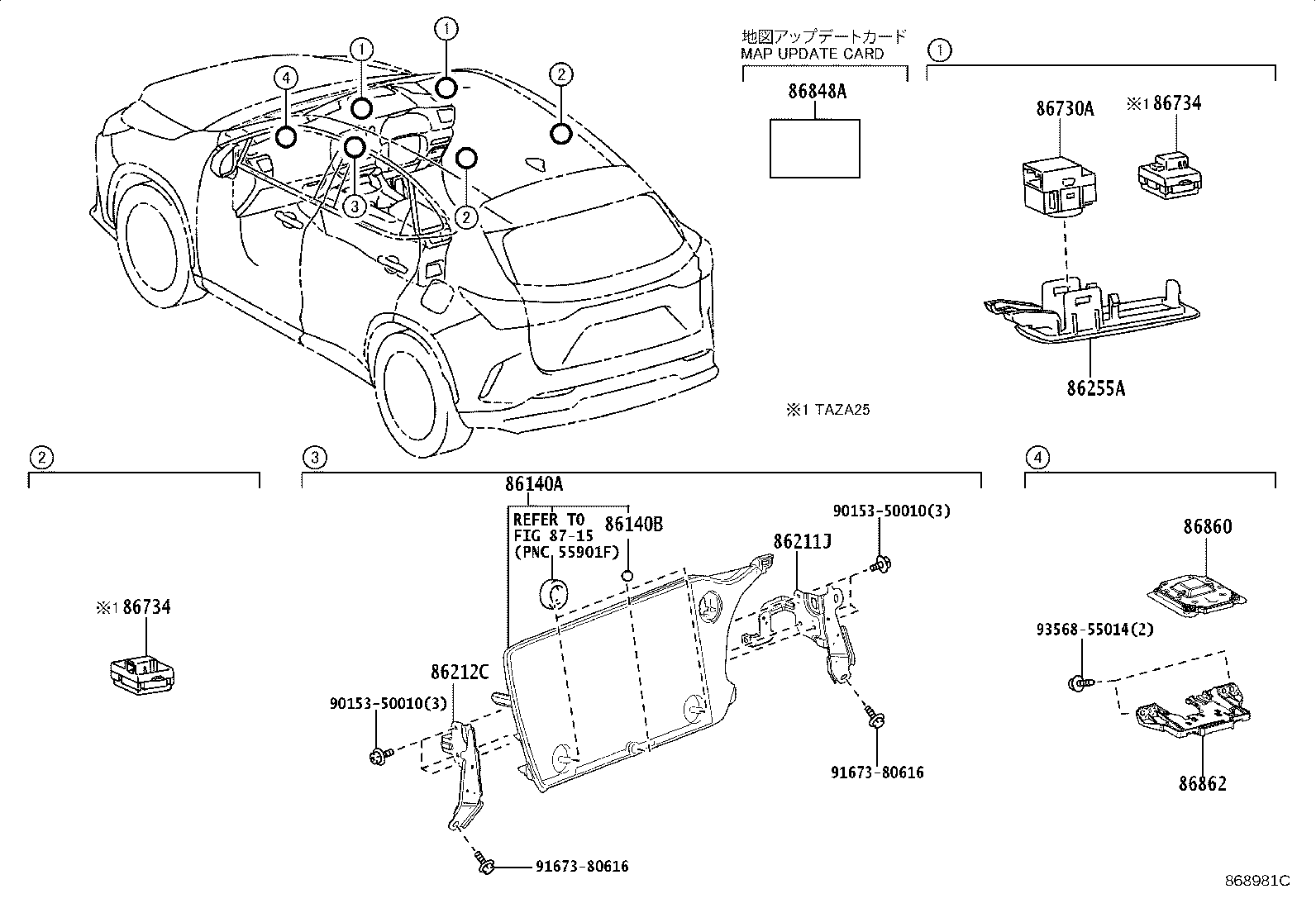

Figure 868980C 868980C 2021-11 → — Figure 868981C 868981C 2021-11 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
