Toyota Lexus NX Series

2021-11 → present · chassis AAZA2#,AAZH2#,MAZA20,TAZA25 · catalogue 527220 · Europe

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

9 part groups · 2 illustrations

Illustrations

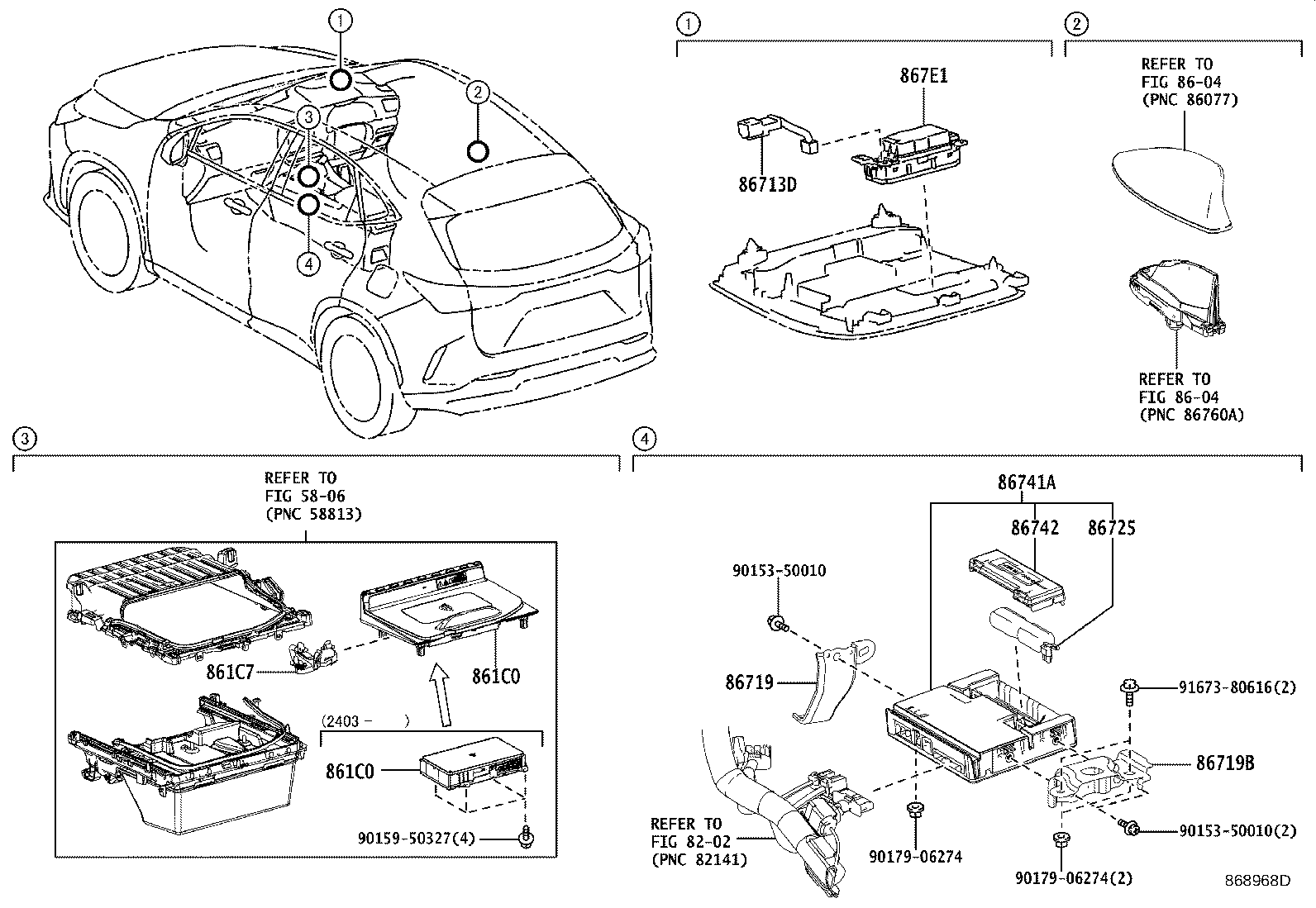

Figure 868967D 868967D 2021-11 → — Figure 868968D 868968D 2021-11 → —

Part groups

PNCDescription
861C0 Cradle Assy, Mobile Wireless Charger
861C7 Cord, Mobile Wireless Charger
86713D Wire, Mayday
86719 Bracket, Telephone
86719B Bracket, Telephone NO.2
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742 Cover, Transceiver
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
