Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527510 · Europe
Supported model
Data version 2022-11

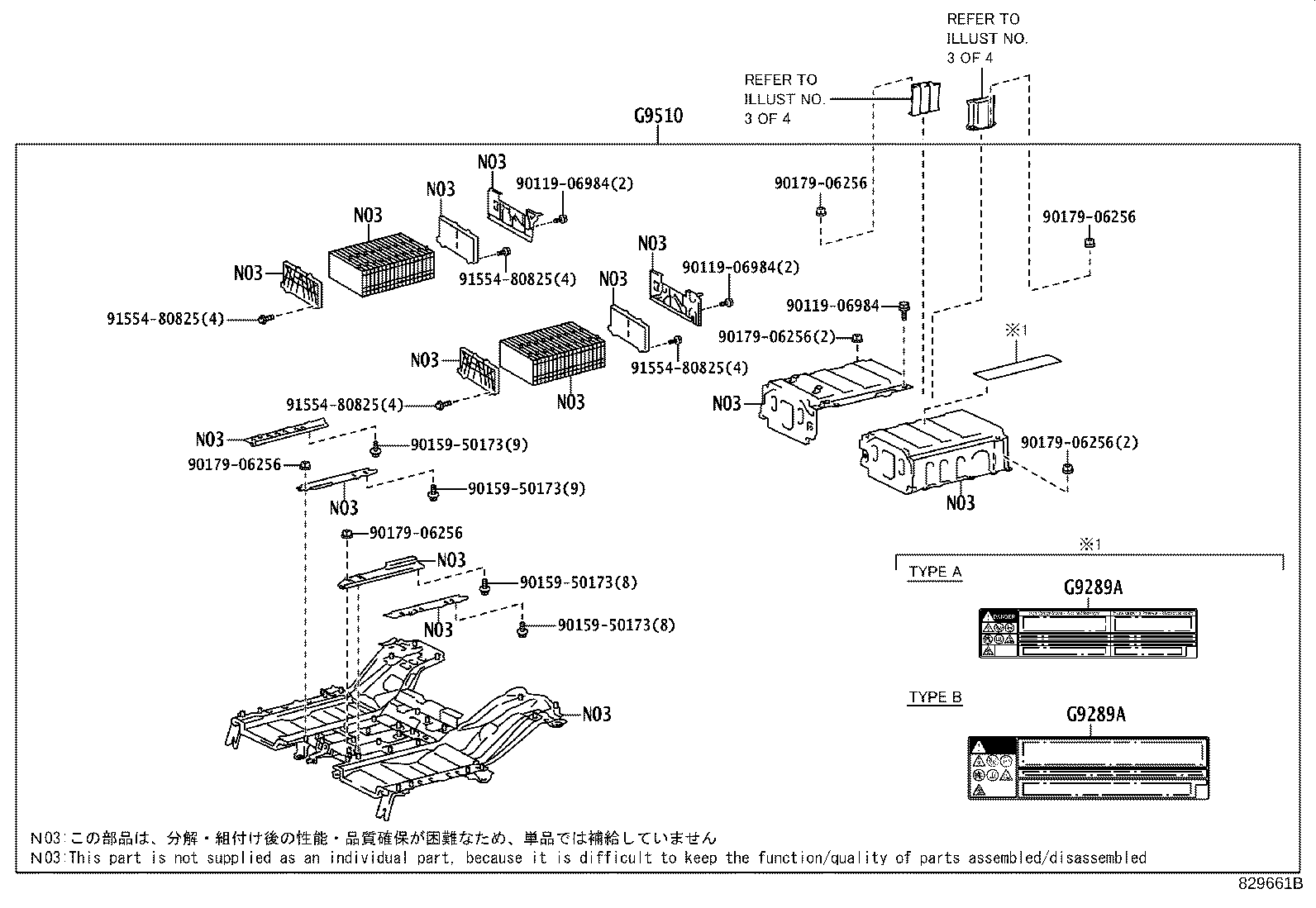

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G9289A — Label, Battery Caution | ||||
| G9288-48040 note |
Label, Battery Caution
2014-07 → 2017-09
ended
|
AYZ1# | — | |
| G9288-76020 note |
Label, Battery Caution
2014-07 → 2017-09
ended
|
AYZ1# LHD L | — | |
| G9288-48040 note |
Label, Battery Caution
2017-09 → —
|
AYZ1# | — | |
| G9288-76020 note |
Label, Battery Caution
2019-05 → 2020-07
ended
|
AYZ15 LHD | — | |
| G9288-76020 note |
Label, Battery Caution
2017-09 → —
|
AYZ1# LHD L | — | |
| G9288-76020 note |
Label, Battery Caution
2017-09 → —
|
AYZ15 LHD | — | |
| G9288-76020 note |
Label, Battery Caution
2020-07 → —
|
AYZ15 LHD | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-42010 note |
Battery Assy, HV Supply
2016-07 → 2017-09
ended
|
AYZ15 RHD | — | |
| G9510-48080 |
Battery Assy, HV Supply
2014-07 → 2017-09
ended
|
AYZ1# | — | |
| G9510-42010 note |
Battery Assy, HV Supply
2018-10 → 2019-04
ended
|
AYZ15 LHD | — | |
| G9510-42010 note |
Battery Assy, HV Supply
2017-09 → 2019-10
ended
|
AYZ15 RHD | — | |
| G9510-42010 note |
Battery Assy, HV Supply
2019-05 → 2019-10
ended
|
AYZ15 LHD | — | |
| G9510-48080 |
Battery Assy, HV Supply
2017-09 → —
|
AYZ1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
