Toyota Lexus NX Series
2014-07 → 2021-09 · chassis AGZ1#,AYZ1#,ZGZ1# · catalogue 527510 · Europe
Supported model
Data version 2022-11

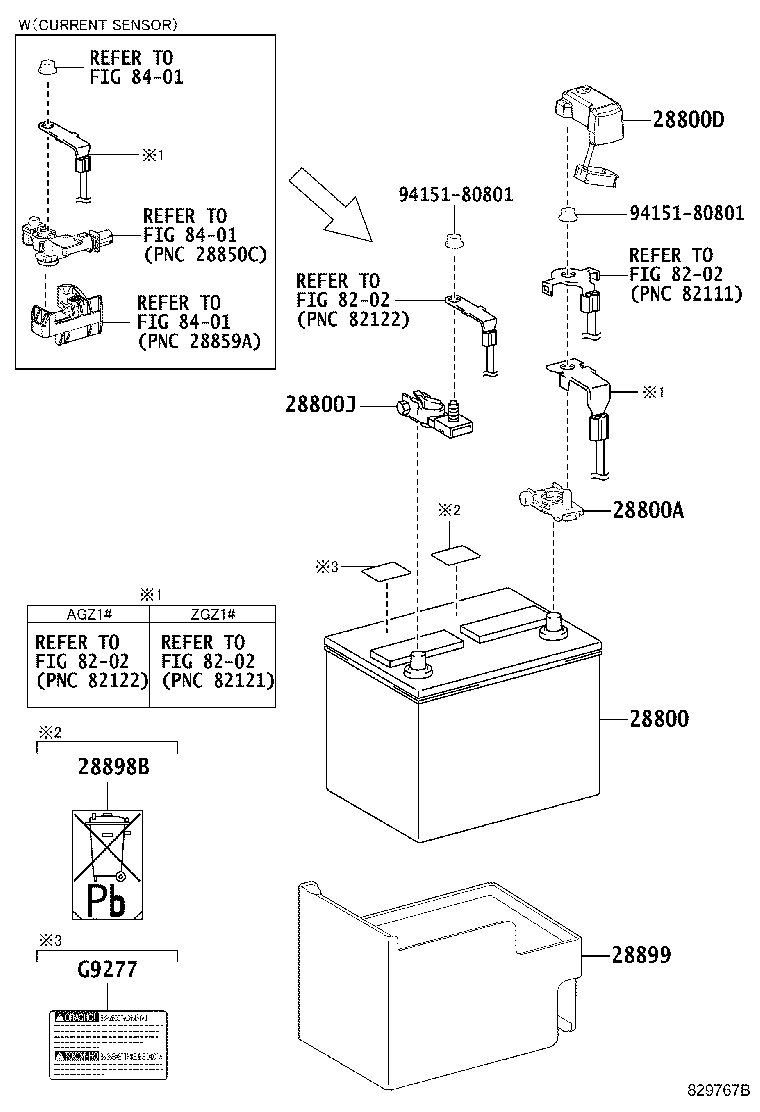

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-36110 note |
Battery
2014-10 → 2017-09
ended
|
3ZRFAE ZGZ1# | — | |
| 28800-36110 note |
Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# LHD | — | |
| 28800-36130 note |
Battery
2014-07 → 2015-07
ended
|
2ARFXE AYZ1# | — | |
| 28800-36131 note |
Battery
2015-07 → 2017-09
ended
|
2ARFXE AYZ1# | — | |
| 28800-38080 note |
Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# | — | |
| 28800-36110 note |
Battery
2017-09 → 2020-07
ended
|
8ARFTS AGZ1# | — | |
| 28800-36110 note |
Battery
2017-09 → —
|
3ZRFAE ZGZ1# | — | |
| 28800-36131 note |
Battery
2017-09 → —
|
2ARFXE AYZ1# | — | |
| 28800-38080 note |
Battery
2017-09 → —
|
8ARFTS AGZ1# | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05056 |
Terminal, Battery Positive
2014-07 → 2017-09
ended
|
2ARFXE AYZ1# | — | |
| 90982-05062 |
Terminal, Battery Positive
2014-10 → 2017-09
ended
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| 90982-05056 |
Terminal, Battery Positive
2017-09 → —
|
2ARFXE AYZ1# | — | |
| 90982-05062 |
Terminal, Battery Positive
2017-09 → —
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-33360 |
Cover, Connector(FOR BATTERY TERMINAL)
2014-10 → 2017-09
ended
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| 82821-78010 |
Cover, Connector(FOR BATTERY TERMINAL)
2014-07 → 2017-09
ended
|
2ARFXE AYZ1# | — | |
| 82821-33360 |
Cover, Connector(FOR BATTERY TERMINAL)
2017-09 → —
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| 82821-78010 |
Cover, Connector(FOR BATTERY TERMINAL)
2017-09 → —
|
2ARFXE AYZ1# | — | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06070 |
Terminal, Battery Negative
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# | — | |
| 90982-06070 |
Terminal, Battery Negative
2017-09 → —
|
8ARFTS AGZ1# | — | |
| 28898B — Plate, Battery | ||||
| 28898-46020 note |
Plate, Battery
2017-01 → 2017-09
ended
|
2ARFXE AYZ15 LHD | — | |
| 28898-46020 note |
Plate, Battery
2017-01 → 2017-09
ended
|
2ARFXE AYZ1# LHD L | — | |
| 28898-46020 note |
Plate, Battery
2017-01 → 2017-09
ended
|
2ARFXE AYZ1# LHD L | — | |
| 28898-46020 |
Plate, Battery
2017-01 → 2017-09
ended
|
2ARFXE AYZ1# | — | |
| 28898-46020 note |
Plate, Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# LHD | — | |
| 28898-46020 note |
Plate, Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# LHD | — | |
| 28898-46020 note |
Plate, Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ15 LHD | — | |
| 28898-46020 |
Plate, Battery
2014-10 → 2017-09
ended
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| 28898-46020 note |
Plate, Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# LHD | — | |
| 28898-46020 note |
Plate, Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ1# LHD | — | |
| 28898-46020 note |
Plate, Battery
2014-12 → 2017-09
ended
|
8ARFTS AGZ15 LHD | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2019-08
ended
|
8ARFTS AGZ1# | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2021-09
ended
|
3ZRFAE ZGZ10 | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2021-09
ended
|
8ARFTS AGZ1# | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2021-09
ended
|
8ARFTS AGZ15 | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2021-09
ended
|
8ARFTS AGZ15 | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2021-09
ended
|
8ARFTS AGZ15 | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → 2021-09
ended
|
8ARFTS AGZ15 | — | |
| 28898-46020 |
Plate, Battery
2017-09 → —
|
2ARFXE,8ARFTS,3ZRFAE AGZ1#,AYZ1#,ZGZ1# | — | |
| 28898-46020 note |
Plate, Battery
2017-09 → —
|
3ZRFAE ZGZ15 | — | |
| 28899 — Insulator, Battery | ||||
| 28899-36050 |
Insulator, Battery
2014-07 → 2017-09
ended
|
2ARFXE AYZ1# | — | |
| 28899-36060 |
Insulator, Battery
2014-10 → 2017-09
ended
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| 28899-36050 |
Insulator, Battery
2017-09 → —
|
2ARFXE AYZ1# | — | |
| 28899-36060 |
Insulator, Battery
2017-09 → —
|
8ARFTS,3ZRFAE AGZ1#,ZGZ1# | — | |
| G9277 — Label, Battery Caution, NO.2 | ||||
| 28897-31040 note |
Label, Battery Caution, NO.2
2014-07 → 2015-09
ended
|
AGZ15,AYZ15 LHD | — | |
| 28897-31040 note |
Label, Battery Caution, NO.2
2014-07 → 2017-09
ended
|
AGZ1#,AYZ1# LHD L | — | |
| 28897-31040 |
Label, Battery Caution, NO.2
2014-10 → 2017-09
ended
|
ZGZ1# | — | |
| 28897-31040 note |
Label, Battery Caution, NO.2
2017-09 → 2018-03
ended
|
AYZ1# LHD L | — | |
| 28897-31040 note |
Label, Battery Caution, NO.2
2017-09 → 2018-03
ended
|
AYZ15 LHD | — | |
| 28897-31040 note |
Label, Battery Caution, NO.2
2017-09 → 2018-02
ended
|
AGZ15 | — | |
| 28897-31040 note |
Label, Battery Caution, NO.2
2017-09 → 2018-02
ended
|
ZGZ1# | — | |
| 28897-31040 note |
Label, Battery Caution, NO.2
2017-09 → 2018-02
ended
|
AGZ1# | — | |
| 28897-31040 |
Label, Battery Caution, NO.2
2017-09 → 2018-02
ended
|
ZGZ1# | — | |
| 28897-38070 note |
Label, Battery Caution, NO.2
2019-05 → 2020-07
ended
|
AGZ15,AYZ15 LHD | — | |
| 28897-38070 note |
Label, Battery Caution, NO.2
2018-03 → 2021-09
ended
|
ZGZ10 | — | |
| 28897-38070 |
Label, Battery Caution, NO.2
2018-03 → —
|
ZGZ1# | — | |
| 28897-38070 note |
Label, Battery Caution, NO.2
2018-03 → —
|
AGZ1#,AYZ1# LHD L | — | |
| 28897-38070 note |
Label, Battery Caution, NO.2
2018-03 → —
|
ZGZ15 | — | |
| 28897-38070 note |
Label, Battery Caution, NO.2
2018-03 → —
|
AGZ15,AYZ15 LHD | — | |
| 28897-38070 note |
Label, Battery Caution, NO.2
2020-07 → —
|
AGZ15,AYZ15 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
