Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe
Supported model
Data version 2023-12

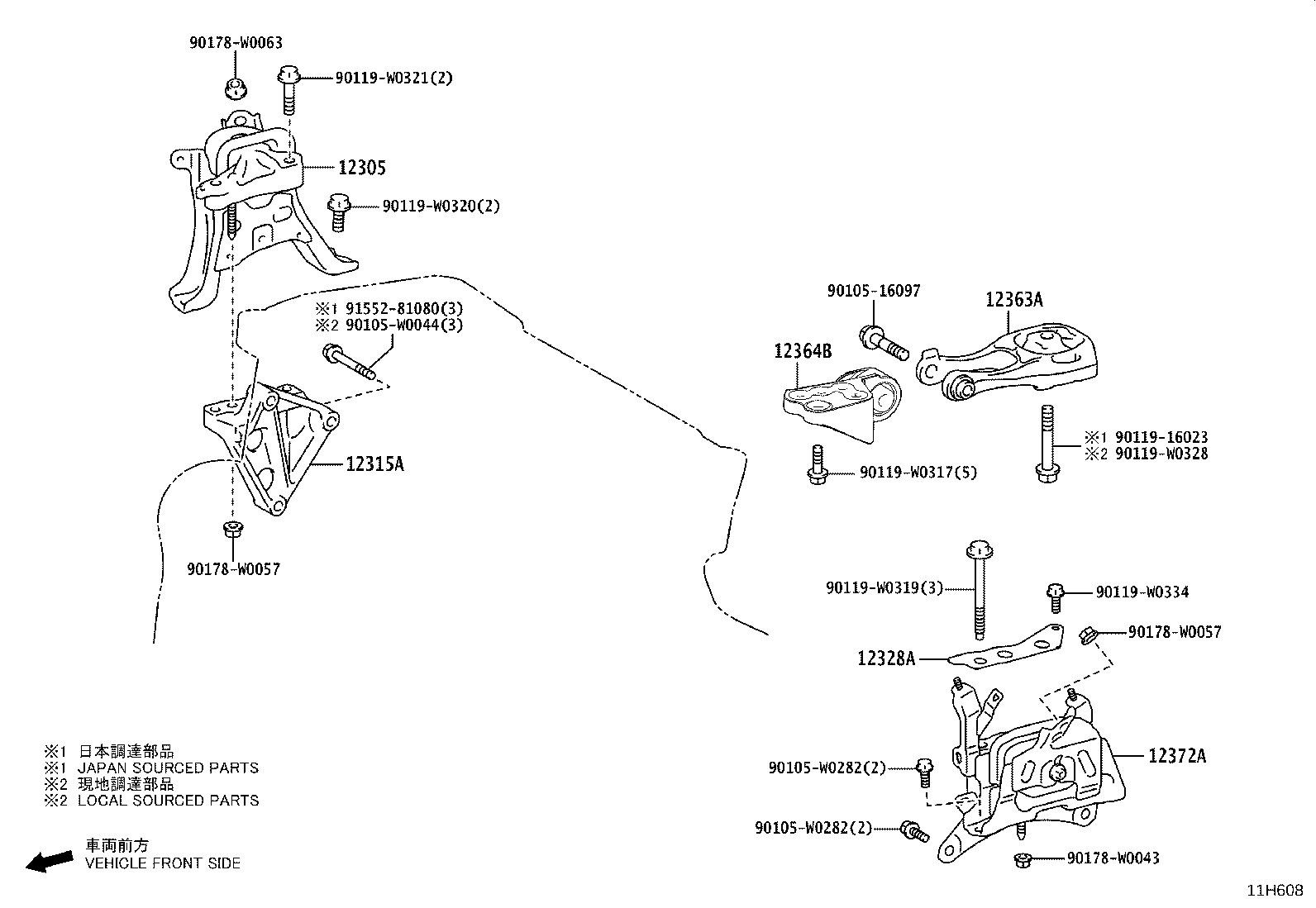

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-0T420 |
Insulator Sub-assy, Engine Mounting, RH
2023-10 → —
|
2ZR ZYX20 | — | |
| 12305-F2130 |
Insulator Sub-assy, Engine Mounting, RH
2023-10 → —
|
M20 MAXH20,25 | — | |
| 12305-F2140 |
Insulator Sub-assy, Engine Mounting, RH
2024-01 → —
|
M20 MAXH21 | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37070 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2023-10 → —
|
2ZR ZYX20 | — | |
| 12315-F2041 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2023-10 → —
|
M20 MAXH2# | — | |
| 12328A — Stay, Engine Mounting, NO.2 LH | ||||
| 12328-0T050 |
Stay, Engine Mounting, NO.2 LH
2023-10 → —
|
2ZR ZYX20 | — | |
| 12328-F2070 |
Stay, Engine Mounting, NO.2 LH
2023-10 → —
|
M20 MAXH2# | — | |
| 12363A — Rod, Engine Moving Control | ||||
| 12363-0T060 |
Rod, Engine Moving Control
2023-10 → —
|
2ZR ZYX20 | — | |
| 12363-F2080 |
Rod, Engine Moving Control
2023-10 → —
|
M20 MAXH2# | — | |
| 12364B — Rod, Engine Moving Control, NO.2 | ||||
| 12364-F2090 |
Rod, Engine Moving Control, NO.2
2023-10 → —
|
2ZR ZYX20 | — | |
| 12364-F2090 |
Rod, Engine Moving Control, NO.2
2023-10 → —
|
M20 MAXH2# | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T680 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2023-10 → —
|
2ZR ZYX20 | — | |
| 12372-F2040 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2023-10 → —
|
M20 MAXH2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
